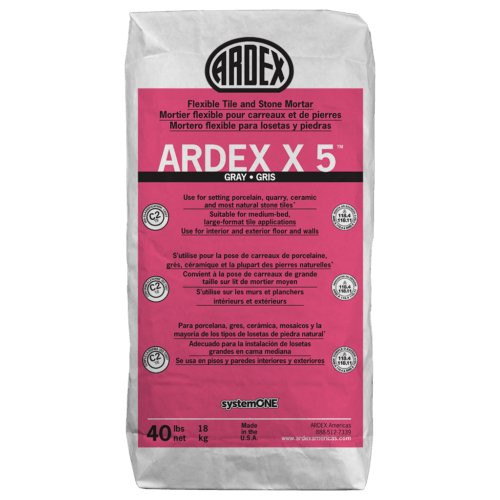

ARDEX X5™ Mortar, 64 Piece Pallet - TileTools

ARDEX X5™ Mortar, 64 Piece Pallet

SKU
by Ardex
$1,733.12 - $1,972.48
$1,733.12
$1,733.12 - $1,972.48
$1,733.12

Freight Delivery Info

This item qualifies for free freight shipping.

Delivery is available to commercial addresses with loading docks or forklifts.

Residential deliveries may incur additional charges.

Click here to view our freight policies

Choose a Color

Take Your Tiling to the Next Level with ARDEX X 5™ Tile and Stone Mortar, 64 X 40lb Bag Pallet

Enhance the quality and ease of your tiling projects with ARDEX X 5™ Tile and Stone Mortar, designed for superior flexibility, sag resistance, and lasting performance.

Features

  • Highly Flexible Mortar: Ideal for a variety of tiling applications.
  • Broad Tile Compatibility: Perfect for porcelain, quarry, ceramic, and most natural stone tiles.
  • Suitable for Multiple Surfaces: Effective on interior surfaces, exterior-grade plywood, and masonry.
  • Excellent Sag Resistance: Ensures stability and consistency in tile placement.
  • Creamy Consistency: Simplifies application, providing smooth, even coverage.
  • Extended Pot Life: Offers 3 hours for adjustments and application.
  • Water and Frost Resistant: Ideal for both indoor and outdoor environments.
  • Polymer-Modified Formula: Enhances bonding and durability.
  • Large Coverage Potential: Suitable for large-scale tiling projects.
  • Professional-Grade Quality: Trusted by experts for reliable results.

Standards

  • SystemOne
  • Meets or exceeds ANSI 118.4
  • Meets or exceeds ANSI 118.11
  • ISO Classification: C2TE

Installation

Mixing Ratio:

6 – 7 quarts (5.68 – 6.6 L) of water per 40 lb. (18 kg) bag

*For smaller batches, use 2.25 parts powder to 1 part water by volume
Example:, if you want to use 2.25 cups of powdered mortar adhesive, you should mix it with 1 cup of water

Approximate Coverage per 40 lb. (18 kg) bag:

1/4” x 1/4” x 1/4″ Sq. Notch Trowel; 80-90 sq. ft. (7.8-8.3 sq. m)

1/4” x 3/8” x 1/4” Sq. Notch Trowel; 60 sq. ft. (5.5 sq. m)

1/2” x 1/2” x 1/2″ Sq. Notch Trowel; 40 sq. ft. (3.7 sq. m)

Performance

  • Open Time: Up to 10 – 15 minutes
  • Pot Life: Approx. 3 hours
  • Working Time: Approx. 15 – 20 minutes
  • Time to Grout: Walls: 8 hours; Floors: 24 hours
  • Colors: Gray, White
  • VOC: 0
  • Packaging: 40 lb. (18 kg) bag
  • Storage: Store in a cool, dry area. Do not leave bags exposed to sun.
  • Shelf Life: 1 year, if unopened
  • Warranty: ARDEX L.P. Standard Limited Warranty applies. Also eligible for the ARDEX SystemOne™ Warranty when used in conjunction with ARDEX grouts and ARDEX caulks.
More Details

ARDEX X 5™ Tile and Stone Mortar represents a new standard in tiling excellence, offering unparalleled versatility and performance for professionals. This highly flexible mortar is specially formulated to set porcelain, quarry, ceramic, and most natural stone tiles, making it a perfect fit for a wide range of tiling projects. Whether applying tiles to common interior surfaces, exterior-grade plywood, or exterior concrete and masonry surfaces, ARDEX X 5™ delivers exceptional results. Its polymer-modified composition ensures superior sag resistance, maintaining tile position flawlessly during installation. The creamy, easy-to-apply consistency of ARDEX X 5™ not only eases the application process but also ensures a smooth, uniform coverage across surfaces. With a 3-hour pot life, it provides ample time for adjustments, catering to the dynamic needs of tiling professionals. Additionally, its water and frost-resistant properties make it a robust choice for both indoor and outdoor applications. This mortar's quality and performance are designed to meet the high demands of professional tile installers, ensuring that every tiling project is executed with precision, strength, and lasting beauty.

What's Included
  • 64 Piece Pallet
