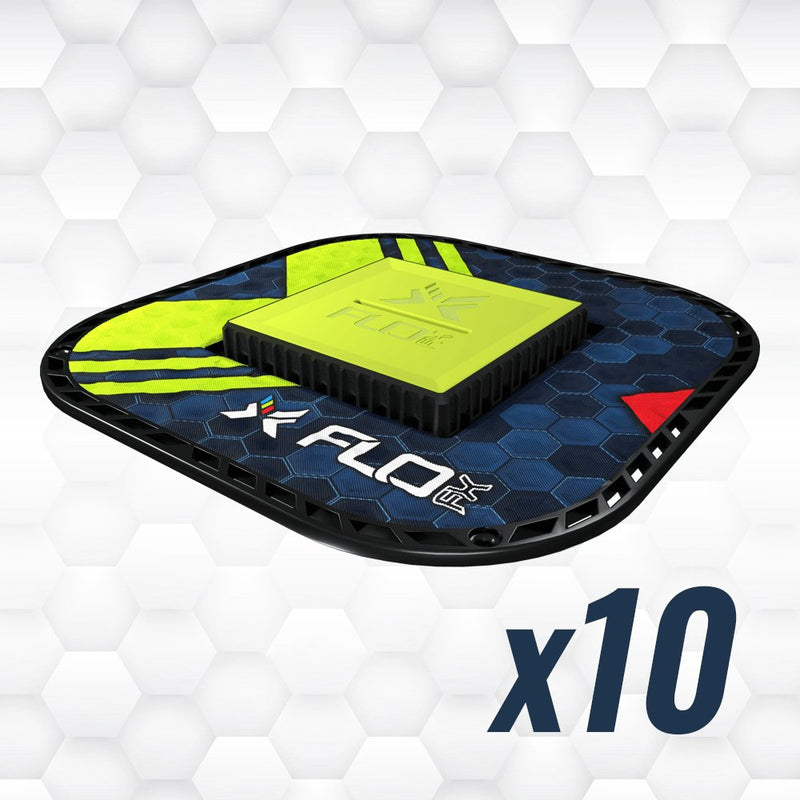

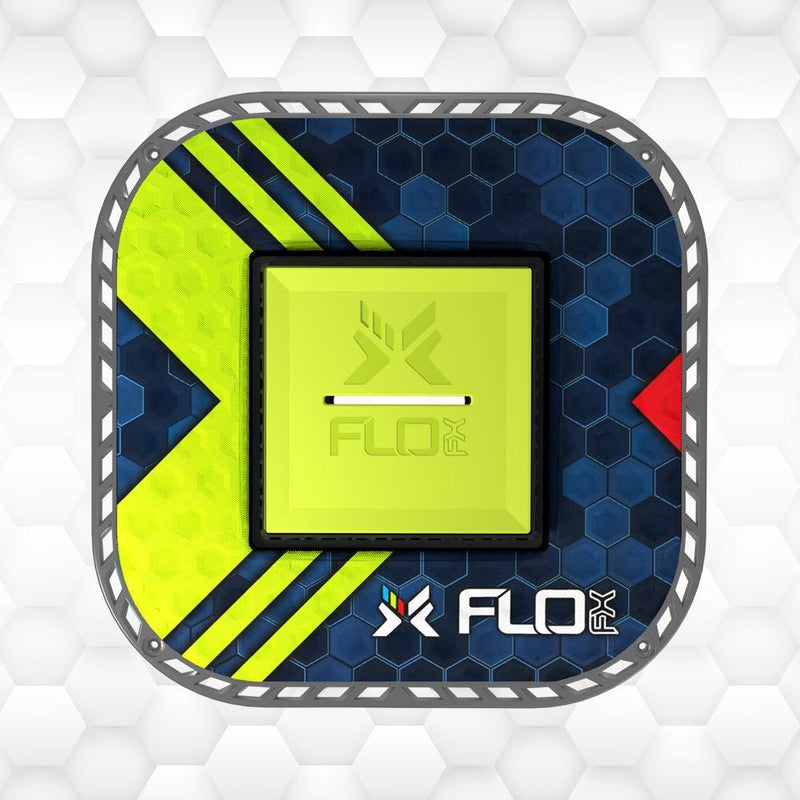

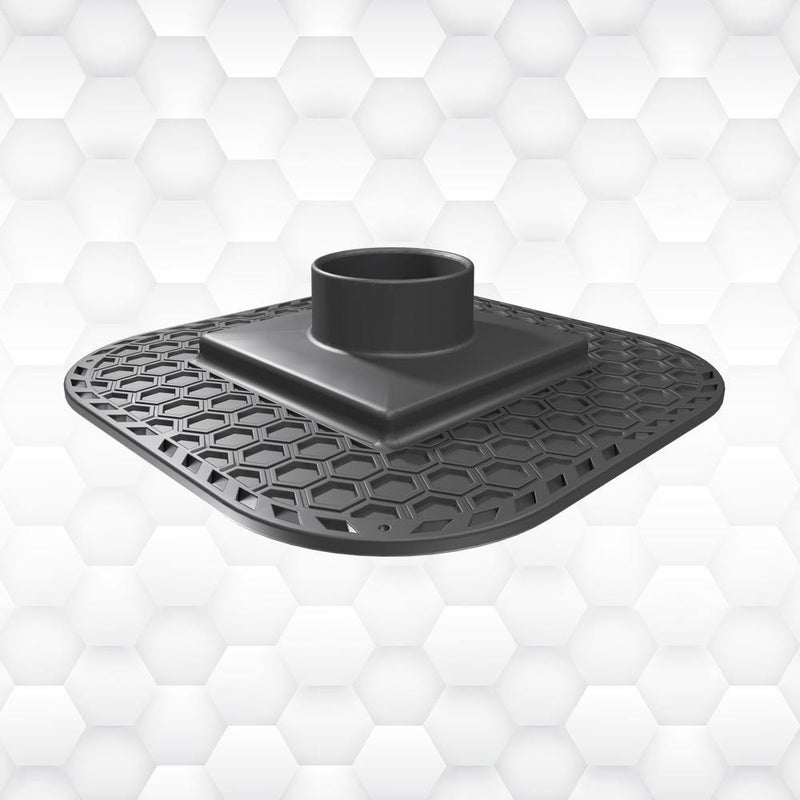

FloFX Universal Shower Drain Bodies
Universal Bond Flange Drain Kit and FFX Grate Install Kit for Easy Drain Installation
Revolutionize your tiling projects with our Universal Bond Flange Drain Kit and FFX Grate Install Kit – the ultimate choice for professionals seeking precision, durability, and ease in drain installation.
Features:
- Versatile Compatibility: Fits standard 2" waste pipes, adaptable to 3-piece clamping drains.
- Material Options: Available in both ABS and PVC, ensuring long-lasting durability.
- Advanced Technology: Features anti-wicking woven fabric for robust membrane adhesion.
- Precision Installation: Seal cells maintain ideal mortar thickness for sheet membranes.
- Adjustable Design: A horizontal grate allows for fine adjustments during installation.
- Innovative Adjustment Ring: Included in the FFX Grate Install Kit for thin mosaic compatibility.
- Efficient Drainage: Weep channels facilitate water drainage off waterproof membranes.
- Drain Grates Sold Separately
What is needed for installation
- Pipe cement: Use ABS cement for the ABS version or PVC primer + PVC cement for the PVC version.
- Waterproof membrane
- If using the clamping adapter, you will also need:
What is different about this kit
Outlet Type:

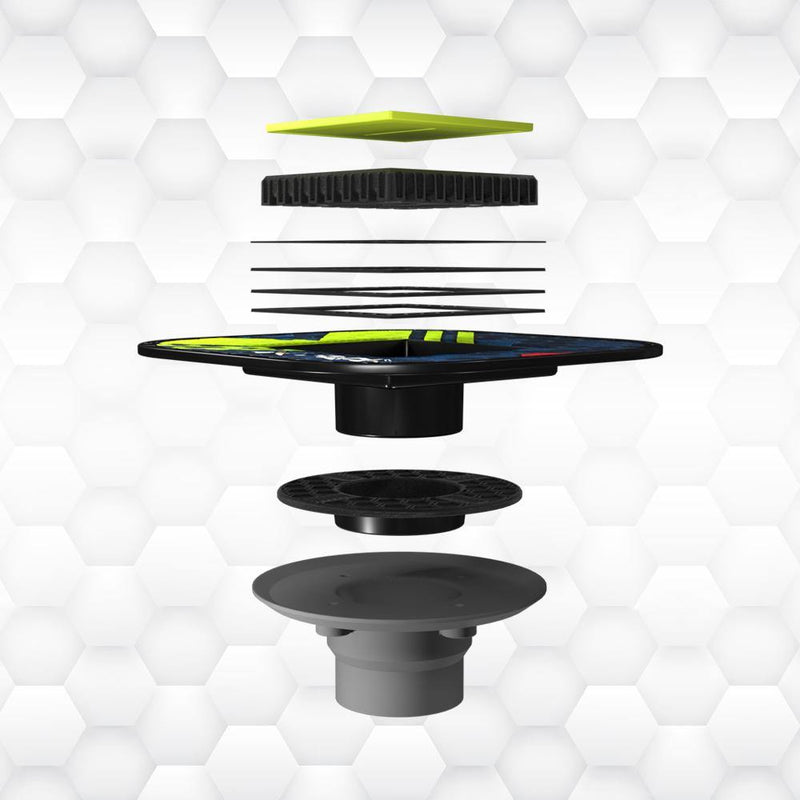

- The Universal Bond Flange Kit has a universal outlet that can connect directly to a 2" waste pipe or adapt to a 3-piece clamping drain with the included adapter.
- The Traditional Bond Flange Kit connects directly to a 2" waste pipe and is not compatible with the clamping adapter.
Shower Pan Type:
- The Universal Kit is best for mortar (drypack) shower pans.
- The Traditional Kit drops into most preformed foam shower trays.
Grate Compatibility:
- The Universal Kit works with ANY FloFX grate, including our Tile-in Grate and Elite Grate Carrier.
- The Traditional Flange Kit works with any standard FloFX Grate.
Grate Adjustment:

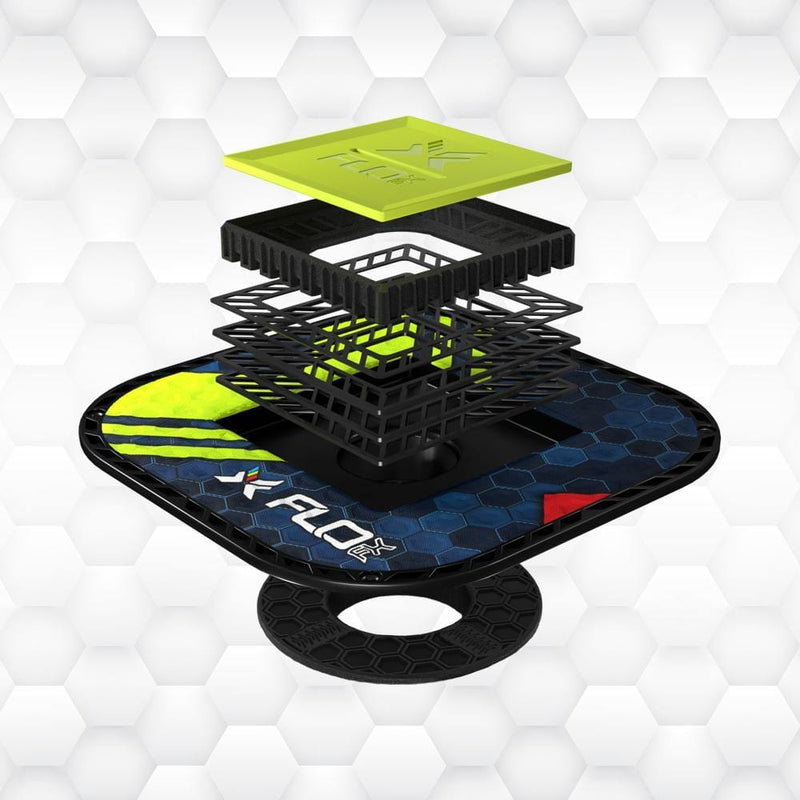

- The Universal Kit uses our grate carrier/shim set to adjust the grate horizontally and vertically.
- The Traditional Kit uses a traditional style adjustment ring and grate riser.
