Montolit Masterpiuma Italica Tile Cutter
Montolit Masterpiuma P5 Italica Manual Tile Cutters — 63P5IT to 161P5IT
Shop the Montolit Masterpiuma P5 Italica push-style manual tile cutter in five model-specific cutting lengths: 63P5IT, 81P5IT, 101P5IT, 131P5IT and 161P5IT. Designed for professional ceramic and porcelain tile installation, the Italica brings a redesigned scoring carriage and monolithic base to the Masterpiuma lineup. Built in Italy, it combines a rigid, single-piece aluminum base with a redesigned scoring and breaking assembly for dependable control on demanding jobsite materials.
Choose from five cutting lengths, from 24.5 inches to 63.5 inches. Every model supports tile up to 20 mm (approximately 3/4 inch) thick; the two largest models include additional laser-guided alignment and large-tile support systems.
Key Features
- Single-piece base: Monolithic cast construction improves rigidity and stability while reducing weight compared with the previous design.
- 18 mm titanium-coated scoring wheel: Integrated bearing helps reduce friction and maintain smooth scoring on challenging surfaces.
- Adjustable 3-axis bearings: Redesigned carriage adapts to scoring and breaking movements and varying tile thicknesses.
- Controlled breaking: Ergonomic handle and force indicators help the installer modulate pressure.
- Accurate angle work: Adjustable square with permanent, laser-etched angle markings up to ±45°.
- Model-specific mobility: Rear transport wheels are standard on the 101P5IT, 131P5IT and 161P5IT.
- Laser guidance on 131 and 161 only: Included movable guide is USB-C rechargeable, installs without tools and switches off automatically after three minutes.
- ATLAS and Baseboard on 131 and 161 only: Integrated slab supports assist during breaking and extend to support large-format tile; the counter-square helps with repeat cuts.
Masterpiuma P5 Italica Model Specifications
| Model | Max Straight Cut | Max Diagonal Tile | Tool Weight | Model-Specific Equipment |
|---|---|---|---|---|

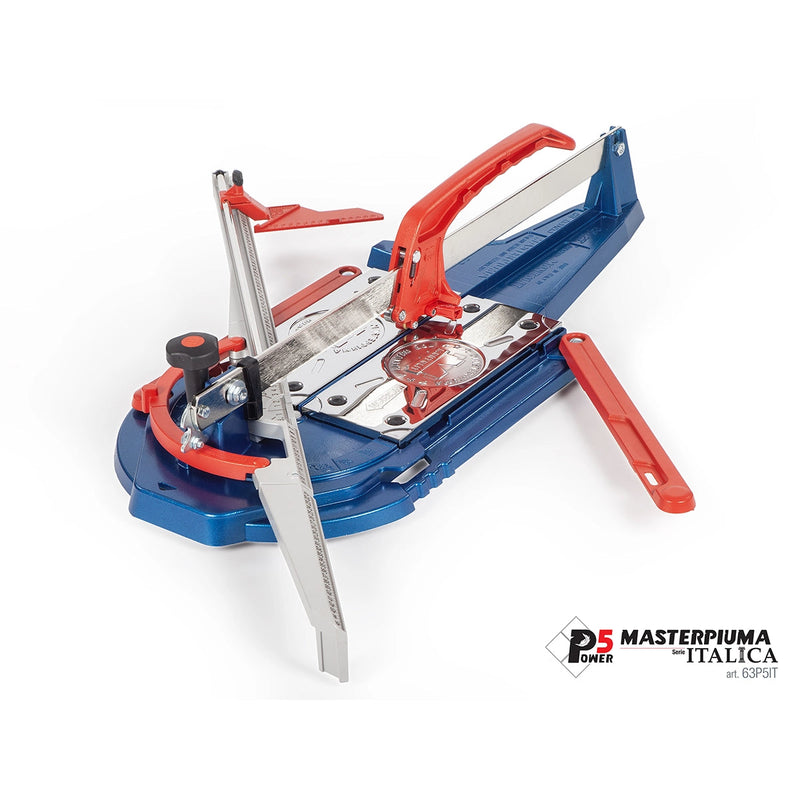

| 63P5IT | 63 cm / 24.5 in | 44 × 44 cm / 17 × 17 in | 12 kg / 26.5 lb | Compact model |

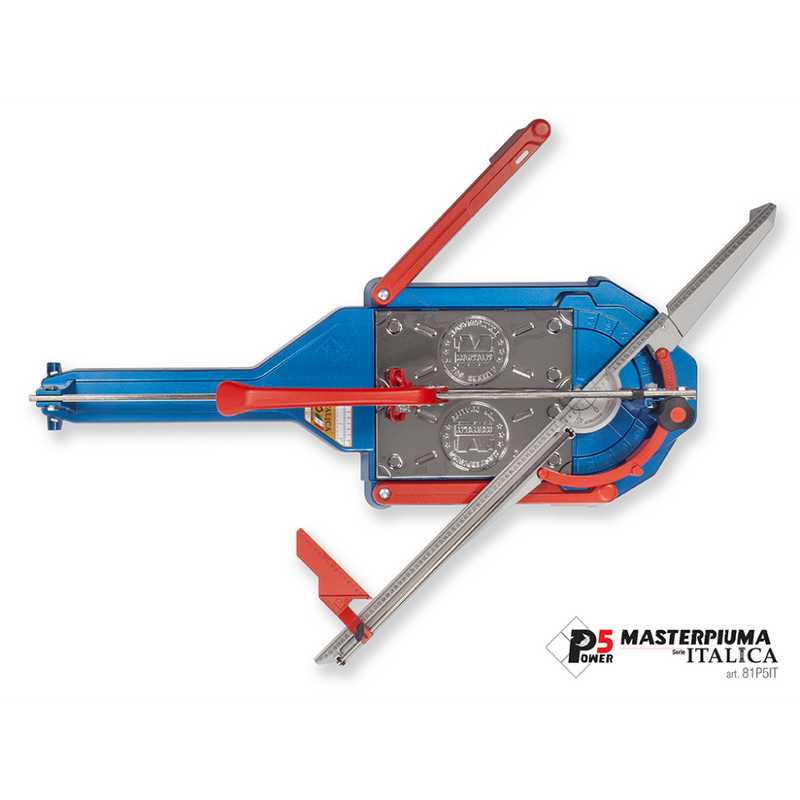

| 81P5IT | 81 cm / 32 in | 57 × 57 cm / 22.5 × 22.5 in | 16 kg / 35.3 lb | Mid-size model |

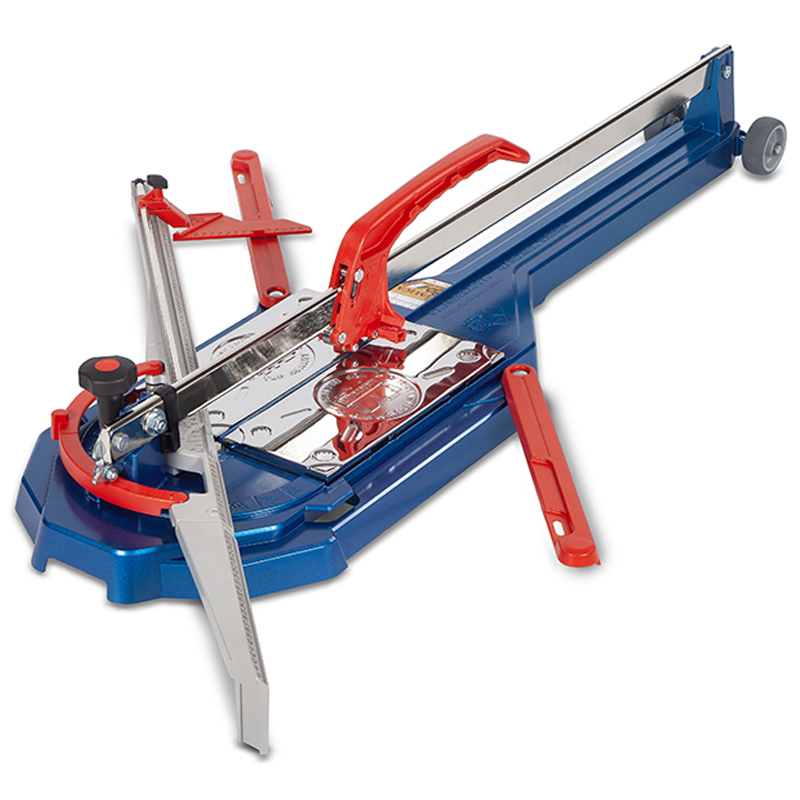

| 101P5IT | 101 cm / 40 in | 71 × 71 cm / 28 × 28 in | 18 kg / 39.7 lb | Rear transport wheels |

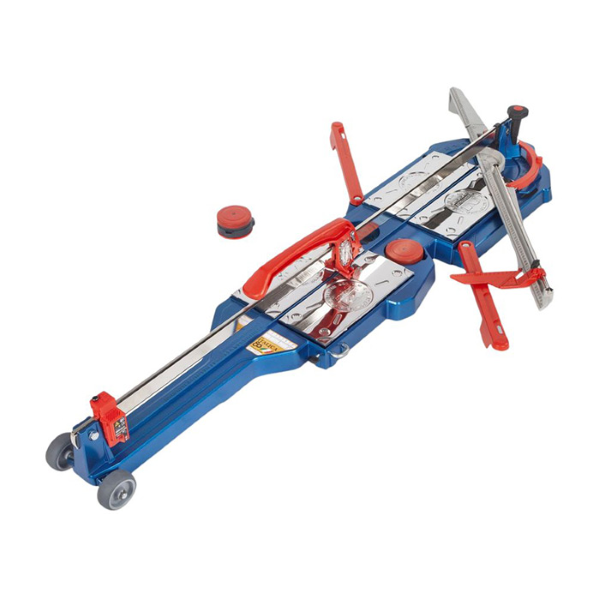

| 131P5IT | 131 cm / 51.5 in | 92 × 92 cm / 36.5 × 36.5 in | 23 kg / 50.7 lb | Rear wheels; laser, ATLAS and Baseboard included |

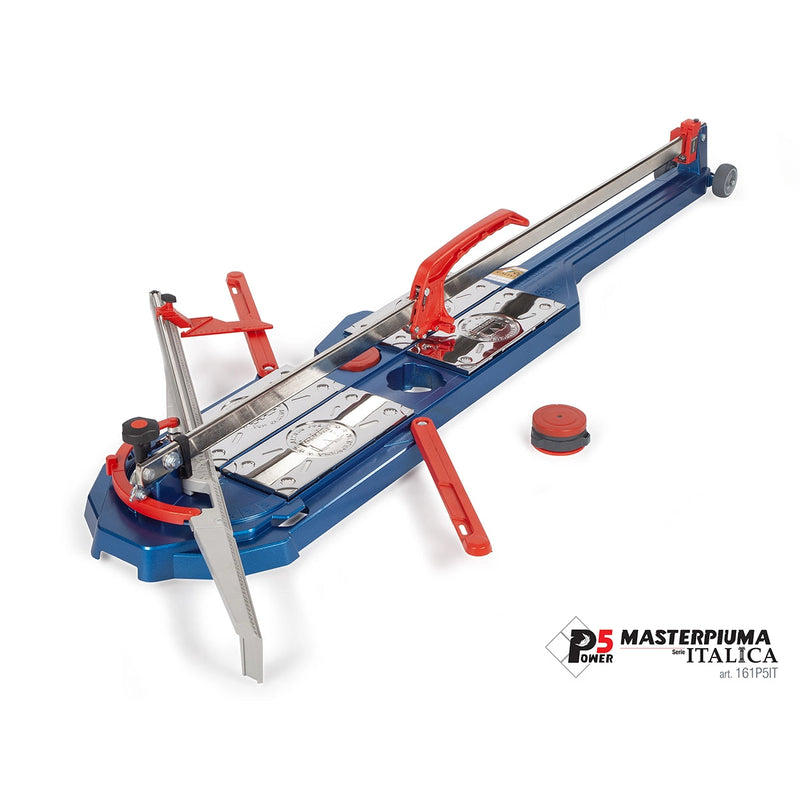

| 161P5IT | 161 cm / 63.5 in | 113 × 113 cm / 44.5 × 44.5 in | 27 kg / 59.5 lb | Rear wheels; laser, ATLAS and Baseboard included |
Maximum tile thickness: 20 mm (approximately 3/4 inch) on all five models. Cutting capacity and weight are manufacturer's nominal specifications.
Choosing Your Italica Cutter
For compact and medium-format work, the 63P5IT and 81P5IT offer shorter, easier-to-handle platforms. The 101P5IT adds greater cutting length and rear wheels. For 51.5-inch and 63.5-inch cutting capacity, the 131P5IT and 161P5IT add the integrated ATLAS slab support system, Baseboard counter-square and movable laser alignment guide.
Replacement scoring wheel: Montolit part 248T, an 18 mm titanium-coated wheel with an integrated bearing. Do not substitute an older Masterpiuma P5 scoring wheel without verifying compatibility.
Masterpiuma Italica vs. Standard Masterpiuma P5
The P5 Italica is a distinct new-generation model family, not a replacement-parts listing or a different size of the standard P5. Its revised monolithic base, 18 mm titanium-coated scoring wheel with integrated bearing, and model-specific 131/161 laser and ATLAS equipment distinguish it from earlier models. Looking for the existing P5 series instead? Shop standard Montolit Masterpiuma P5 tile cutters.
Montolit P5 Italica FAQs
Which Masterpiuma Italica models include the laser?
The 131P5IT and 161P5IT include the movable USB-C rechargeable alignment laser; the 63P5IT, 81P5IT and 101P5IT do not.
What is the cutting range of the Italica?
The five models offer nominal straight cutting capacities from 24.5 to 63.5 inches. Choose the model that accommodates your required cut length and diagonal dimension using the table above.
Is the Italica scoring wheel the same as the previous P5?
No. The Italica uses the 18 mm titanium-coated 248T scoring wheel with integrated bearing. Confirm parts compatibility by model before ordering replacements.
