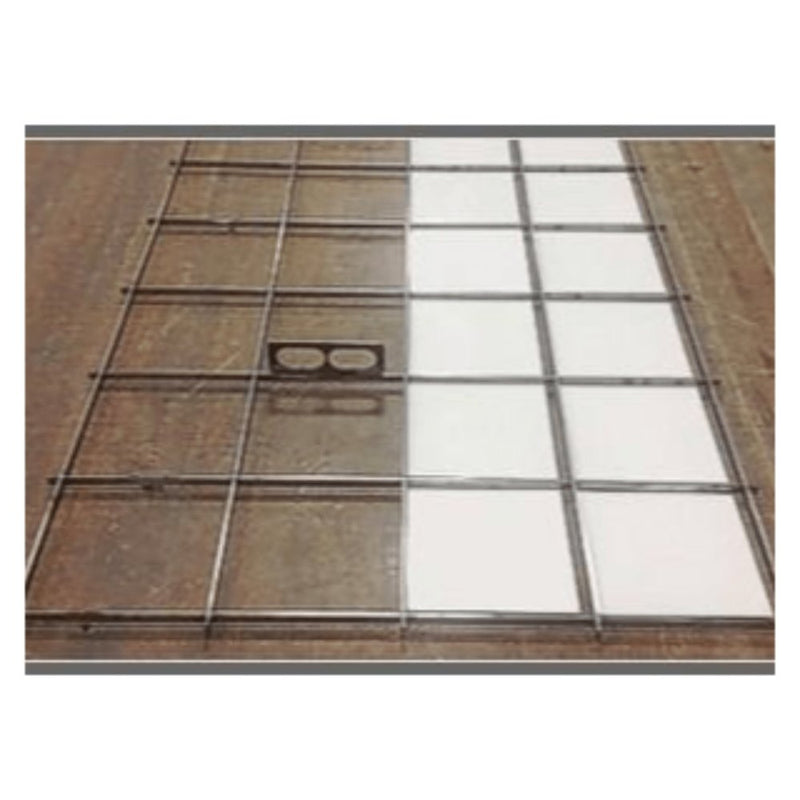

Quarry Tile Rack
Tile Setting Racks for Efficient and Accurate Commercial Tile Jobs
Enhance your commercial tiling with our high-quality tile setting racks. Perfect for large projects, these racks help you lay tiles quickly and accurately.
Features
- Quick Setup: Ideal for busy commercial tile jobs.
- Many Styles: From simple squares to complex patterns like herringbone.
- Commercial-Grade Quality: Made-to-order racks crafted with durable materials.
- Saves Time: Speed through your projects with consistent results.
- Consistent Grout Joints: Maintain uniformity using a corner as a reference point.
- Personalized Help: Contact us for pricing, availability, and ordering.
- Special Orders: Non-standard sizes and layouts may vary in cost and shipping. All tile racks are special order items and non-returnable.
How to Order the Correct Quarry Tile Rack
Quarry tile sizes can vary between manufacturers and production runs. Measure the tiles you will actually install before choosing a rack. A nominal 6" or 8" tile may not measure exactly that size.
- Measure your tile. Measure the width and height of several tiles from your job and check for size variation.
- Select the nominal rack family. Choose the 6" Ă— 6" or 8" Ă— 8" rack family in the product options above. This is only the general rack category.
- Select your actual tile size. Under Select Your Tile Size, pick the measurement that matches your tile. The choice also shows its rack model (for example, SJ66).
- Confirm the dimensions. Compare the recommended actual tile size, pocket size and rack model in the chart below. The standard recommendation uses a ¼" grout joint, accounting for ⅛" metal grid thickness plus ⅛" of tile clearance.
- Review and order. Confirm your chosen rack model, read the special-order terms, check the required sizing acknowledgement, and then select Add to Cart.

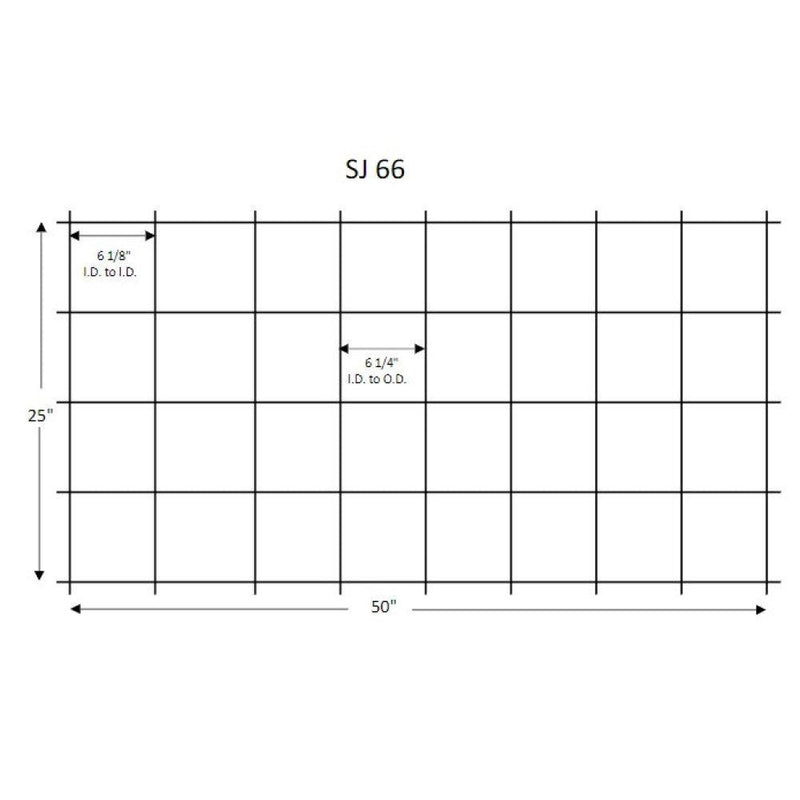

Rack pocket: 6¼" Ă— 6¼". Inside-to-inside opening: 6â…›" Ă— 6â…›". Recommended actual tile size: 6" Ă— 6" for a ¼" grout joint.
Sizing calculation: rack pocket − ⅛" steel − ⅛" clearance = recommended tile dimension.
Unsure which rack fits? Contact support@tiletools.com or call 262-790-2170 before ordering. These are special-order, non-returnable items; confirm fit and availability before purchase.
Quarry Tile Rack Size Chart
Choose by measured actual tile size, not nominal tile size. The recommended ¼" grout joint consists of the ⅛" metal grid plus ⅛" clearance. Recommended actual tile size = pocket dimension (I.D. to O.D.) − ¼".
| Nominal tile | Model | Pocket (I.D. to O.D.) | Recommended actual tile size | Overall rack size |
|---|---|---|---|---|

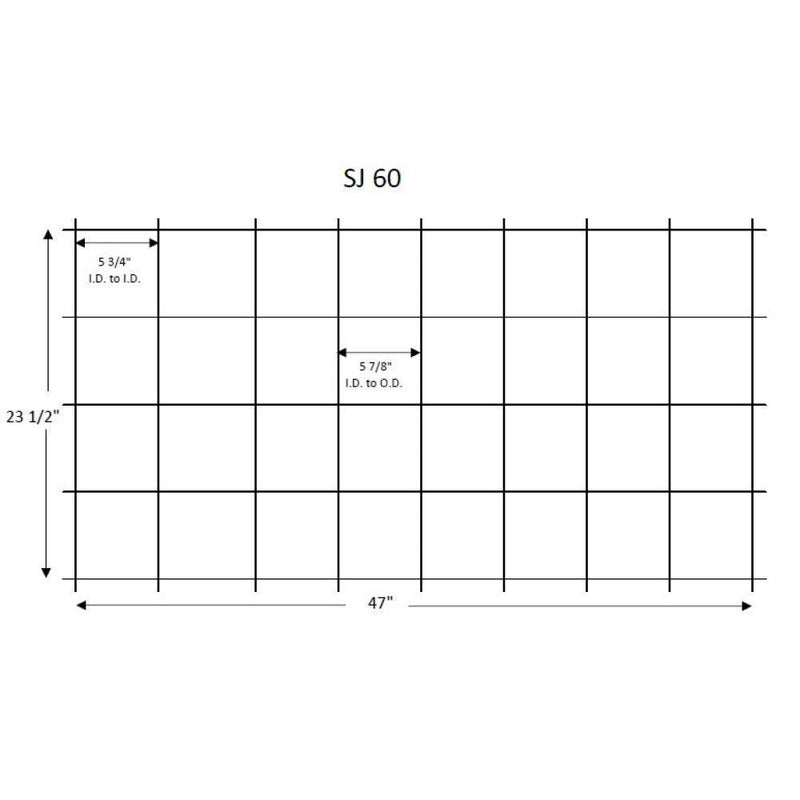

| 6" Ă— 6" | SJ60 | 5 7/8" | 5 5/8" Ă— 5 5/8" | 23 1/2" Ă— 47" |

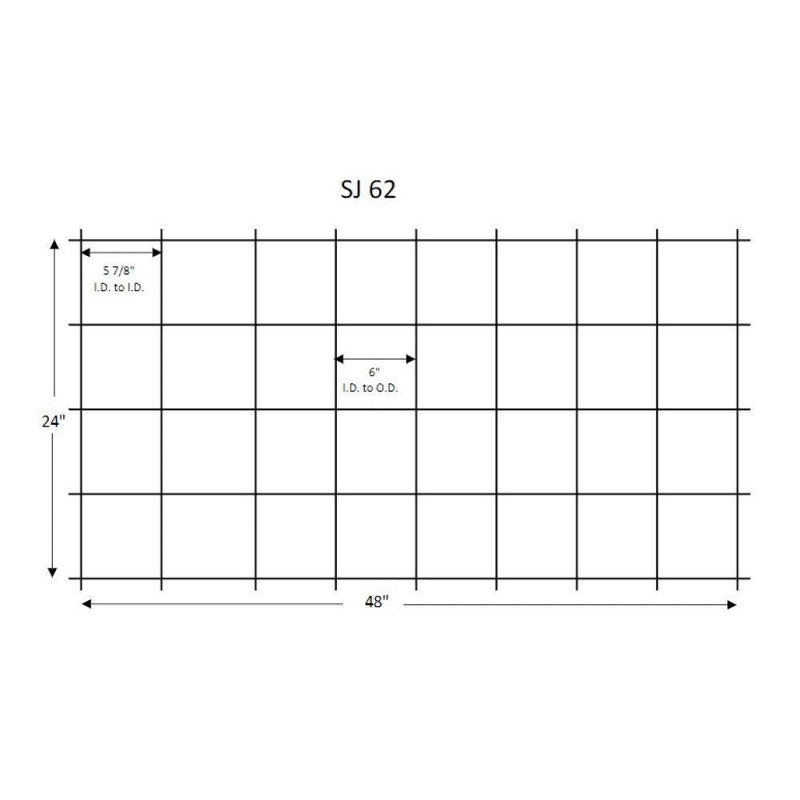

| 6" Ă— 6" | SJ62 | 6" | 5 3/4" Ă— 5 3/4" | 24" Ă— 48" |

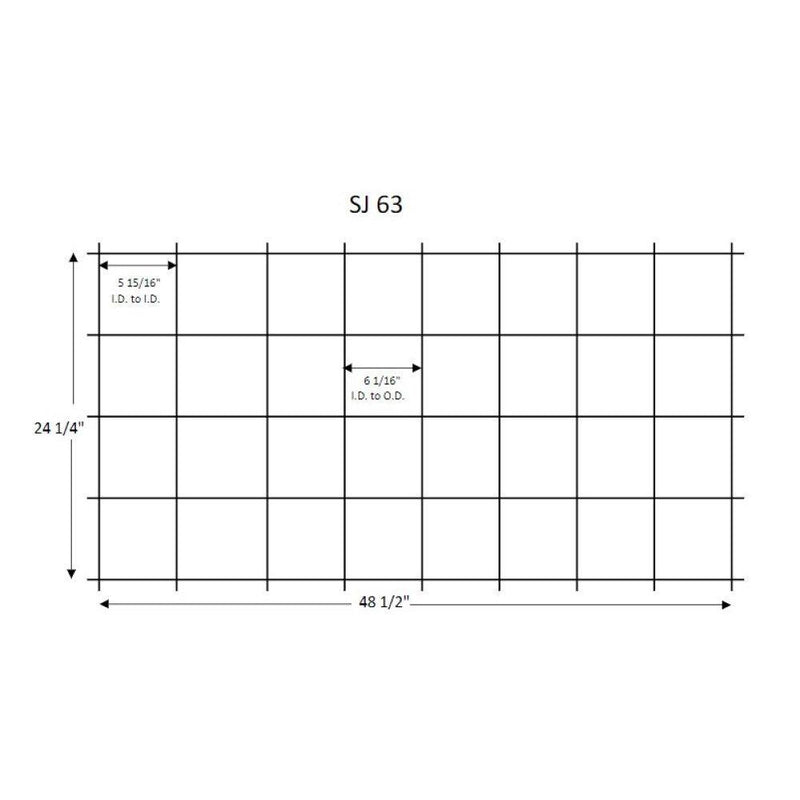

| 6" Ă— 6" | SJ63 | 6 1/16" | 5 13/16" Ă— 5 13/16" | 24 1/4" Ă— 48 1/2" |

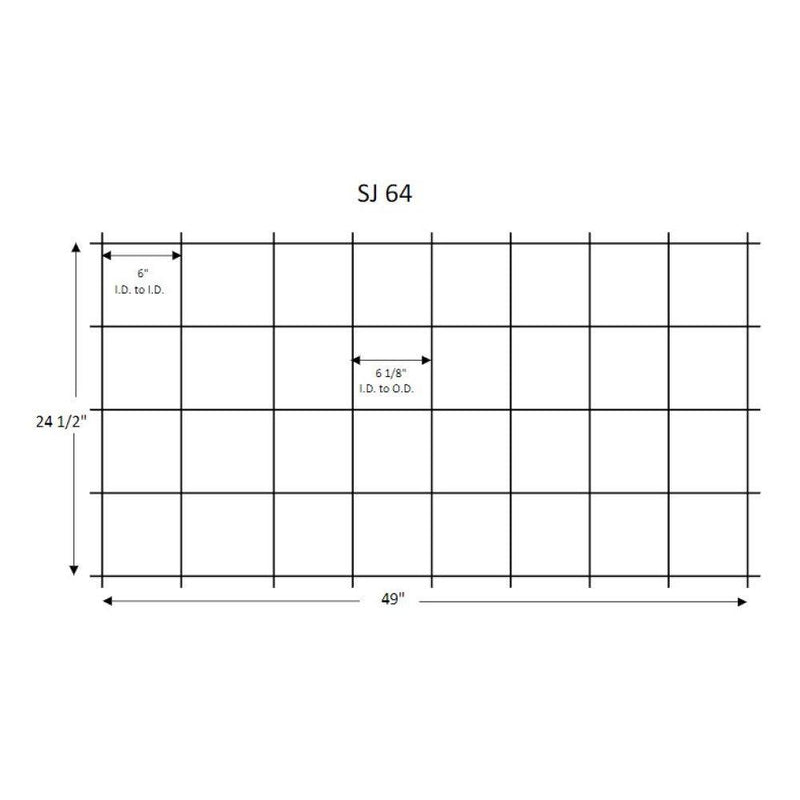

| 6" Ă— 6" | SJ64 | 6 1/8" | 5 7/8" Ă— 5 7/8" | 24 1/2" Ă— 49" |

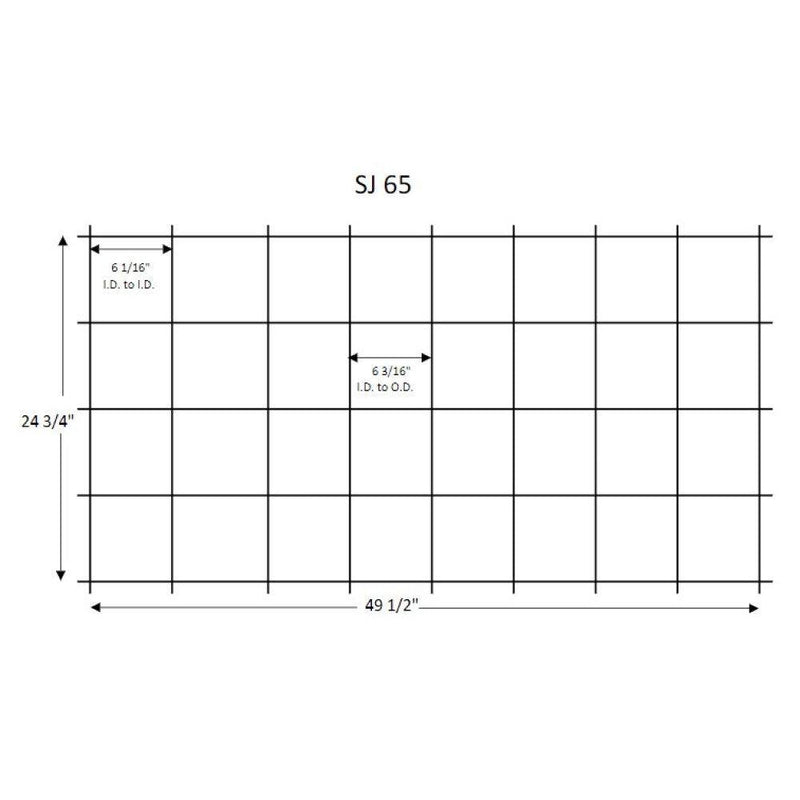

| 6" Ă— 6" | SJ65 | 6 3/16" | 5 15/16" Ă— 5 15/16" | 24 3/4" Ă— 49 1/2" |
| 6" Ă— 6" | SJ66 | 6 1/4" | 6" Ă— 6" | 25" Ă— 50" |

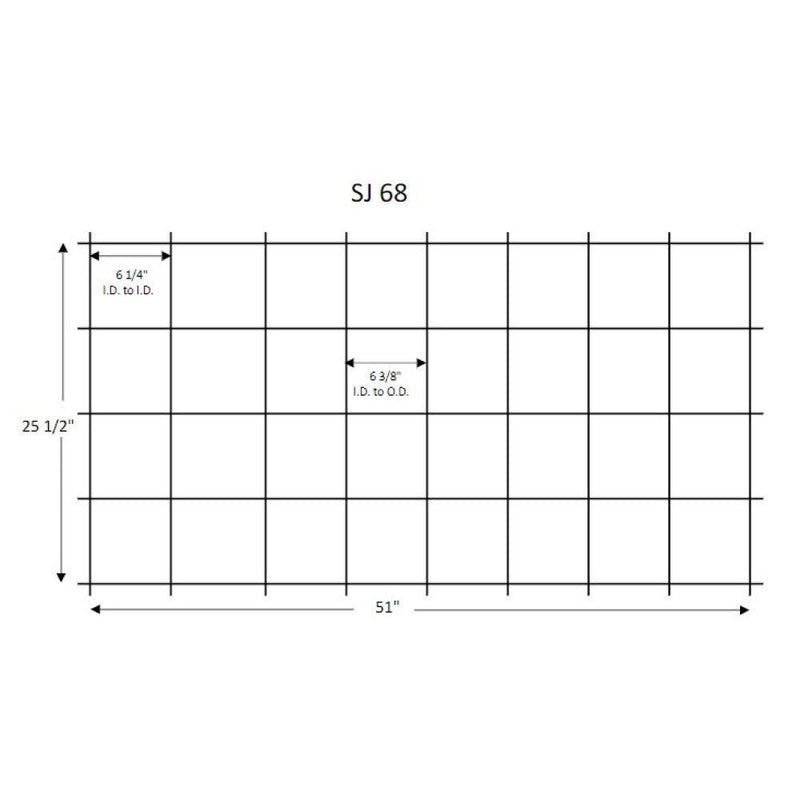

| 6" Ă— 6" | SJ68 | 6 3/8" | 6 1/8" Ă— 6 1/8" | 25 1/2" Ă— 51" |
| 8" Ă— 8" | SJ80 | 7 7/8" | 7 5/8" Ă— 7 5/8" | 23 5/8" Ă— 47 1/4" |

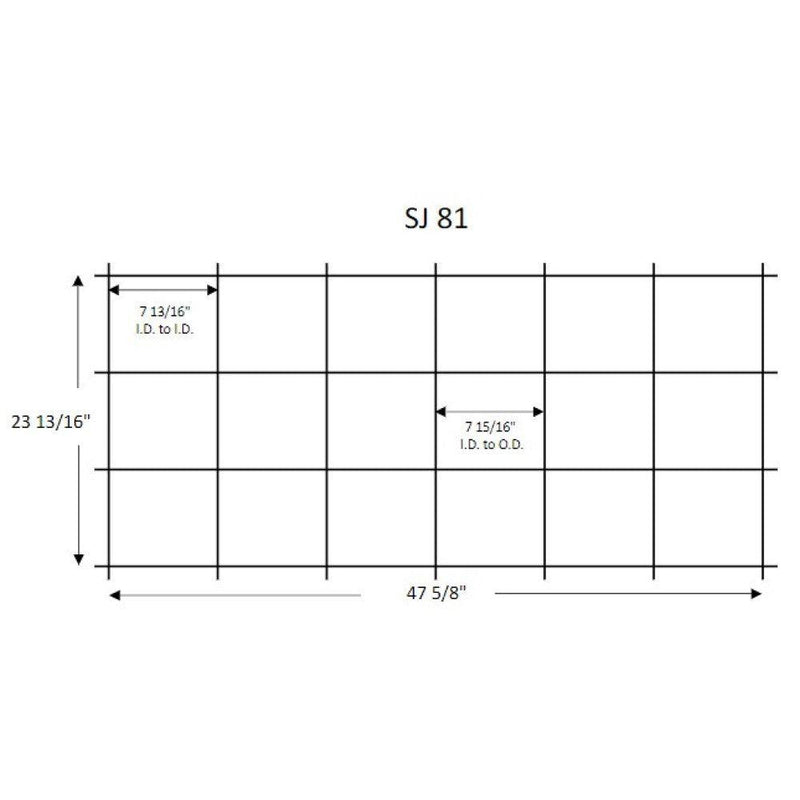

| 8" Ă— 8" | SJ81 | 7 15/16" | 7 11/16" Ă— 7 11/16" | 23 13/16" Ă— 47 5/8" |

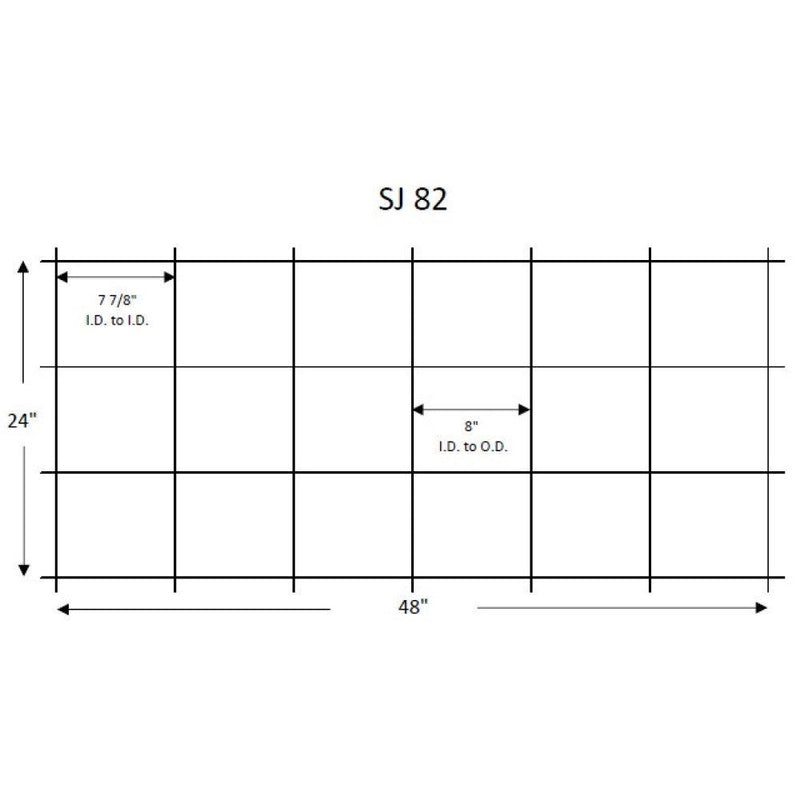

| 8" Ă— 8" | SJ82 | 8" | 7 3/4" Ă— 7 3/4" | 24" Ă— 48" |

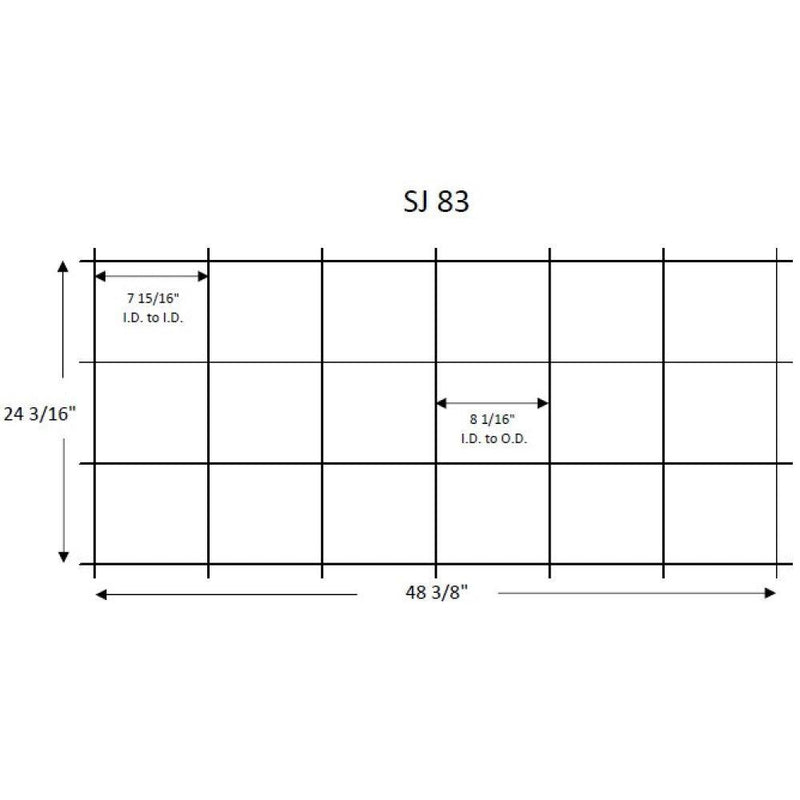

| 8" Ă— 8" | SJ83 | 8 1/16" | 7 13/16" Ă— 7 13/16" | 24 3/16" Ă— 48 3/8" |

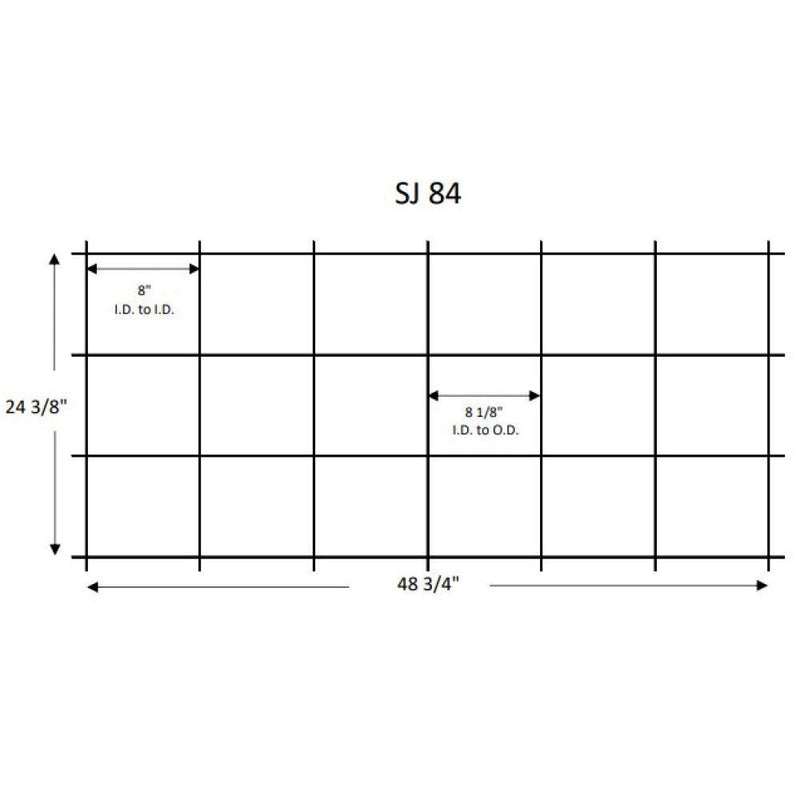

| 8" Ă— 8" | SJ84 | 8 1/8" | 7 7/8" Ă— 7 7/8" | 24 3/8" Ă— 48 3/4" |

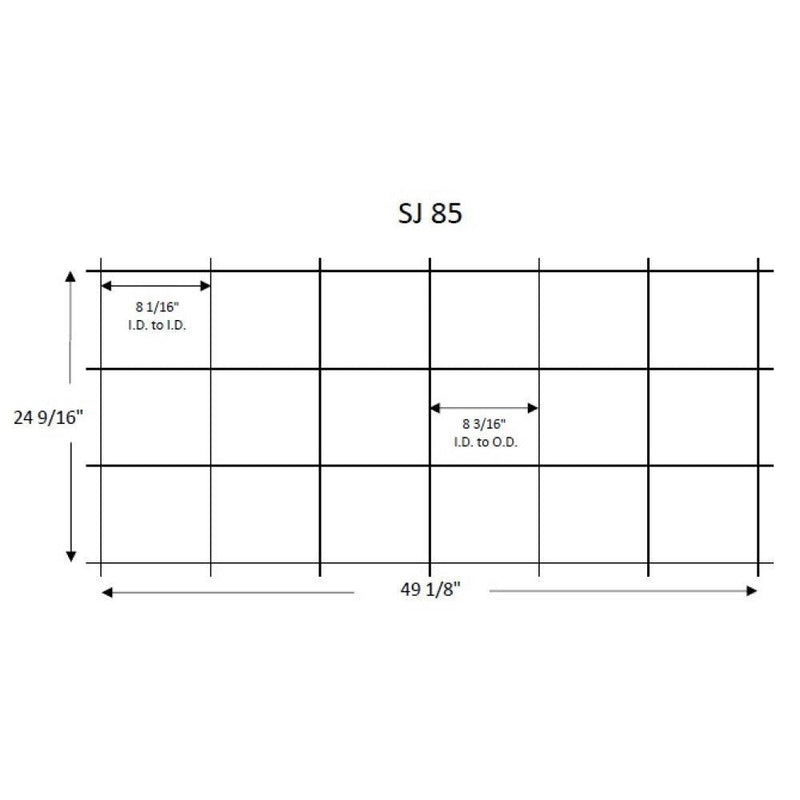

| 8" Ă— 8" | SJ85 | 8 3/16" | 7 15/16" Ă— 7 15/16" | 24 9/16" Ă— 49 1/8" |

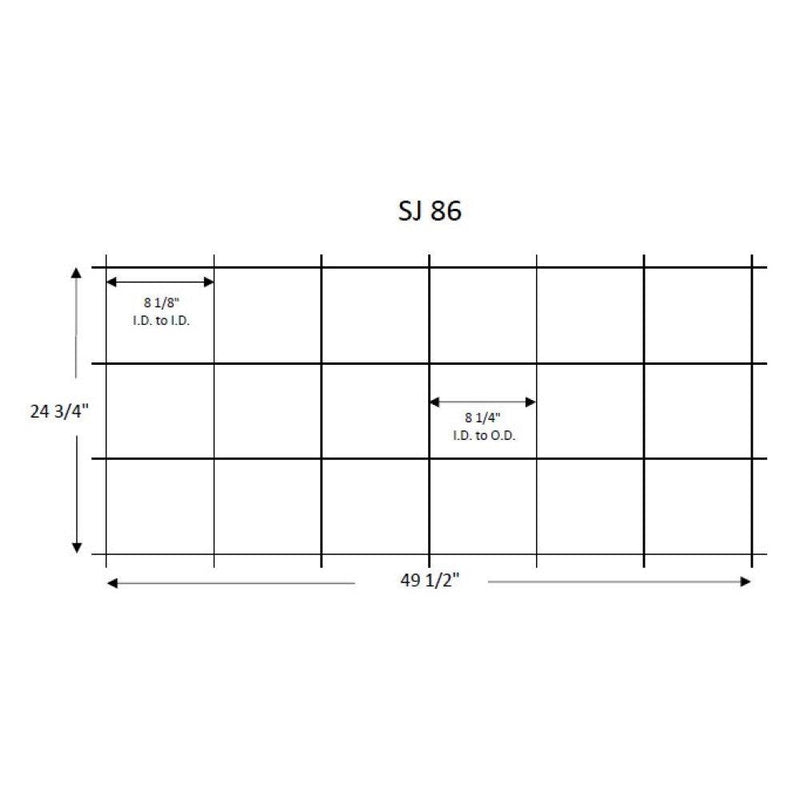

| 8" Ă— 8" | SJ86 | 8 1/4" | 8" Ă— 8" | 24 3/4" Ă— 49 1/2" |

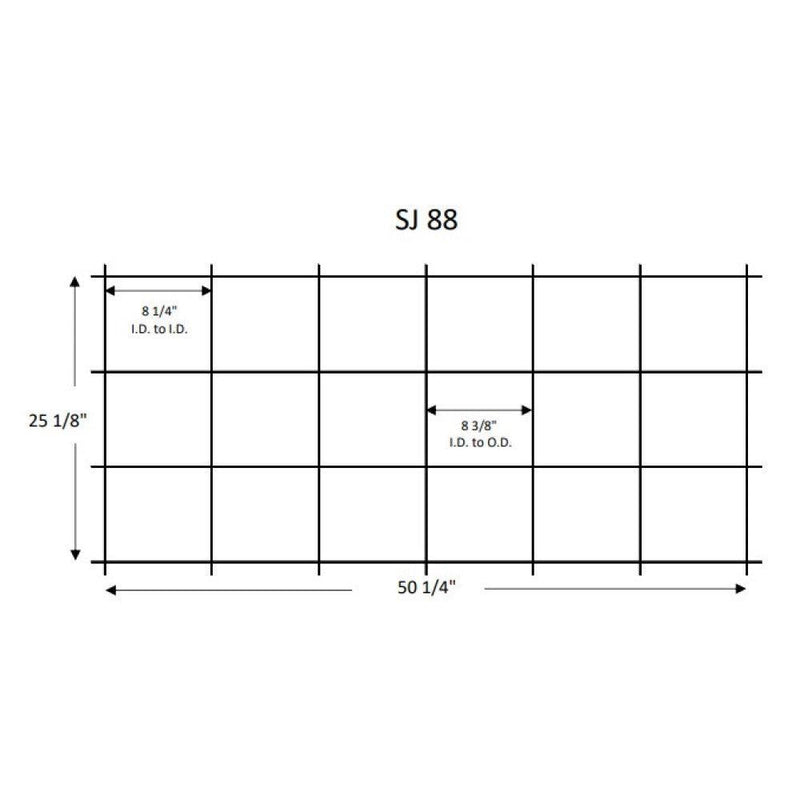

| 8" Ă— 8" | SJ88 | 8 3/8" | 8 1/8" Ă— 8 1/8" | 25 1/8" Ă— 50 1/4" |
Before ordering: Measure multiple tiles from your actual job lot and confirm the intended grout joint. Special-order racks are non-returnable. SJ80 and SJ81 dimensions should be reconfirmed against the current rack drawings before production.
