What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Ishii Clinker Porcelain Tile Cutters

SKU

by Ishii

$190.92 - $307.23

$190.92

$190.92 - $307.23

$190.92

Quantity

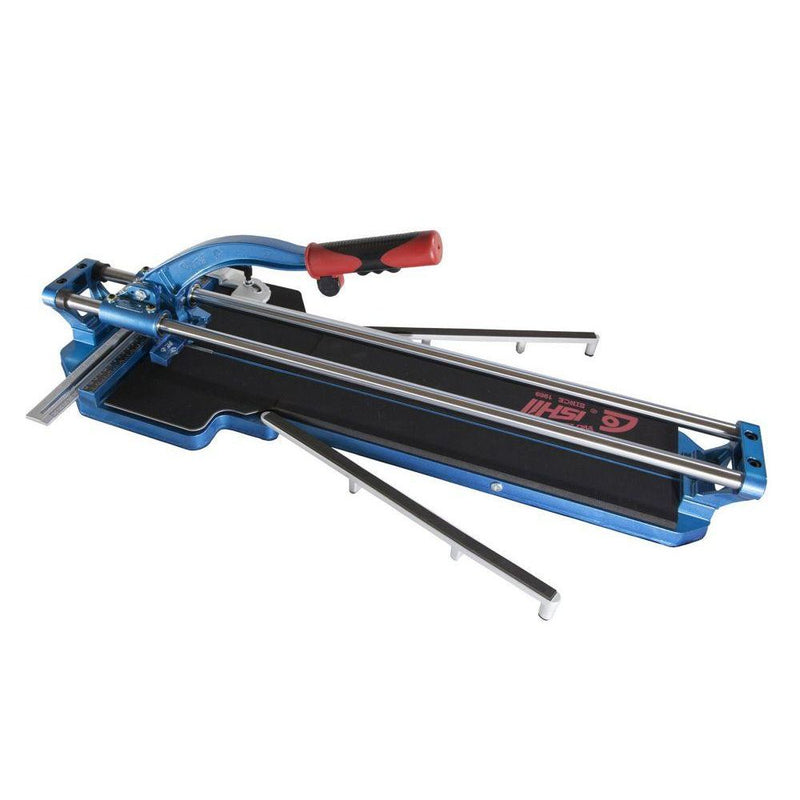

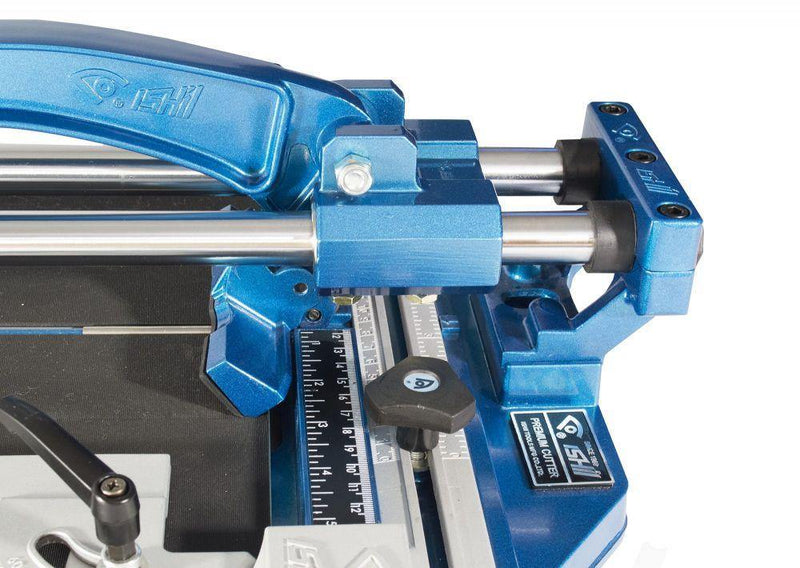

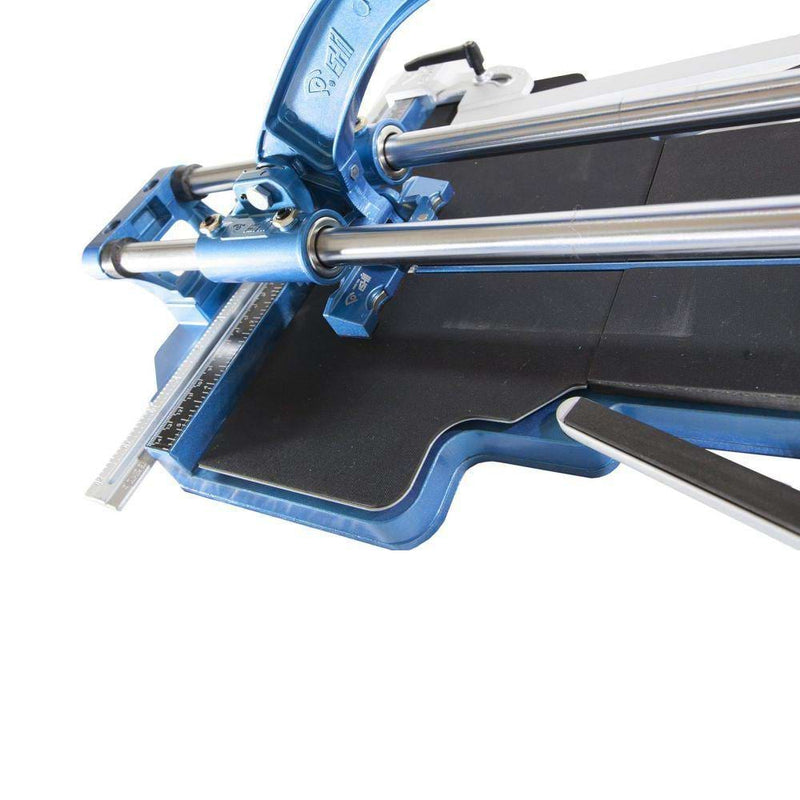

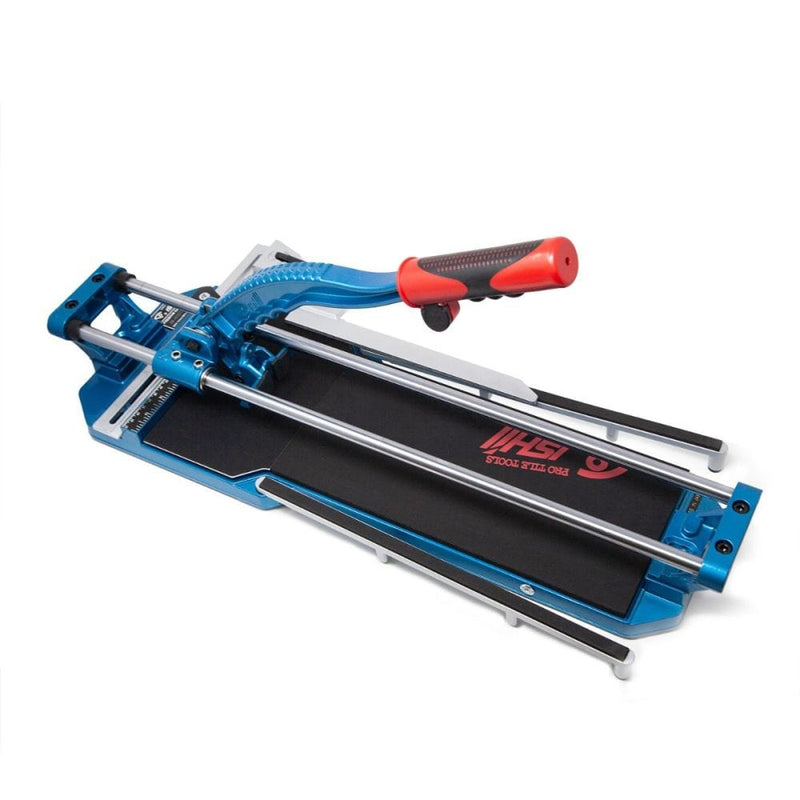

Experience Japanese Craftsmanship with ISHII Clinker Professional Porcelain Tile Cutters

Improve your tile-cutting experience with BIG Clinker Professional Tile Cutters from ISHII, designed and manufactured in Japan. Crafted with a spring-loaded base and an ergonomic, low-curved handle, our tile cutters boast an impressive 8:1 leverage ratio. This efficient design ensures an excellent score with minimal effort, delivering clean, smooth cuts even on the toughest porcelain tile.

Not only do our tile cutters offer superior functionality, they also assure durability and stability. The wide, die-cast aluminum alloy base, coupled with heavy-duty rubber pads, guarantees cutting stability, making your work effortless and more efficient.

Features

Effortless Handling: Spring-loaded base for ease of use.

Stable Cutting: Wide base with heavy-duty rubber pads.

Versatile Cutting Height: Adjustable for tiles up to 3/4" thick.

Mosaic Tile Compatibility: Ideal for precise mosaic tile cutting.

Support for Large Tiles: Side arm extensions included.

Maintenance-Free: No lubrication is needed.

Precision Scoring Wheel: 7/8" Ishii thin ball-bearing wheel.

Dual Scaled Cutting Guide: Measurements in both inches and metric.

Models come with these current features
PART Number breakdown

S- Spring Baseboard

T- Heat Treated Rail Bars

W- Wider Sliding Block (Bearing Block) and wider end posts

A- 16" Extension Arm w/Magnet

M- Breaker Foot w/Magnet

Ishii Big Clinker Specifications
Model	JW480-STWAM	JW-580STA	JW-650STWAM	JW-720STWAM
Length of Cut	19"	22.75"	25.5"	28.25"
Breaker Foot Size	3.5"	3.5"	4.75"	4.75"
Weight	12.5 lbs.	14 lbs.	17.5 lbs.	18 lbs.
