Sigma Series 4 "NEX" Pushing Incision Tile Cutter
Experience the Power of Sigma Series 4 'NEX' Tile Cutter
The Sigma Series 4 tile cutter is the latest and greatest addition to the Sigma family, offering several new features and benefits. Its pushing incision capability makes it effortless to cut even the roughest, thickest, and largest tiles. This cutter is equipped with an ergonomic handle designed specifically for pushing incisions and a 16mm diameter scoring wheel, ensuring a precise cut every time.
The Sigma Series 4 tile cutter also features a double suspension system that ensures cushioned scoring of structured tiles. The scoring wheel rotates on a roller bearing guided laterally by an anti-friction metal shell inserted in a CNC-milled holder to avoid friction and lateral clearance, resulting in a smooth and accurate cut up to 3/4" (19 mm) of material without requiring any maintenance. The clearance-free sliding carriage with 3 double-row ball bearings guarantees precision over time. With an automatic system that keeps the handle raised, facilitating the insertion of the tile, and an automatic steel compensator that adjusts the slide preload on the rail for the perfect cut, the Sigma Series 4 tile cutter is a must-have tool for any tile contractor or home remodeler looking for a precise and efficient tile cutting solution.
- Designed for Tough Tiles: Ideal for rough, thick, and large tiles.
- Ergonomic Handle: Tailored for pushing incision, maximizing comfort.
- Precision Scoring Wheel: 16mm diameter, ensuring accurate cuts.
- Double Suspension System: For cushioned scoring of structured tiles.
- Smooth Operation: Roller bearing and anti-friction shell for frictionless cuts.
- Material Capability: Cuts materials up to 3/4" (19 mm).
- Durable Construction: 120 mm wide splitting foot with anti-mark protection.
- Precision Maintenance: Clearance-free carriage with double-row ball bearings.
- Easy Tile Insertion: Automatic system for hassle-free handling.
- Versatile Cutting Angles: Guide bar pivots up to 45 degrees in both directions.
|Sigma NEX Tile Cutter Specifications|

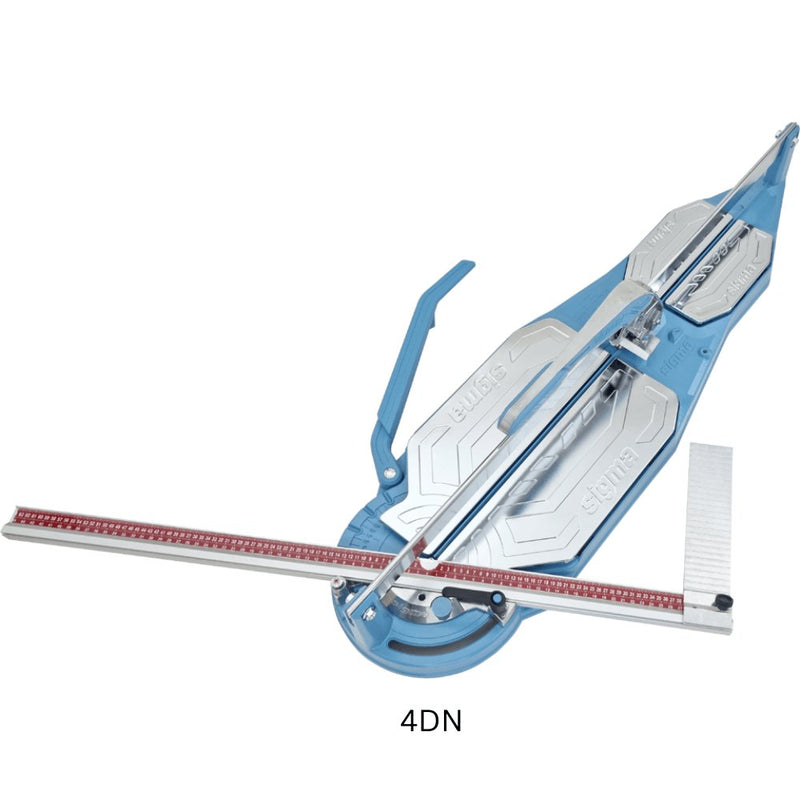

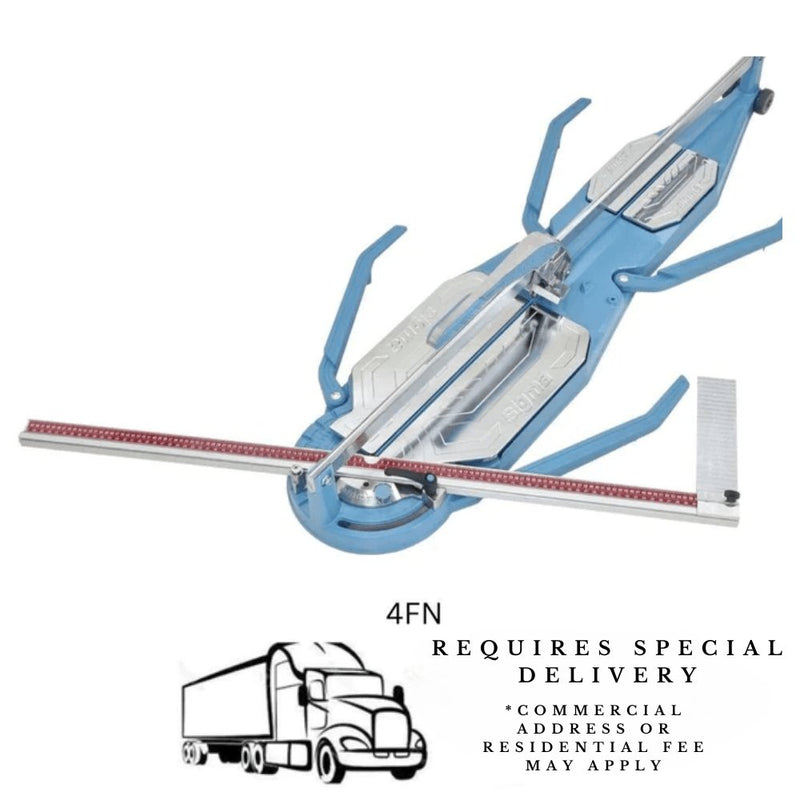

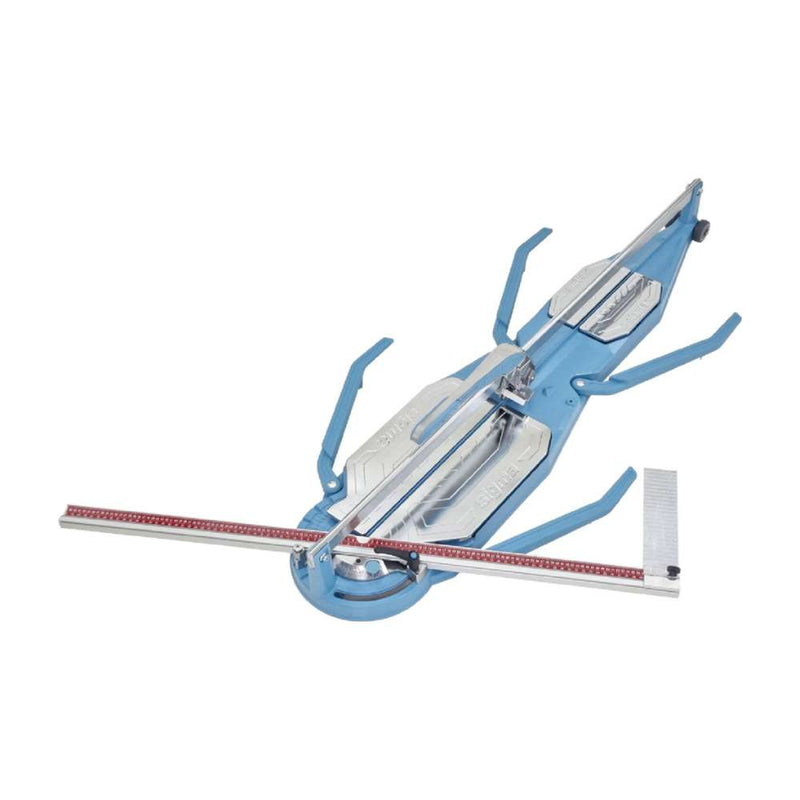

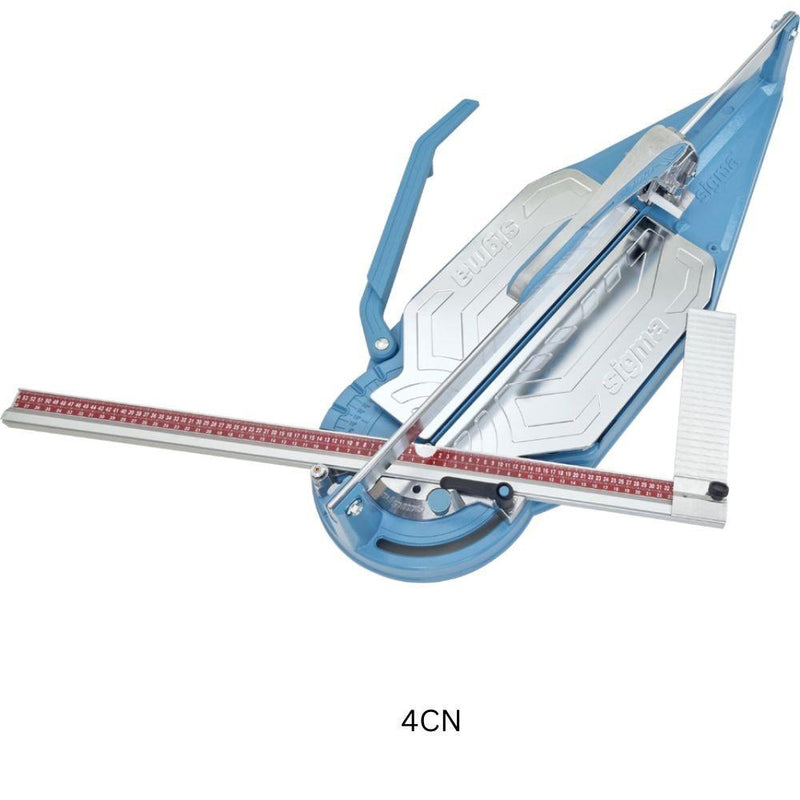

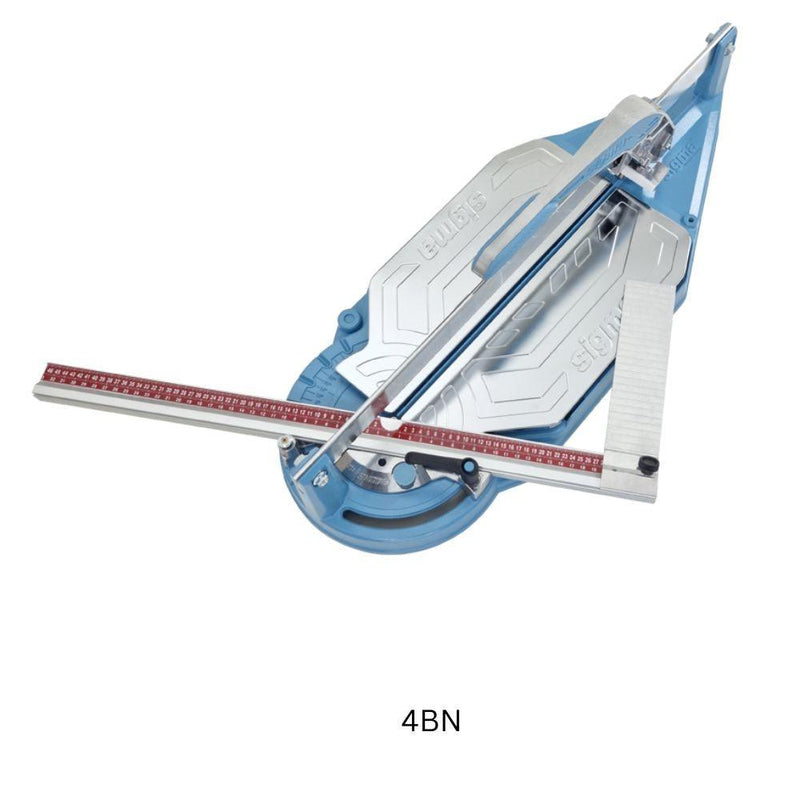

|Model||Sigma 4BN||Sigma 4CN||Sigma 4DN||Sigma 4EN||Sigma 4FN|
|Length of Cut||24.4 in||29.9 in||37.4 in||49.2 in||61 in|
|Diagonally Cuts||17.2 in||21.1 in||26.4 in||34.8 in||43.1 in|
|Weight||23 lbs.||28 lbs.||33 lbs.||47 lbs.||54 lbs.|
