What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

RodKat Wet Saw Tile Rip Table

SKU WSTRT

by RodKat

Sold out

$125.00

$125.00 - $125.00

$125.00

$89.00

$89.00 - $89.00

$89.00

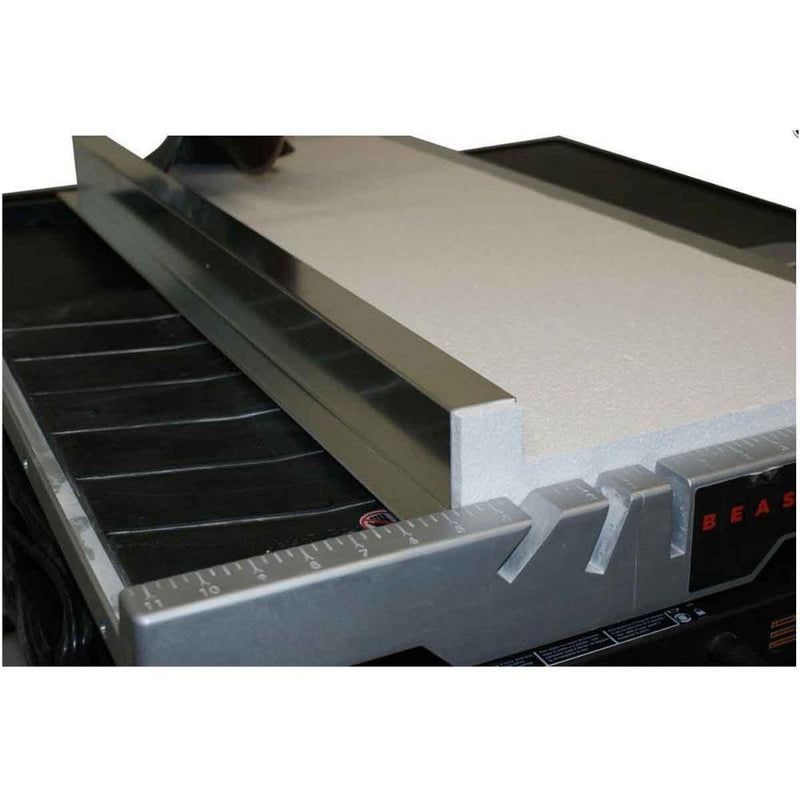

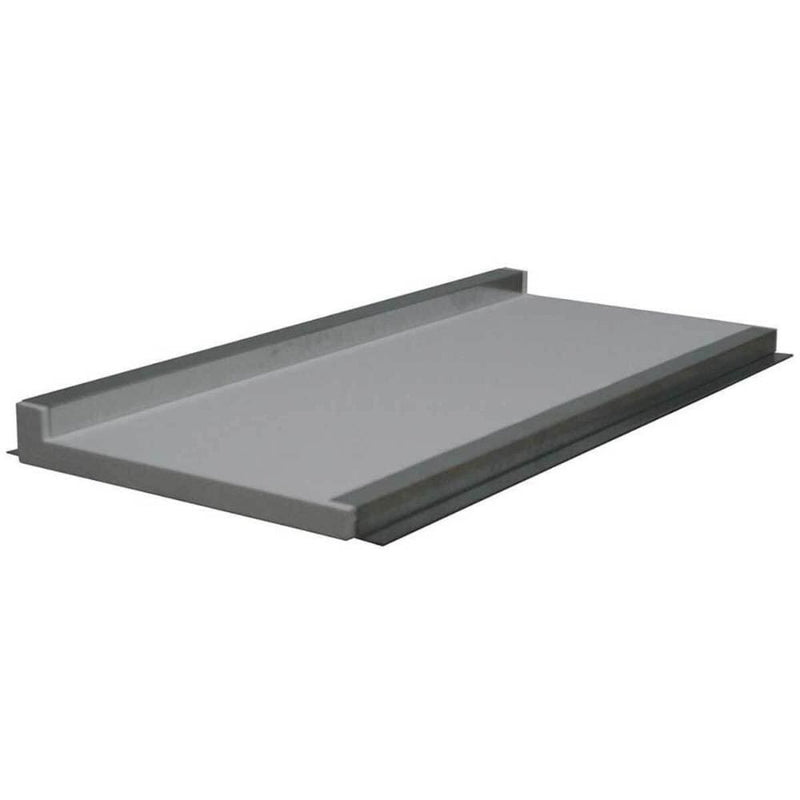

RodKat Wet Tile Saw Rip Table

The extension table was designed to increase the cutting capacity of many popular tile saws. This table extension will immediately upgrade your tile saw and allow you to cut popular large format tile at virtually any length.

Features

Created from high density EPS foam with integrated metal edges

Locks into place on the tile saw carriage tray and allows the tile tobe pushed through with little resistance

Will fit most common wet tile saws

Both metal edges include an extrusion that allows table to be held in place using the saw's factory guide

Once foam has been cut until no longer usable, remove the metal edge caps and attach them to your replacement foam table

What's In The Box

Tile Rip table with metal edges

1 extra replacement foam table
