What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Battipav VIP 2125 Radial Tile Saw

SKU VIP2125

by Battipav

Sold out

$1,995.00 - $1,995.00

$1,995.00

$1,995.00 - $1,995.00

$1,995.00

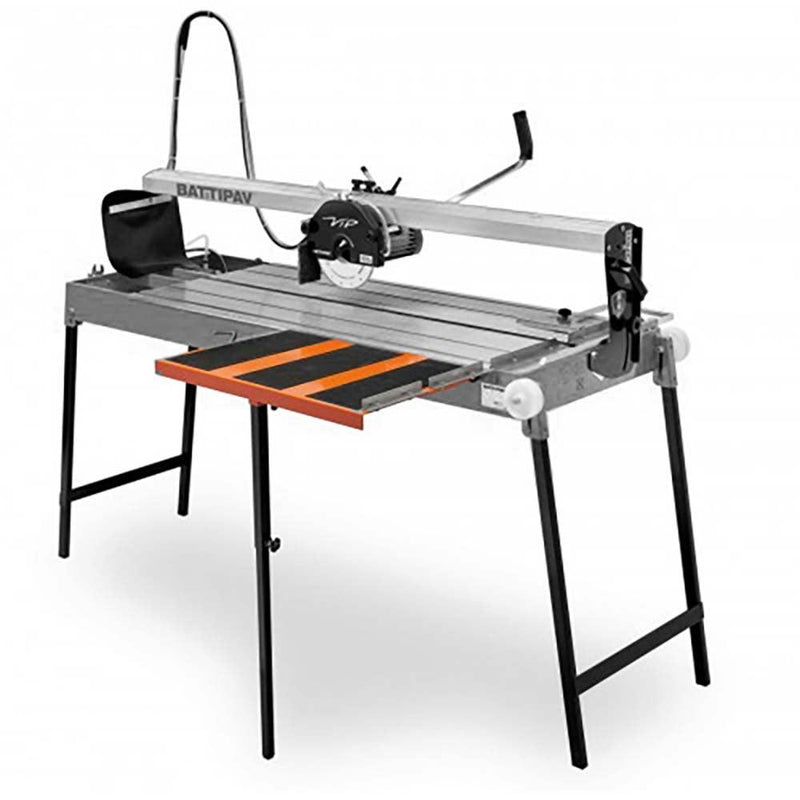

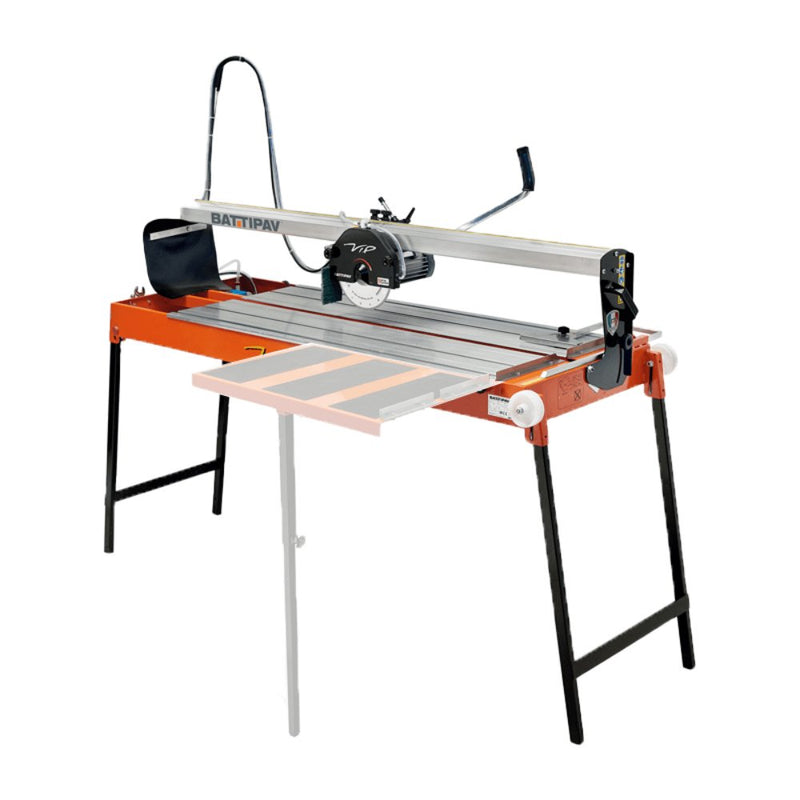

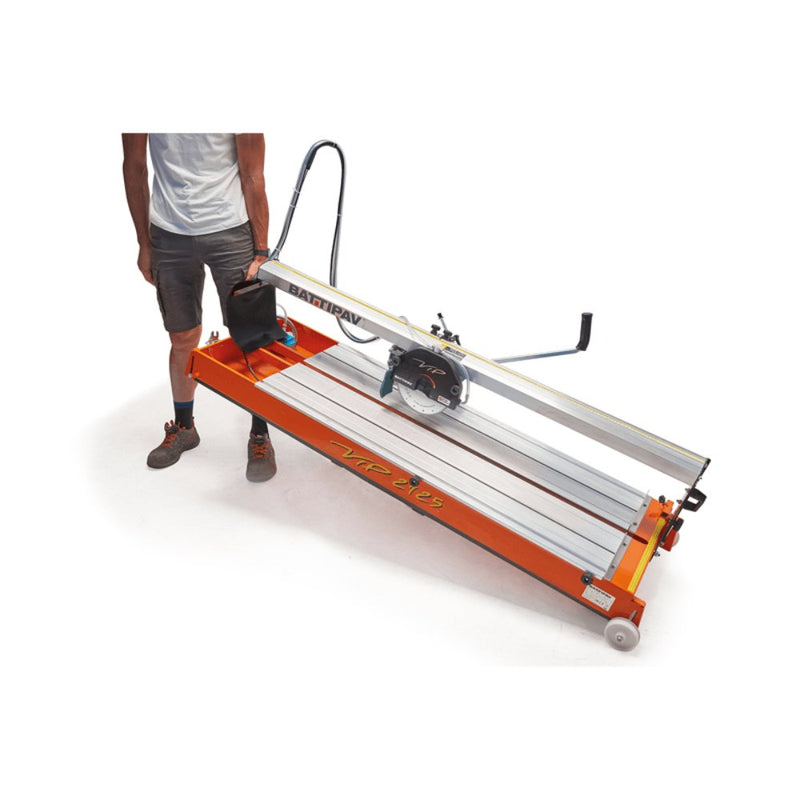

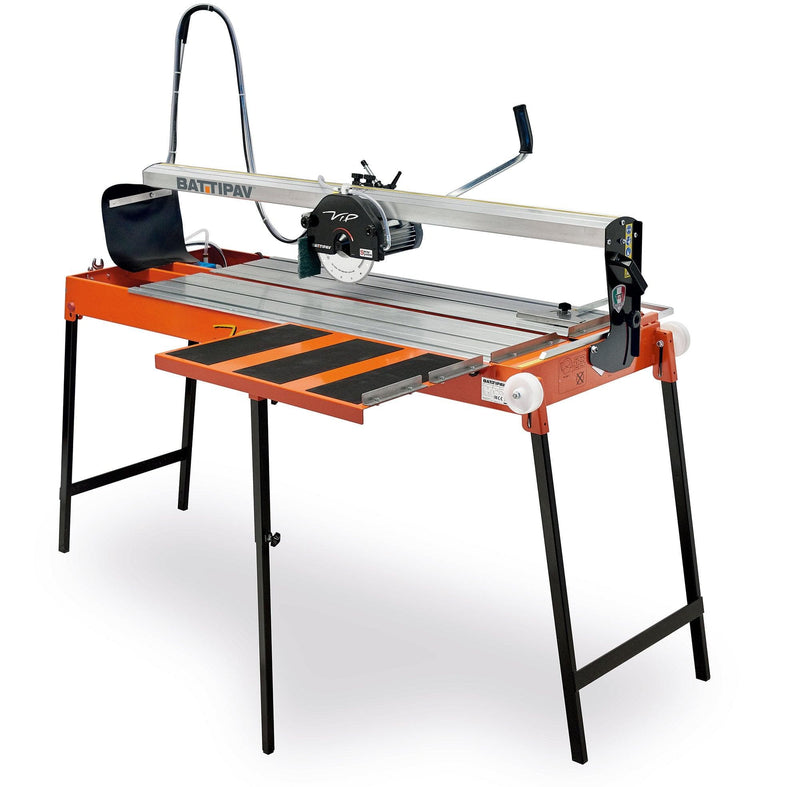

Maximize Efficiency and Precision with Battipav VIP 2125 Radial Tile Saw

Introducing the Battipav VIP 2125 Radial Tile Saw, an innovative tool for effortless and precise cutting of ceramic and porcelain tiles. This compact overhead bridge saw is designed with a sliding head and tilting engine for versatile and efficient tile cutting. It delivers unparalleled precision with its bearing sliding cutting head and stainless steel track, while its tilting rail allows easy angled cuts. With its extruded aluminum rail and interchangeable stainless steel bearings, this tool ensures durability, longevity, and ease of maintenance.

Features

Designed for straight and 45° angle cuts on ceramic and porcelain tiles.

Bearing a sliding cutting head on a stainless steel track ensures smooth and precise cuts.

Tilting rail for easy angled cuts.

Extruded aluminum rail provides durability and resistance to stress.

2-step maximum cutting depth of 3.15", suitable for a variety of tile sizes.

Equipped with interchangeable stainless steel bearings for precision cutting and easy maintenance.

Made in Italy, promising high-quality craftsmanship and materials.

What's In The Box

Battipav 2125 10" Bridge Saw

Stand w/ Wheel Kit

Rip Guide

Submersible Pump

Diamond Blade

Operator's Manual

Battipav 2125 Wet Saw Specifications
Power	1.8hp
Voltage	115V
Hertz	60Hz
Length of Cut	49.21 in
Diagonal Length of Cut	34.65 in
Arbor	5/8 in
Blade Capacity	10 in
Depth of Cut 90°	1.57 in
Depth of Cut 45°	1.38 in
Weight	117.95 lbs
