What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Imer Combicut 250/1500VA

SKU 118880

by Imer

$3,019.99 - $3,019.99

$3,019.99

$3,019.99 - $3,019.99

$3,019.99

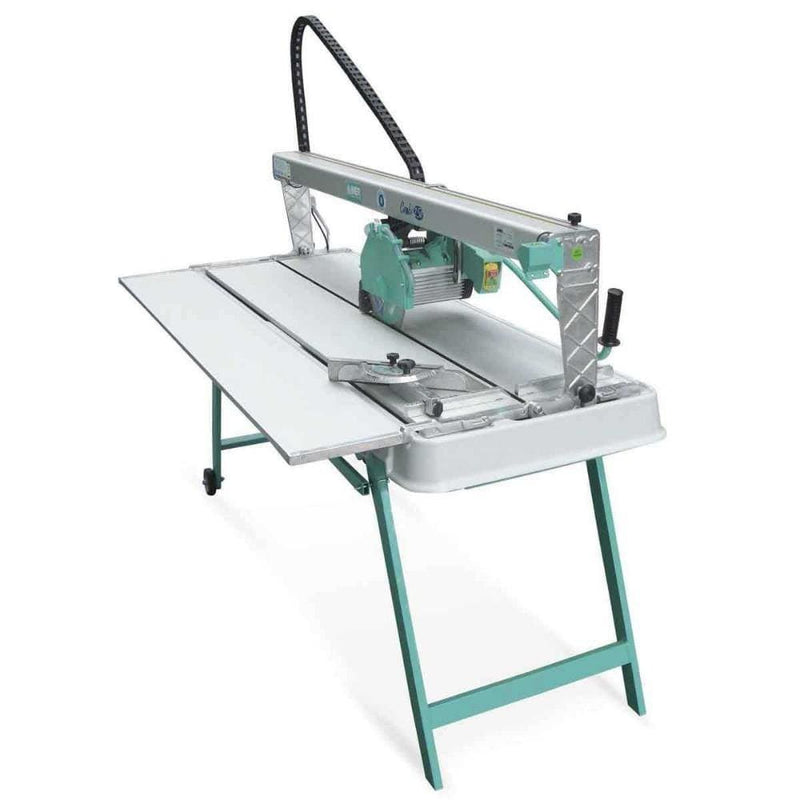

High-Performance Tile Cutting with Imer COMBICUT 250/1500VA

Elevate your tile cutting game with the COMBICUT 250/1500VA Tile Saw. Designed for the finesse and precision required by expert tile contractors and dedicated home remodelers, this saw combines lightweight agility with robust performance. Experience unmatched accuracy with its cast aluminum components and revel in the convenience of making quick, chip-free cuts up to 5 feet in length. Don't settle for less – upgrade to a saw that guarantees performance and reliability. Click to discover how the COMBICUT 250 can transform your projects today!

Features

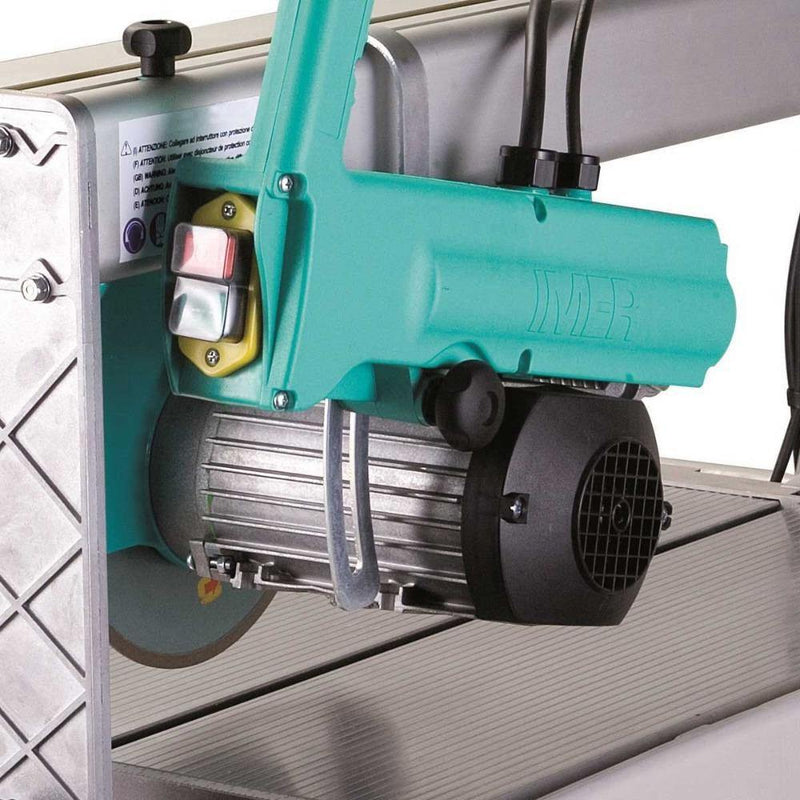

Powerful Motor: Newly engineered 1.75 h.p. motor for quiet, efficient cutting.

Feather-Light Design: Weighs just 125 lbs for straightforward transportation and handling.

Extended Cutting Capacity: Cuts tiles up to 5 ft in length, accommodating larger projects.

Precision Angles: Pivoting rail system enables accurate 45-degree cuts.

Chip-Free Performance: High-torque, low RPM motor ensures smooth, clean cuts.

Rip Guide Accuracy: Industry's only precise cast aluminum protractor for exact rip cuts.

Smooth Operation: Extruded aluminum travel bar allows for a fluid, accurate cutting experience.

Durable Construction: Made with aircraft-quality cast aluminum for a lasting, pristine finish.

Laser Guide Included: Enhances cutting precision, standard with every COMBICUT 250 series.

Comfortable Handling: Long handle design for an easy grip and smooth pull-through.

What's In The Box

Imer Combi 250/1500 VA Wet Tile Saw

Tile Saw Stand

Side Table Extension

10 in Diamond Blade

Water Pump

Rip Guide

Protractor Guide

Spare Parts

Wrenches

Operator's manual

Imer Combicut 250/1500VA Lite Tile Saw Specifications
Motor	110 V, 15 amp
Power	1.75 hp
Blade Speed	2,800 RPM
Blade Diameter	10 in
Arbor	5/8 in
Depth of Cut	3-3/4 in
Length of Cut (w/ Plunge Cut)	57 in (60 in)
Water Pan Capacity	13 gal
Water Pump FLow	3 GPM
Weight	125 lbs
Dimensions	76 x 24 x 25 in
