What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

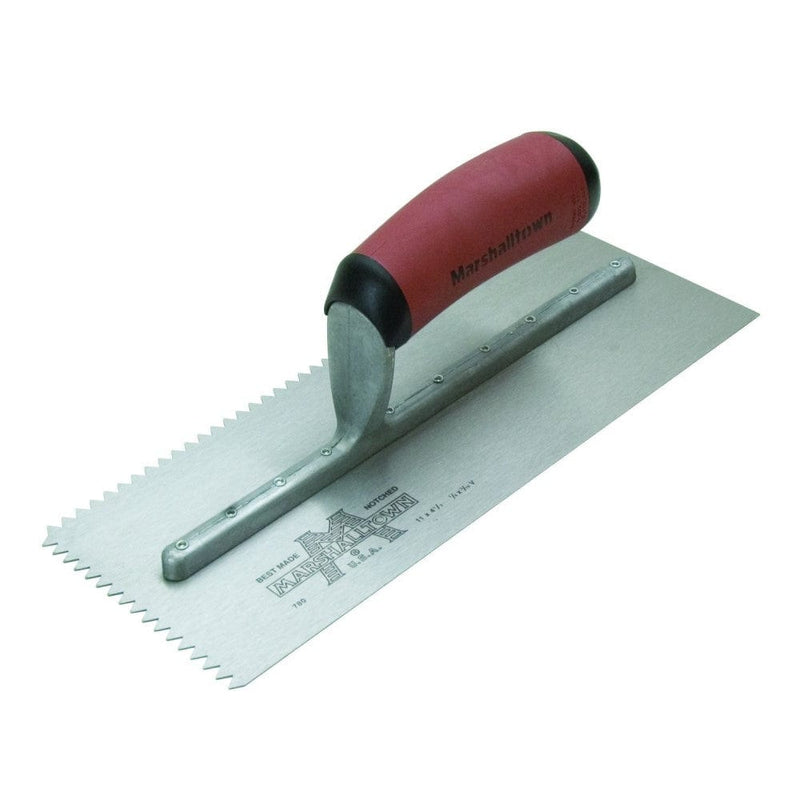

Marshalltown® Tile Trowels w/ DuraSoft Handles

SKU

by Marshalltown

$20.12 - $20.12

$20.12

$20.12 - $20.12

$20.12

Quantity

Precision and Quality: Marshalltown Notched Trowels

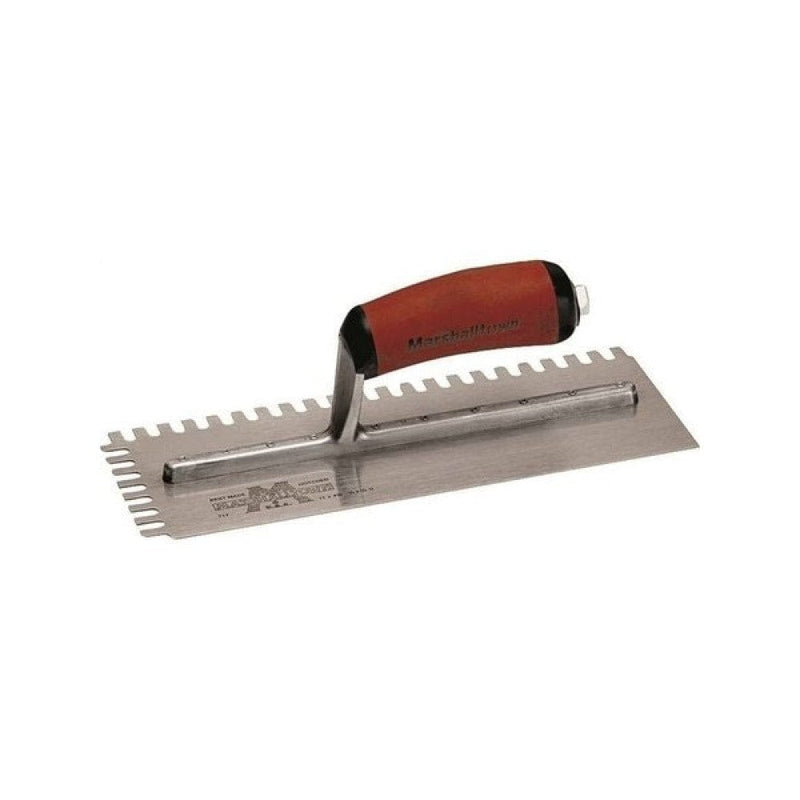

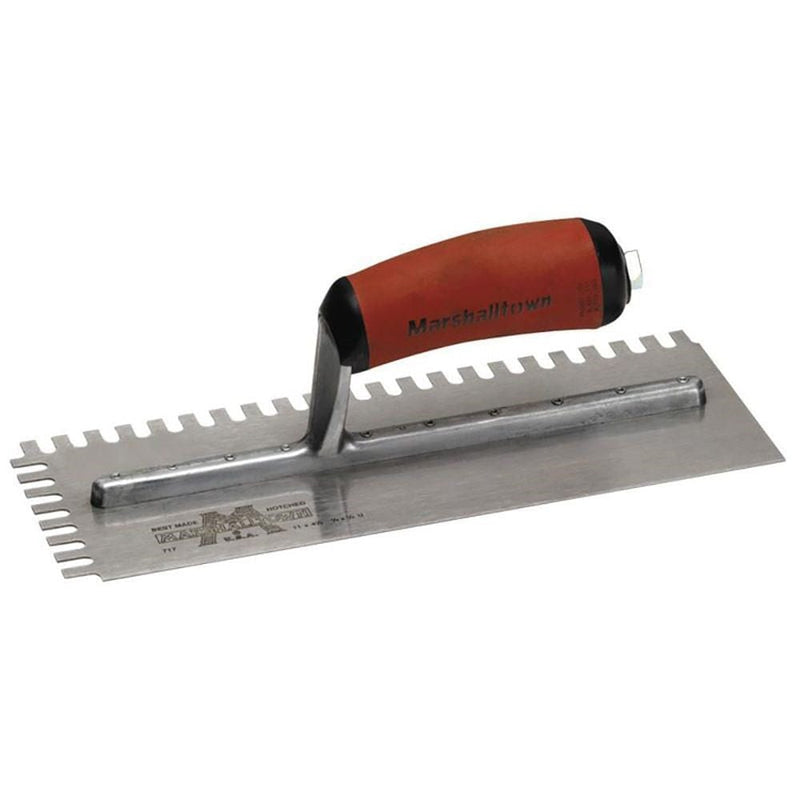

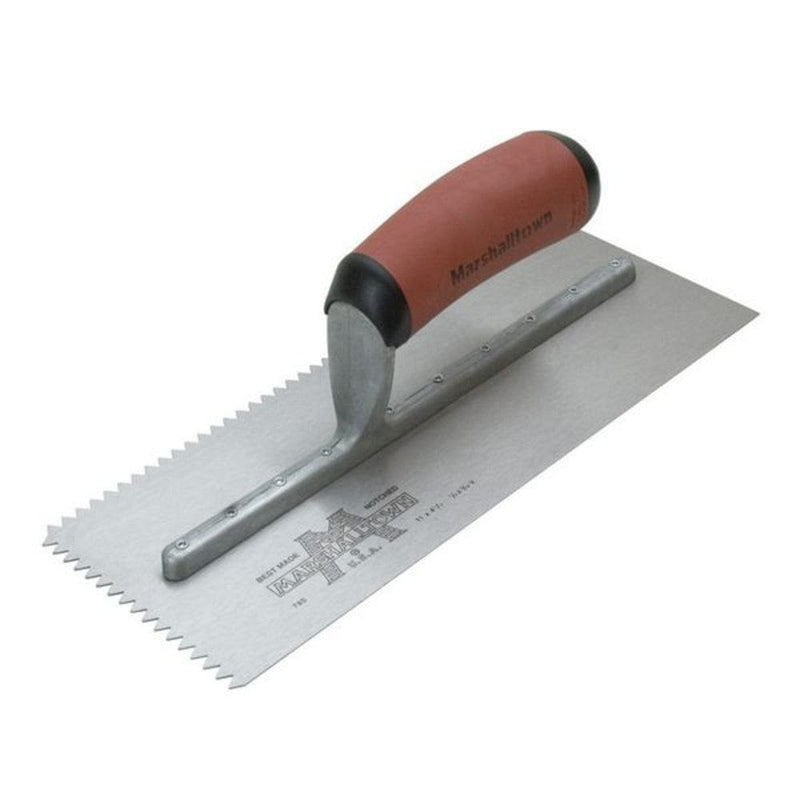

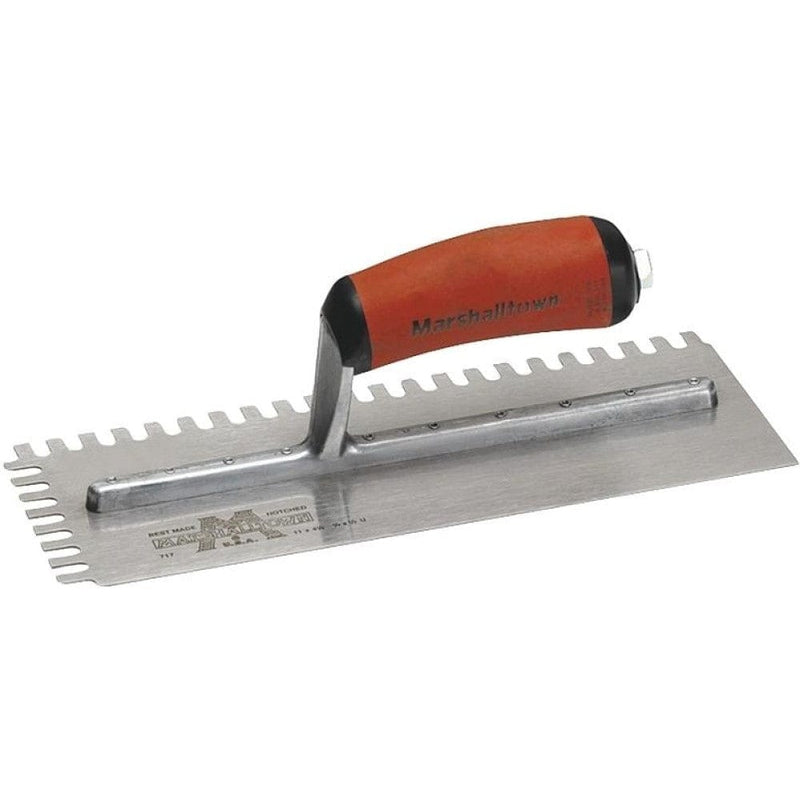

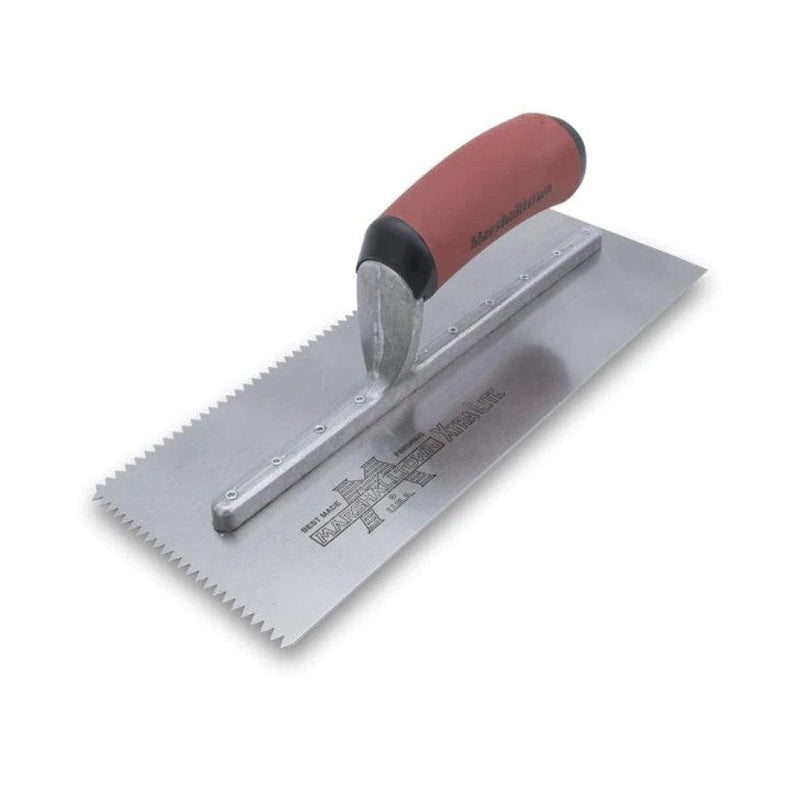

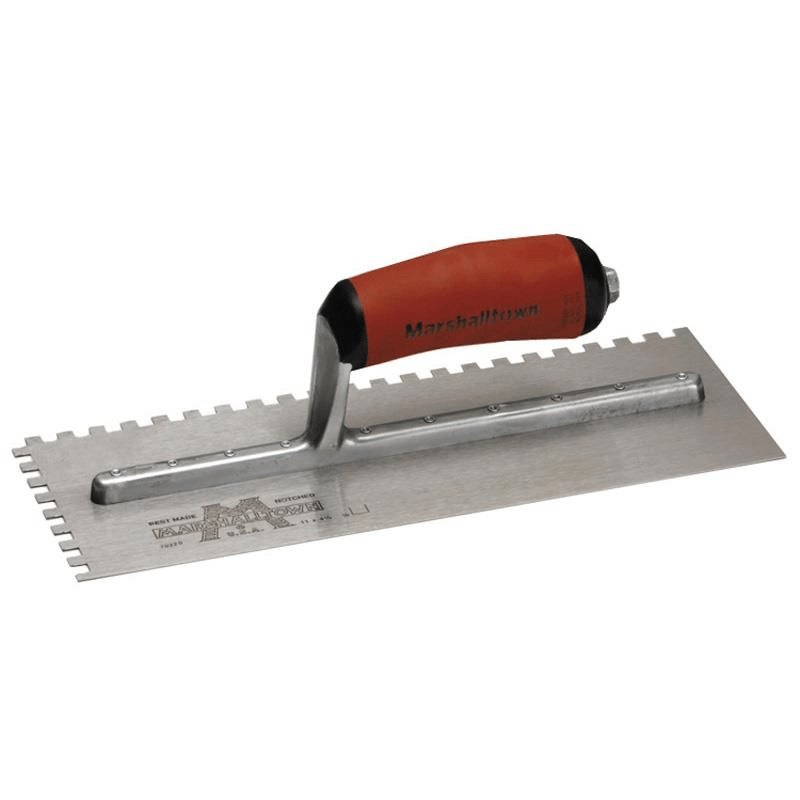

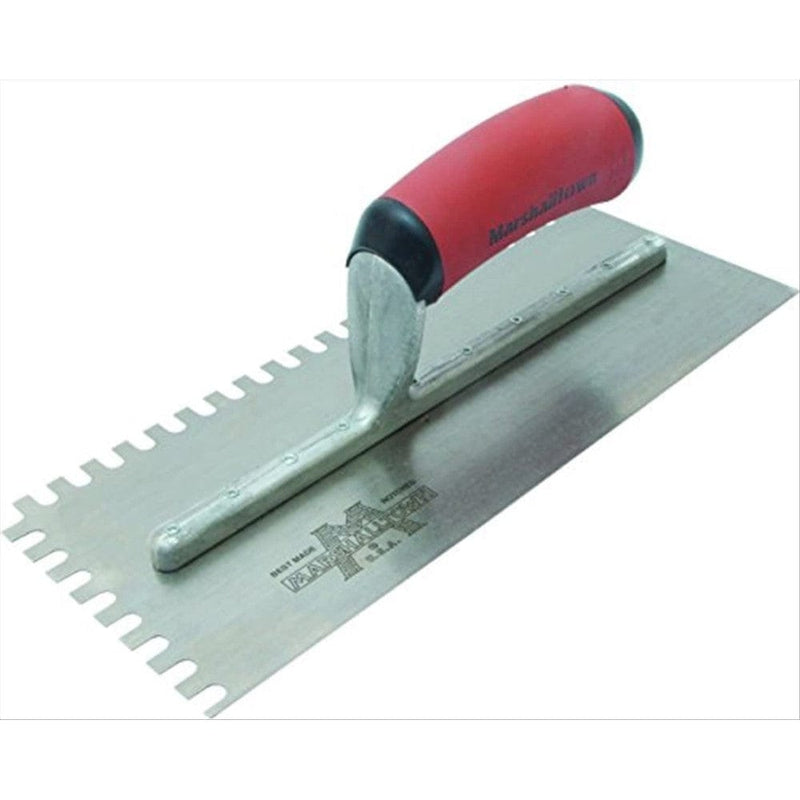

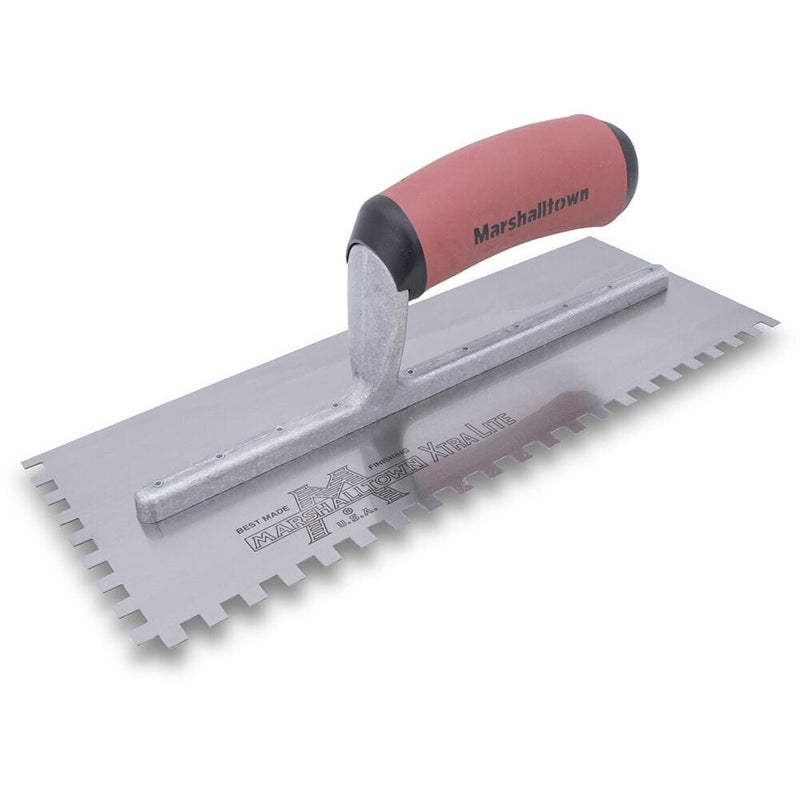

Professionals choose Marshalltown Notched Trowels for exceptional tiling performance. These 11" x 4 ½" trowels cover a wide range of projects, from basic floor installations to intricate mosaic designs. Their durability shines through with a riveted aluminum alloy mounting on a tempered steel blade, offering both flexibility and longevity. Marshalltown offers various notch shapes like Square, U-Shape, and V-Shape to meet specific needs. The ergonomic Durasoft camel back handle (measuring 11 inches by 4-1/2 inches) ensures comfort and control in every application.

Whether applying adhesives on horizontal or vertical surfaces, these notched trowels are reliable companions. Oval notches, developed in collaboration with the NTCA technical committee, enhance tile adhesion. Regardless of whether you're handling small ceramic mosaics or larger, patterned tiles, these trowels guarantee uniform material thickness and full tile contact for a professional finish. Opt for quality—choose Marshalltown Notched Trowels, the professional's trusted choice for tiling projects.

Features

Professional-Grade Trowels: Trusted by tile setters and professionals.

Durable Blade: Tempered steel blade with aluminum alloy mounting.

Handle Comfort: Ergonomic 11" x 4-1/2" Durasoft camel back handle.

Versatile Notch Shapes: Choose from Square, U-Shape, or V-Shape for your needs.

Enhanced Tile Adhesion: Oval notches developed with NTCA technical committee.

Uniform Material Thickness: Ensures consistent material distribution.

Suitable for Various Tile Sizes: Ideal for ceramic mosaics and larger, patterned tiles.

Marshalltown DuraSoft Notched Trowels
Model	Size	Notch	Application
5779SD	3/8" X 3/8" X 3/8"	Square	Medium ceramic floor tile, EIFS
702SD	1/4" X 1/4" X 1/4"	Square	Medium ceramic wall tile, floor tile
703SD	3/16" X 3/16" X 1/8"	Square	General flooring trowel
716SD	1/4" X 1/4" X 3/8"	U	Medium ceramic floor tile, wall tile
717SD	1/4" X 1/4" X 1/2"	U	Medium ceramic wall tile, floor tile
718SD	1/4" X 1/4" X 1/4"	U	Medium ceramic floor tile
719SD	9/16" X 3/4" X 3/8"	U	Large ceramic floor tile, marble mortar
770SD	15/32" X 1/2" X 15/32"	V	Large ceramic floor
771SD	3/16" X 5/32" X 3/16"	V	Small ceramic floor tile, wall tile, mosaic, carpet
775SD	1/2" X 1/2" X 1/2"	Square	Medium ceramic floor tile, pavers, EIFS
776SD	1/4" X 1/4" X 3/8"	Square	Large ceramic floor tile, pavers
780SD	1/4" X 3/16" X 1/4"	V	Small ceramic floor tile, wall tile, metal tile
