What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Tavy Thin Skin™ Underlayment

SKU

by Tavy

$37.00 - $90.00

$37.00

$37.00 - $90.00

$37.00

Quantity

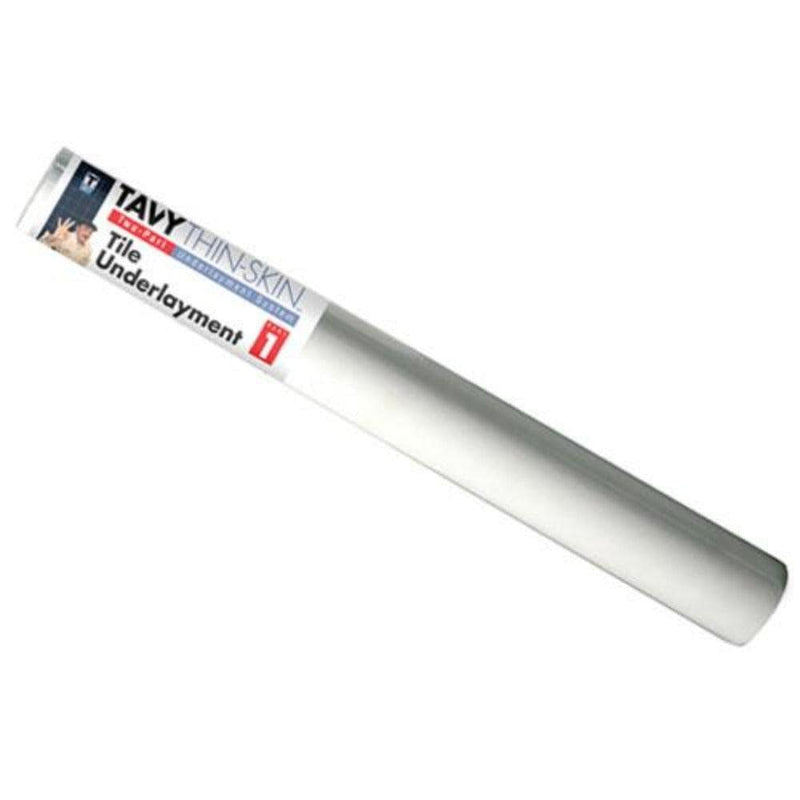

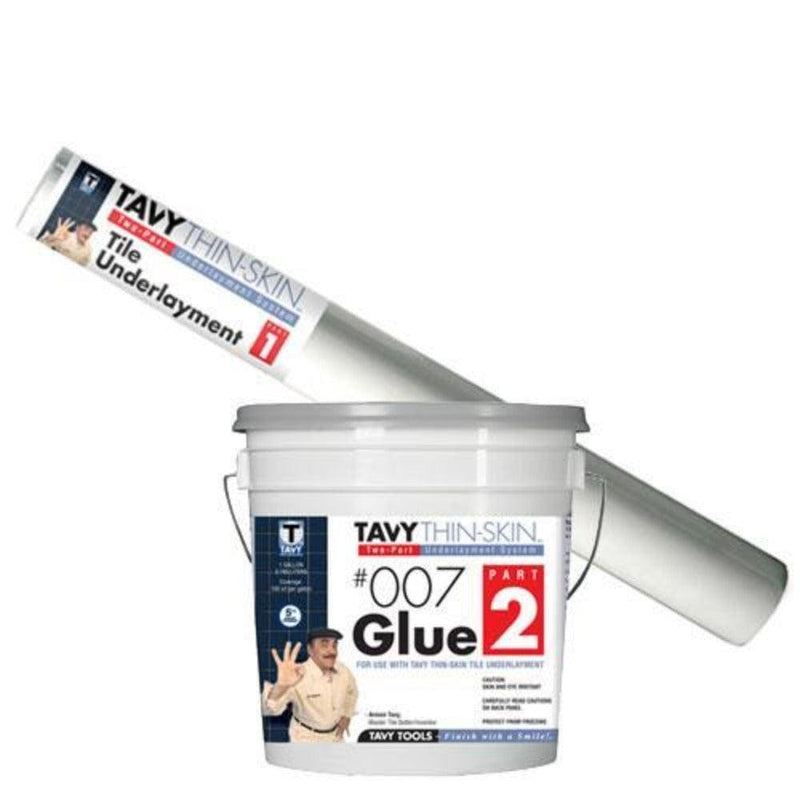

Thin-Skin Two Part Underlayment System

Don't be forced to tear out your existing surface, tile over it! Tavy® Thin-Skin will allow you to tile over surfaces that typically would have to be torn out so that the proper surface could be created to tile over. With Tavy® Thin-Skin you can tile over Formica, vinyl, linoleum, plywood, painted surfaces, porcelain, drywall, metal, stainless steel, fiberglass, ceramic tile, and any other sound surface.

The TAVY Thin-Skin Two Part Underlayment System was developed to provide an underlayment for tile that could be installed over any surface without adding additional height to the sub-floor

Thin Skin Features

This underlayment was developed to provide an underlayment for tile that could be installed over any surface without adding additional height to the sub-floor

The Thin-Skin System is so simple that it can be installed by both professionals and DIYers

Can be used with either modified or non-modified thinset mortar

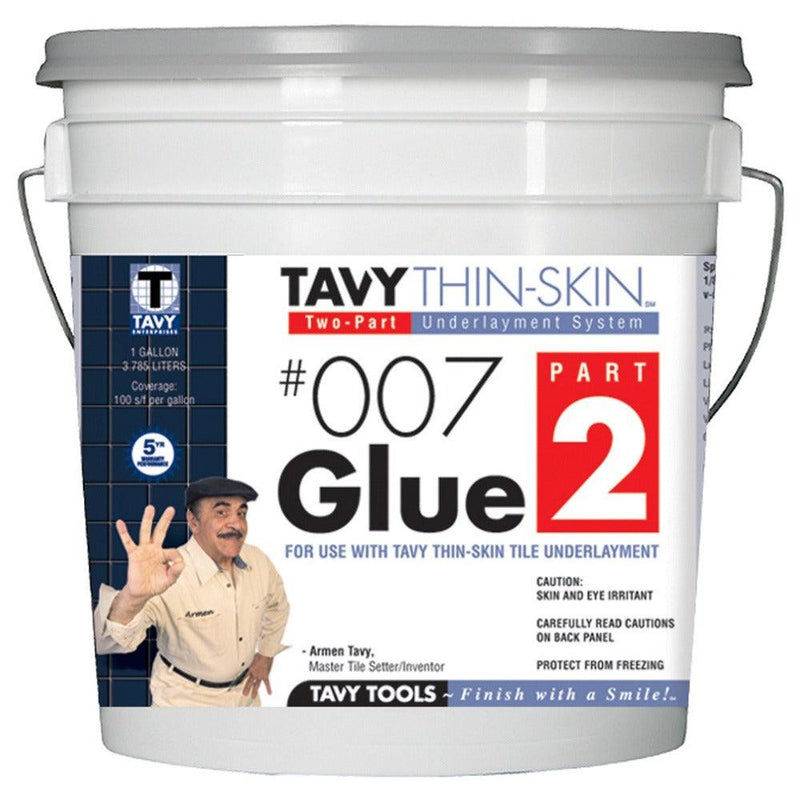

Thin-Skin #007 Glue Features

Thin-Skin #007 Glue is also technically engineered to meet Armen Tavy’s specifications

TAVY #007 Glue is a high-end multi-purpose adhesive high in solids, which will adhere to any surface

Scarifying the existing surface before use is not necessary

The only surface preparation required is to have a clean surface that is free from oil, water, wax and dust

Benefits

Tested by Tile Council of North America

No nails/screws required

No need to tear out your existing surface, just tile over it!

Allows for tile or stone to be set on any surface

Lightweight and easier to transport

No additional height added to any surface as opposed to current underlayments

NO waste, all TAVY Thin-Skin Underlayment pieces are usable regardless of size and shape

100 sq ft coverage with one roll of TAVY Thin-Skin Underlayment 2.5' X 40' and one gallon of TAVY Thin-Skin #007 Glue

Thin-Skin Underlayment can be used for making templates for difficult cuts

Minimize overall load weight

Crack suppression up to 1/8" over concrete

Not To Be Used For Waterproofing

TOOLS REQUIRED

Pencil, knife or scissors,

5/32" v-notched trowel (minimum), 5/32" v-notched spatula,

Latex modified mortar

Putty knife

Margin trowel
