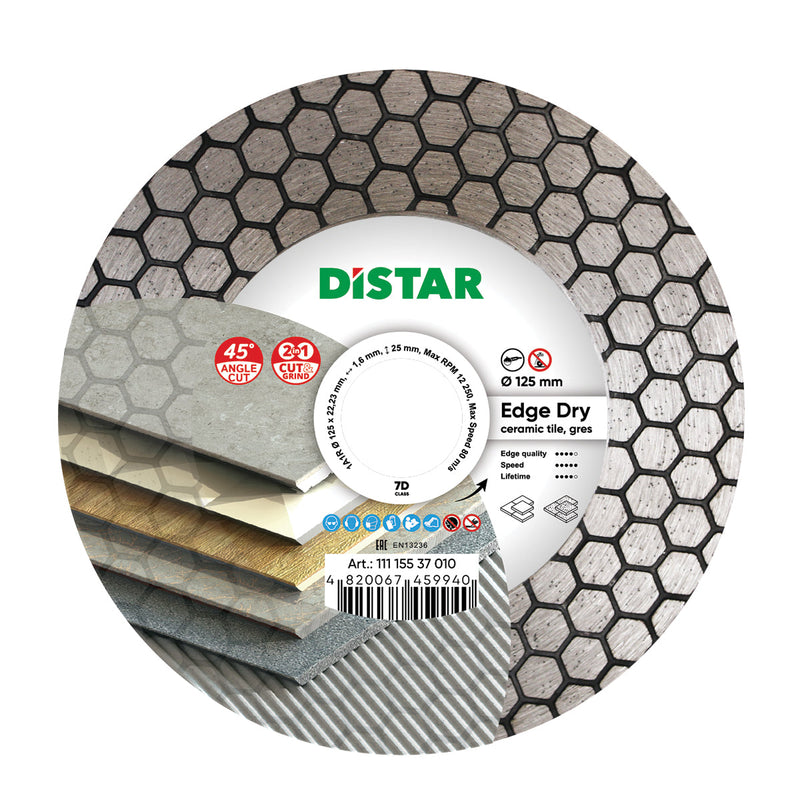

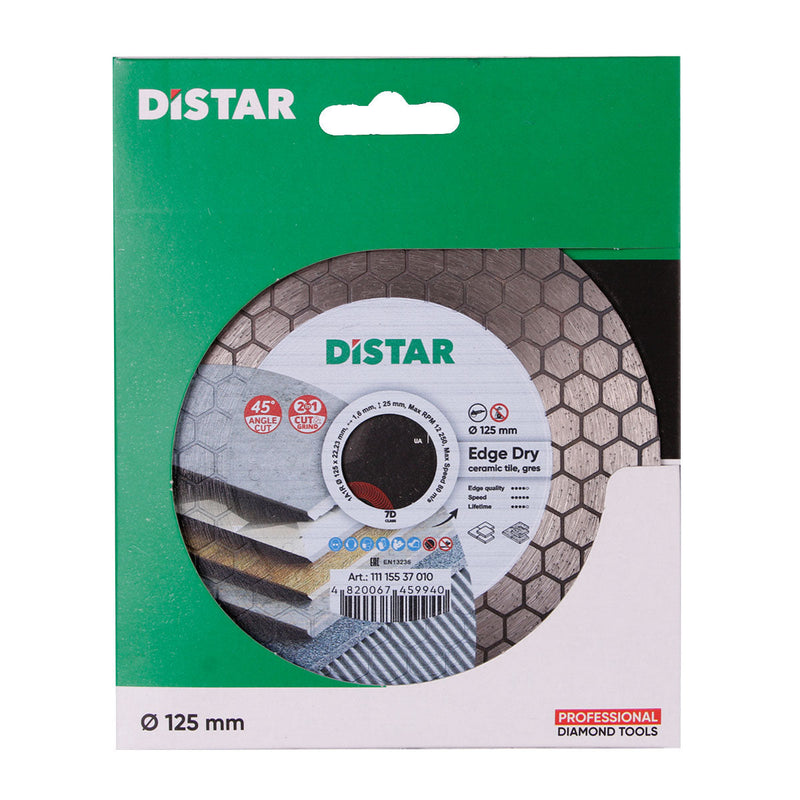

Edge Dry Diamond Blade 4.5"–5" – 45° Dry Tile Cutting Blade for Ceramic & Porcelain

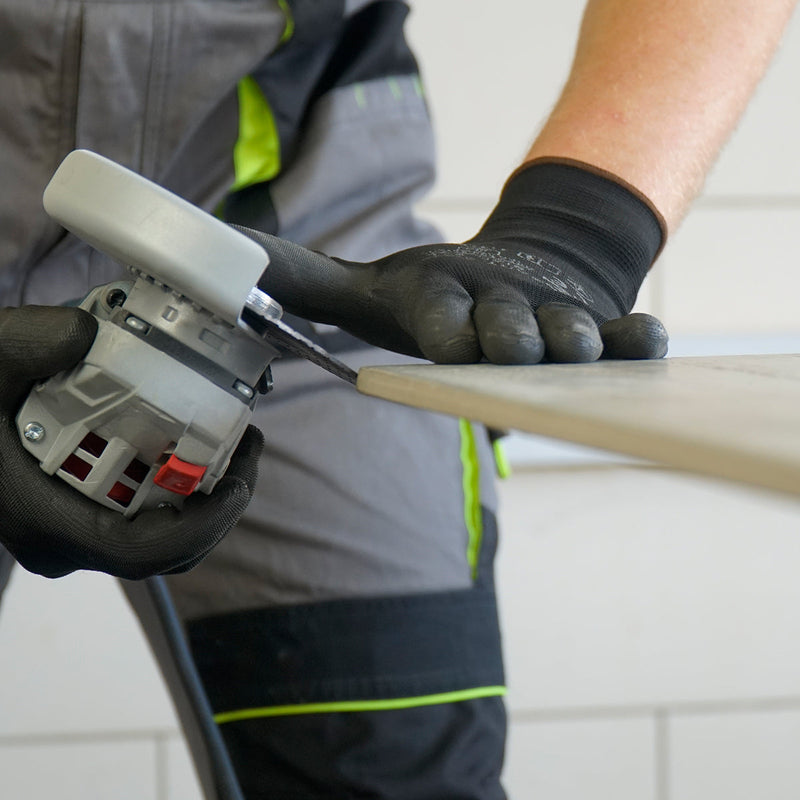

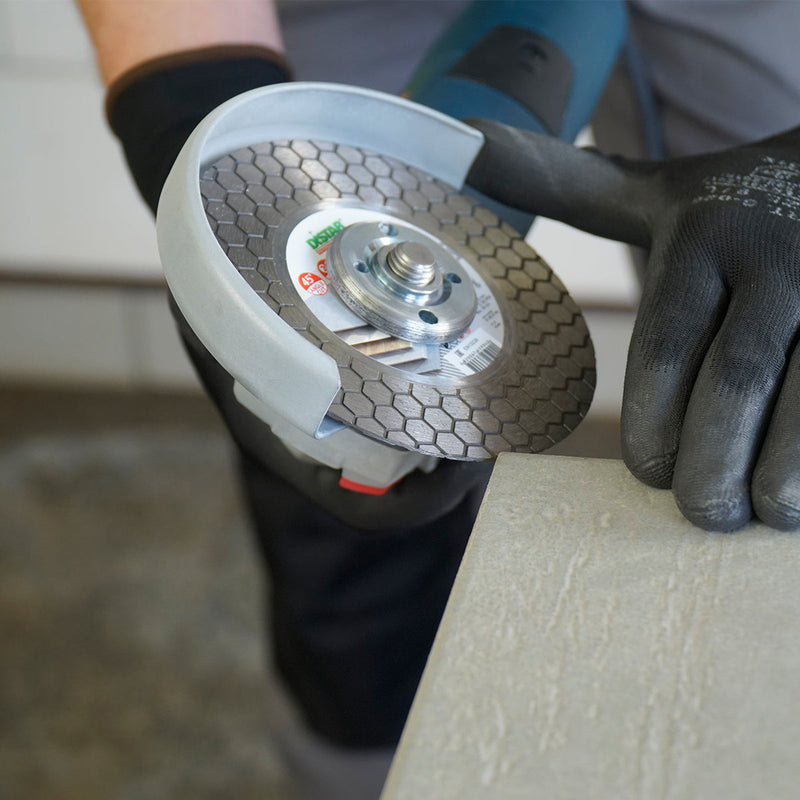

The DISTAR Edge Dry Diamond Blade is purpose-built for professional 45° miter cutting of ceramic and porcelain gres tiles—without the need for water cooling.
Engineered with a wide 1" (25 mm) double-sided diamond layer, this blade delivers exceptional rigidity and stability during bevel cutting. Its large planar working surface creates a natural fulcrum effect against the tile, guiding the blade in a straight, stable path for precise 45° joints. The Edge Dry also doubles as a grinder—allowing installers to refine and smooth tile edges using the same blade.
Key Features & Benefits
Key Features & Benefits
Optimized for 45° Bevel Cuts
Designed specifically for clean, accurate miter cutting on ceramic and porcelain gres.

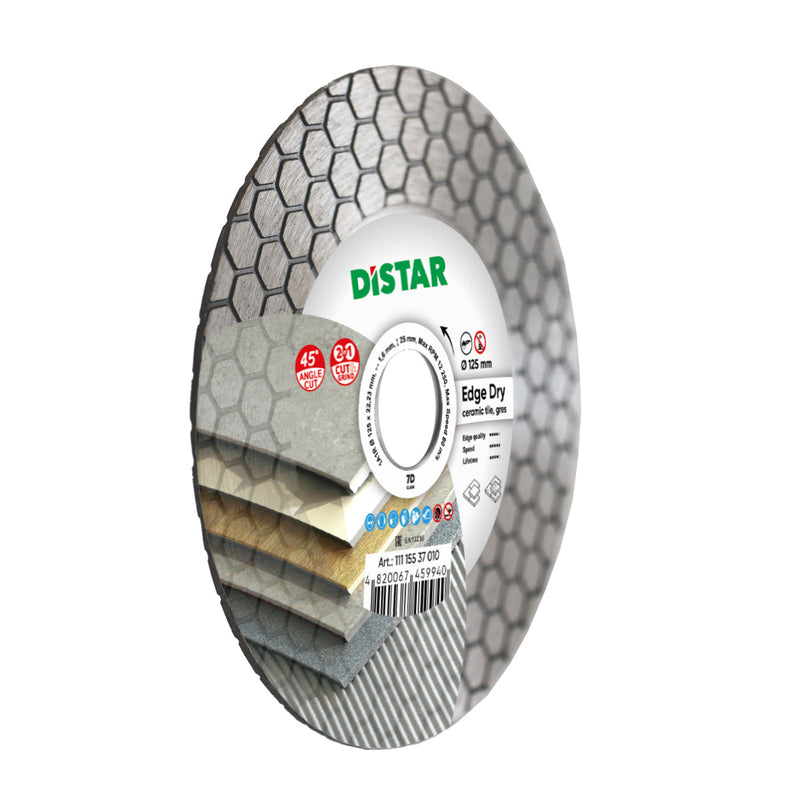

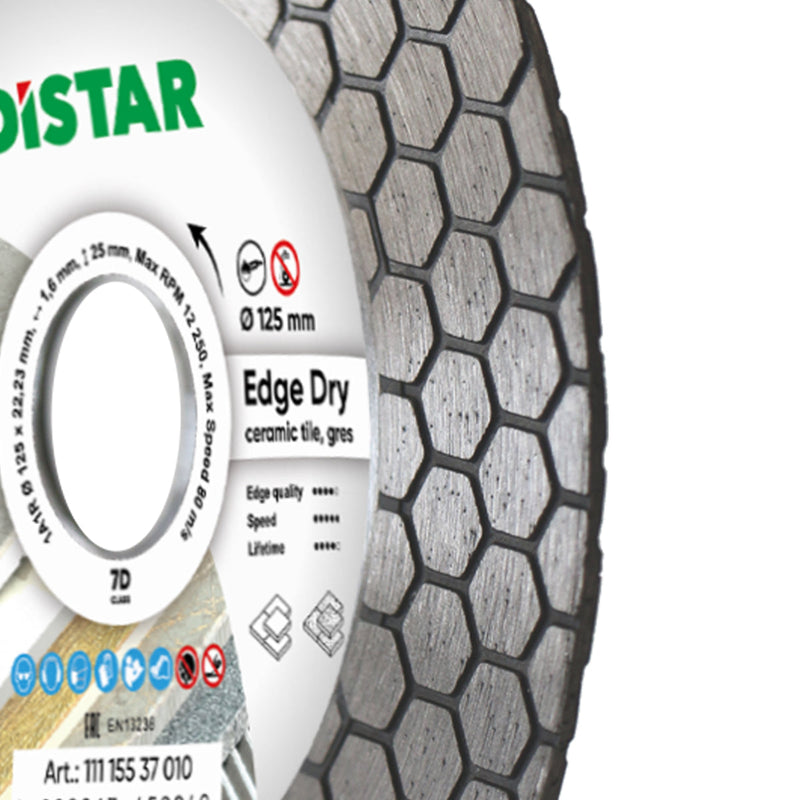

Wide 1" (25 mm) Double-Sided Diamond Layer
Reinforces the blade core for improved rigidity and straight cutting stability.
Cut & Grind Functionality
Use the same blade to refine and smooth tile edges after cutting.
Specifications
| Specification | Detail |
|---|---|
| Diameter Options | 4.5 in. / 5 in. |
| Thickness | 0.063 in. (1.6 mm) |
| Cooling | Dry cutting (no water required) |
| Bore Diameter | 0.87 in. (22.23 mm) |
| Miter Cutting | Optimized for 45° bevel cuts |
| Diamond Layer | 1 in. (25 mm) wide, double-sided |
| Application | Ceramic tile, porcelain gres |
| Brand | DISTAR |
Applications & Compatibility
Common Applications
- 45° miter joints on porcelain gres
- Ceramic tile corner finishing
- Seamless modern tile installations
- Edge refinement and smoothing
