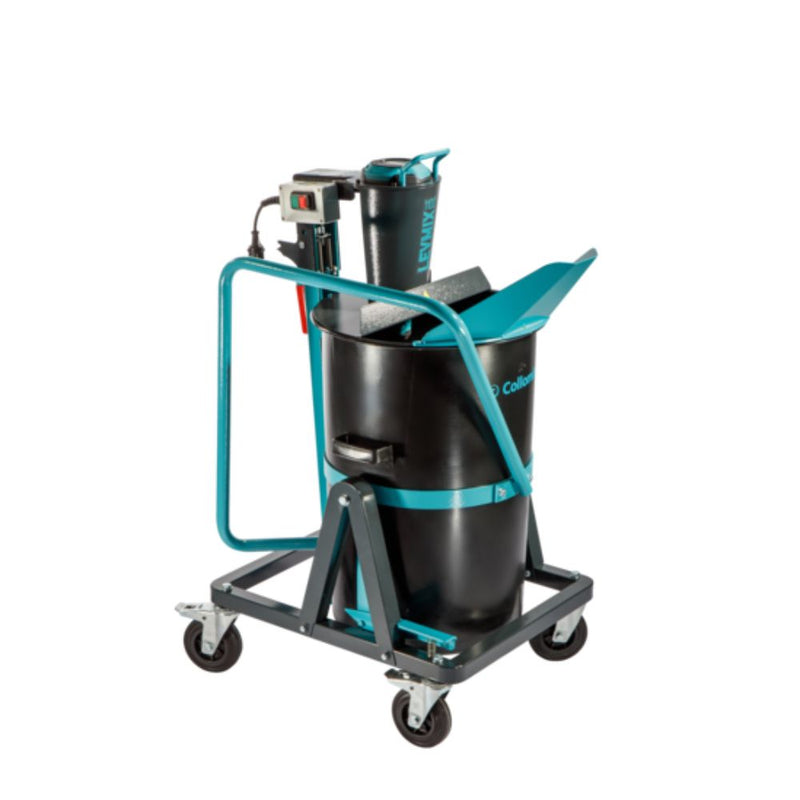

Collomix Heavy Duty Portable Mixer LevMix 1100
Freight Delivery Info
This item qualifies for free freight shipping.
Delivery is available to commercial addresses with loading docks or forklifts.
Residential deliveries may incur additional charges.
Click here to view our freight policies
Factory Direct Shipping
Use this text to share information about your product and policies with your customers.
Handle Larger Floor-Leveling Pours with the Collomix LevMix 1100
The Collomix LevMix 1100 Floor Leveling Mixer is a high-capacity mobile mixing station designed for flooring contractors processing large quantities of self-leveling material. It combines mixing, jobsite transport, and controlled pouring in one machine, reducing repeated bucket handling and interruptions between batches.
With a maximum usable mixing capacity of 22.5 gallons (353 lb), the LevMix 1100 is built for large-area flooring installations and production-focused crews. Its digital mixing-time display and two electronically controlled speeds help operators follow material instructions and repeat successful mixing cycles more consistently.
Why Choose the LevMix 1100?
- High-capacity mixing: Process up to 22.5 gallons or 353 lb of approved material per batch.
- Three processes in one machine: Mix, transport, and pour from the same mobile mixing tub.
- Two electronic speed settings: Select 450 or 600 rpm based on the material and manufacturer instructions.
- Digital mixing-time display: Monitor elapsed mixing time for more repeatable batch preparation.
- Large 29-gallon mixTUB: Provides the working space needed for high-volume floor-leveling applications.
- VLX 173 mixing tool: Designed for approved liquid and low-viscosity materials.
- Integrated dust-extraction connection: Connect a compatible Class M dust extractor to reduce airborne dust while loading powdered material.
- Mobile jobsite design: Four steerable casters help one operator move the mixer on firm, level surfaces.
- Controlled pouring: The tilting tub and replaceable spout help direct material into the application area.
- Made in Germany: Professional equipment backed by a 24-month manufacturer warranty, subject to warranty terms.
Built for Large-Area Floor Leveling Projects
The LevMix 1100 is designed for contractors who need to maintain output across large commercial flooring installations. Its 29-gallon mixing tub supports a maximum usable batch of 22.5 gallons or 353 lb, including water, depending on material density and processing instructions.
Collomix states that the larger capacity can provide time savings of up to 25% compared with the LevMix 750 in suitable applications. Actual productivity will depend on material, crew workflow, mixing time, transport distance, and site conditions.
More Control Over Every Mixing Cycle
The integrated control panel displays the selected speed and current mixing time. Operators can switch between 450 rpm and 600 rpm, including during operation, to better match the requirements of approved self-leveling compounds and flowable coatings.
The elapsed-time display can be reset when starting a new batch and records mixing time up to 9 minutes and 59 seconds. This helps crews repeat established mixing procedures across multiple batches.
Please note: The mixing-time display monitors elapsed time. It does not automatically stop the mixer.
Designed for Approved Flowable Materials

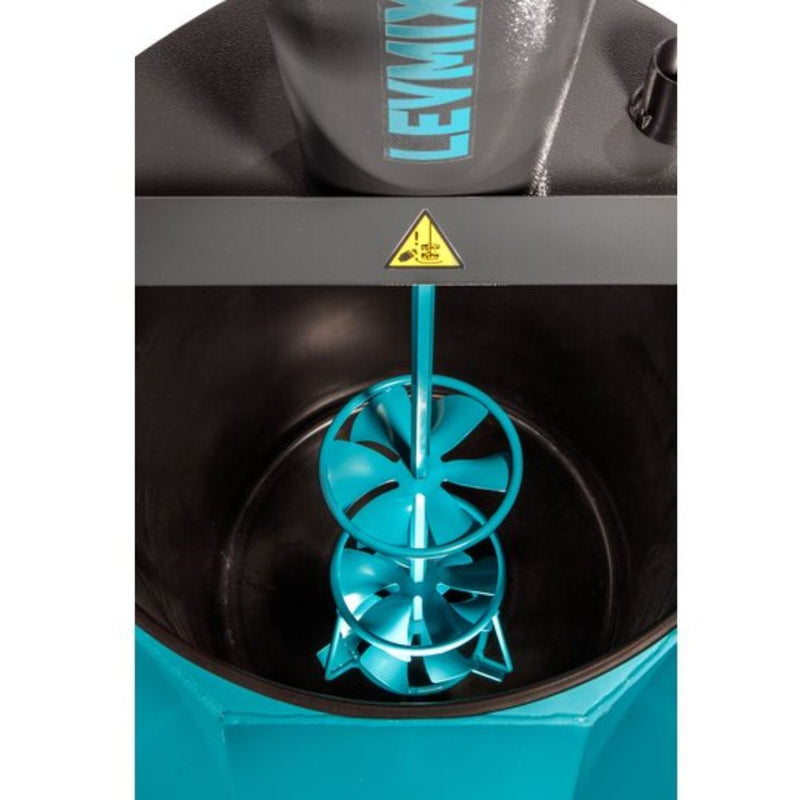

The included VLX 173 mixing tool is designed for liquid and low-viscosity materials. Its mixing action helps break up lumps and dry pockets to produce a homogeneous batch when the machine is used according to Collomix and material-manufacturer instructions.
Recommended material classes include:
- Self-leveling screed
- Floor leveling compounds
- Flowable filling compounds
- Fiber-reinforced fillers
- Decorative fillers
- Decorative concrete flooring materials
- Flowable polyurethane coatings
- Flowable epoxy resin coatings
Always review the material technical data sheet before mixing. Water quantity, mixing time, speed, batch size, and material suitability vary by formulation.
Recommended Speed Settings
| Material | Recommended Speed |
|---|---|
| Self-leveling screed | 600 rpm |
| Leveling and filling compounds | 600 rpm |
| Fiber-reinforced fillers | 600 rpm |
| Decorative fillers | 600 rpm |
| Flowable polyurethane coatings | 450 rpm |
| Flowable epoxy resin coatings | 450 rpm |
Speed settings are general Collomix recommendations. Always follow the processing instructions supplied by the material manufacturer.
Mix, Transport, and Pour from One Machine
After the material is mixed, the operator can switch off and unplug the LevMix 1100, move it to the application area, and release the tilting tub using the foot pedal. Material is then directed through the pouring spout while the operator controls the machine using the handle.
This integrated process reduces the need to transfer heavy material between separate mixing buckets, carts, and pouring containers. Four steerable casters support jobsite movement, while two braking casters help keep the machine stationary during operation.
Integrated Dust-Control Connection
The LevMix 1100 includes a 35 mm dust-extraction port on the cover. Collomix recommends connecting a compatible Class M dust extractor when loading powdered material to help reduce airborne dust around the mixing station.
The dust extractor and extraction hose are sold separately unless specifically included in the selected package.
Technical Specifications
| Brand | Collomix |
|---|---|
| Model | LevMix 1100 |
| Manufacturer Item Number | 37045 |
| Voltage | 120V, 60 Hz |
| Motor Power | 1,600 W / 2.15 hp |
| Controlled Speeds | 450 and 600 rpm |
| Total Tub Capacity | 29 gal |
| Maximum Usable Quantity | 22.5 gal or 353 lb, including water |
| Recommended Bag Capacity | Up to five bags, depending on bag weight, material density, and manufacturer instructions |
| Included Mixing Tool | VLX 173 |
| Tool Connection | HEXAFIX PRO |
| Dust Port | 35 mm |
| Dimensions | 31.4 × 23 × 47.8 in |
| Empty Weight | 114.6 lb |
| Protection Class | IP20 |
| Sound Pressure Level | 83 dB(A) |
| Sound Power Level | 91 dB(A) |
| Warranty | 24 months against manufacturing and material defects, subject to manufacturer terms |
| Country of Origin | Made in Germany |
What's Included
- Collomix LevMix 1100 mobile mixer
- VLX 173 mixing tool
- 29-gallon Collomix mixTUB
- HEXAFIX PRO coupling
- Operating instructions
Materials Not Suitable for the LevMix 1100
The LevMix 1100 is intended for approved liquid and low-viscosity materials. It is not designed for:
- Concrete
- Bonding or sealing slurries
- Non-flowing or stable leveling compounds
- Cement screeds
- Mortar or thin-bed mortar
- Paving-stone adhesive
- Creamy plaster
- Tile adhesive
- Grout
- Highly viscous materials
- Flammable or explosive substances
- Corrosive liquids
- Electrically conductive substances
- Food products
Operating and Compatibility Notes
- Operate the mixer only on a firm, stable, and level surface.
- Confirm that the power source matches the machine's 120V rating plate.
- Connect the machine through an RCD with a tripping current of 30 mA or less.
- Use a suitable jobsite extension cable that meets the operating-manual requirements.
- Use only original Collomix mixing tubs and approved mixing tools.
- Do not exceed 22.5 gallons or 353 lb per batch.
- Unplug the machine before pouring, opening, changing the mixing tool, cleaning, or servicing.
- Keep hands and tools out of the mixing chamber during operation.
- Transport the machine upright and secure it inside the vehicle.
- Do not transport the machine by crane.
- Protect the mixer from rain, moisture, and wet storage conditions.
- Do not clean the machine with running water, a hose, or a pressure washer.
- Read the complete operating instructions before first use.
Frequently Asked Questions
How much material can the LevMix 1100 mix per batch?
The maximum recommended usable quantity is 22.5 gallons or 353 lb, including water. The actual quantity depends on material density, viscosity, water requirements, and manufacturer instructions.
Can the LevMix 1100 mix five bags at once?
It is designed to process up to five bags, depending on bag weight and material properties. Because the supplied product literature references both 50 lb and 55 lb bags, use the verified 22.5-gallon and 353 lb limits as the primary capacity specifications.
Why does the machine have a 29-gallon tub but a 22.5-gallon usable capacity?
The mixTUB has a total capacity of 29 gallons. The recommended usable quantity is limited to 22.5 gallons to provide working space and reduce the risk of overfilling or material sloshing.
What is the difference between the LevMix 750 and LevMix 1100?
The LevMix 1100 has a larger 29-gallon tub and handles up to 22.5 gallons or 353 lb per batch. The LevMix 750 has a 20-gallon tub and handles up to 14.5 gallons or 220 lb. The LevMix 1100 is better suited to large-area projects requiring fewer mixing interruptions.
Does the timer automatically stop the mixer?
No. The display monitors elapsed mixing time so operators can repeat an established process. The machine must be stopped using the OFF button.
Does the LevMix 1100 include a dust extractor?
No dust extractor is listed in the standard scope of delivery. The machine includes a 35 mm connection for a compatible external Class M dust extractor.
Can it mix epoxy and polyurethane coatings?
It can be used with approved flowable epoxy resin and polyurethane coatings. Collomix recommends the 450 rpm setting, but the coating manufacturer's processing instructions must always be followed.
Can the LevMix 1100 mix concrete, mortar, or tile adhesive?
No. The operating instructions exclude concrete, cement screed, mortar, tile adhesive, grout, and other highly viscous or non-flowing materials.
How should the LevMix 1100 be cleaned?
Disconnect the machine from power and clean it immediately after use. Never use running water, a hose, or a pressure washer. Follow the cleaning and maintenance procedures in the operating manual.
