IMER 1107010 Stucco & Fine Coatings Gun Kit
The IMER Stucco & Fine Coatings Gun Kit (1107010) equips compatible IMER pumps for applying thinner materials such as acrylic stucco, fine coatings, and finish coats. Designed for professional contractors, this complete kit includes the application gun, multiple deflector sizes, material hoses, air hose, and cleaning accessories needed for a versatile finishing setup.
Current IMER documentation lists this kit for use with the IMER Mighty Small 50, Koine 3.1, and Koine Dual.
Key Features
- Designed for fine coatings: Ideal for thinner materials such as acrylic stucco and finish-coat applications.
- Compatible with select IMER pumps: Designed for the Mighty Small 50, Koine 3.1, and Koine Dual.
- Four deflector sizes included: Choose from 5 mm, 6 mm, 8 mm, and 12 mm deflector caps for different application requirements.
- Material hoses included: Includes both 16 ft and 33 ft sections of 1-inch material hose with cam couplings.
- Air hose included: Includes a 53 ft x 9/16-inch air hose with Geka couplings.
- Cleaning accessories included: Comes with a spray gun cleaner tool and 1-1/4-inch sponge.
- Additional masonry applications: Can also be used for pointing and filling cracks and joints between stone walls as applicable.

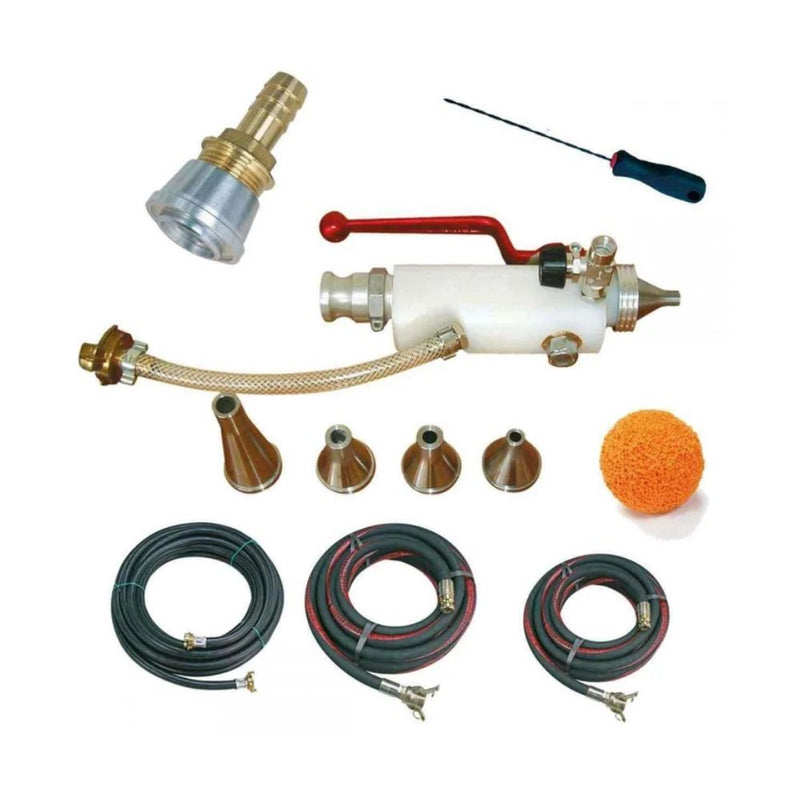

What's Included
- Fine coatings application gun
- 3/16" (5 mm) deflector cap
- 1/4" (6 mm) deflector cap
- 3/8" (8 mm) deflector cap
- 1/2" (12 mm) deflector cap
- Deflector with 5/8" (16 mm) hose connector
- 16 ft x 1" (25 mm) material hose with cam couplings
- 33 ft x 1" (25 mm) material hose with cam couplings
- 53 ft x 9/16" (13 mm) air hose with Geka couplings
- Spray gun cleaner tool
- 1-1/4" (30 mm) sponge
Specifications
| Brand | IMER |
| Manufacturer Part Number | 1107010 |
| Product Type | Stucco & Fine Coatings Gun Kit |
| Compatible Equipment | IMER Mighty Small 50, Koine 3.1, and Koine Dual |
| Deflector Sizes | 3/16" (5 mm), 1/4" (6 mm), 3/8" (8 mm), 1/2" (12 mm) |
| Deflector Hose Connector | 5/8" (16 mm) |
| Material Hose | 16 ft x 1" (25 mm) with cam couplings |
| Additional Material Hose | 33 ft x 1" (25 mm) with cam couplings |
| Air Hose | 53 ft x 9/16" (13 mm) with Geka couplings |
Applications
- Acrylic stucco
- Fine coatings
- Stucco finish coats
- Compatible waterproofing and coating applications
- Pointing applications
- Filling cracks and joints between stone walls
Compatibility
The IMER 1107010 Fine Coatings Gun Kit is currently documented for use with the Mighty Small 50, Koine 3.1, and Koine Dual. Confirm your pump configuration and material requirements before ordering if you are using another IMER model.
Important: Compressor requirements may vary depending on the material and application. Compressor-free use should not be assumed for all spraying applications.
Frequently Asked Questions
What IMER pumps does this gun kit fit?
The IMER 1107010 kit is designed for compatible IMER pumping equipment, including the Mighty Small 50, Koine 3.1, and Koine Dual.
What materials is this kit designed for?
It is primarily designed for thinner materials such as acrylic stucco, fine coatings, and finish-coat applications.
What deflector sizes are included?
The kit includes 3/16" (5 mm), 1/4" (6 mm), 3/8" (8 mm), and 1/2" (12 mm) deflector caps.
Does the kit include material hose?
Yes. It includes a 16 ft x 1-inch material hose and a 33 ft x 1-inch material hose, both with cam couplings.
Does the kit include an air hose?
Yes. A 53 ft x 9/16-inch air hose with Geka couplings is included.
What is the IMER part number?
The manufacturer part number for this Stucco & Fine Coatings Gun Kit is 1107010.
