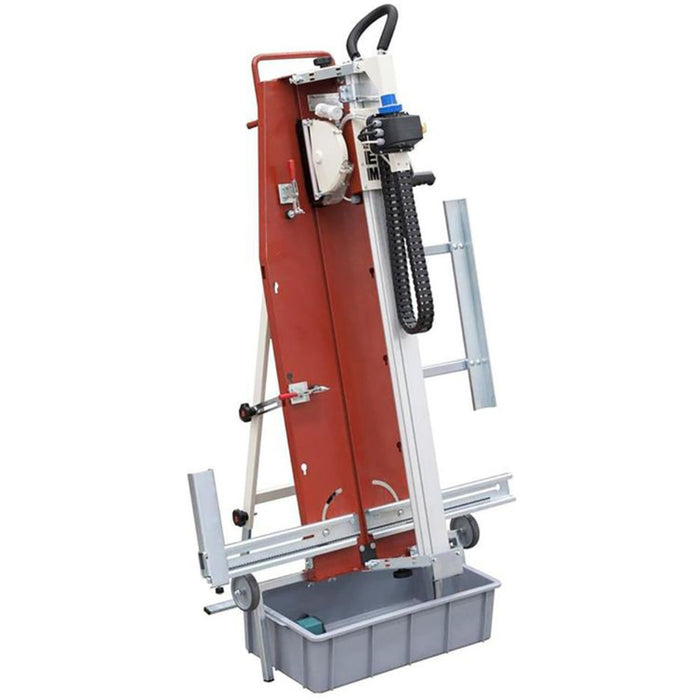

Raimondi LEM 105 Vertical Wet Saw – 41-3/8" Rip Cut Capacity
The Raimondi LEM 105 Vertical Wet Saw is engineered in Italy for precise cutting on large-format tile, porcelain panels, ceramic tile, marble, granite, and ultra-thin porcelain panels. With a 41-3/8" rip cut capacity, adjustable vertical feed, bevel-cut capability, and external water tank, the LEM 105 is built for professional tile and stone installers who need accuracy in a compact vertical saw format.
Lead Time Notice: This product has an estimated 6–8 week lead time before shipment. Please plan your order timeline accordingly.
Key Features & Benefits
-
Large Format Ready – Cuts tile up to 41-3/8" long with a maximum cut depth of 1-3/16".
-

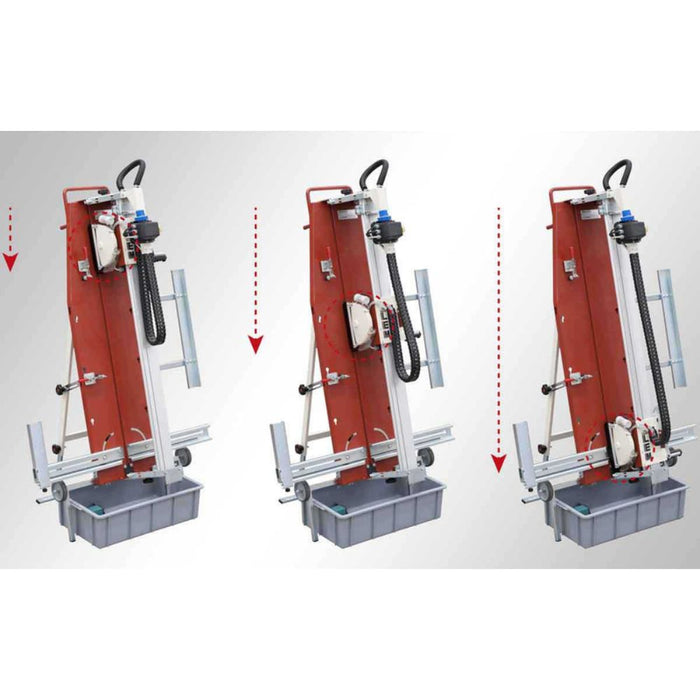

Automatic Gravity Feed – Adjustable feed system helps provide smooth, consistent vertical cuts.
-
Precision Bevel Cutting – Motor tilts from 0° to 45° for miter and bevel cuts.
-
Tile Lock Devices – Magnetic attachments help secure tile during out-of-plumb cuts.
-
External Water Tank – Includes a 14-gallon polypropylene water tank with heavy-duty pump for blade cooling.
-

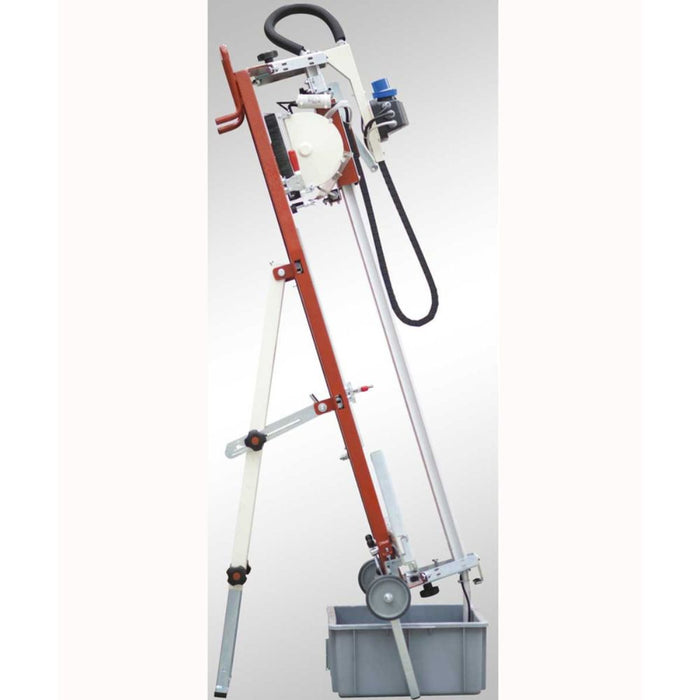

Compact Transport Mode – Saw folds down for easier storage and transport.
-
Professional Cutting Applications – Designed for porcelain, ceramic, marble, granite, single-fired tile, double-fired tile, and thin porcelain panels.
Specifications
| Feature | Specification |
|---|---|
| Product Name | Raimondi LEM 105 Vertical Wet Saw |
| Max Rip Cut | 41-3/8" (105 cm) |
| Max Cut Depth | 1-3/16" (40 mm) |
| Min Cut Depth | 1/8" (3 mm) |
| Blade Size | 8" (200 mm) |
| Arbor Size | 5/8" |
| Motor | 1.2 HP, 110V, 2800 RPM, direct drive |
| Bevel Capacity | 0° to 45° |
| Water Tank | 14 gal / 56 liters, external polypropylene tank |
| Weight | 135 lbs |
| Dimensions - Setup | Approx. 50" x 27" x 31" |
| Estimated Lead Time | 6–8 weeks before shipment |
Applications
- Large-format tile cutting
- Porcelain panel cutting
- Ceramic tile cutting
- Marble and granite cutting
- Single-fired and double-fired tile cutting
- Ultra-thin porcelain panel cutting from 3–5 mm
- Bevel and miter cutting from 0° to 45°
Lead Time & Ordering Notes
This product has an estimated 6–8 week lead time before shipment. Because this is a professional specialty saw, confirm your project schedule, cutting requirements, power needs, and delivery timeline before ordering.
FAQs
What materials can the Raimondi LEM 105 cut?
The LEM 105 is designed to cut porcelain, ceramic, granite, marble, single-fired tile, double-fired tile, and thin porcelain panels.
What is the maximum rip cut capacity?
The maximum rip cut capacity is 41-3/8" (105 cm).
Does the LEM 105 support bevel cuts?
Yes. The motor tilts from 0° to 45° for bevel and miter cuts.
Is the water tank removable?
The saw includes an external 14-gallon polypropylene water tank designed for easier cleaning.
Can the saw be transported?
Yes. The LEM 105 folds down for more compact transport and storage.
What is the lead time?
This product has an estimated 6–8 week lead time before shipment.
