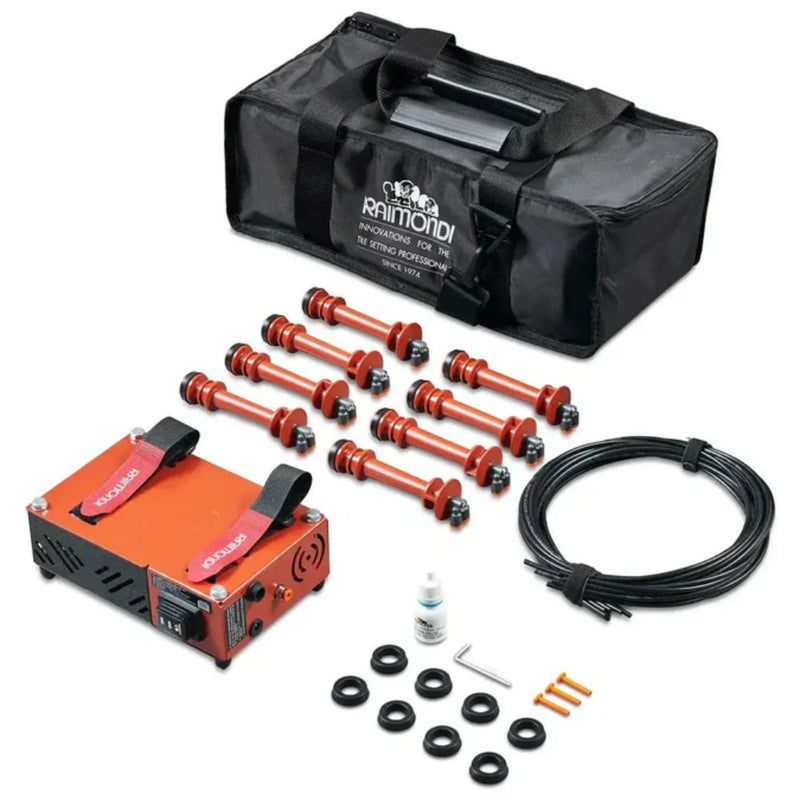

Raimondi Power Vacuum Kit for Easy-Move TCLFPVKIT

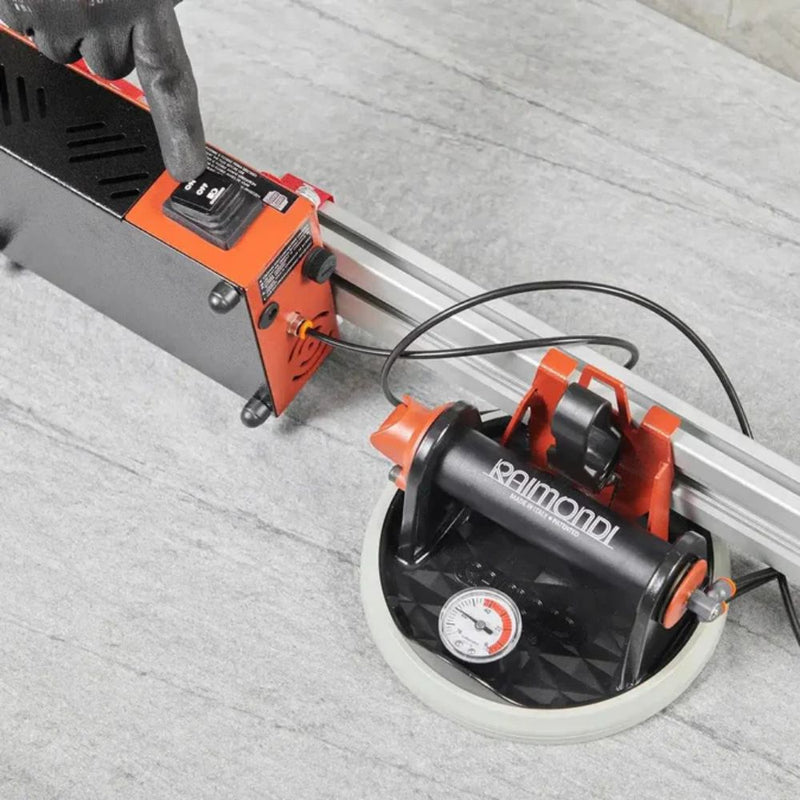

Raimondi battery-powered vacuum kit mounted on Easy-Move frame

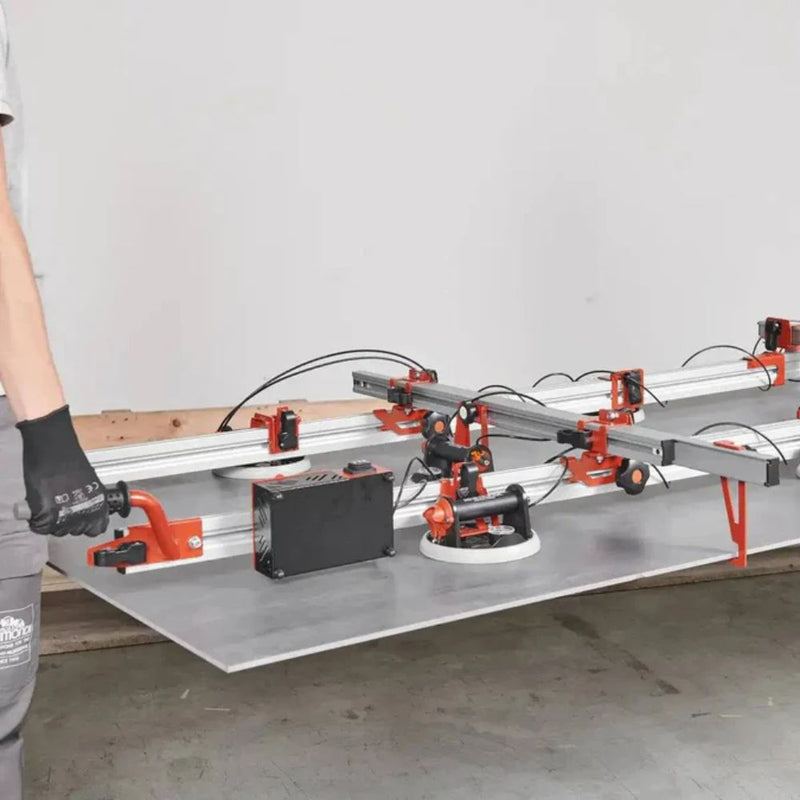

Raimondi vacuum circuit device for large format tile handling

Raimondi Power Vacuum Kit For Easy Move

Name: Raimondi Power Vacuum Kit For Easy Move
Brand: Raimondi
SKU: TCLFPVKIT
Price: 739.99 USD
Availability: InStock

SKU TCLFPVKIT

by Raimondi

$739.99 - $739.99

$739.99

$739.99 - $739.99

$739.99

Quantity

Raimondi Power Vacuum Kit for Easy-Move - TCLFPVKIT

Introducing the Battipav Agile System Carriage, a game-changer for tiling professionals seeking precision, adherence, and effortless mobility for various tile sizes.

Features

Professional Grade Suction Cups: High-quality with a vacuum indicator for secure adherence, even on rough surfaces.
Included Carriage with Wheels: Enables safe and easy transportation of tiles.
Versatile and Adjustable Setup: Can be adjusted in both length and width to accommodate different slab sizes.
Extended Bars Length Range: Adjustable from 108.3 inches (3300 mm) to 67.7 inches (1720 mm).
Wide Bars Width Range: Adjusts from 62.2 inches (1580 mm) to 33 inches (840 mm).
Convenient Packaging Dimensions: Measures 70.7 x 25.2 x 10 inches (1795 x 640 x 255 mm).
Lightweight Design: Weighs 84.9 lbs (38.5 Kg), facilitating transport and setup.
Ideal for Tiling Professionals: Perfect for large-scale, commercial tile installations.
Durable Construction: Built to withstand the demands of professional use.
Efficient Tile Handling: Reduces physical strain and improves installation time.

More Details

The Raimondi Power Vacuum Kit for Easy-Move is designed to upgrade the vacuum handling workflow for large format tile and slab installation. Instead of manually pumping each suction cup one at a time, this kit creates a connected vacuum circuit that can engage up to 8 suction cups simultaneously.

With the push of a button, the system raises vacuum across all connected cups, helping installers save time and streamline slab handling. This is especially valuable on larger panels, more demanding jobs, or crews already using Easy-Move frames with multiple vacuum cups.

The system is designed so that if one suction cup loses adhesion, or if a pipe is accidentally damaged, the remaining cups stay engaged. That adds a useful layer of operational security during handling. The main unit is compact, battery-powered, and designed to fasten directly to the Easy-Move frame without significantly affecting maneuverability.

What's Included
