RTC Products SLU Leveling Pins – 4 in. Depth Gauges, 100-Pack
Take the Guesswork Out of Self-Leveling Underlayment Depth

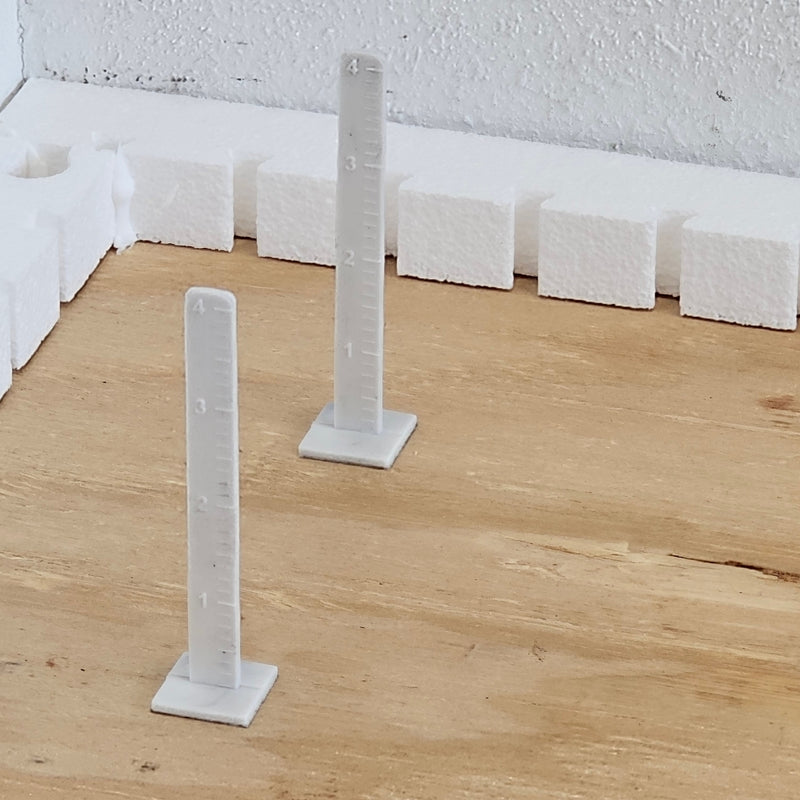

Map floor elevations and create easy-to-see depth references with RTC SLU Depth Gauge Leveling Pins. Each pin features a cut-to-height plastic stem, a secure adhesive base, and dual-sided measurement markings for fast reference during self-leveling underlayment installation.

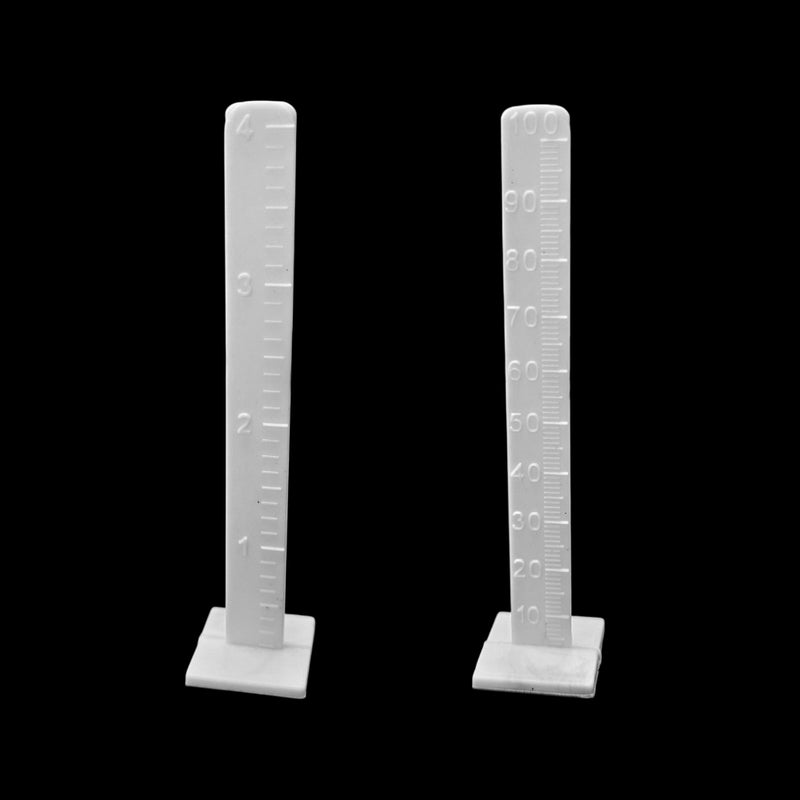

One side of the pin displays imperial measurements up to 4 inches, while the opposite side displays metric measurements up to 100 mm. This dual-sided design allows installers to work with the measurement system specified for the project.
Why Installers Choose RTC Leveling Pins
- Clear floor mapping: Creates visible reference points for planned self-leveling underlayment depths.
- Dual-sided measurements: Imperial markings up to 4 inches on one side and metric markings up to 100 mm on the opposite side.
- Cut-to-height design: Easy-to-cut plastic allows each pin to be adjusted for the required depth.
- Adhesive base: Helps keep the pin securely positioned on the substrate.
- Contractor-ready quantity: Supplied in a bag of 100 pins for larger floors or multiple projects.
Designed for More Accurate SLU Installation
Variations in floor elevation can make it difficult to judge material depth across an entire installation area. RTC Leveling Pins provide visible guides that help installers identify and monitor the planned depth of self-leveling underlayment at different points on the floor.

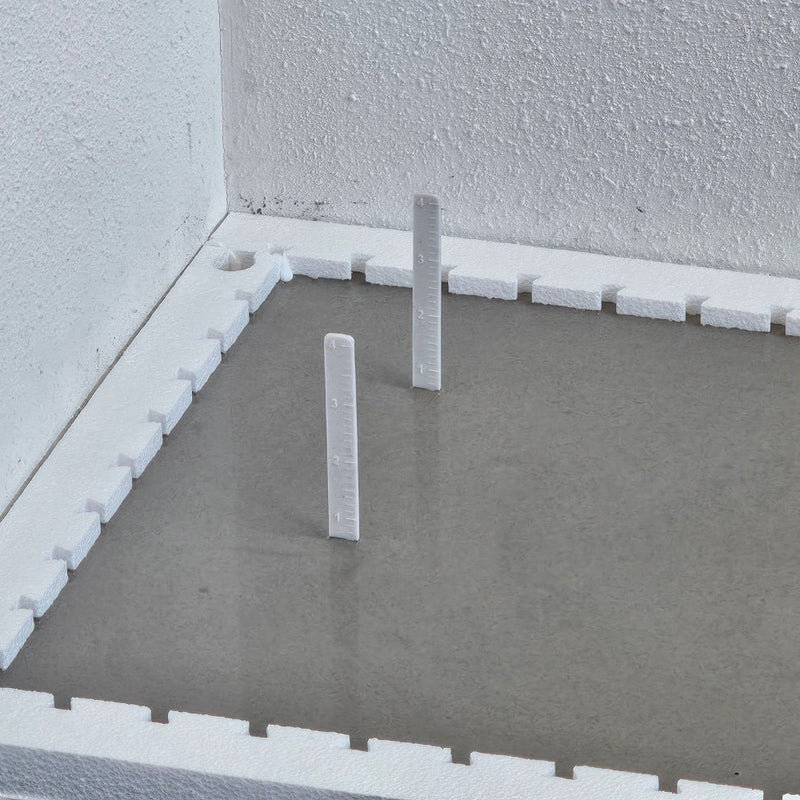

Position the pins according to the project’s floor map, cut them to the required height, and use the marked stems as visual depth references during the pour.
Product Specifications
- Brand: RTC Products
- Product: SLU Depth Gauge Leveling Pins
- Manufacturer Item Number: LEVPIN100
- Imperial Scale: Up to 4 inches
- Metric Scale: Up to 100 mm
- Scale Layout: Imperial and metric markings on opposite sides of the pin
- Material: Easy-to-cut plastic
- Base: Adhesive
- Package Quantity: 100 pieces per bag
- UPC: 850063424646
What’s Included
- 100 RTC SLU Depth Gauge Leveling Pins
Self-leveling underlayment, primer, mixing tools, and application accessories are not included.
Recommended Applications
- Self-leveling underlayment installations
- Floor elevation mapping
- Creating visible pour-depth reference points
- Tile and flooring substrate preparation
- Residential and commercial floor-leveling projects
Installation Notes
- Determine the required underlayment depth before positioning and cutting the pins.
- Use the 4-inch imperial side or the 100 mm metric side according to the project specifications.
- Make sure the substrate is suitable for the adhesive base and properly prepared before placement.
- Dust, moisture, coatings, surface texture, and other contaminants may affect adhesion.
- Follow the self-leveling underlayment manufacturer’s preparation and installation instructions.
Frequently Asked Questions
Do the pins show both inches and millimeters?
Yes. One side of the pin displays imperial measurements up to 4 inches, and the opposite side displays metric measurements up to 100 mm.
Can the pins be cut to a specific height?
Yes. The plastic stem is designed to be cut to the depth required for the installation.
How many pins are included?
Each bag contains 100 leveling pins.
What are these pins used for?
They are used to create visible depth references when mapping and installing self-leveling underlayment.
Do the pins have an adhesive base?
Yes. Each pin includes an adhesive base that helps hold it in position on the substrate.
