Sigma Kera-Lift Gauged Panel Lifter 133.9 in (340 cm)

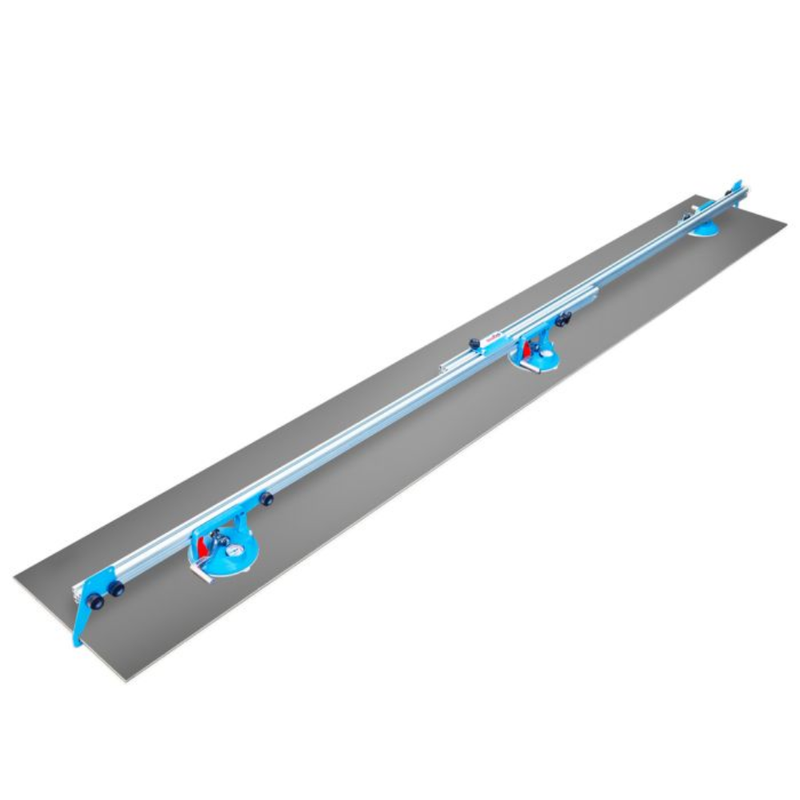

The Sigma Kera-Lift 1D3 is built for lifting, handling, and laying large-format porcelain panels and gauged tile. This adjustable lifting system is freely adaptable to the shape of the tile without tools and uses sliding guides plus Pro-Grip suction cups for secure handling on the jobsite

Features & Benefits

• Built for large-format panels: Designed to handle large porcelain sheets and gauged panels.
• Adjustable working length: Expands from 76.8 in to 133.9 in (195 to 340 cm) to suit different panel sizes.
• Freely adaptable without tools: Sliding guides and movable suction cups let the frame adjust to the shape of the slab.

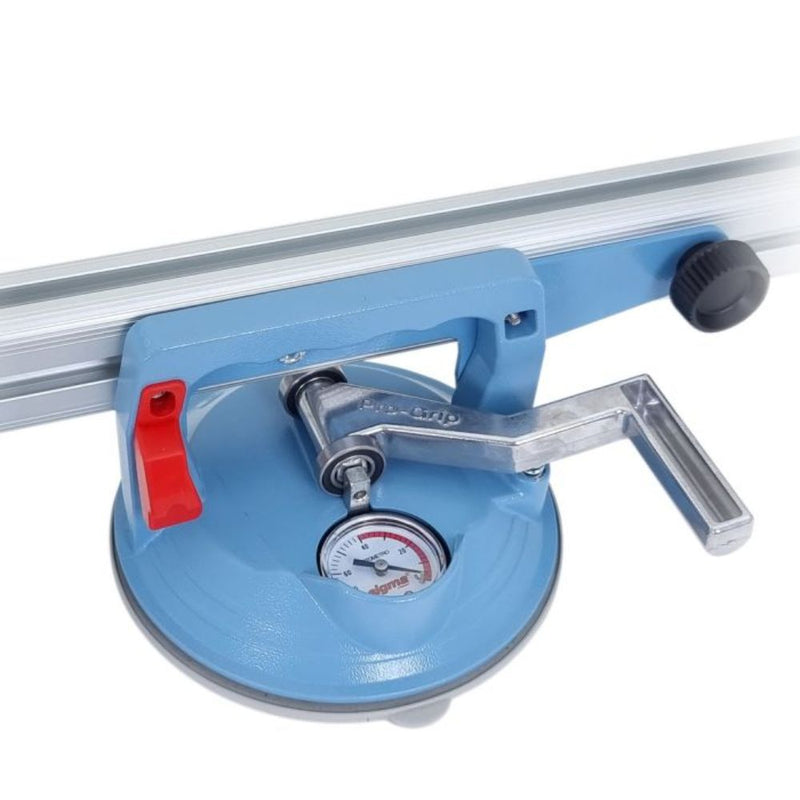

• 3 Pro-Grip suction cups: Includes 3 suction cups, 6.3 in diameter (160 mm) with vacuum indicators and protective caps.
• Works on structured materials: The fast-acting suction cups are described as suitable even for structured surfaces and use replaceable stain-resistant rubber.
• Added lifting security: Includes 2 safety fall brackets / securing clips to help protect the tile during handling.
• Precise wall placement: Includes an adjustable rubber end foot for more accurate height placement on wall installations.

Compatibility / fitment

• Best for: large-format porcelain panels and gauged tile.
• Maximum tile size: 133.9 x 31.5 in (3400 x 800 mm).
• Minimum tile size: 76.8 x 7.9 in (1950 x 200 mm).
• Max lifting weight: 165.3 lb (75 kg)

Specs

• Model: 1D3
• Adjustable working length: 76.8 to 133.9 in (195 to 340 cm)
• Max tile size: 133.9 x 31.5 in (3400 x 800 mm)
• Min tile size: 76.8 x 7.9 in (1950 x 200 mm)
• Suction cups: 3 Pro-Grip cups, 6.3 in dia. (160 mm)
• Max lifting capacity: 165.3 lb (75 kg)
• Product weight: 17.6 lb (8.0 kg)
• Beam length: 76.8 in each (1.95 m)
