What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

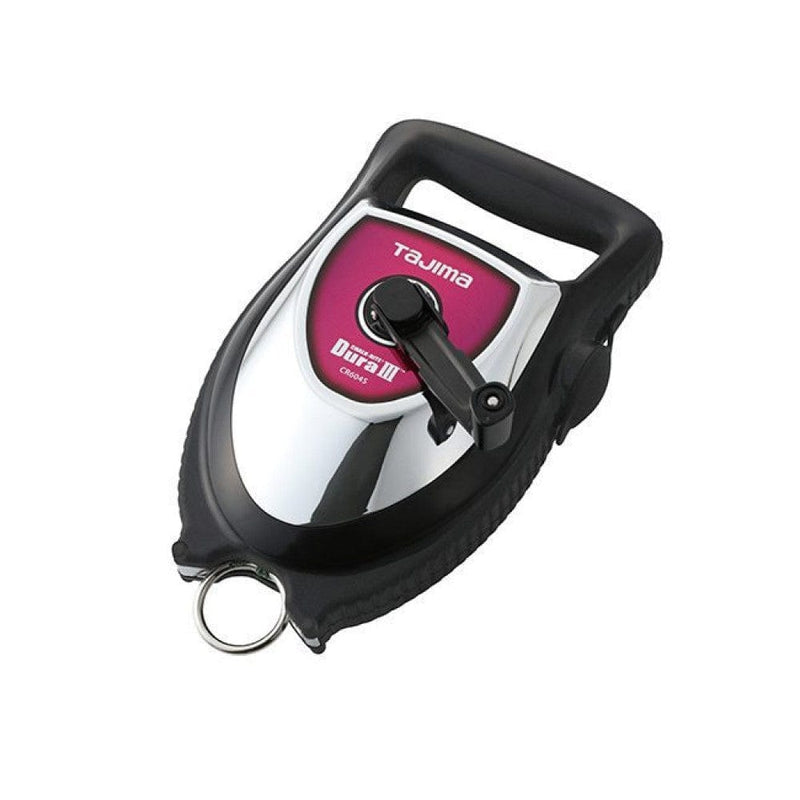

Tajima Chalk-Rite® Dura III CR604S Chalk Line

SKU CR604S

by Tajima

$45.50 - $45.50

$45.50

$45.50 - $45.50

$45.50

Redefining Snap Line Standards with Chalk-Rite® Dura III CR604S

The Chalk-Rite® Dura III CR604S isn't just another snap line tool - it's an investment in excellence. Designed with a special woven line to ensure Maximum Bold markings, it eliminates common challenges like tangling. Factor in its generous chalk capacity and robust build, and you have a tool that truly elevates the craft.

Ready to experience a new level of precision? Choose Chalk-Rite® Dura III CR604S.

Features

Unmatched Precision: Delivers Maximum Bold 0.1 in (2.8 mm) lines with its specially woven snap line.
Maximized Chalk Storage: Holds a substantial 25 oz (709 g) chalk, reducing interruptions for refills.

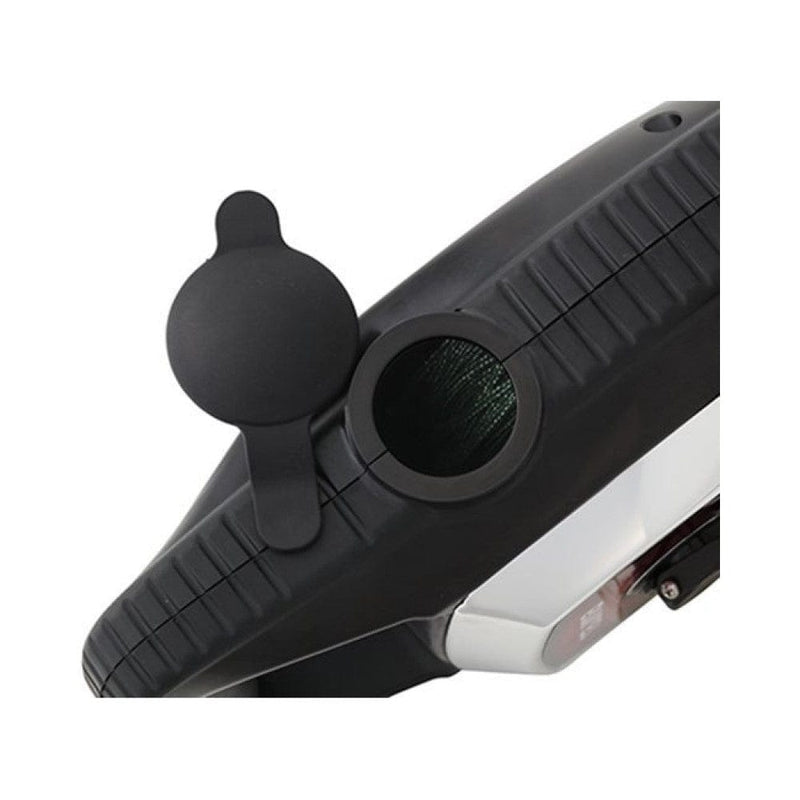

Hassle-Free Refills: Large, leak-proof port ensures quick and mess-free refilling.
Built to Last: Features an ergonomically designed, shock-resistant case complemented by a heavy-duty aluminum front plate.

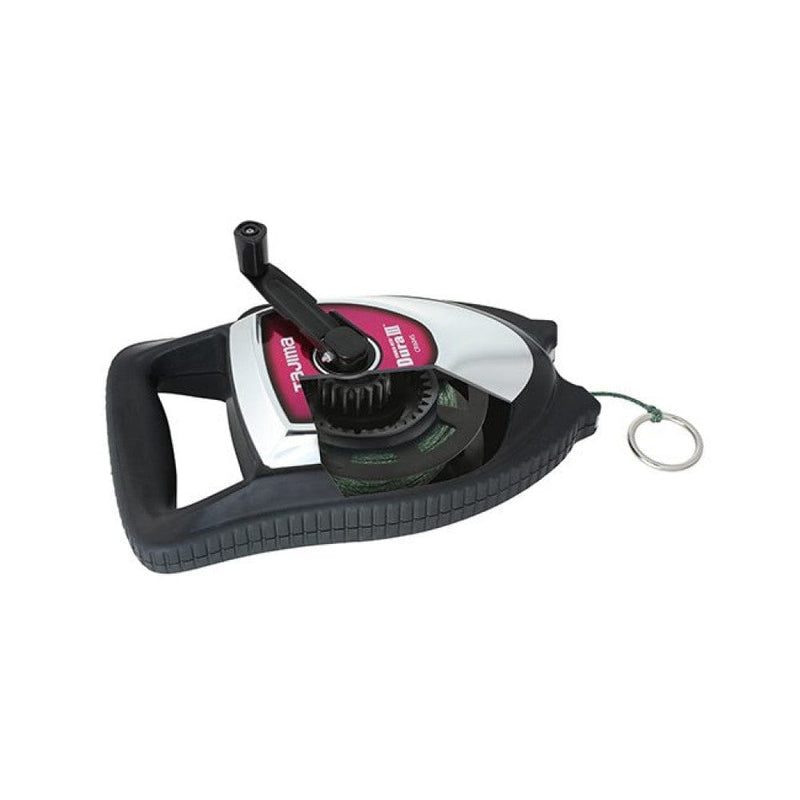

Enhanced Efficiency: Double-speed winding mechanism accelerates tasks, saving precious time.

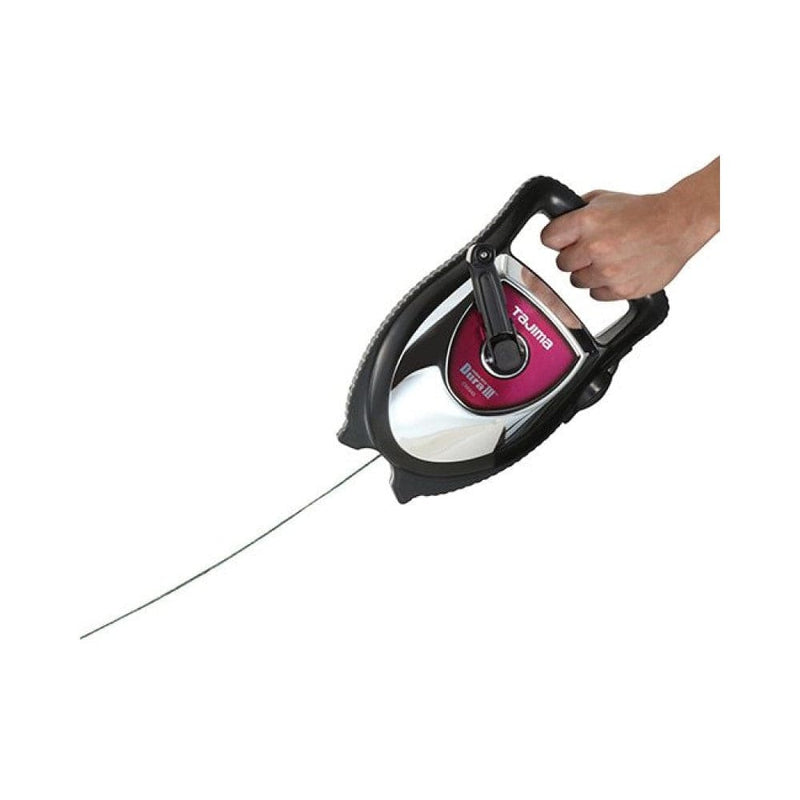

Tangle-Free Design: Special weaving promises smooth and consistent lines, every time.

Tajima Chalk-Rite® Dura III CR604S Chalk Line

Redefining Snap Line Standards with Chalk-Rite® Dura III CR604S

Features
