Quarry Tile Rack

SKU
by TileTools

SJ60 - Actual Pocket ID to OD - 5-7/8"

Recommended tile size is 5-5/8" with a 1/4" Grout Joint

ACTUAL POCKET SIZE
(ONE TILE + ONE JOINT)
Pocket Size = Inside Dimension to Outside Dimension

The steel takes 1/8" joint space, so we recommend a minimum joint size of 1/4" to allow for variations in actual tile sizes.

⚠️ Important Ordering Information

Please double-check your tile size before ordering. All Quarry Tile Racks are custom-built and may not be returnable.

➡️ Confirm that your tile size allows for a minimum 1/4" grout joint.

Not sure if this rack will fit your tile? Contact us before placing your order
support@tiletools.com or call 262-790-2170

Choose a Tile Size (See Chart For Exact Dimensions)
Choose a Layout Size (See Chart Before Selecting Model)
$369.95 - $399.95
$369.95
$369.95 - $399.95
$369.95

Tile Setting Racks for Efficient and Accurate Commercial Tile Jobs

Enhance your commercial tiling with our high-quality tile setting racks. Perfect for large projects, these racks help you lay tiles quickly and accurately.

Tile Rack Selector



Features

  • Quick Setup: Ideal for busy commercial tile jobs.
  • Many Styles: From simple squares to complex patterns like herringbone.
  • Commercial-Grade Quality: Made-to-order racks crafted with durable materials.
  • Saves Time: Speed through your projects with perfect results.
  • Consistent Grout Joints: Maintain uniformity using a corner as a reference point.
  • Personalized Help: Contact us for pricing, availability, and ordering.
  • Special Orders: Non-standard sizes and layouts may vary in cost and shipping. All tile racks are special order items and non-returnable.



 Diagram to help choose the right Tile Rack

More Details

For professional tile contractors and home remodelers facing the pressures of tight deadlines without sacrificing precision, TileTools.com presents an innovative solution with our high-quality tile setting racks. Designed specifically to meet the demanding needs of commercial tiling projects, these racks ensure that you can complete jobs swiftly while maintaining a flawless finish. Available in a default stack joint square layout, we also offer customization to suit various styles, including Running Bond Horizontal, Square Basket, or Diagonal Herringbone Horizontal. Our racks are crafted from commercial-grade materials, ensuring durability and reliability. To ensure the perfect fit for your specific project, we advise measuring your tiles and confirming dimensions with our expert team. With these racks, you can maintain consistent grout joints and achieve a professional layout swiftly, enhancing both the aesthetic and efficiency of your work. For customization, pricing, and availability, please reach out to us at TileTools.com and Midwest Trade Tool.

Customers praised this rack as a "great product" that's hard to find locally. Multiple shoppers highlighted excellent customer service support via phone and live chat that helped them select the correct rack. All reviews were 5-star ratings with customers expressing satisfaction and repeat purchase intent.

Representative (positive)Project (positive)Service (positive)Product (positive)Rack (positive)
  • 5 stars: 6 (86%)
  • 4 stars: 1 (14%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
A.
Need 2

Need 2 more

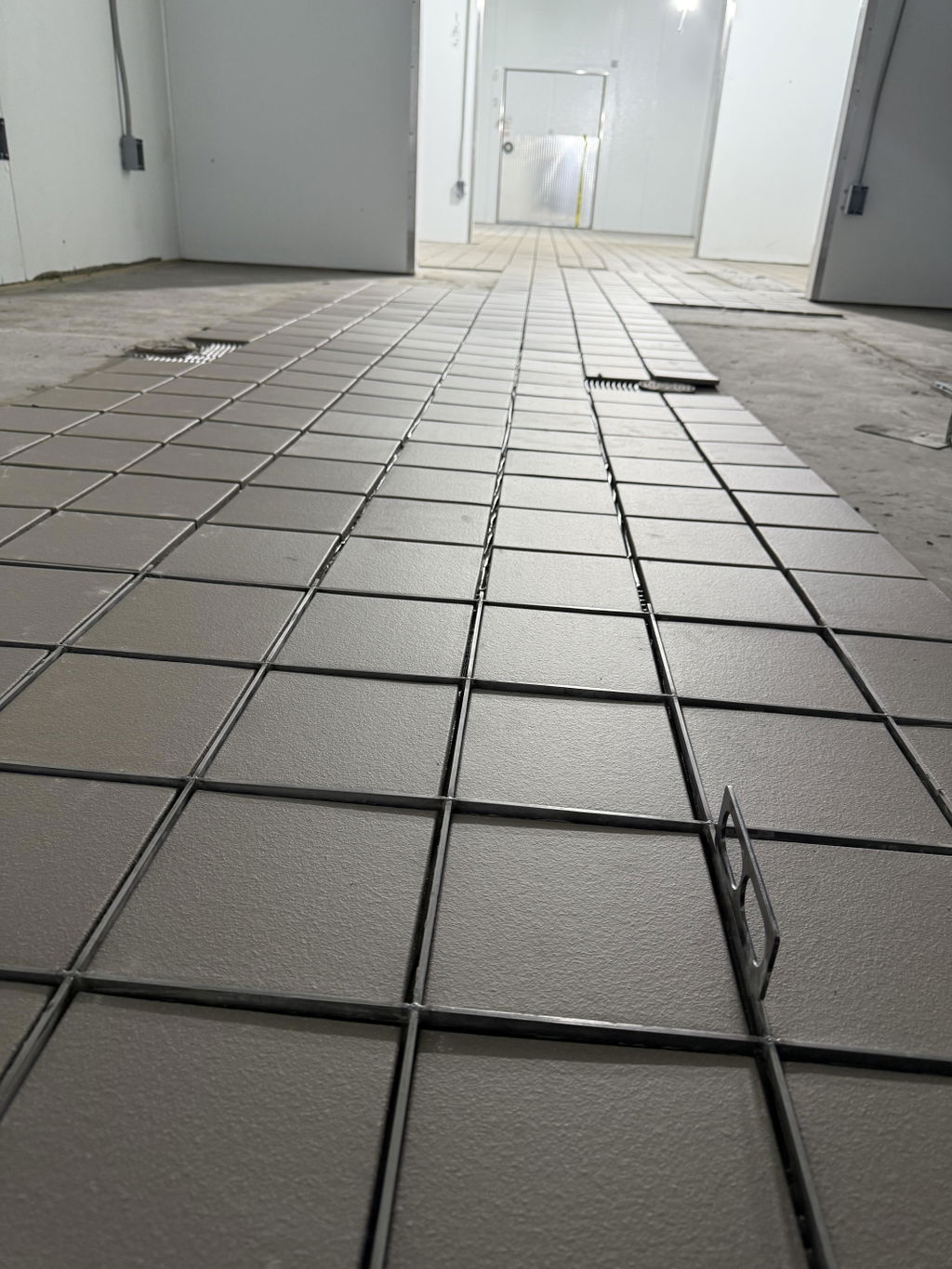

A. review photo
C
C.

great product would buy again

P
P.D.

These are impossible to find locally the phone representative helped guide me through purchasing the correct rack for my project- I couldn't recommend Tile Tools and these racks enough.

C
C.

Great product - the live chat service person helped me identify the correct rack to purchase and it worked great!

M
M.P.

Perfect

M
M.B.

I'm in California. What's the ETA for a quarry rack?

TileTools

Quarry racks to California are typically 7 days (5 business days) - please check for availability prior to placing order using our live chat system

A
A.

Hi there where are these tile racks shipped from and what is your contact number and email for service and orders.

J.J.

The most popular tile racks are shipped from our Wisconsin location. For any service or order-related inquiries, feel free to contact us at 262-790-2170 or email us at sales@tiletools.com. We're happy to assist you with any questions or orders you may have!

C
C.

Hi I would like to buy your product. I need to speak with one of your cell person. What is the best phone number to call you?

J.J.

Please contact us at 262-790-2170

J
J.H.

My tiles are 5 15/16. What rack do I purchase? Can we do 3/16 grout lines?

J.J.

To achieve a 3/16" grout joint on a tile that is 5-15/16" you would need a 6" ID to ID to allow a 1/16" of space with the 1/8" steel you would get a 3/16" grout joint. - This would be a SJ64 (6"x6" - 64) Please be aware because of the variations in quarry tile it is recommended of having a 1/4" grout joint and the rack code would be SJ65 (6"x6" - 65)

T
T.

WHAT CODE WOULD I NEED FOR THE RACK MY TILE ARE 6X6 WOULD LIKE A 3/8 GROUT JOINT

J.J.

For selecting the correct code for the rack to accommodate your 6x6 inch tiles with a 3/8 inch grout joint, the appropriate code is SJ68. Here’s how it's determined:

Tile Measurement: Your tiles are 6x6 inches.
Rack Fit Check: Ensure the tiles fit the rack's opening, which in this case, should be slightly larger than the tile itself, i.e., 6-1/4 inches.
Accommodation for Grout: The rack’s inside-to-outside dimension is 6-3/8 inches, accommodating both the tile and the desired 3/8 inch grout joint.
Grout Joint Consistency: Use a corner of the rack as a reference to maintain consistent grout joints and align all tiles properly.

By following these steps, you ensure the tiles fit perfectly in the rack with the correct spacing for a 3/8 inch grout joint, hence the SJ68 code is suitable for your needs.
