wedi S-Dry Mixing Valve

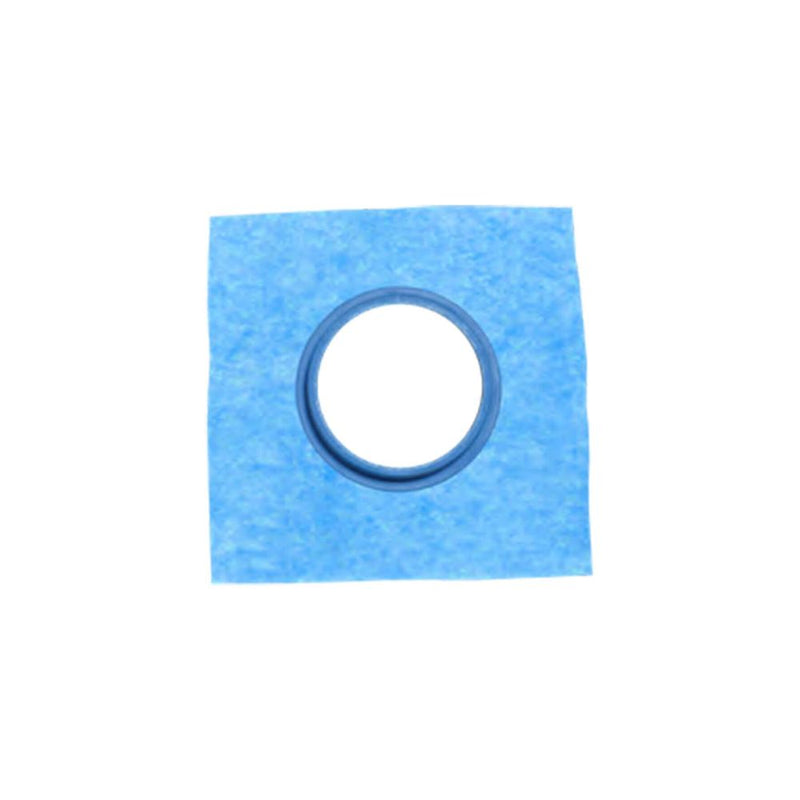

wedi S-DRY Mixing Valve Collar - Waterproof Valve Seal for Shower Systems
The wedi S-DRY Mixing Valve Collar is a purpose-built waterproofing accessory that seals around the shower’s mixing valve—one of the most common leak-risk penetrations behind tile. It bonds into the membrane layer to help block moisture migration behind wall tile.
Features
-
Seals a critical penetration point: Helps protect the wall assembly by sealing around the mixing valve opening where water can otherwise get behind tile.
-
Flexible collar design: Prefabricated “flexi collar” style for quicker, more consistent installs than field-cut patches.
-
Fits common valve openings (and can be modified): Listed as Ø 3-15/16 in. and wedi notes it may be modified by cutting the fleece to open the diameter for larger valves (avoid cutting the top half).
-

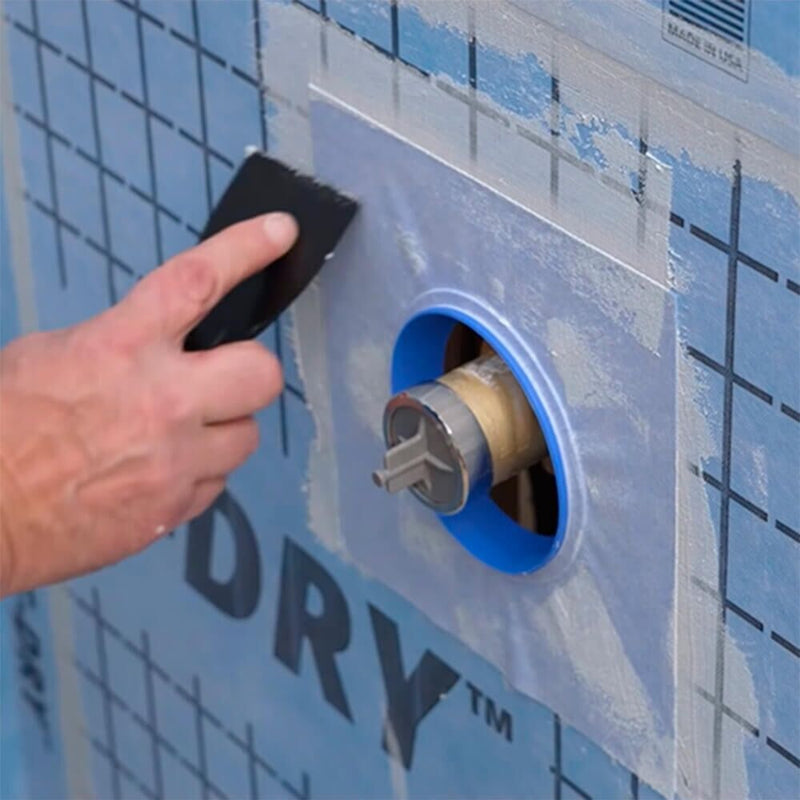

Simple thinset install: Applied with cement-based tile adhesive (thinset) and pressed flat to remove air pockets; seams in wet areas are treated with a joint sealant to prevent water migration behind tape.
-
Packaged individually: Handy for ordering exactly what you need per valve.
Specifications
| Specification | Detail |
|---|---|
| Brand / System | wedi S-DRY / wedi waterproofing accessories |
| Product Type | Mixing valve sealing collar (waterproof valve seal) |
| Item Number / MPN | US5000000 |
| Valve Opening Size | Ø 3-15/16 in. (listed size for mixing valve seal) |
| Overall Collar Size | 5 in. diameter (collar) |
| Install Method | Apply with thinset; press flat into adhesive bed; seal seams in wet areas with joint sealant |
| Packaging | Packaged individually |
| Notes | Opening can be enlarged by trimming fleece for larger valves; avoid cuts on the top half |
