Ebbe VERSA Bond Flange Drain Bundle – Retrofit & Low-Profile Shower Drain Solution
The ultimate drain for remodels, retrofits, and ultra-low profile builds. The Ebbe VERSA adapts to tight spaces and existing clamp collar drains without compromising surface waterproofing.
Features & Benefits
-
Ultra-Low Profile Flange – 1/4" thick, sits nearly flush to the subfloor
-
Clamp Collar Drain Compatible – Retrofits over existing drains with drilled holes and sealant
-
Factory-Bonded Waterproof Fabric – Green membrane pre-attached for easy surface waterproofing
-

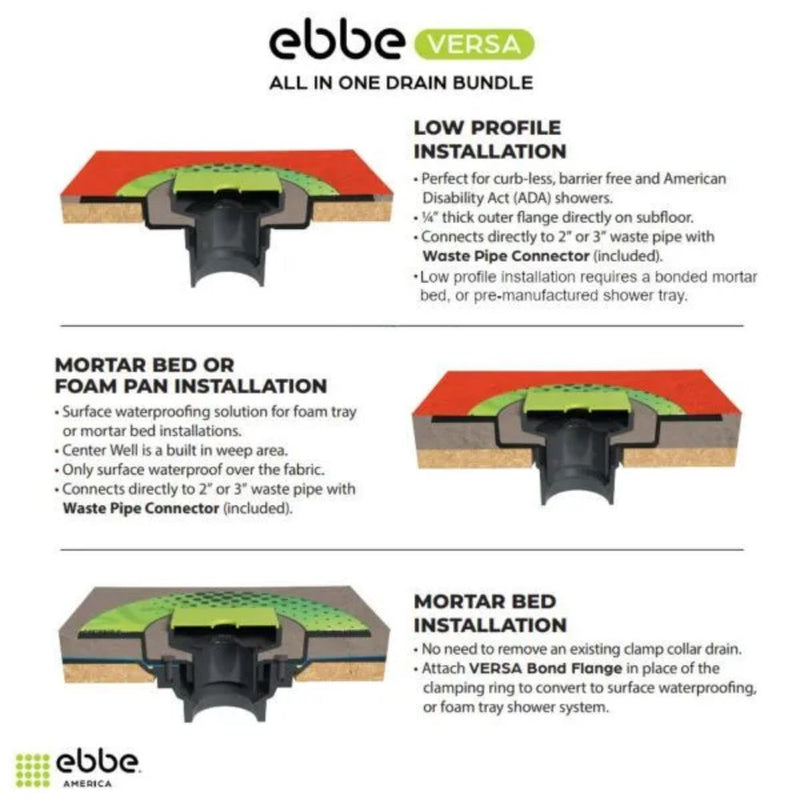

3-in-1 Installation Flexibility
-
Low-profile installation directly to the waste pipe
-
Foam tray or mortar bed installation
-
Clamp collar drain retrofit for remodels
-
-

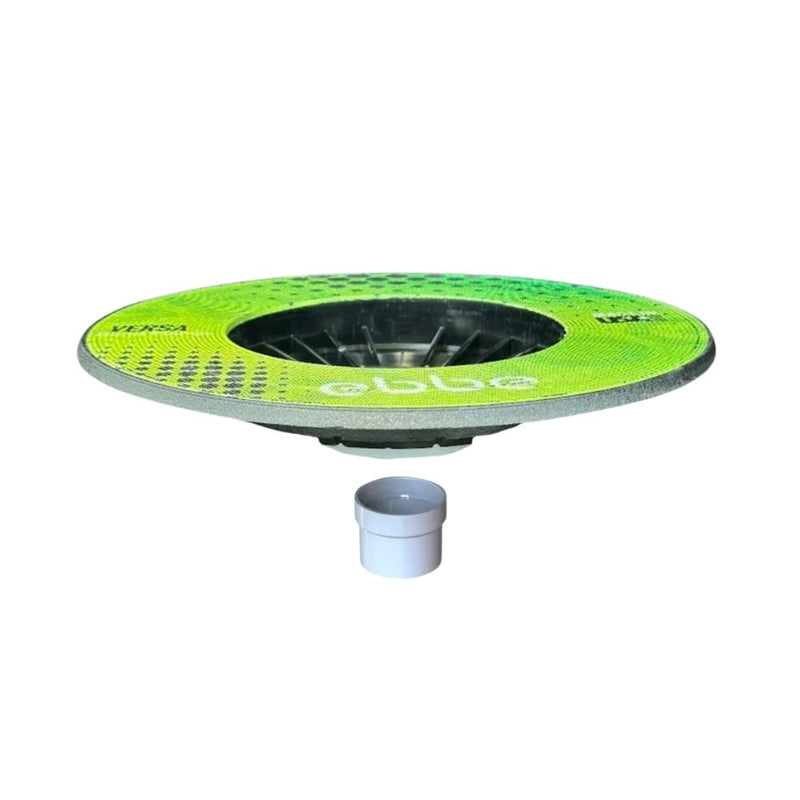

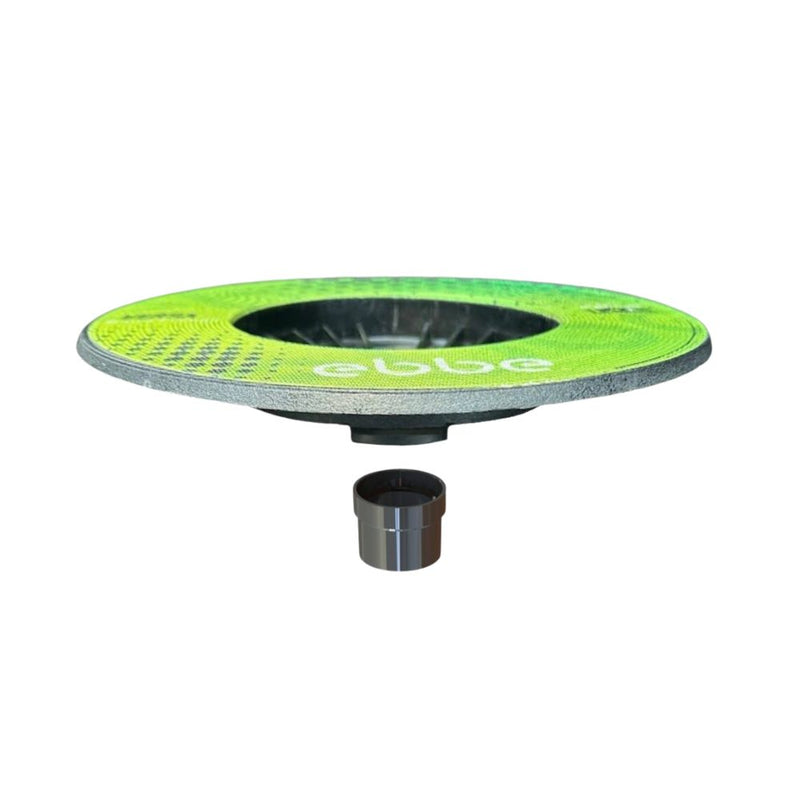

Includes Waste Pipe Connector – Fits 2” ABS or PVC pipes
-
Ideal for Remodels or ADA Showers – No need to remove old drain or build up extra height
-

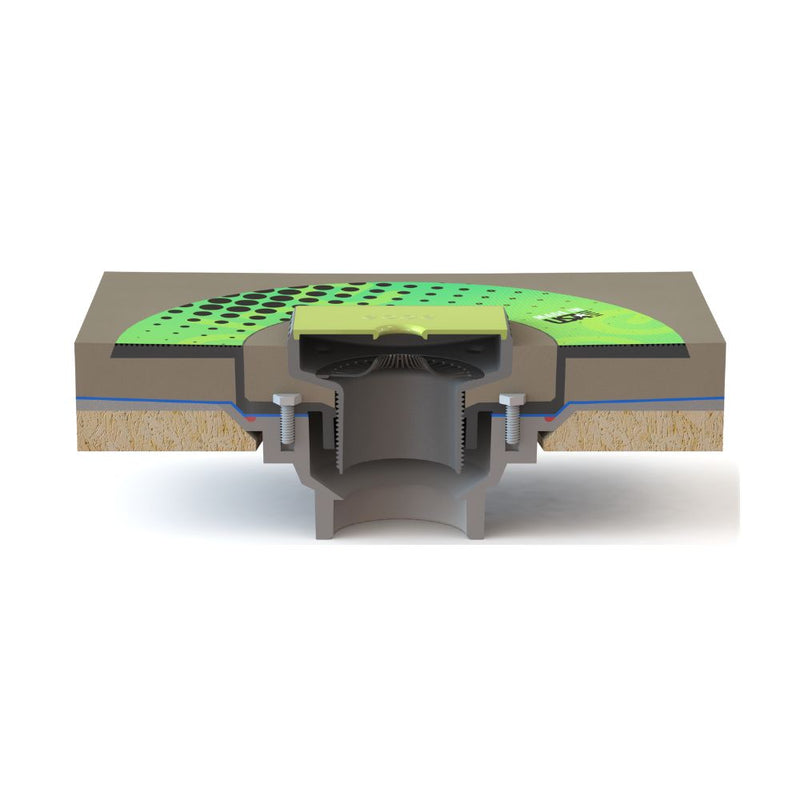

Recessed Flange Design – Keeps riser flush with bonded mortar or foam pan
Specifications Table
| Product Name | Ebbe VERSA Bond Flange Drain Bundle |
|---|---|

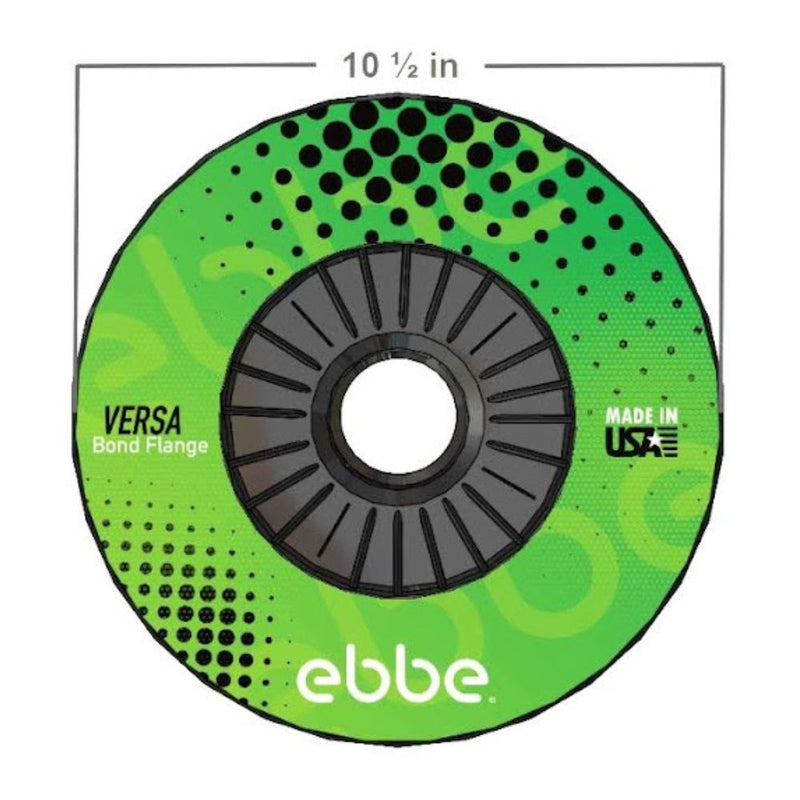

| Flange Diameter | 10½" |

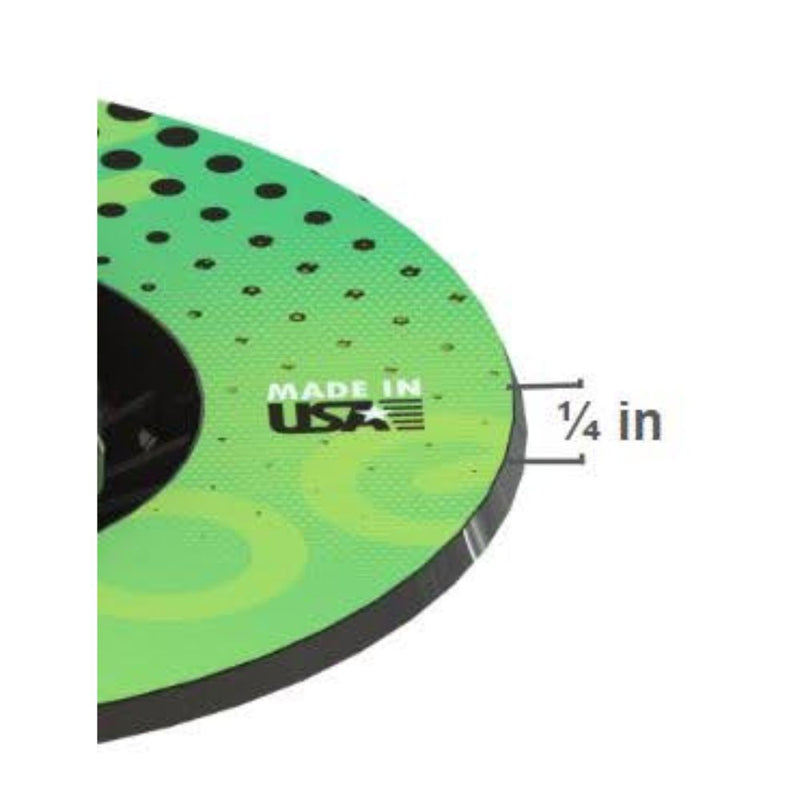

| Flange Thickness | 1/4" |
| Waterproofing Fabric | Factory-bonded green membrane |
| Waste Pipe Connection | 2" ABS/PVC via included connector |
| Clamp Collar Compatible | Yes (modification required: drill holes + sealant) |
| Height Adjustment Posts | Not included |
| Use Case | Remodels, retrofits, ultra-low profile showers |
| Mortar Bed Retrofit | Min. 1½″ thick under perimeter if over clamp drain |
If you attach the VERSA to a clamp collar drain. The mortar bed will be at least an 1½ inch thick under the perimeter of the VERSA.
If you want low profile, you will need to remove the existing drain and connect the VERSA to the waste pipe
