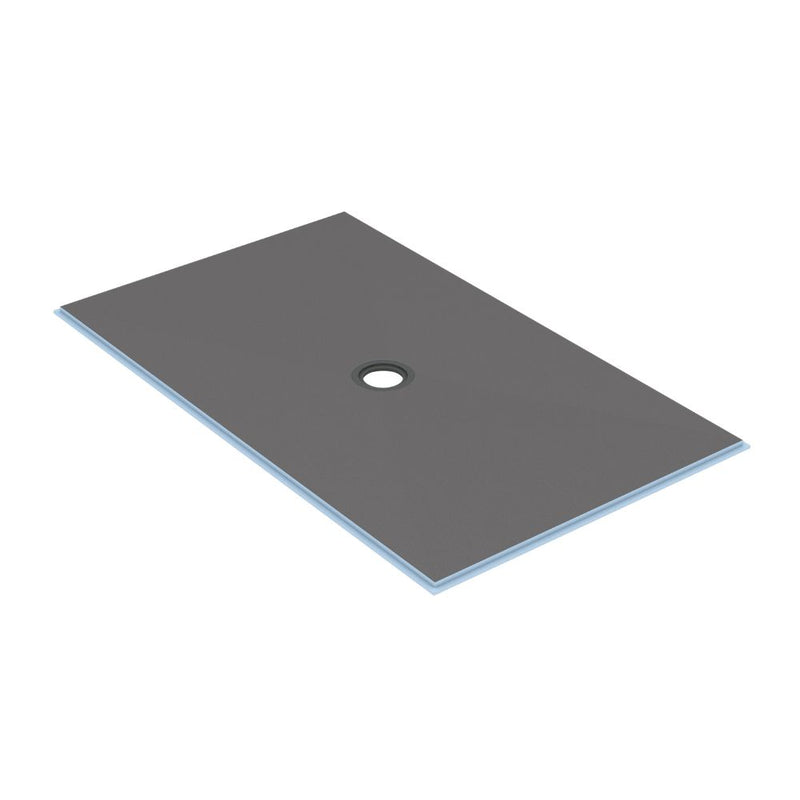

wedi Fundo Lingo curbless shower base against a white background

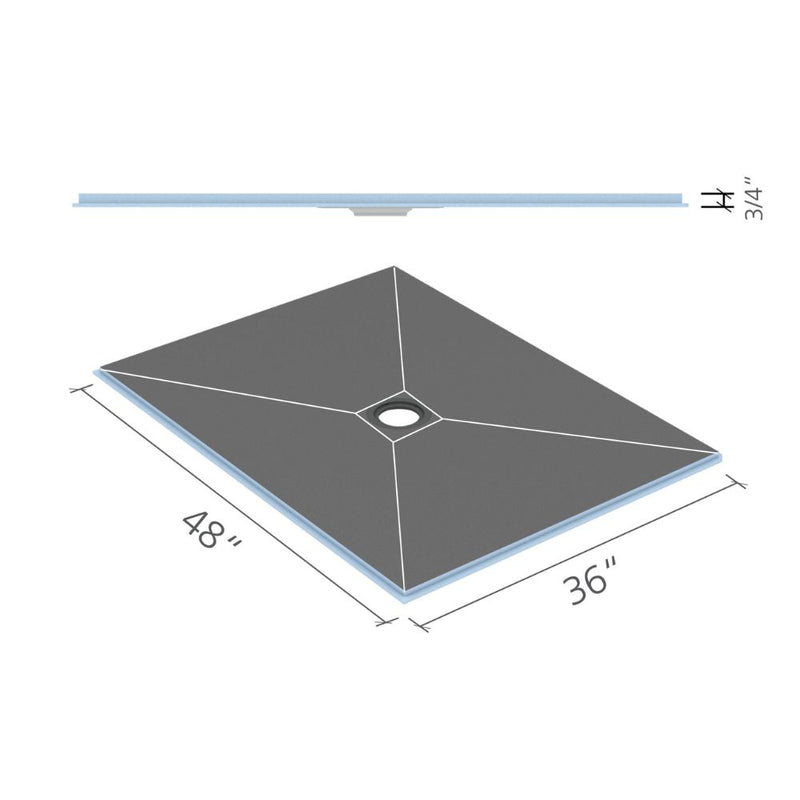

wedi Fundo Center Drain Lingo 36" x 48" dimensions. This diagram shows the length, width, and height. The curbless shower base against a white background

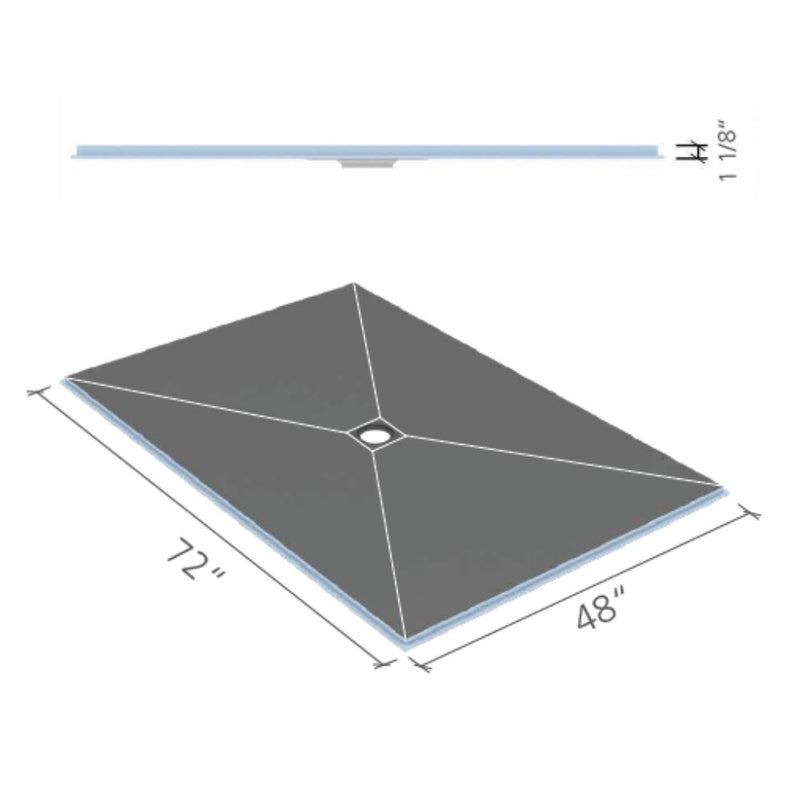

wedi Fundo Center Drain Lingo 48" x 72" dimensions. This diagram shows the length, width, and height. The curbless shower base against a white background
wedi Fundo Center Drain Lingo 60" x 36" dimensions. This diagram shows the length, width, and height. The curbless shower base against a white background
wedi Fundo Center Drain Rioli 48x60 shower base with click and seal drain unit

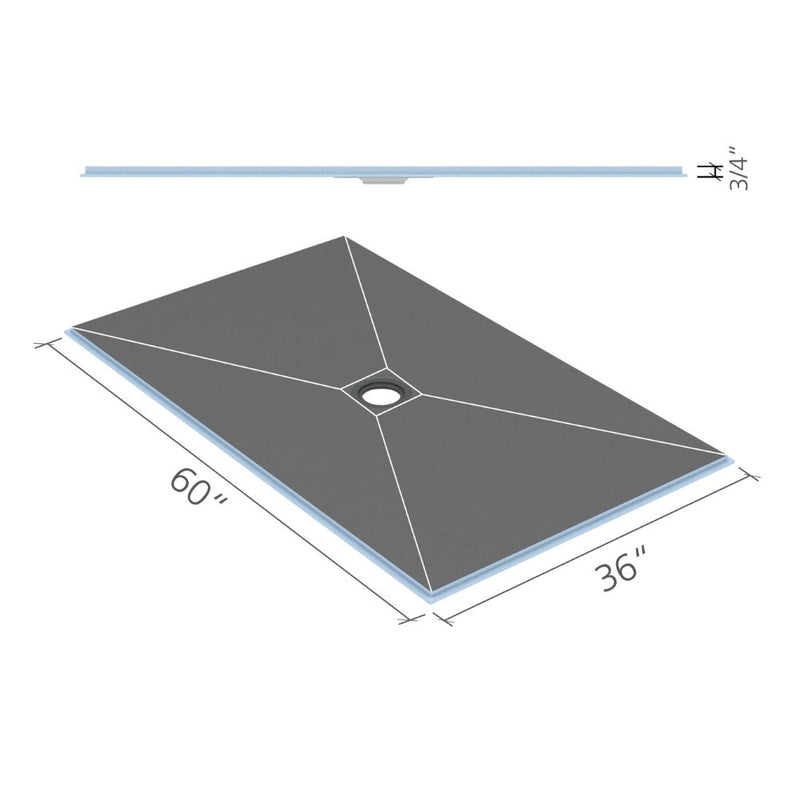

wedi Fundo Offset Drain Fundo 36x60 shower base with click and seal drain unit
wedi Fundo Curbless Shower Base
Cross-section installation diagram of Wedi Click and Seal drain connected to subfloor pipe
Wedi Fundo Click and Seal drain system on white background
wedi Fundo Lingo curbless shower base against a white background
wedi Fundo Center Drain Lingo 36" x 48" dimensions. This diagram shows the length, width, and height. The curbless shower base against a white background
wedi Fundo Center Drain Lingo 48" x 72" dimensions. This diagram shows the length, width, and height. The curbless shower base against a white background
wedi Fundo Center Drain Lingo 60" x 36" dimensions. This diagram shows the length, width, and height. The curbless shower base against a white background
wedi Fundo Center Drain Rioli 48x60 shower base with click and seal drain unit
wedi Fundo Offset Drain Fundo 36x60 shower base with click and seal drain unit
Cross-section installation diagram of Wedi Click and Seal drain connected to subfloor pipe
Wedi Fundo Click and Seal drain system on white background

wedi Fundo Curbless Shower Base

SKU
by wedi

wedi Fundo® Ligno 36" x 48" Curbless Shower Base – Click & Seal Drain, Waterproof, Ready to Tile


Compact and curbless! This 36" x 48" shower base is perfect for smaller walk-in designs. Pre-sloped, waterproof, and ready to tile with Click & Seal drain.


Standard Free Ground Shipping Included

$660.02 - $1,320.98
$660.02
$660.02 - $1,320.98
$660.02
Choose a Curbless Shower Size

wedi Fundo® Ligno Curbless Shower Base with Click and Seal Drain

The wedi Fundo® Ligno Curbless Shower Base is a low-profile, barrier-free shower solution engineered for flush installations without cutting into floor joists. With a base thickness of only 3/4", this pre-sloped, internally waterproof system ensures a seamless transition into the bathroom floor—perfect for universal design, aging-in-place remodels, or ADA compliance. The included wedi Click and Seal® Drain guarantees fast, watertight, and worry-free drain installation.

Key Features & Benefits

  • Barrier-Free, Curbless Entry
    Creates a true walk-in shower experience—ideal for accessible bathrooms, aging in place, or sleek modern designs.
  • Low Profile Design – 3/4" Base Thickness
    Sits flush with subfloor when recessed using the Wedi Curbless Recess Kit—no need to cut into floor joists.
  • Pre-Sloped & Tile-Ready
    Precision-sloped surface supports mosaic or large-format tiles and is ready for thinset tiling right after install.
  • 100% Internally Waterproof
    XPS foam core is naturally waterproof—no need for additional membranes in the base.
  • Click and Seal® Drain System Included
    No glue, no solvent, no plumbing license required. Simply insert and twist until you hear the audible “click” that confirms a watertight seal.
  • Drain Cover Flexibility
    Drain cover included (stainless steel), but can be upgraded to match bathroom finishes: matte black, brushed gold, polished chrome, and more.
  • Compatible with Subliner Dry System
    Extend waterproofing 3 feet into bathroom floor with included or optional Subliner Dry membrane.
  • Ideal for Heavy Loads
    Supports wheelchair traffic and other point loads without compromising waterproofing or performance.



More Details

The Wedi Fundo® Ligno Curbless Shower Pan is the ultimate solution for homeowners, remodelers, and contractors looking to build modern, barrier-free showers without compromising structural integrity. Unlike traditional shower bases that require deep recessing or cutting into floor joists, the Fundo Ligno has a low 3/4" profile that fits seamlessly into your subfloor using the Wedi Curbless Recess Kit, preserving floor strength while enabling flush transitions.

Internally waterproof thanks to its closed-cell XPS foam core, this base eliminates the need for liquid membranes or liners. It's pre-sloped, eliminating the risk of pooling water and allowing you to tile immediately with mosaic or large-format tiles. Paired with the included Click & Seal® Drain Unit, the Fundo Ligno ensures a fast, tool-free drain connection that's leak-free, adjustable, and plumber-approved.

Whether you’re outfitting a luxury master bath, creating an ADA-compliant shower, or preparing a home for aging in place, the Wedi Ligno system delivers proven performance, German-engineered quality, and jobsite simplicity. Combine it with Wedi Building Panels, waterproof wall systems, and Subliner Dry membrane for complete protection.

What's Included
