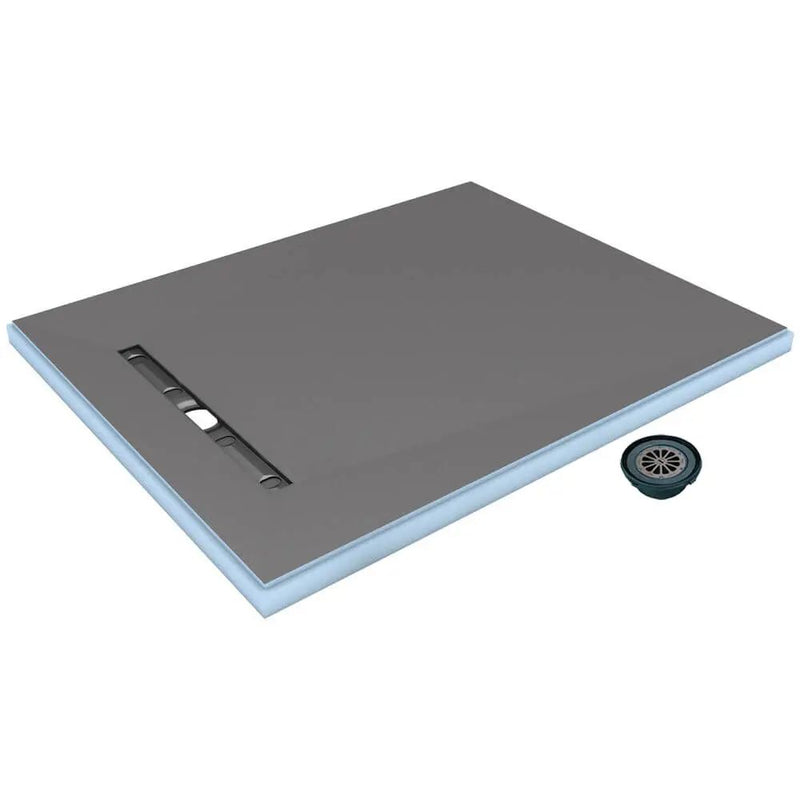

wedi Fundo Riolito linear curbless shower base with click and seal drain unit

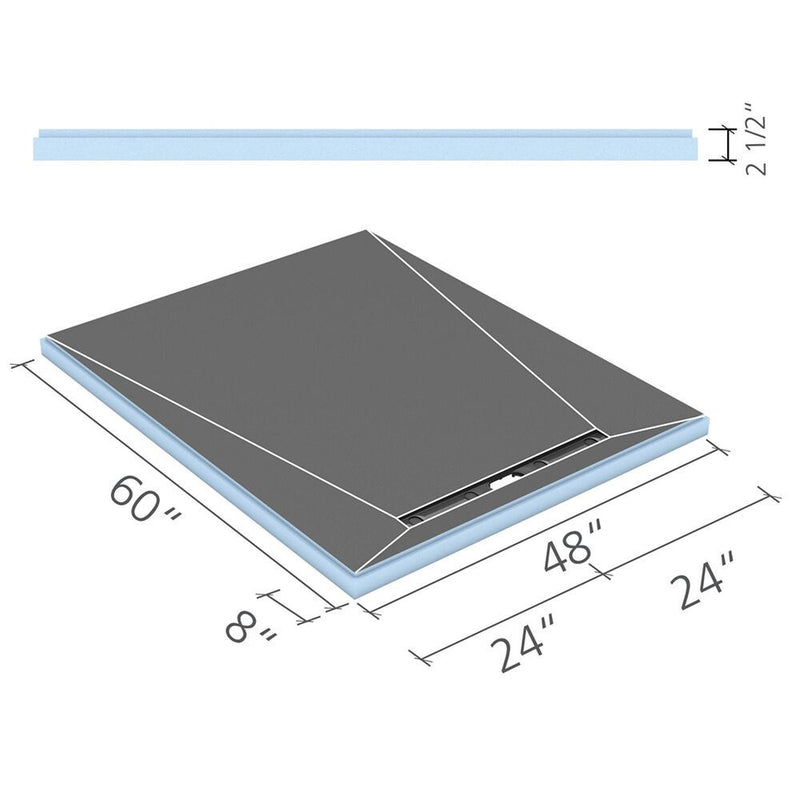

wedi Fundo Riolito linear curbless 48" x 60" shower base with click and seal drain unit

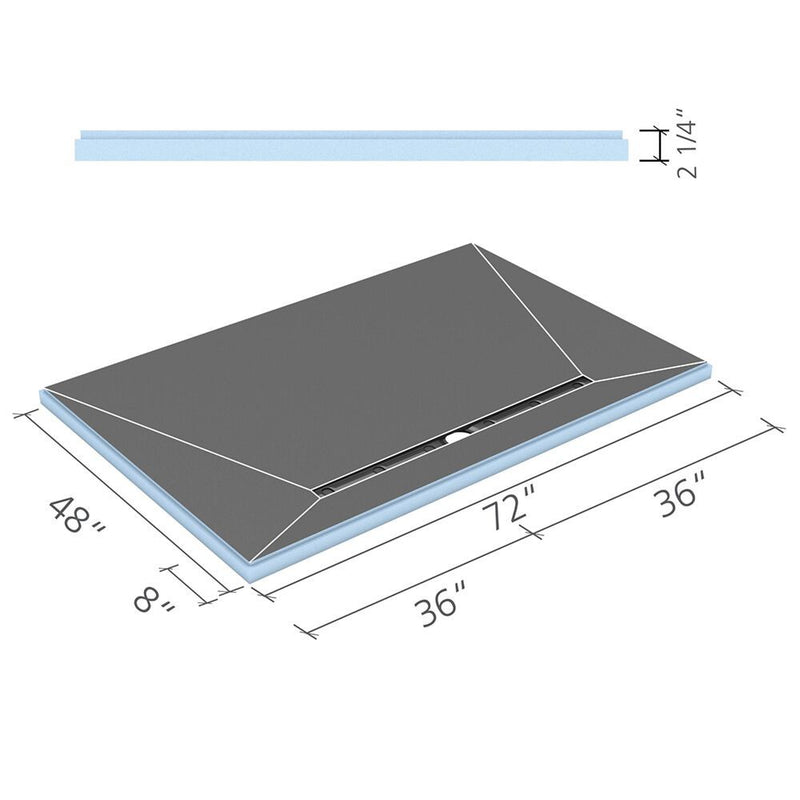

wedi Fundo Riolito linear curbless 48" x 72" shower base with click and seal drain unit
wedi Fundo Riolito linear curbless shower base with click and seal drain unit
wedi Fundo Riolito linear curbless 48" x 60" shower base with click and seal drain unit
wedi Fundo Riolito linear curbless 48" x 72" shower base with click and seal drain unit

wedi Fundo Linear Shower Base

SKU
by wedi
$1,102.20 - $1,322.83
$1,102.20
$1,102.20 - $1,322.83
$1,102.20

Hand Unload Freight Option

Some items are too large for UPS/FedEx but light enough to be unloaded by hand from a freight truck.

  • Commercial Address: Free shipping
  • Residential Address: $125 hand unload fee
Choose a Curbless Shower Size

Wedi Fundo® Riolito Neo Linear Shower Base with Click and Seal Drain

Upgrade your bathroom with the wedi Fundo® Riolito Neo Linear Shower Base, a pre-sloped, 100% waterproof shower base system with an integrated channel drain and Click and Seal® drain technology. Ideal for curbless, barrier-free, or modern linear designs, the Riolito Neo base reduces installation time, eliminates waterproofing risks, and is tile-ready the same day.

Features & Benefits

  • Integrated Linear Drain Channel
    Factory-sealed linear drain simplifies layout and eliminates traditional weep hole issues, ideal for modern bathroom designs.
  • Click and Seal® Drain System Included
    Includes wedi’s patented Click and Seal® drain unit for a fast, glue-free, leak-proof connection to 2" ABS, PVC, or cast iron.
  • Pre-Sloped, Ready-to-Tile Surface
    No mud beds, no waterproofing membranes—base features a factory slope for proper drainage with any tile.
  • Curbless, Barrier-Free Design
    Level perimeter and 3/4" low profile make it ideal for flush floor transitions in accessible shower designs.
  • Modular System Options Available
    Choose from a single-piece Riolito Neo base or modular line drain + extension sets with one-way slope for customizable lengths.
  • Tile Compatibility
    Supports both mosaic and large format tiles with seamless installation over wood or concrete subfloors.
  • Heavy-Duty Construction
    Supports high point loads (wheelchairs, rolling carts, etc.) with long-lasting durability.
  • Mold & Mildew Resistant
    Closed-cell XPS foam core is naturally waterproof and moldproof—unlike mortar beds or fabric systems.

How to Choose the Right Size

To select the correct Riolito Neo base:

  1. Measure from the center of the 2" floor drain to each wall and curb area.

  2. Double the longest of those measurements in both directions (width/length).

  3. Select the Riolito Neo model with a drain offset that matches your floor layout.

  4. All bases can be trimmed on-site for perfect fit and alignment.

More Details

The Wedi Fundo® Riolito Neo Linear Shower Base with Click and Seal® Drain is a modern, innovative solution for barrier-free and flush-entry showers that prioritize both form and function. Engineered with a built-in, factory-sealed linear drain channel, this base eliminates the complications and risks of traditional waterproofing systems—no mud beds, no membranes, and no guessing.

The Click and Seal® Drain Unit included with every Riolito Neo base guarantees a watertight connection to your 2-inch drain pipe without adhesives or sealants. An audible “click” confirms a secure seal, and the integrated hair strainer and weep holes ensure optimal drainage from both the tile and mortar layers.

Designed with accessibility in mind, the base features a level perimeter, making it flush-ready with a standard 3/4" profile that doesn’t require cutting into floor joists. Whether you’re working with wood or concrete subfloors, the Riolito Neo makes installation simple—and thanks to the built-in slope, you’re ready to tile immediately after setting.

Combine this with Wedi Subliner Dry membrane for extended waterproofing and Wedi Building Panels on the walls to create a 100% waterproof shower system that’s backed by a 10–20 year warranty. Perfect for residential remodels, ADA-compliant spaces, and high-end bathroom builds.

What's Included
