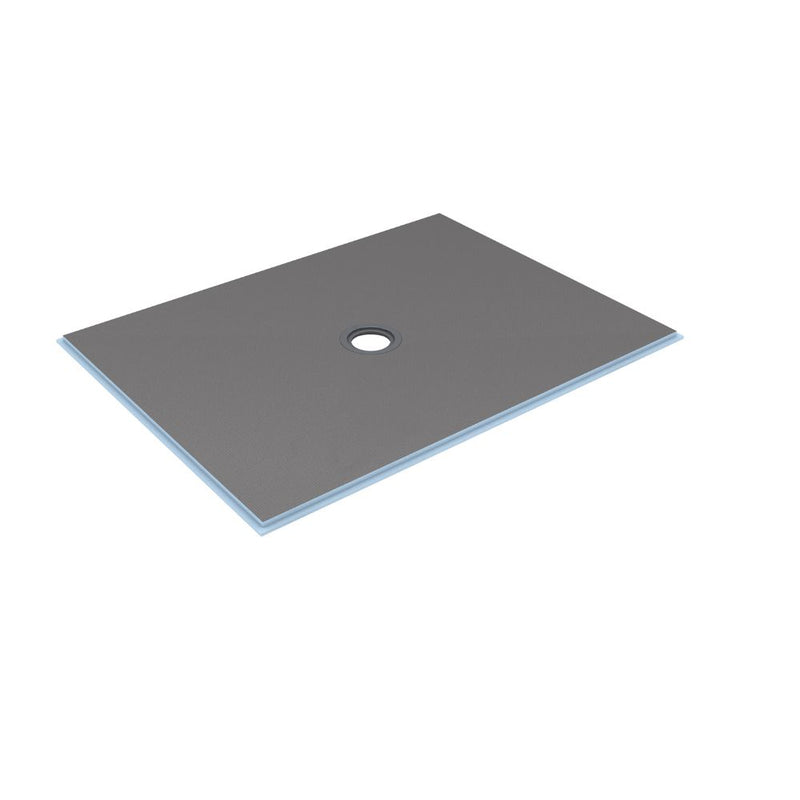

Rendering of the Wedi Fundo center drain base top view with slope

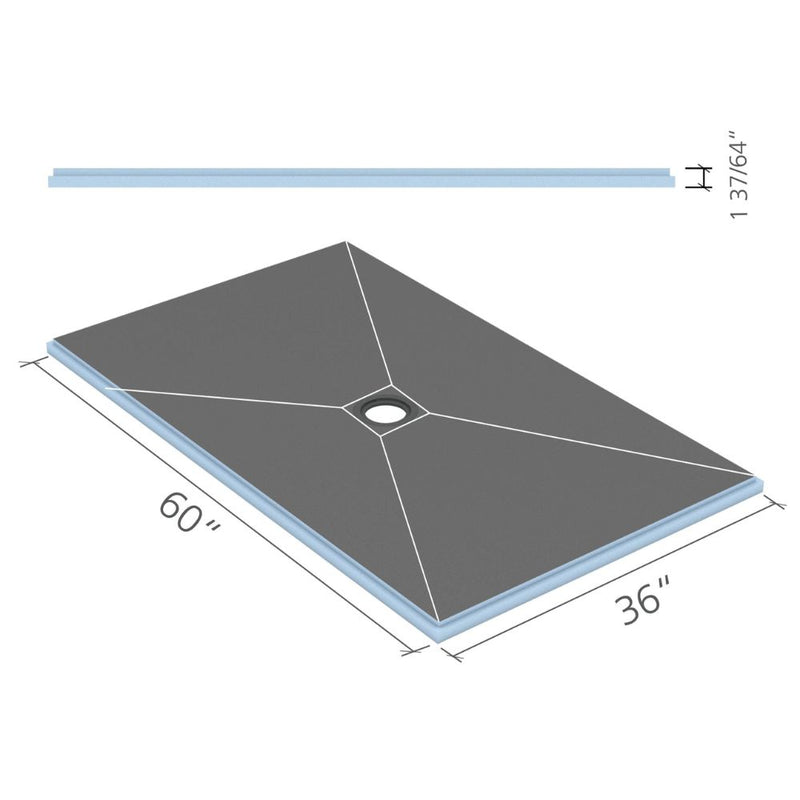

Rendering of Wedi Fundo 36x60 inch center drain shower base with labeled dimensions and sloped surface.

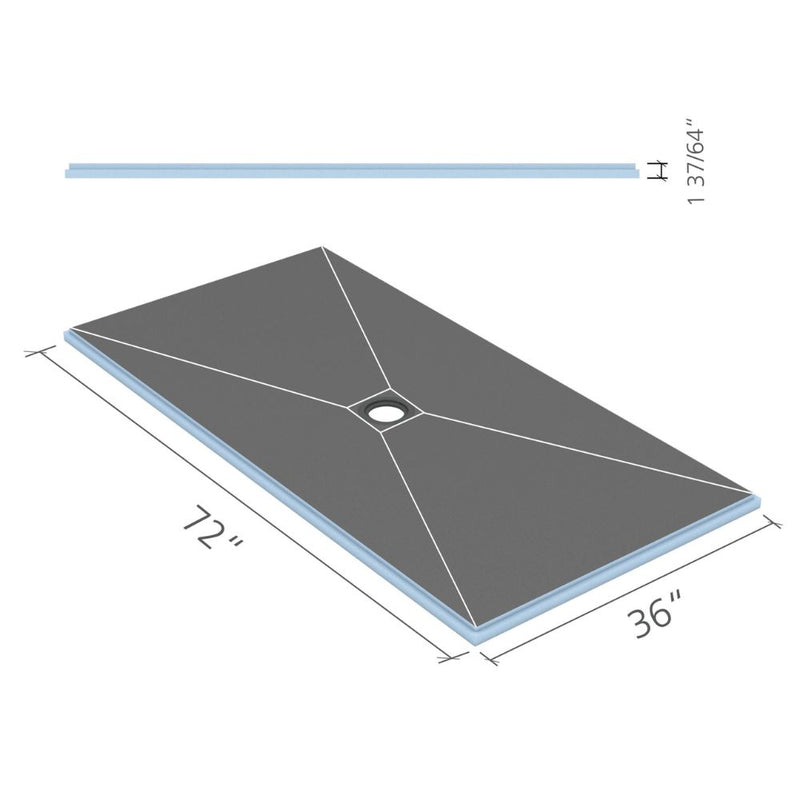

Wedi Fundo 36x72 inch center drain shower base rendering with slope lines and labeled dimensions.

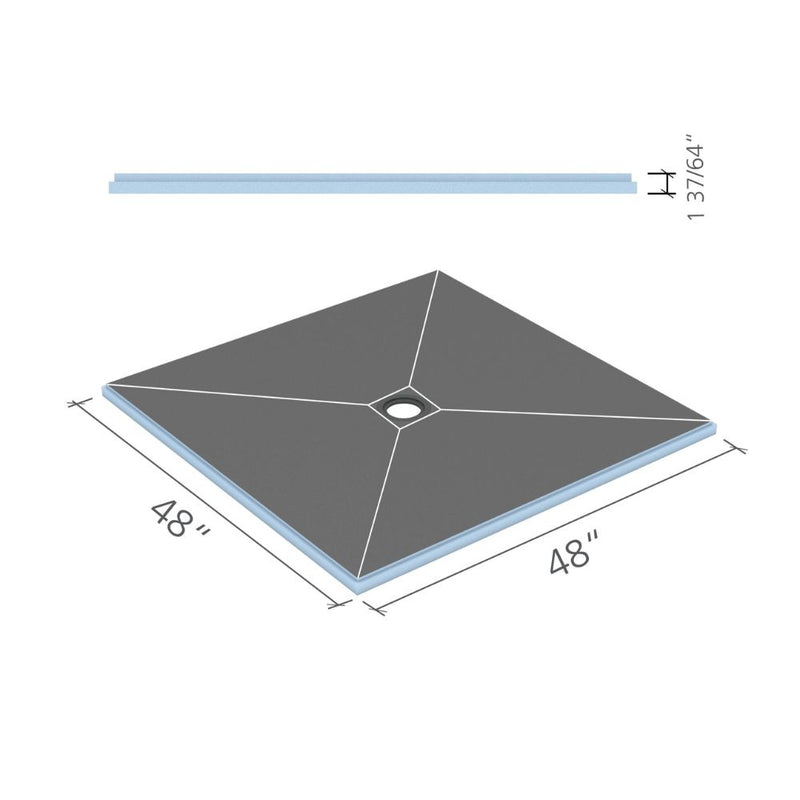

Wedi Fundo 48x48 inch square shower base rendering showing center drain and base thickness.

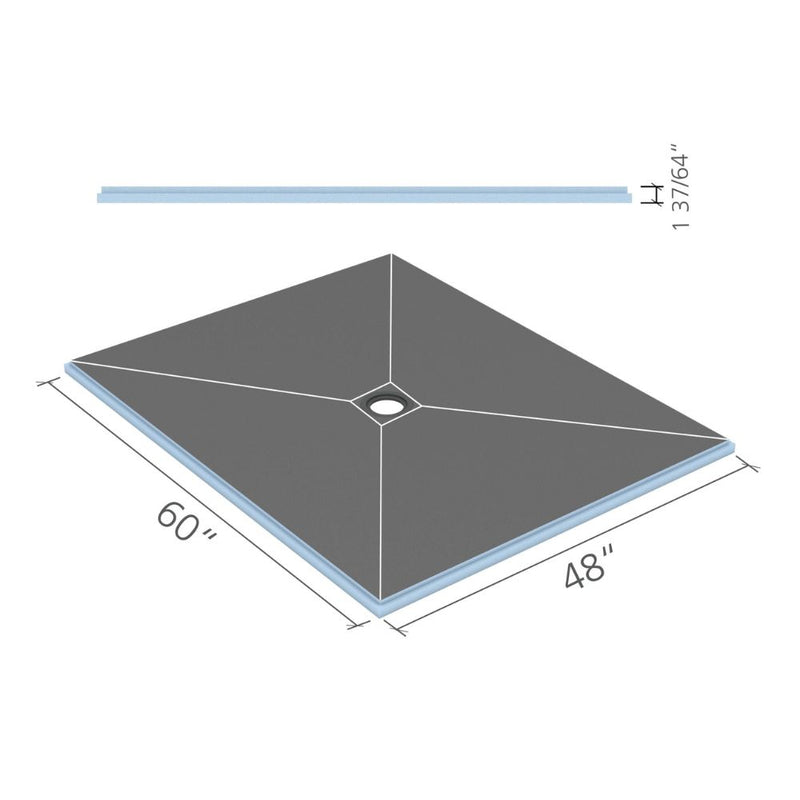

CAD-style rendering of Wedi Fundo 48x60 inch pre-sloped waterproof shower base with center drain.

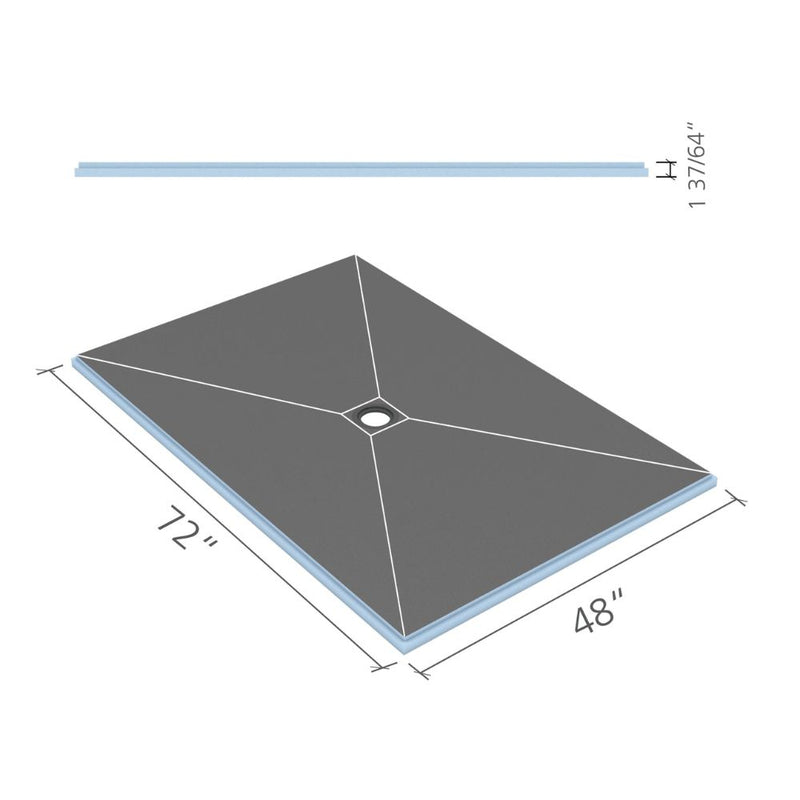

Wedi Fundo 48x72 inch shower pan rendering with labeled width, length, and slope to center drain.

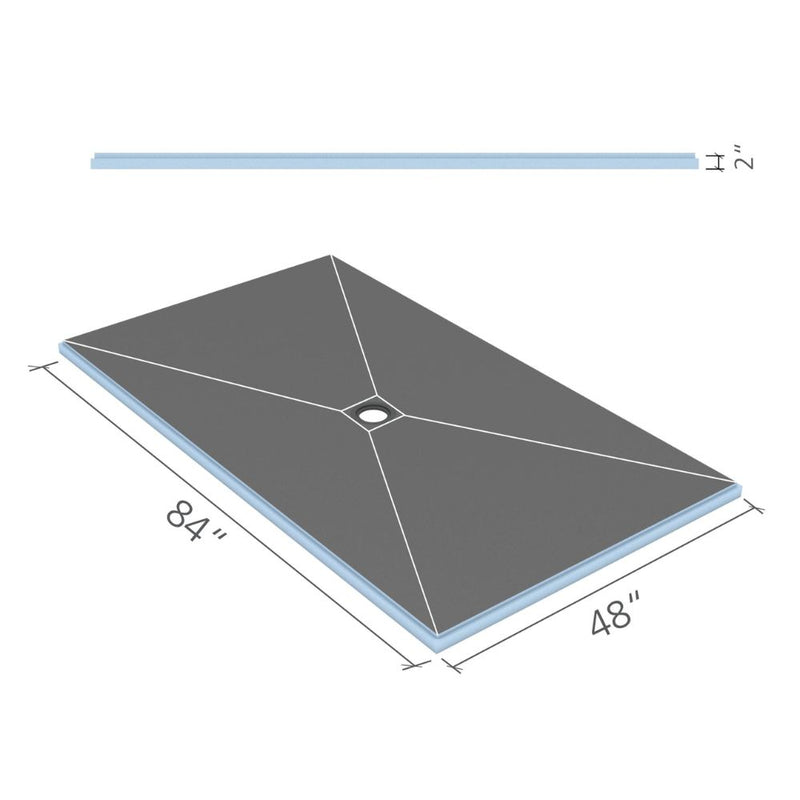

Digital rendering of Wedi Fundo 48x84 inch center drain shower base showing drain location and height.

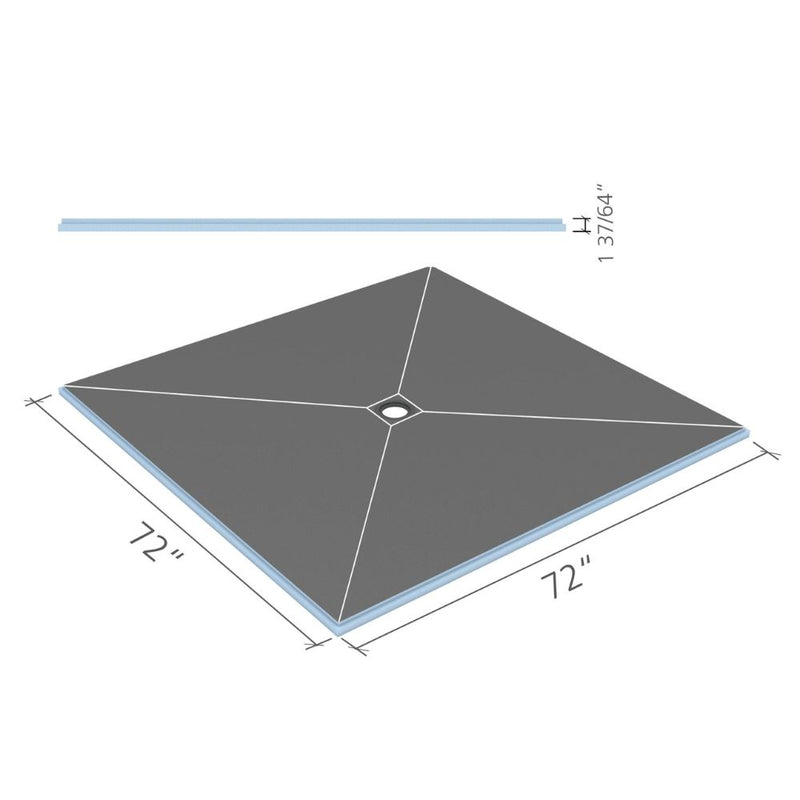

Rendering of 72x72 inch Wedi Fundo center drain shower base with sloped top surface and 1-37/64 inch height dimension.

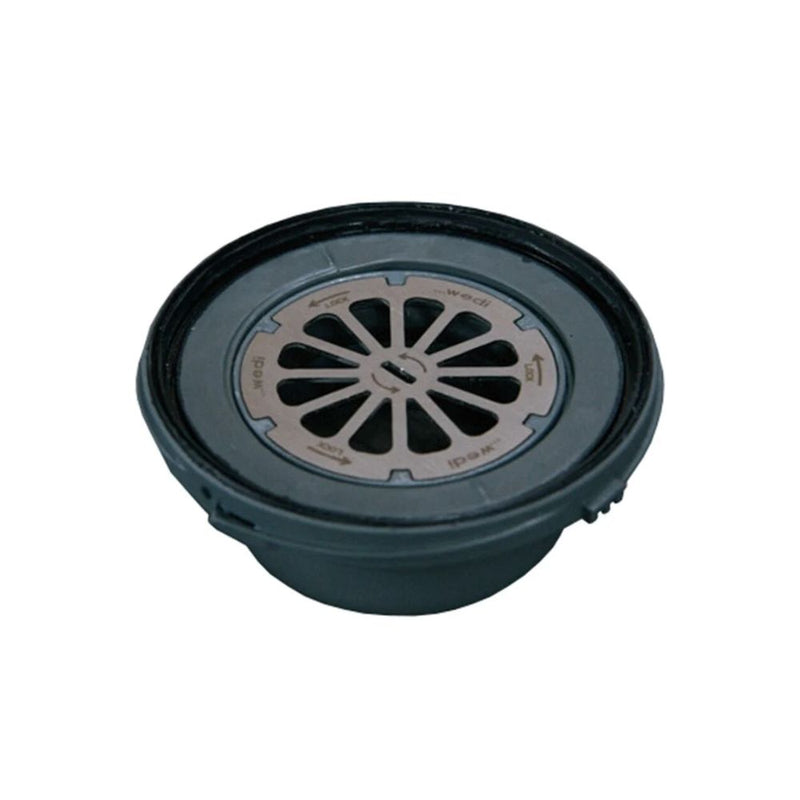

Wedi Fundo Click and Seal drain system on white background

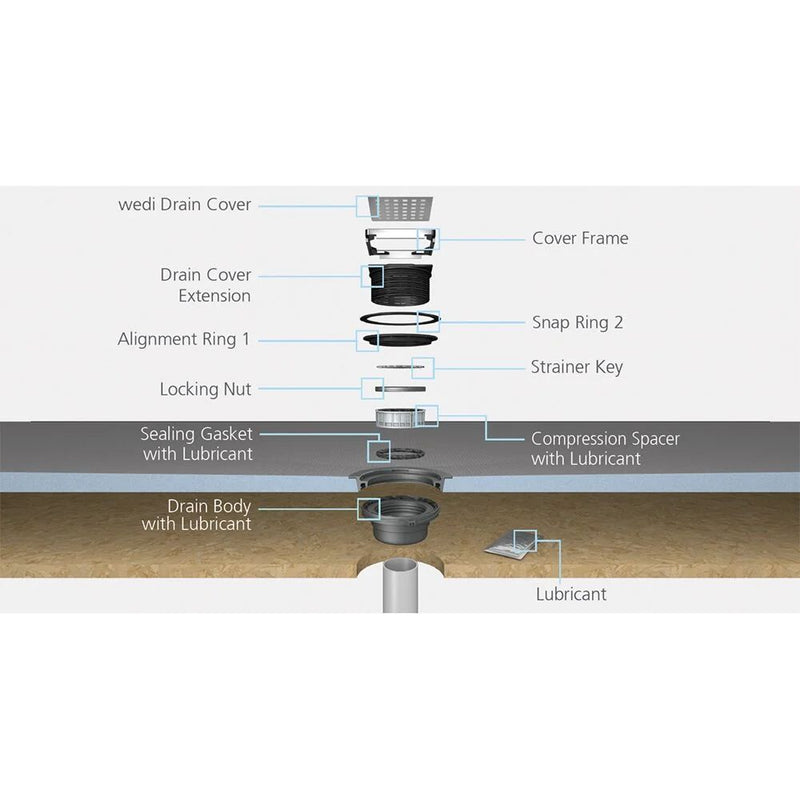

Cross-section installation diagram of Wedi Click and Seal drain connected to subfloor pipe
Rendering of the Wedi Fundo center drain base top view with slope
Rendering of Wedi Fundo 36x60 inch center drain shower base with labeled dimensions and sloped surface.
Wedi Fundo 36x72 inch center drain shower base rendering with slope lines and labeled dimensions.
Wedi Fundo 48x48 inch square shower base rendering showing center drain and base thickness.
CAD-style rendering of Wedi Fundo 48x60 inch pre-sloped waterproof shower base with center drain.
Wedi Fundo 48x72 inch shower pan rendering with labeled width, length, and slope to center drain.
Digital rendering of Wedi Fundo 48x84 inch center drain shower base showing drain location and height.
Rendering of 72x72 inch Wedi Fundo center drain shower base with sloped top surface and 1-37/64 inch height dimension.
Wedi Fundo Click and Seal drain system on white background
Cross-section installation diagram of Wedi Click and Seal drain connected to subfloor pipe

wedi Fundo Shower Base

SKU
by wedi
$622.94 - $1,596.29
$622.94
$622.94 - $1,596.29
$622.94
Choose a Available Size inches (Center Drain)

wedi Fundo® Center Drain Shower Base – Pre-Sloped, Waterproof & Ready to Tile

The original wedi Fundo Primo—now a jobsite essential. These pre-sloped, 100% waterproof shower bases come with the patented wedi Click and Seal® Drain system. Made from closed-cell XPS foam, they offer unmatched durability, insulation, and ease of installation for contractors and DIY remodelers alike. Choose from multiple center drain sizes to fit your project.

Features & Benefits

  • Pre-Sloped & Ready to Tile
    Precision-engineered slope ensures proper drainage without additional prep.
  • 100% Waterproof Core
    No need for additional waterproofing membranes—backed by Wedi’s closed-cell XPS foam core.
  • Lightweight & Easy to Cut
    Easily trimmed or extended with Wedi building panels for custom-fit installs.
  • Moldproof & Long Lasting
    Inorganic construction prevents mold growth and adds long-term durability.
  • Integrated Click & Seal® Drain System
    Each base includes a corner or center-position drain for a complete waterproof connection.
  • Fast, Tool-Free Install
    Install in hours, not days—save labor costs and eliminate the guesswork.

wedi Click and Seal® Drain Features

  • Audible “Click” confirms secure connection

  • Extra weep holes drain trapped thinset moisture

  • Works with ABS, PVC, cast iron (5° tolerance)

  • Tool-free, no glue or sealant needed

  • Lateral and vertical adjustment for tile height

  • Drain height adjustment kits available (sold separately)

How to Select the Right Size

  1. Measure from the center of the 2" floor drain to each adjacent framed wall or curb line.

  2. Double the longest distance in both directions.

  3. Select a base with dimensions equal to or greater than those doubled values.

  4. Trim the base on-site as needed for a perfect fit and centered drain placement.

Technical Specifications

Specification Value
Base Type Pre-sloped shower base
Drain Type Wedi Click and Seal® (centered)
Material Closed-cell extruded polystyrene (XPS)
Waterproofing Internal (not a membrane)
Tile Compatibility Mosaic or large format
Tile Thickness Up to 1/2" or greater
Curb Compatibility Works with all Wedi curbs
Extensions Available Yes, sold separately
Custom Cutting On-site with standard tools



More Details

The wedi Fundo® Center Drain Shower Base is the preferred choice of contractors, remodelers, and tile installers who demand long-term waterproofing and fast installation. With its fully integrated slope, XPS foam core, and included Click & Seal® drain system, this base simplifies the entire shower construction process—no additional slope work, pan liners, or waterproof membranes required.

Designed to support tile or stone finishes, each wedi Fundo® base can be trimmed on site to fit tight bathroom layouts or extended using wedi panels. The result is a precision-drained, mold-resistant, zero-fail shower foundation that’s ready for tile in a matter of hours.

Whether you're working on a small alcove or a large walk-in, these center drain bases provide the structural integrity and installation efficiency needed to meet demanding job timelines without compromising on quality.

What's Included

  • wedi Fundo Primo Pre-Sloped Shower Base (Center Drain)
  • wedi Click and Seal® Drain Unit
    Hair Strainer
  • Installation Manual
