wedi Fundo Shower Base Offset

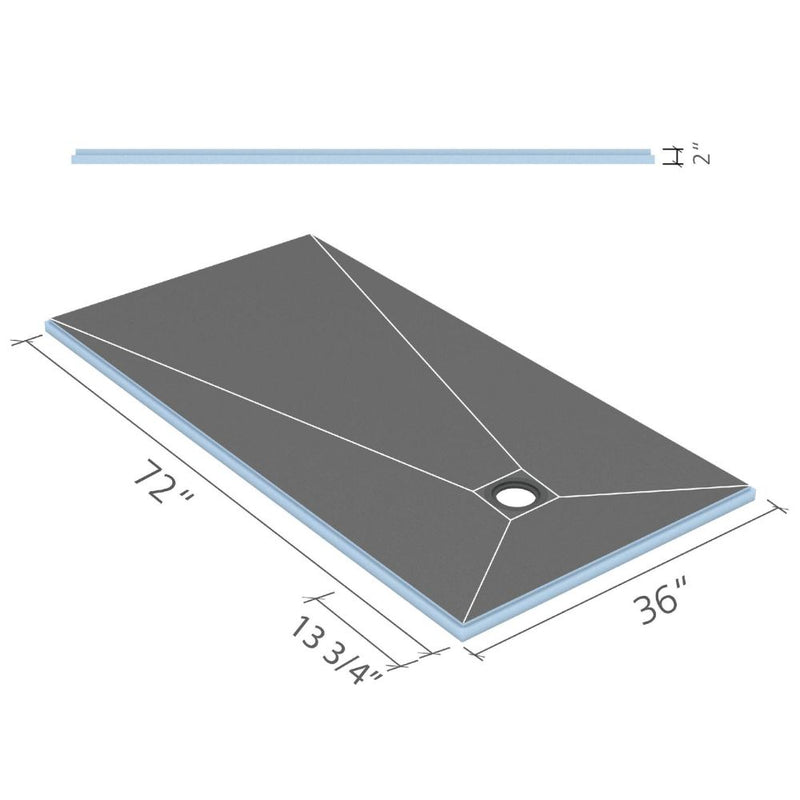

wedi Fundo Shower Base 36" x 72" Offset Drain (OD) | Pre-Sloped & Waterproof
Built for precision and performance, the wedi Fundo Shower Base (36" x 72") with Offset Drain delivers a fast, worry-free foundation for curbless or curbed showers. This lightweight, pre-sloped, and internally waterproof foam base features wedi’s Click and Seal® Drain system in an offset position ideal for floorplans where the drain isn’t centered.
Features & Benefits
-
Offset Drain Configuration
Perfect for installations where the existing 2" waste pipe is closer to a wall or end of the shower. Eliminates the need for moving plumbing. -
Pre-Sloped & Ready to Tile
No mud bed needed. The integrated 4-way slope ensures proper drainage toward the offset drain position. -
Waterproof XPS Core
Made from wedi’s signature closed-cell extruded polystyrene foam—waterproof through and through, not just coated. -
Click and Seal® Drain System Included
Tool-free, glue-free drain installs in seconds with a confirming “click” when fully sealed. Lateral and height adjustment ensure compatibility with your tile. -
Moldproof & Vapor-Resistant
Inorganic structure resists mildew, rot, and decay. Installs clean and stays clean. -
On-Site Trimmable
Easily cut to size with standard tools for a perfect fit around curbs, benches, or walls. -
Compatible With wedi Extensions
Easily pair with wedi Pre-Grooved Extension Panels to create oversized or custom layouts.
wedi Click and Seal® Drain Features
-
Audible “Click” confirms secure connection
-
Extra weep holes drain trapped thinset moisture
-
Works with ABS, PVC, cast iron (5° tolerance)
-
Tool-free, no glue or sealant needed
-
Lateral and vertical adjustment for tile height
-
Drain height adjustment kits available (sold separately)
How to Select the Right Size
-
Measure from the center of the 2" floor drain to each adjacent framed wall or curb line.
-
Double the longest distance in both directions.
-
Select a base with dimensions equal to or greater than those doubled values.
-
Trim the base on-site as needed for a perfect fit and centered drain placement.
Technical Specifications
| Specification | Value |
|---|---|
| Base Type | Pre-sloped shower base |
| Drain Type | Wedi Click and Seal® (centered) |
| Material | Closed-cell extruded polystyrene (XPS) |
| Waterproofing | Internal (not a membrane) |
| Tile Compatibility | Mosaic or large format |
| Tile Thickness | Up to 1/2" or greater |
| Curb Compatibility | Works with all Wedi curbs |
| Extensions Available | Yes, sold separately |
| Custom Cutting | On-site with standard tools |
