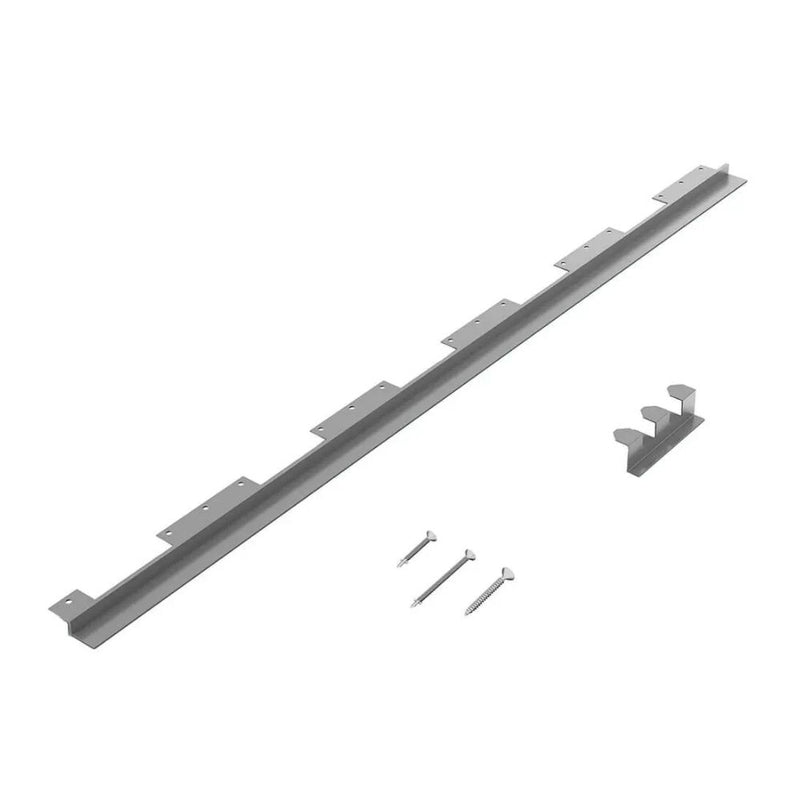

Bracket profiles and fasteners from wedi Ligno recess kit on white background
Installation diagram of the wedi Fundo Lingo recess subfloor installation kit

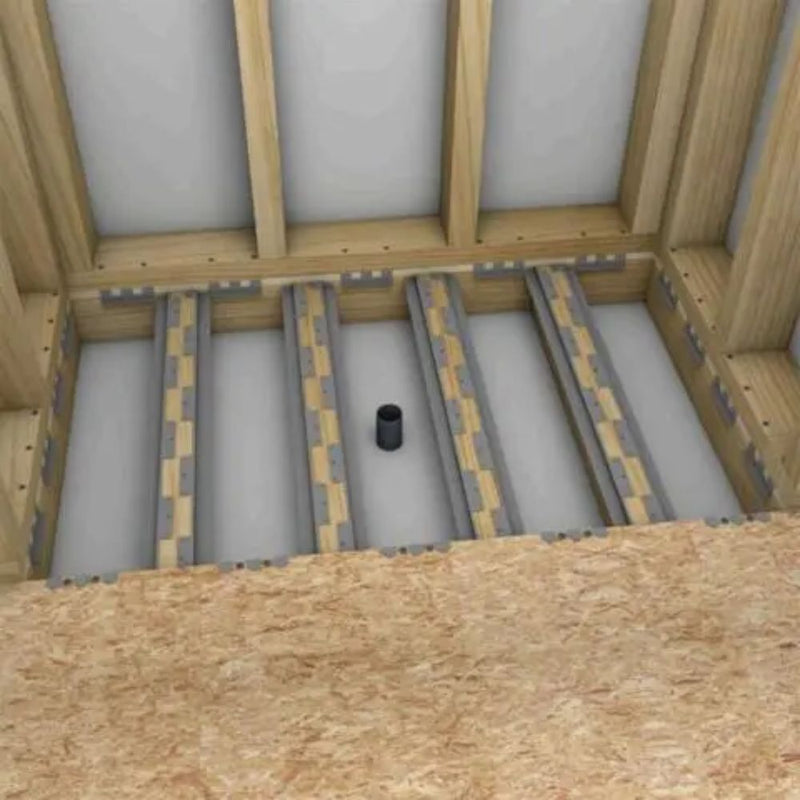

Overhead view of bracket system supporting recessed plywood

wedi Subfloor Recess Installation Kit

SKU US5000085
by wedi
$536.73 - $536.73
$536.73
$536.73 - $536.73
$536.73

wedi Fundo Ligno Subfloor Recess Installation Kit – Floor Joist Reinforcement System

The wedi Fundo Ligno Recess Installation Kit is engineered to simplify and secure the process of recessing subfloors for curbless shower installations. Designed exclusively for use with the wedi Fundo Ligno shower base, this kit eliminates the need for sistering joists and ensures a flush, structurally sound subfloor in wood framing systems.

Key Features & Benefits

  • Engineered for wedi Ligno
    Purpose-built to support the recessing of floors beneath wedi Fundo Ligno curbless shower bases—do not use with other shower systems.
  • Reinforces Subfloor Between Joists
    Safely recesses ¾" plywood between 2x10 joists (standard, engineered, or I-joist), eliminating the need for additional blocking or sistering.
  • Strong & Safe
    Supports dead and live loads per IRC standards, maintaining or exceeding L/360 deflection limits once installed.
  • Complete Kit
    Includes all hardware and two bracket profile types for easy installation—covers shower base recesses up to 5 ft x 5 ft.
  • Time-Saving Alternative to Traditional Framing
    Faster and safer than hand-framing your own subfloor recesses with wood. Enables clean, consistent prep for barrier-free shower builds.
  • Compatible With
    Only for use with wedi Fundo Ligno bases in curbless, flush-to-floor installations
More Details

The wedi Fundo Ligno Subfloor Recess Installation Kit makes it simple to recess your plywood subfloor for curbless walk-in showers without compromising structural integrity or wasting hours on custom blocking. Designed specifically for use with the wedi Fundo Ligno shower base, this precision-engineered bracket system safely supports ¾" wood panels between existing joists—eliminating the need to sister joists with 2x6s or custom-framed supports.

Ideal for remodelers and pros looking to reduce labor without cutting corners, this kit provides a clean, professional-grade method to recess floor panels flush with surrounding subfloor surfaces. The bracket design not only supports the plywood across the joist cavities but also at the interface with the rest of the subfloor and the bottom plates of adjacent walls—creating a solid, continuous substrate for your wedi base.

Whether you're working with dimensional lumber, engineered joists, or I-joists, this kit ensures you’ll maintain compliance with modern residential code requirements (IRC), including structural load and deflection standards. Once installed, your recess area is ready for your wedi Ligno base—no guesswork, no compromise.

Important: This system is exclusively for use with wedi Fundo Ligno shower bases. Do not use for other shower pan installations.

What's Included

  • 30 x C Brackets
  • 10 x Joist Brackets
  • 60 x Coarse thread flat head Phillips wood screws
  • 40 x Long flat head Phillips self-drilling screws with wings
  • 160 x Short flat head Phillips self-drilling screws with wings
