Raimondi Modular Cutting System - 4 Rails
Raimondi Modular Cutting System - 4 Rails for Large Format Panels & Slabs
The Raimondi Modular Cutting System - 4 Rails is a longer-span rail-based cutting solution for large-format tile, porcelain panels, and slab-style applications. Built for larger jobs and longer cuts, it combines four connectable guides, integrated suction cups, a die-cast aluminum scoring unit, premium breaking pliers, and a padded carry bag for a complete professional score-and-snap setup.
Features & Benefits
-
Long-Span 4-Rail Setup – Designed for larger panel and slab-style cutting workflows where more span and support are needed.
-
Stable Rail-Guided Scoring – Four connectable guides with integrated double-lip suction cups help keep the system steady during scoring.
-
Precision Cutting Unit – Die-cast aluminum cutting unit uses a dual-rail sliding mechanism for smooth, controlled scoring.
-
Titanium Scoring Wheel – Ø 20 mm (3/4") wheel with built-in bearing supports smooth scoring and accurate cut lines.
-
Premium Pliers Included – Includes breaking pliers for snapping tile from 1/8" to 19/32" thick.
-

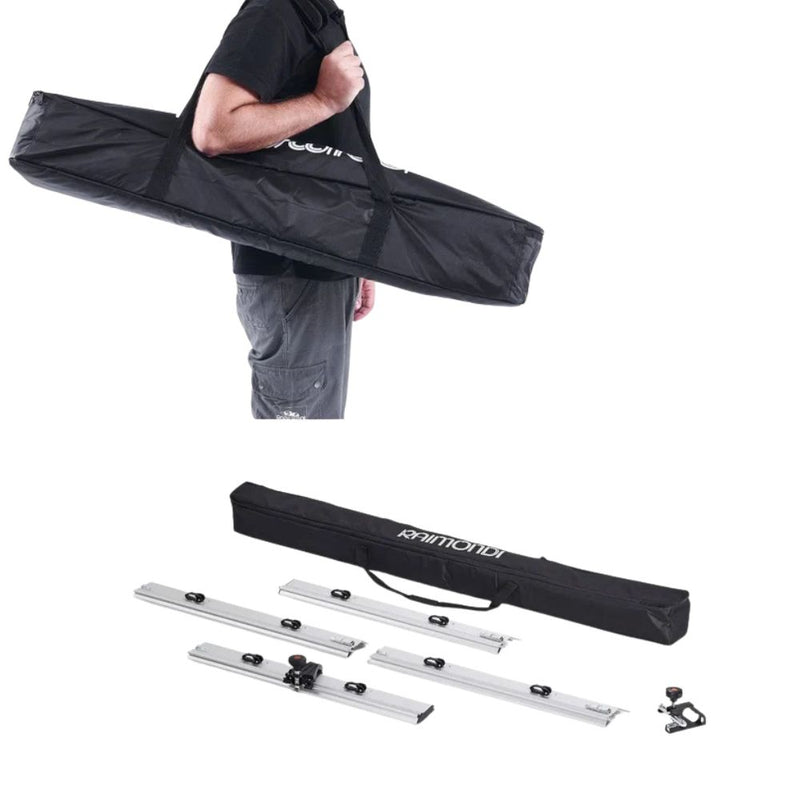

Panel-Ready Portability – Packs into a padded bag with shoulder strap and internal pocket for easier transport and storage between jobs.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Raimondi Modular Cutting System - 4 Rails |
| SKU | Not explicitly provided |
| Product Type | Large-format tile rail cutting system |
| System Size | Marketed as a 10.7 ft system |
| Guide Configuration | (4) connectable guides |
| Suction Cups | (8) integrated double-lip suction cups |
| Scoring Wheel | Ø 20 mm (3/4") titanium wheel with built-in bearing |
| Tile Thickness Capacity | 1/8" to 19/32" with included premium pliers |
| Bag Length | 3.6 ft |

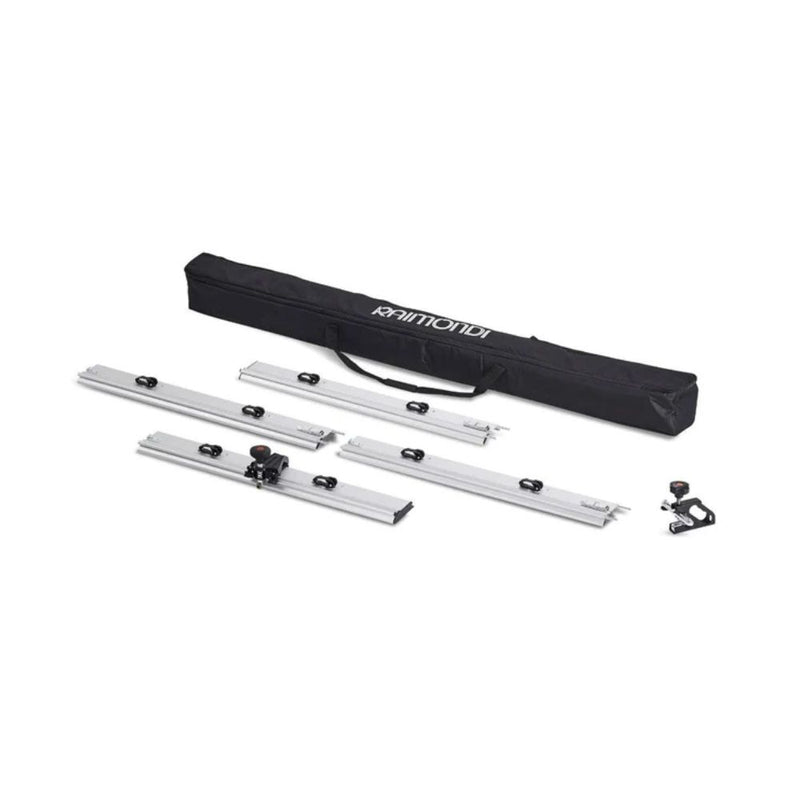

| Included Components | (4) rails, cutting unit, suction cups, premium pliers, and padded bag. 2.2ft Each |
