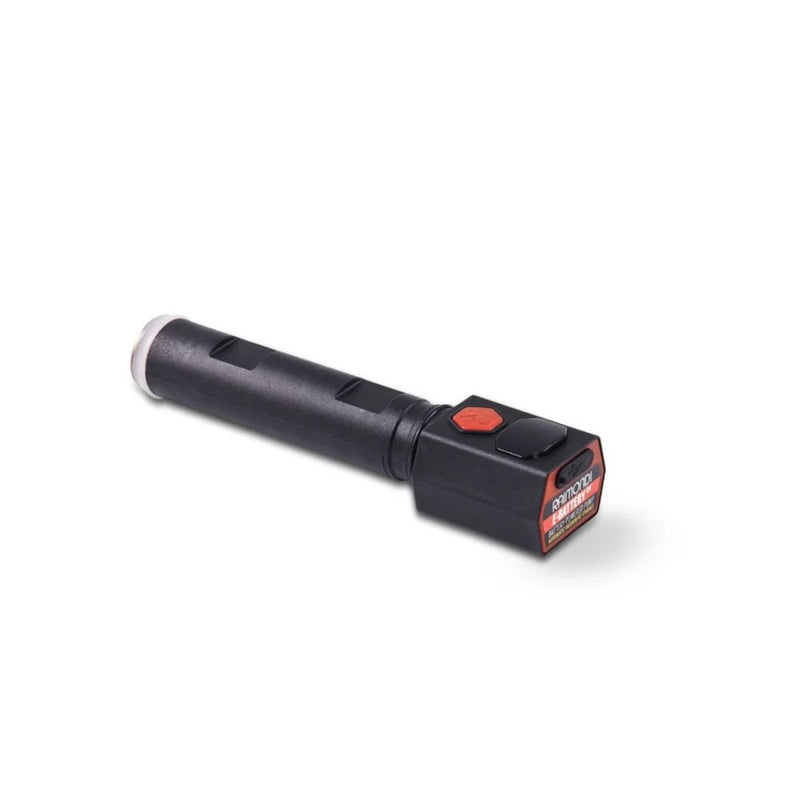

Raimondi RV Battery-Operated Pump Piston for RV175 Suction Cups
Raimondi RV Battery-Operated Pump Piston for RV175 Suction Cups
The Raimondi RV Battery-Operated Pump Piston is a retrofit module that converts compatible Raimondi RV175 manual suction cups into battery-operated units with automatic vacuum recovery. It is built for professional tile and slab handling where consistent suction monitoring, fast setup, and jobsite efficiency matter.
Important: This listing is for the battery-operated pump piston only. Raimondi RV175 suction cups are sold separately.
Features & Benefits
-
Battery-Operated Conversion – Converts compatible manual Raimondi suction cups into battery-operated units.
-
Designed for RV175 Suction Cups – Made for compatible Raimondi RV175 suction cups, including LTVSCGN / LTVSCGNBAT based on supplied compatibility information.
-
Automatic Vacuum Recovery – Restarts the pump if pressure drops to help maintain suction during use.
-
Push-Button Operation – Creates vacuum automatically without manual pumping.
-
Digital Display – Shows vacuum level and battery status in real time.
-
Tool-Free Setup – Installs by removing the manual piston and inserting the battery module.
-
USB-C Rechargeable – Includes USB-C charging cable for convenient charging.
-
Extended Runtime – Provides over 1,500 activations per charge.
What’s Included
- Raimondi RV Battery-Operated Pump Piston
- USB-C charging cable
Compatibility: This pump piston is compatible with Raimondi RV175 suction cups, including LTVSCGN / LTVSCGNBAT, based on the supplied product information. Confirm fitment before ordering if your suction cup model is different.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Raimondi RV Battery-Operated Pump Piston for RV175 Suction Cups |
| Brand | Raimondi |
| Product Type | Battery-operated pump piston/suction cup retrofit module |
| Compatible System | Raimondi RV175 suction cups |
| Operation | Push-button battery operation |
| Vacuum Recovery | Automatic vacuum recovery restarts pump if pressure drops |
| Display | Digital vacuum level and battery status display |
| Charging | USB-C rechargeable |
| Runtime | Over 1,500 activations per charge |
| Installation Method | Remove manual piston and insert battery module |
| Suction Cup Included | No; suction cup sold separately |
Compatibility & Installation Notes
This battery-operated pump piston is designed to retrofit compatible Raimondi RV175 suction cups. Based on the supplied product information, it is designed for use with Raimondi RV175 suction cups including LTVSCGN / LTVSCGNBAT.
To install, remove the manual piston from the compatible suction cup and insert the battery-operated pump module. No tool setup is listed as required. Confirm compatibility before ordering if your suction cup model is different.
FAQs
Does this include the suction cup?
No. This listing is for the battery-operated pump piston only. Raimondi RV175 suction cups are sold separately.
What suction cups does this fit?
It is designed for compatible Raimondi RV175 suction cups, including LTVSCGN / LTVSCGNBAT based on the supplied product information.
What does this pump piston do?
It converts a compatible manual suction cup into a battery-operated unit with push-button vacuum and automatic vacuum recovery.
Does it show vacuum level?
Yes. The digital display shows vacuum level and battery status in real time.
How does it charge?
It charges by USB-C, and a USB-C charging cable is included.
How long does it run per charge?
Provided product information states over 1,500 activations per charge.
