What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

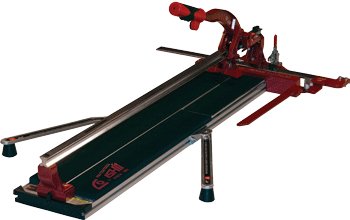

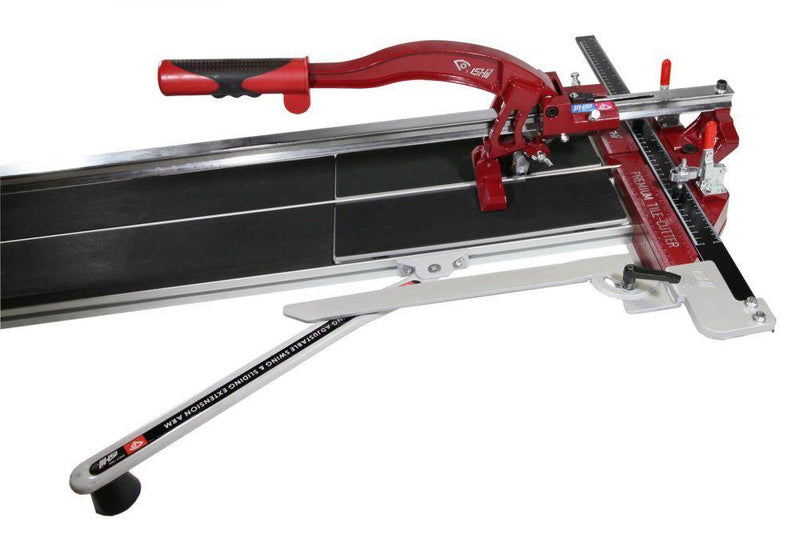

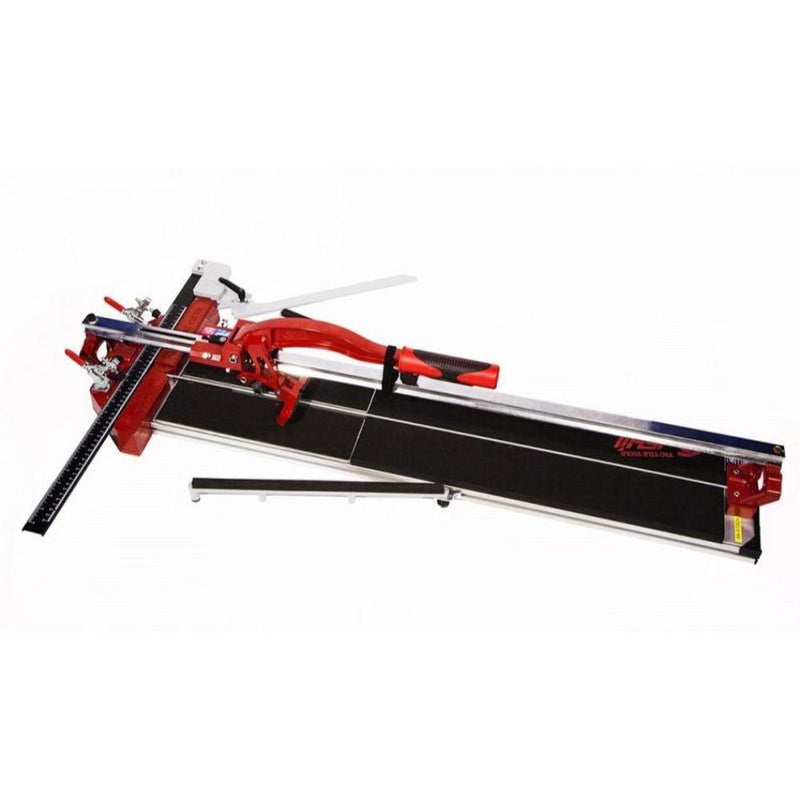

Ishii Premium Jet Turbo Tile Cutters

SKU

by Ishii

$401.69 - $526.61

$401.69

$401.69 - $526.61

$401.69

Quantity

Experience Cutting Excellence with Red Turbo Jet Cutters

Transform your tile cutting with the Red Turbo Jet Professional Tile Cutters, where precision meets efficiency. These cutters, designed for the modern professional, feature a single bar with an adjustable bearing for prolonged efficiency and a blade adjustable for tiles up to 3/4 inches thick. Ideal for mosaic tiles, they come with spring-loaded boards, a wide, die-cast aluminum alloy base, and side arm extensions for larger tiles. Maintenance-free and equipped with a 7/8" Ishii thin ball-bearing scoring wheel, the Red Turbo Jet ensures stable, clean cuts every time.

Upgrade to the Red Turbo Jet Tile Cutters now and experience cutting like never before. Shop now for unmatched tile cutting performance.

Shop Now and Elevate Your Tile Cutting Game!

Features

Long-Lasting Precision: Adjustable bearing for sustained efficiency.

Versatile Cutting: Adjustable blade height for up to 3/4 in. thick tiles.

Stability Assured: Wide base with heavy-duty rubber pads.

Mosaic Tile Friendly: Perfect for precise mosaic tile cutting.

Support for Larger Tiles: Side arm extensions included.

Easy Maintenance: No lubrication needed.

Precision Scoring Wheel: Comes with a 7/8" Ishii thin ball-bearing wheel.

Clean Breaks: Efficient 3-1/2" breaker foot.

Ishii Red Turbo Jet Specifications
Model	AH-870S2A	AH-1040S2	AH-1240S2
Rip Cut	34-1/4"	41"	48-3/4"
Diagonal Tile	24-1/4"	29	34-1/2"
Weight	28lb	35lb	44lb
