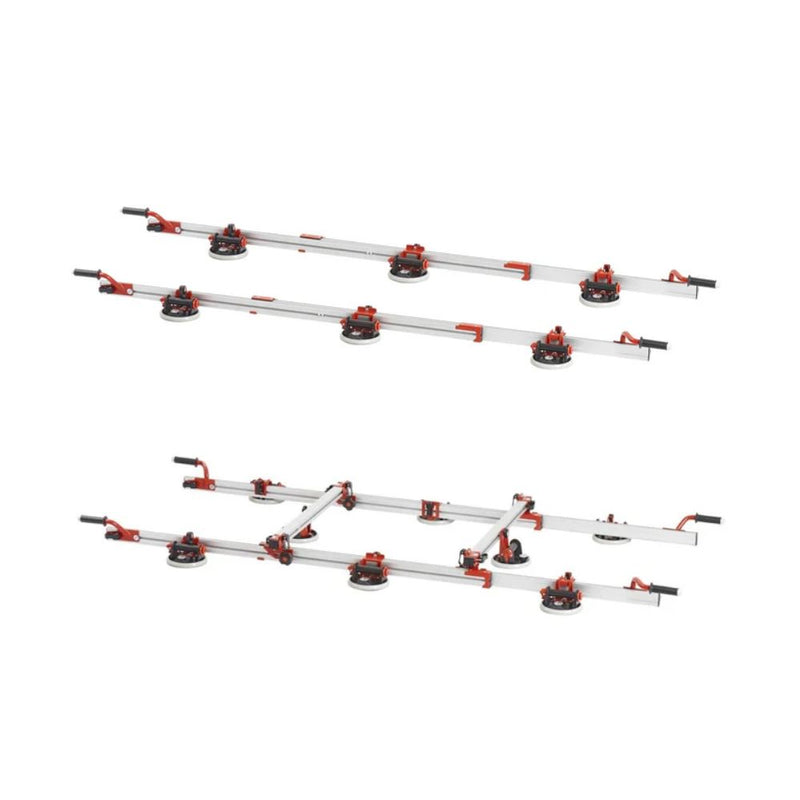

Großformat-Fliesenhebesystem mit Saughebern und Tragschiene, Aluminiumprofil

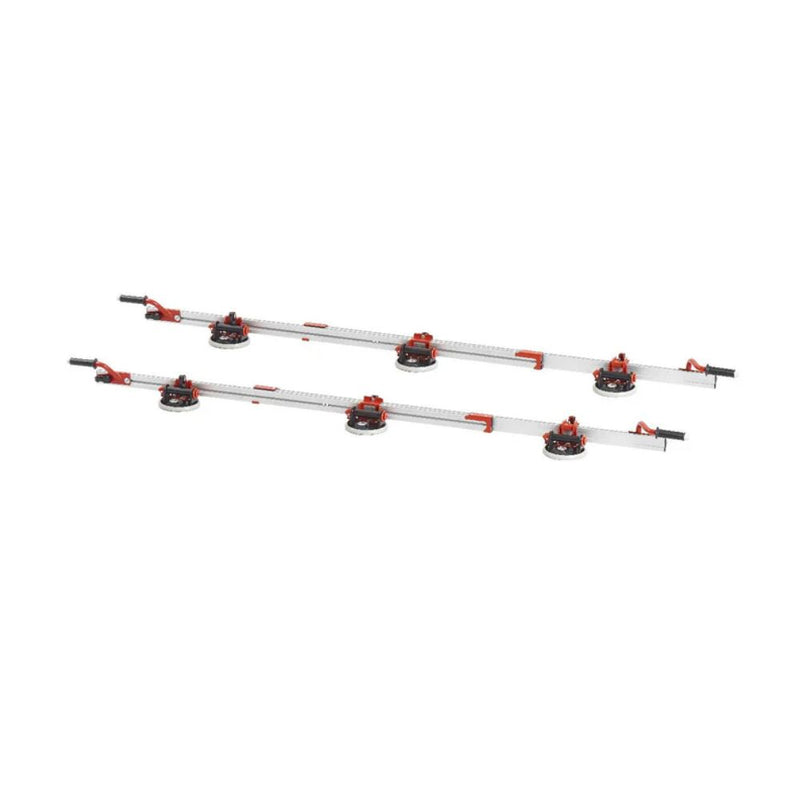

EASY-MOVE Saugheber-System mit Griffstangen und Saugplatten für Großformatfliesen

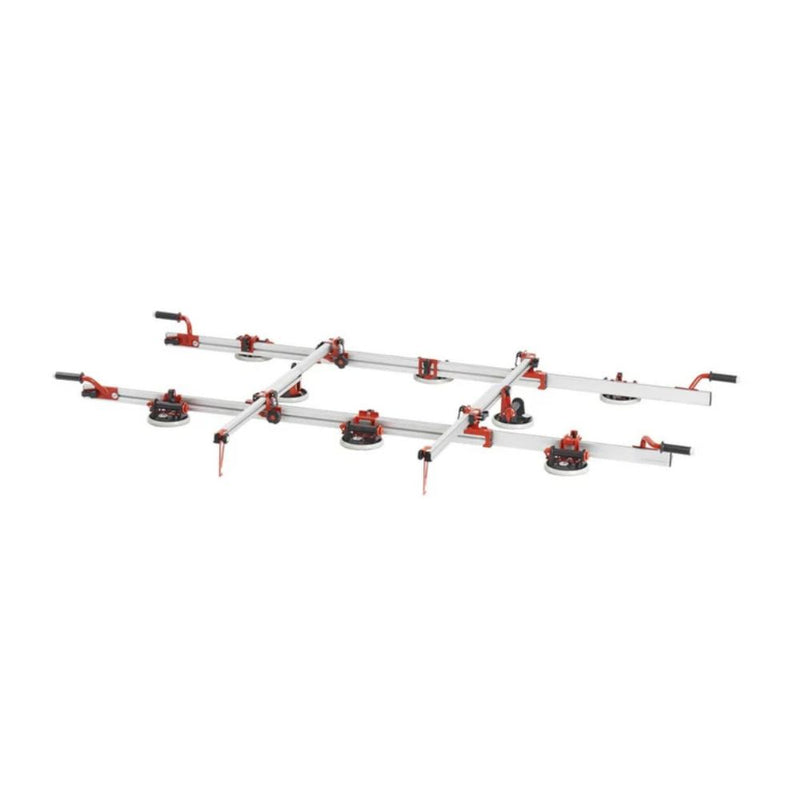

Großformat-Fliesenhandling: doppeltes Schienensystem mit Saughebern und Auslegern
Fliesenhebesystem: Saugheber auf Schienen mit Justier- und Klemmechanismus
Nahaufnahme Fliesenhebesystem: rote Klemme am Aluschienenrahmen mit Saugplatte
Großformat-Fliesenhebesystem mit Saughebern und Tragschiene, Aluminiumprofil
EASY-MOVE Saugheber-System mit Griffstangen und Saugplatten für Großformatfliesen
Großformat-Fliesenhandling: doppeltes Schienensystem mit Saughebern und Auslegern
Fliesenhebesystem: Saugheber auf Schienen mit Justier- und Klemmechanismus
Nahaufnahme Fliesenhebesystem: rote Klemme am Aluschienenrahmen mit Saugplatte

Raimondi EASY-MOVE MkIV Large Format Tile Handling System

SKU
by Raimondi
$1,449.00 - $1,999.99
$1,449.00
$1,449.00 - $1,999.99
$1,449.00
Freight Shipping

Freight Delivery Info

This item qualifies for free freight shipping.

Delivery is available to commercial addresses with loading docks or forklifts.

Residential deliveries may incur additional charges.

Click here to view our freight policies

Factory direct label

Use this text to share information about your product and policies with your customers.

Choose a System Type

Raimondi EASY-MOVE MkIV Tile Handling System for Large Format Slabs

The Raimondi EASY-MOVE MkIV is a redesigned handling system for lifting, moving, and positioning large format tiles and gauged porcelain thin panels. Available in 6-suction and 8-suction versions, it combines a lighter frame, adjustable RV175 vacuum suction cups, and sliding handles to improve safety, control, and ergonomics on the jobsite.

Features & Benefits

  • Redesigned Lightweight Frame – Completely updated frame design reduces weight by over 25% compared to the previous version.

  • Built for Textured Tile – RV175 vacuum suction cups are suitable for textured slabs and thin porcelain panels.

  • Vacuum Gauge Safety – Each suction cup includes a vacuum gauge so installers can monitor vacuum level during handling.

  • Adjustable Cup Positioning – Suction cups slide along the telescopic bars to match the slab layout more easily.

  • Ergonomic Sliding Handles – Four sliding handles with non-slip, stain-proof grommets help improve carrying control, including wall installation work.

  • Two System Options – Choose the 6-cup system for a streamlined setup or the 8-cup system with crossbars for more support and adaptability.

Specifications

Attribute Details
Product Name Raimondi EASY-MOVE MkIV Large Format Tile Handling System
Variants 6-Suction Cup System, 8-Suction Cup System
SKU TCLFPTB6VG, TCLFFF8VG
Product Type Large format tile handling system
Slab Length Range 3.3' to 10.5' (100 cm to 320 cm)
Suction Cups RV175 vacuum suction cups with vacuum gauge
Frame / Bars Aluminum telescopic bars
6-Cup System Includes (2) telescopic bars, (6) suction cups
8-Cup System Includes (2) telescopic bars, (2) crossbars, (8) suction cups
Best Use Lifting, moving, and positioning large format tile and gauged porcelain thin panels
More Details

The Raimondi EASY-MOVE 150 is designed for installers who need a more compact handling solution for large format tile and thin panel work. With a maximum slab length of 5 ft. (150 cm), this transport kit fits shorter panel jobs while still offering the control and safety benefits of a professional vacuum cup handling system.

The kit uses adjustable aluminum profiles and 4 RV175 vacuum suction cups to help secure the tile during transport and placement. These suction cups are gauged, built with non-marking rubber, and described as suitable for textured tile surfaces. Each cup can slide along the aluminum profiles, making it easier to position the setup based on the tile size and layout.

For added handling confidence, the vacuum pump system allows the user to restore or increase vacuum grip while the suction cup remains attached to the tile. A red line on the pump cylinder indicates when vacuum pressure is dropping, helping crews monitor grip during use. The suction cups can also tilt or pivot slightly to support better contact in varying situations.

This product should be positioned as a compact pro-grade transport kit for large format tile installers who do not need a longer slab frame but still want vacuum-gauge safety and adjustable handling support.

What's Included

What's Included

  • Raimondi Easy-Move slab transport frame
  • Vacuum suction cups
  • Sliding handles
