Battipav SOLLEVA Electric Vacuum Suction Cup 11901
Battipav SOLLEVA Electric Vacuum Suction Cup - Art. 11901

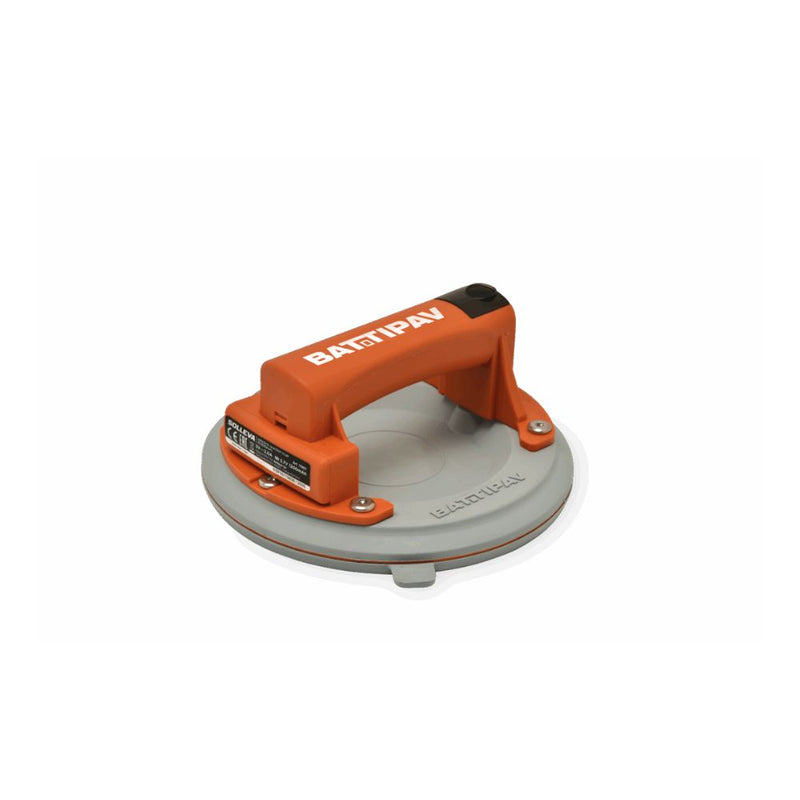

The Battipav SOLLEVA Electric Vacuum Suction Cup is a rechargeable tile handling tool designed for lifting, moving, and positioning large-format tile, panels, and compatible materials. With electric vacuum operation, a multi-lip rubber suction surface, USB-C charging, and a durable carry case, SOLLEVA helps installers work faster while reducing physical effort on the jobsite.

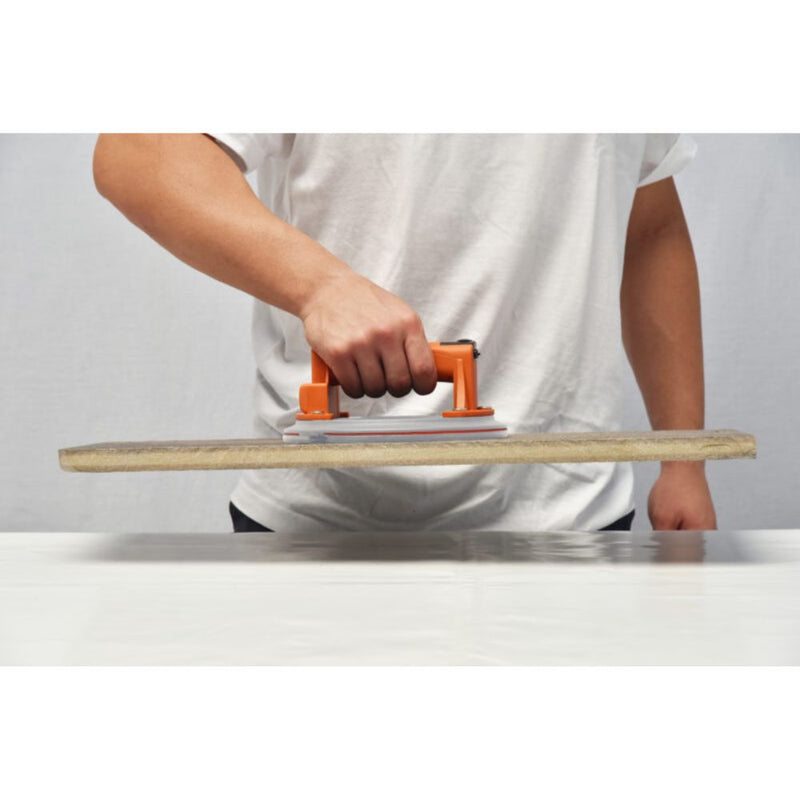

Built for professional tile installers, the SOLLEVA features a 7.9" (200 mm) suction cup diameter, a compact 2.0 lb (0.9 kg) body, and simple push-button operation. Press and hold the button for 2 seconds to turn the unit on, and double-click the button to turn it off.
Features & Benefits
-
Rechargeable Electric Vacuum Suction Cup – Creates suction with electric operation for faster material handling compared to manual pumping.
-
Designed for Large Tile Handling – Ideal for installers working with large-format tile, panels, and compatible slab materials.
-

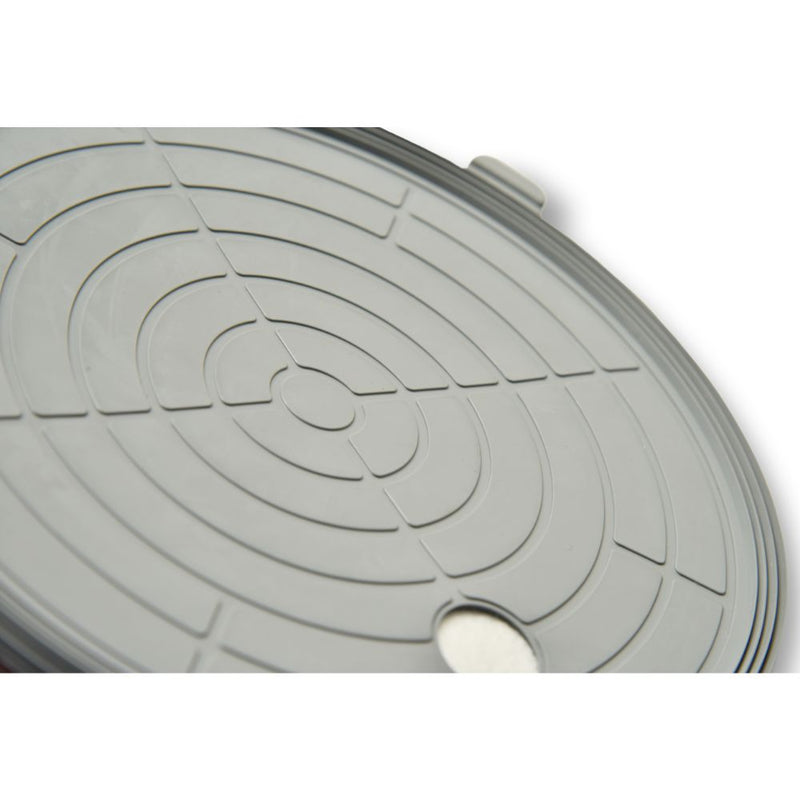

Multi-Lip Rubber Suction Surface – Special rubber design helps provide strong adherence across multiple surface types.
-
287 lb Horizontal Capacity – Supports up to 287 lb (130 kg) in horizontal lifting applications.
-
154 lb Vertical Capacity – Supports up to 154 lb (70 kg) in vertical lifting applications.
-
USB-C Charging – Includes USB-C charging cable for convenient recharging.
-
3-Hour Recharge Time – Full recharge takes approximately 3 hours.
-
Compact and Lightweight – Weighs only 2.0 lb (0.9 kg) for easier jobsite handling.
-

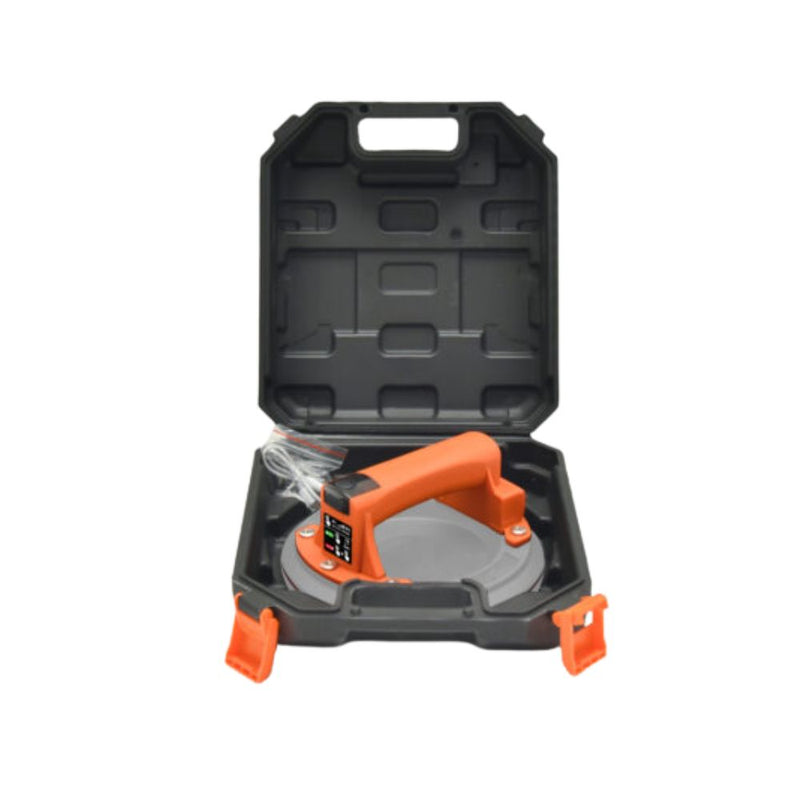

Carry Case Included – Supplied in a practical plastic case for transport, storage, and protection.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Battipav SOLLEVA Electric Vacuum Suction Cup |
| Brand | Battipav |
| Article Number | Art. 11901 |
| Product Type | Rechargeable electric vacuum suction cup |
| Suction Cup Diameter | 7.9" (200 mm) |
| Maximum Horizontal Weight | 287 lb (130 kg) |
| Maximum Vertical Weight | 154 lb (70 kg) |
| Weight | 2.0 lb (0.9 kg) |
| Dimensions | 7.9" x 7.9" x 3.5" (20 x 20 x 8.8 cm) |
| Recharge Time | Approximately 3 hours |
| Battery Capacity | 3.7 VDC, 1200 mAh |
| Input | 5V DC, 2A |
| Charging Connection | USB-C |
| Charging Cable Included | Yes |
| Carry Case Included | Yes, plastic carrying case |
| Warranty | No warranty information provided |
Use Notes
Before lifting or moving material, confirm that the surface is suitable for suction cup use and that the material weight does not exceed the rated capacity for the orientation being used. Surface texture, dust, moisture, porosity, and material condition can affect suction performance.
Always check suction before moving material, monitor the tool during use, and follow Battipav handling instructions. Do not exceed the listed maximum horizontal capacity of 287 lb (130 kg) or vertical capacity of 154 lb (70 kg).
FAQs
What is the Battipav SOLLEVA used for?
It is used for lifting, moving, and positioning large-format tile, panels, and compatible materials with an electric vacuum suction cup.
What is the suction cup diameter?
The suction cup diameter is 7.9" (200 mm).
What is the maximum horizontal capacity?
The maximum horizontal lifting capacity is 287 lb (130 kg).
What is the maximum vertical capacity?
The maximum vertical lifting capacity is 154 lb (70 kg).
How does it charge?
It charges by USB-C, and the charging cable is included.
How long does it take to recharge?
A full recharge takes approximately 3 hours.
Does it include a carry case?
Yes. The SOLLEVA is supplied in a plastic carrying case.
Is warranty information available?
No warranty information was provided.
