What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Bulk Horseshoe Tile Spacers

SKU

by Russo Trading Company

$43.84 - $73.50

$43.84

$43.84 - $73.50

$43.84

Quantity

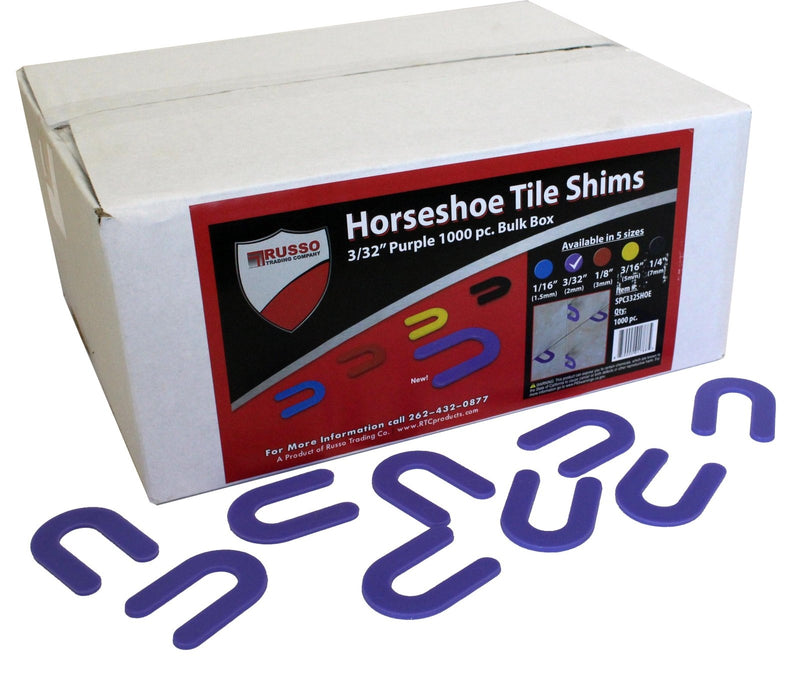

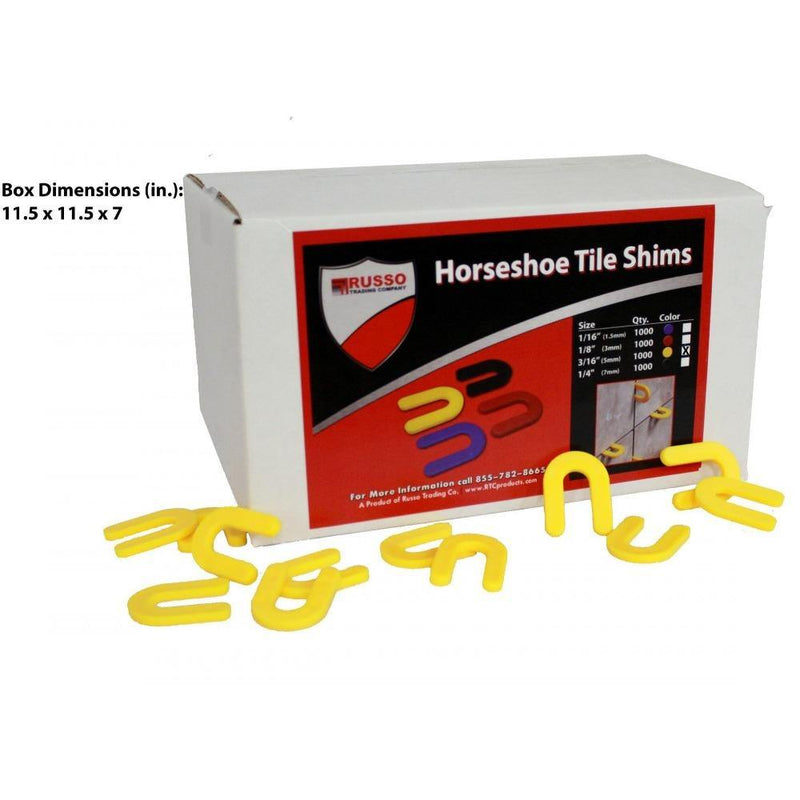

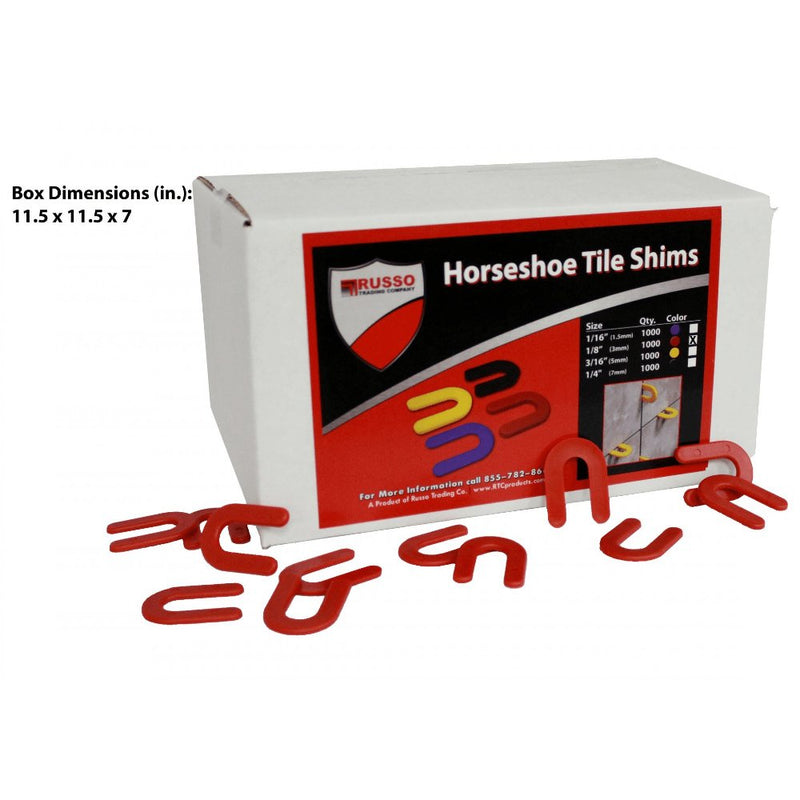

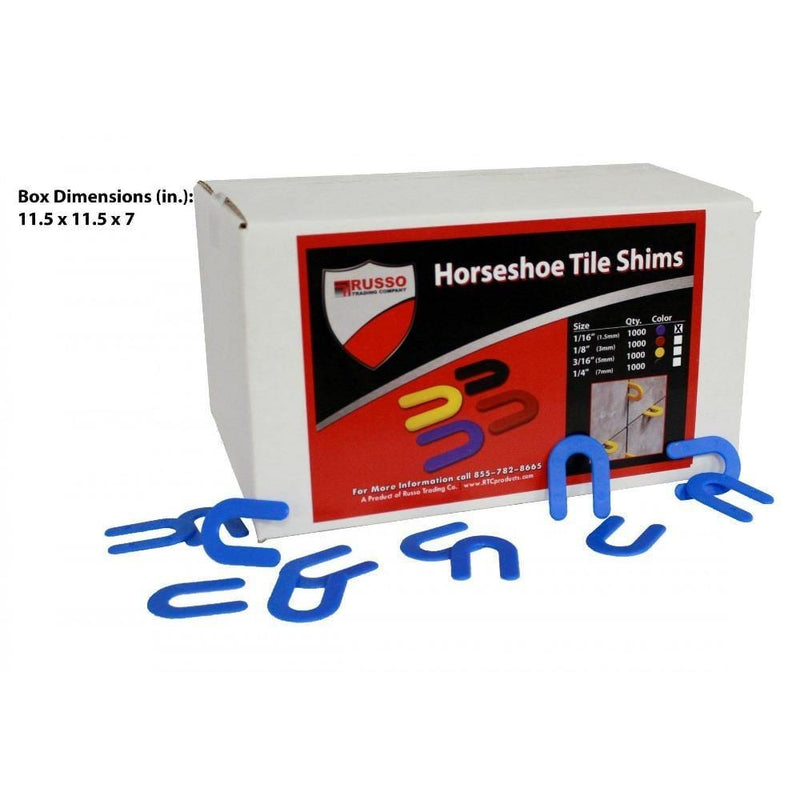

Plastic Horseshoe Tile Shims

Horseshoe tile shims/spacers allow for fast aligning and spacing of stone, granite, marble, and large-format tile. The "U" shaped tile spacers can be used for horizontal and vertical installations! Guaranteed precision and dimensional accuracy and are built to withstand super-heavy loads without compressing. Available in four color-coded thicknesses. 1000 Pieces per box.

Features

Accurately space and align marble, granite, porcelain, stone, large-format tile, and more

Horseshoe spacers will not compress or crush under load, which is ideal for leveling heavy wall tile

The "U" shape allows the installer to lift both corners of the material and uniformly align the joints

Shims are easy to remove after material has set

Center bolt space is 1/2"

Color coded for easy size recognition, and reusable

Approved by architects for use in the installation of windows, doors, curtain walls, storefronts, and insulating glass units

Cut labor and material costs wherever used

Made of high-impact plastic, properly designed and balanced for vertical or horizontal use

New innovative packaging makes it easier to bring shims to the job site, or store them in the shop

1/16" shims - 1/16", 1-1/2" x 2"

1/8" shims - 1/8", 1-1/2" x 2"

3/16" shims - 3/16", 1-1/2" x 2"

1/4" shims - 1/4", 1/2" x 2"
