What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Counter Handler

SKU CH1300HD

by Panel Handler

$749.00 - $749.00

$749.00

$749.00 - $749.00

$749.00

Secure and Effective: Why Professionals Trust the Counter Handler Heavy Duty System

Discover the unmatched efficiency of the Panel Handler's Counter Handler Heavy Duty system. Designed to move and position countertop materials securely, it employs GRABO suction cups (sold separately) for superior hold. Once activated, the Counter Handler's metal frame firmly secures the material, eliminating risks of bending, flexing, or breaking.

For a system that offers unparalleled support and precision, choose the Panel Handler's Counter Handler Heavy Duty. Upgrade Your Handling. Get Yours Now!

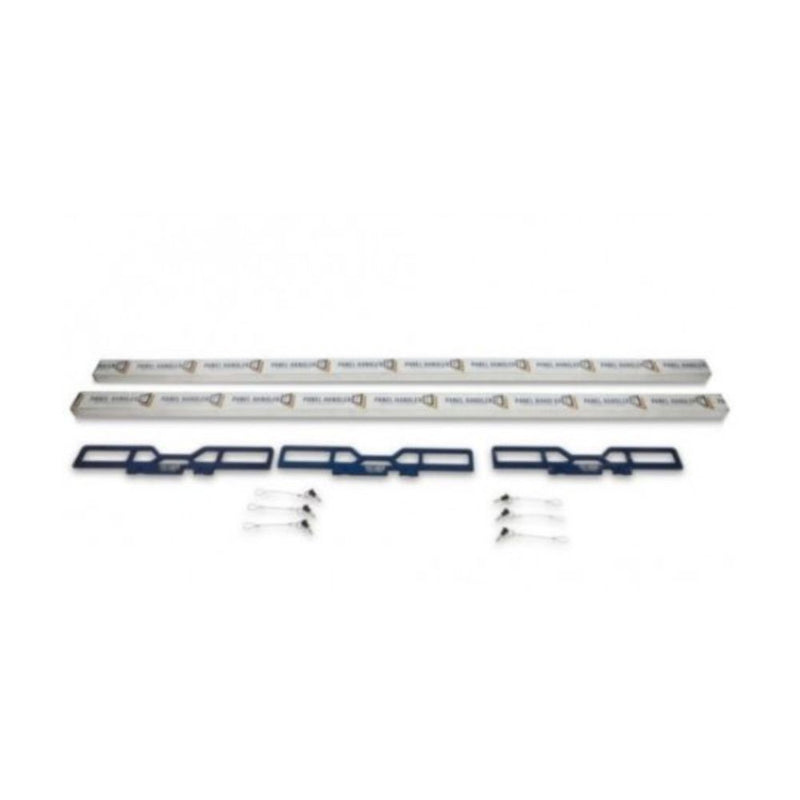

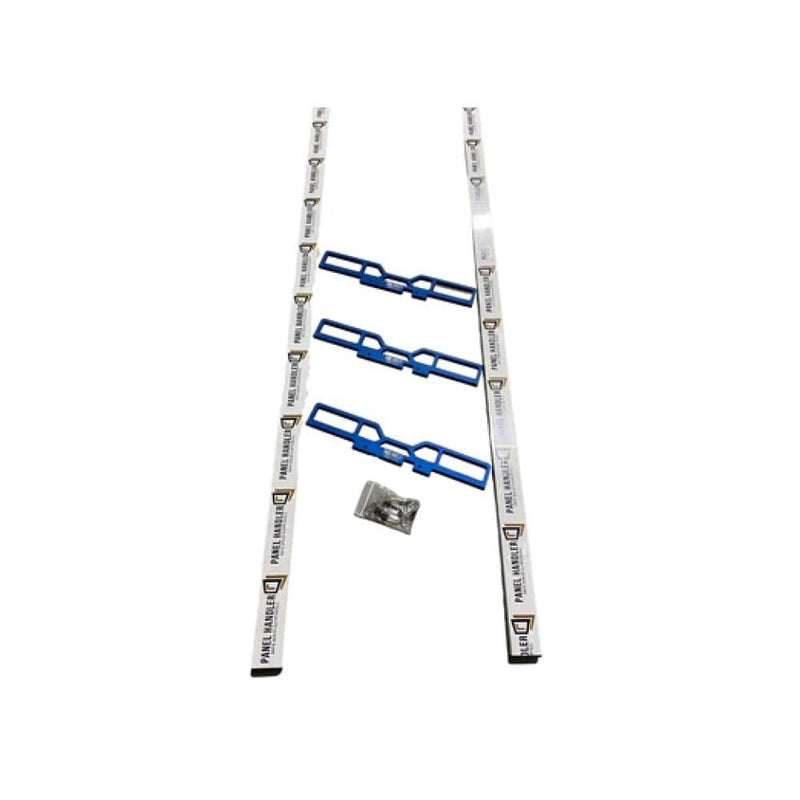

Features

GRABO Compatible: Designed to work seamlessly with GRABO and Grabo-Pro electric vacuum lifters (sold separately).
Sturdy Aluminum Bridges: Comes with three 23" bridges for comprehensive support.
Long Silver Rails: Two 84" rails ensure stability and hold across larger countertop materials.
Quick Pins: Six pins for fast and easy assembly and disassembly.
Prevents Damage: The system's design minimizes risks of flexing, bending, and material breakage.

Counter Handler

Secure and Effective: Why Professionals Trust the Counter Handler Heavy Duty System

For a system that offers unparalleled support and precision, choose the Panel Handler's Counter Handler Heavy Duty. Upgrade Your Handling. Get Yours Now!

Features
