What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Noble FreeStyle Linear Drains PVC

Name: Noble FreeStyle Linear Drains PVC
Brand: Noble
SKU: 8241011
Price: 624.0 USD
Availability: InStock

SKU

by Noble

$624.00 - $1,443.00

$624.00

$624.00 - $1,443.00

$624.00

Choose a Drain Size

24"

32"

36"

40"

48"

54"

60"

Choose a Drain Placement

Offset

Center

Choose a Strainer Option

Wave

Cross-Hatch

Slotted

Pyramid

Tile-In

Quantity

Noble Company Freestyle Linear Drains PVC

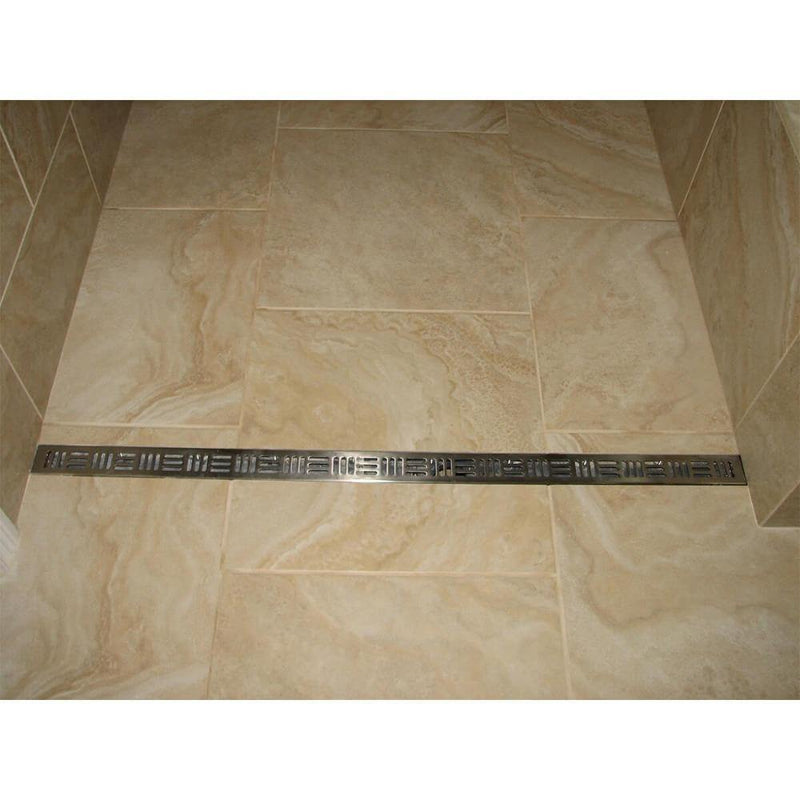

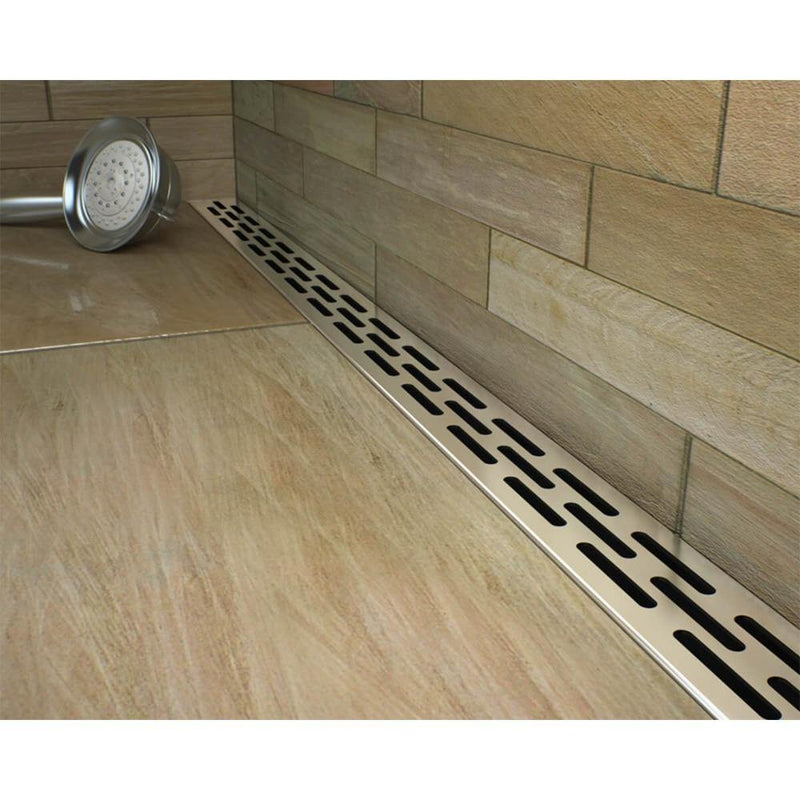

Freestyle linear shower drains are the top choice for single slope shower installations allowing for the use of large format tile which increases design flexibility.

Noble Freestyle drains are the only linear drain available to use a membrane clamping mechanism to provide the most secure, water-tight connection of waterproofing membranes to the drain

Features

Low profile and high capacity drainage system

Can be positioned at the exit of a shower for completely barrier-free installation

Membrane clamping mechanism assures a reliable seal to waterproofing membrane

Waste pipe solvent welded into the drain for a watertight connection

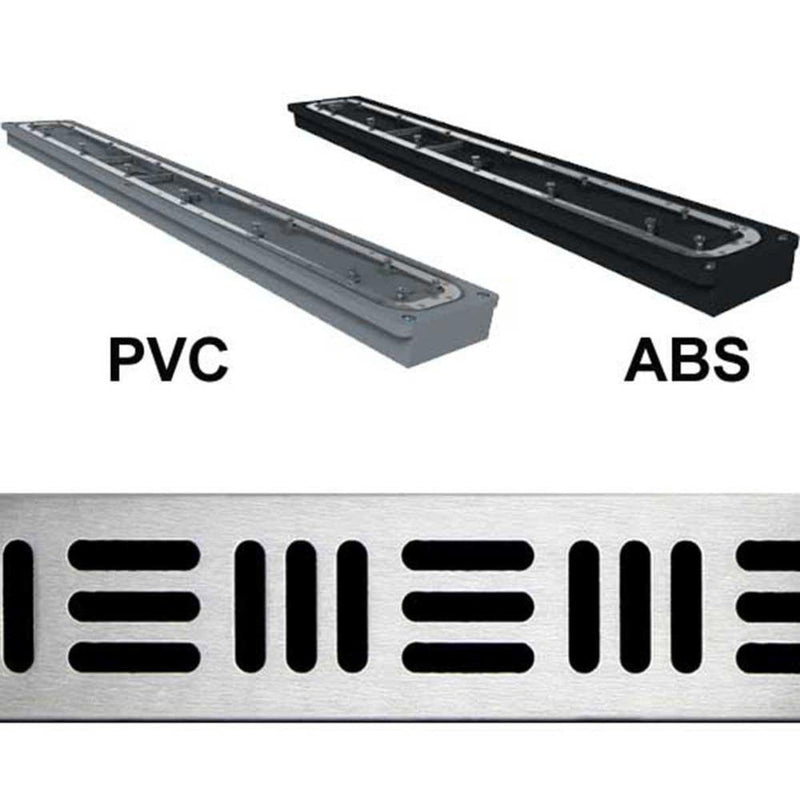

Available in either PVC or ABS one-piece construction for dependable performance with no manufactured seams

Drains come with either a center drain output or an offset drain output

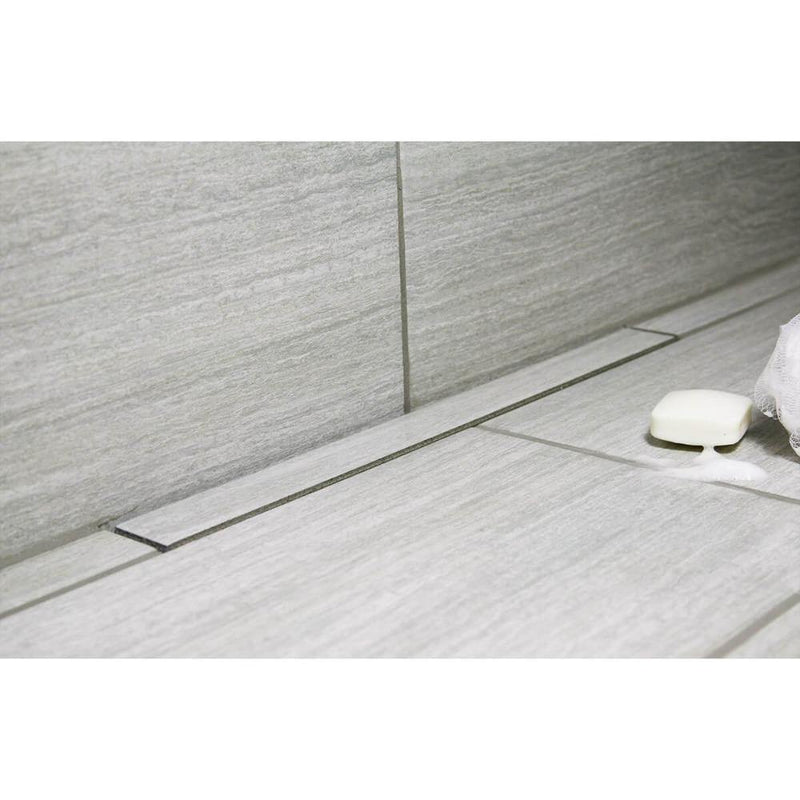

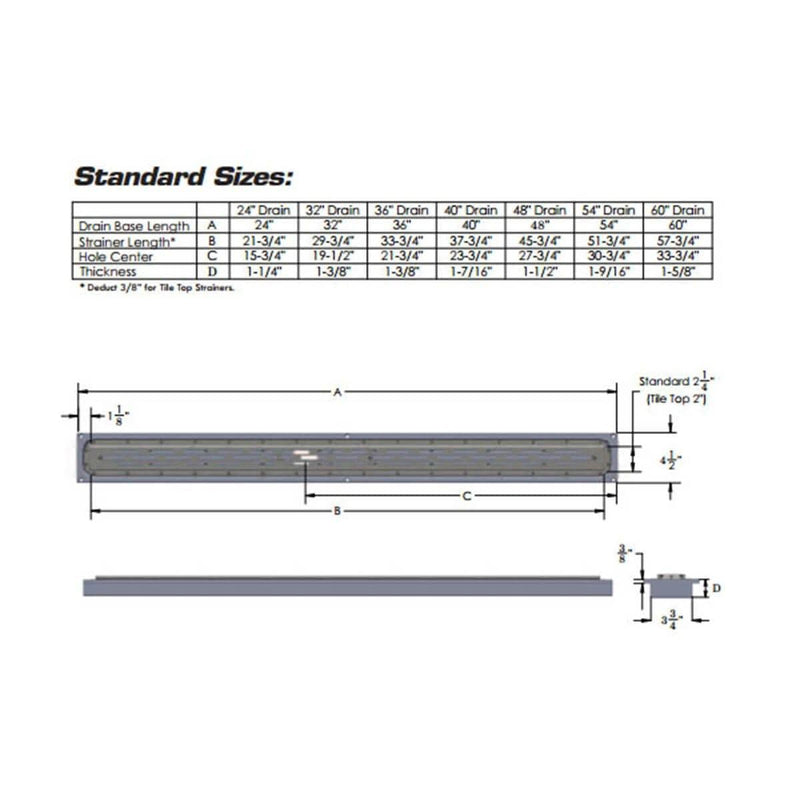

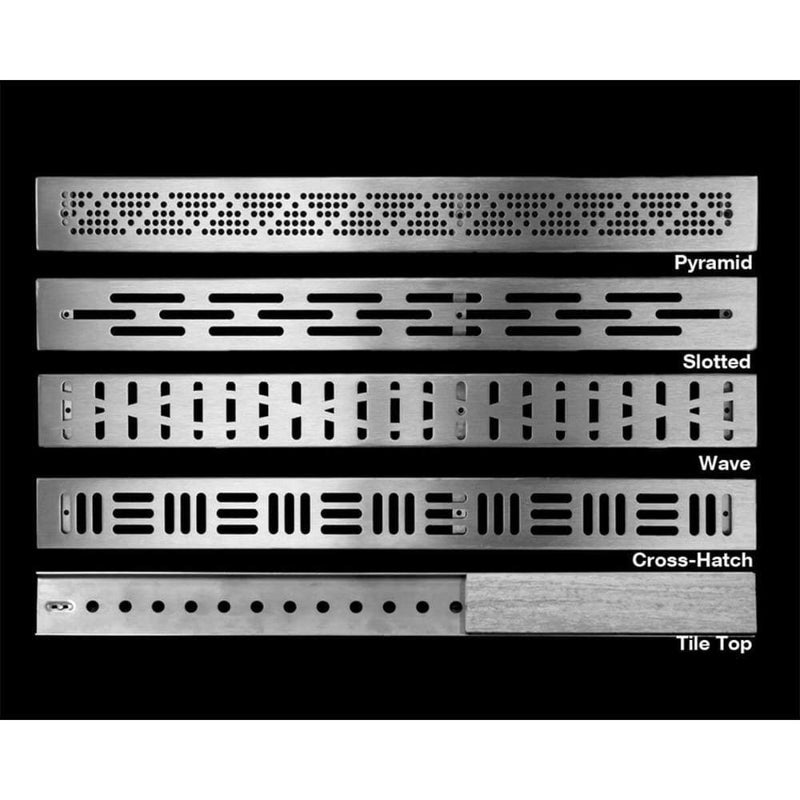

Comes in 7 lengths and 4 brushed stainless steel and 1 tile-top strainer styles

16 gauge 316 stainless steel

Meets ASME and CSA standards of 300lb load centered on a 2" diameter plate
