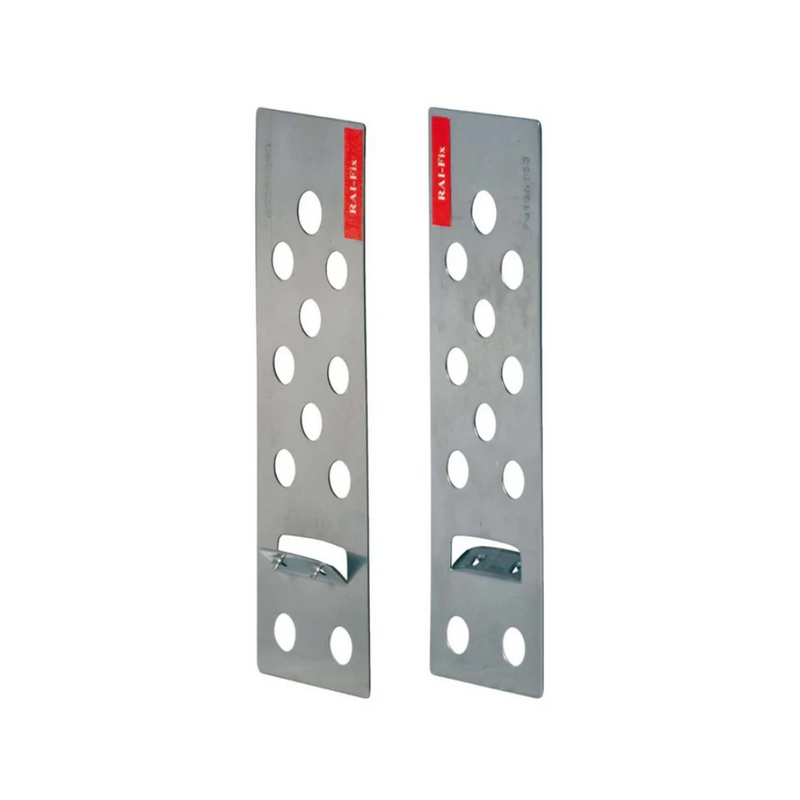

Raimondi Rai-Fix fastening clips, metal plates with round holes, 6mm (1/4")

Raimondi Rai-Fix 6mm (1/4") Fastening Clips

SKU
by Raimondi
$160.00 - $255.00
$160.00
$160.00 - $255.00
$160.00
Choose a Quantity Pack

Raimondi Rai-Fix 8mm Tile Safety Hook – Invisible Safety Anchor for Large Format Tile Façades

The Raimondi Rai-Fix is a stainless steel safety withholding hook engineered to prevent large-format tile and slab panels from detaching when installed vertically with adhesive. Ideal for exterior cladding and ventilated façades, Rai-Fix is a completely hidden mechanical anchor that delivers invisible strength and essential peace of mind.

Features & Benefits

  • Invisible Mechanical Anchor for Vertical Tile Applications
    Required by code in many regions, Rai-Fix ensures mechanical support for tiles/slabs over 12" (30 cm) tall in wall installations using adhesive only.
  • Installs Completely Hidden Behind the Tile
    Maintains clean architectural lines — Rai-Fix sits between the slab and substrate, entirely concealed after installation.
  • Compatible with Thin Gauges
    Works with tiles as thin as 6 mm (¼") and is ideal for modern large-format porcelain and stone panels.
  • Fast & Simple Jobsite Installation
    Install in seconds with the LTGT (RAI-CUT) grooving tool, then secure to the substrate with a 6 or 8 mm anchor (¼" or 5/16").
  • Stainless Steel Construction
    Corrosion-resistant and built for durability in all weather conditions — perfect for exterior installations.
  • Design-Approved & Code-Conscious
    A vital safety backup for projects where adhesive bond failure could result in damage or injury.
  • Expands Architectural Freedom
    Use any slab size on walls safely — opens up design options for high-end porcelain facades and large tile installs.

Technical Specifications

Specification Value
Minimum Tile Thickness 6 mm (¼")
Wing Size 8 mm (5/16")
Material Stainless Steel
Installation Method Grooved tile back + anchor screw
Anchor Hole Size 6 or 8 mm (¼" or 5/16")
Visibility After Install Fully hidden behind tile
Ideal Use Mechanical backup for vertical slabs
Compatible Materials Porcelain, ceramic, marble, stone slabs
Recommended Tool LTGT (RAI-CUT) Grooving Tool



Installation Overview

  1. Use the LTGT grooving tool to cut a precise channel in the back of the tile.

  2. Insert Rai-Fix hook into the groove.

  3. Drill into wall and secure with an anchor through the hook.

  4. Apply adhesive as usual, taking care not to block the anchor area.

  5. Tile is mounted safely with a hidden mechanical backup.

Tile Size *Minimum Hooks Recommended
12" x 24" (30x60 cm) 1 per tile
24" x 24" (60x60 cm) 1–2 per tile
24" x 48" (60x120 cm) 2–4 per tile



*Final anchor count depends on tile weight, wall condition, and regional code. Always consult an engineer.

Raimondi Product Details

  • Brand: Raimondi
  • Product: Raimondi Rai-Fix 6mm (1/4") Fastening Clips
  • Product type: Thin Tile/Panel Accessories

Related Raimondi Products

Explore same-brand products from this Raimondi catalog that are related by product family, accessory type, or product category.

More Details

The Raimondi Rai-Fix 8mm Tile Safety Hook is a professional-grade, stainless steel mechanical anchoring system specifically engineered for vertical wall applications of large-format tile, porcelain slabs, ceramic panels, and natural stone. As modern architectural design increasingly favors oversized tile and cladding, Rai-Fix ensures your installation stays safely in place—even if adhesive bonds fail due to building movement, temperature fluctuations, or improper mortar coverage.

Used behind the scenes, Rai-Fix is completely invisible after installation, making it ideal for facade tile systems, outdoor cladding, or any thin porcelain panel installation where aesthetics and safety must go hand-in-hand. It supports tile thicknesses starting from just 6mm (1/4"), making it perfect for today’s thin-gauge tile and large-format porcelain slabs up to and beyond 24"x48". Whether you're designing a ventilated facade, a high-rise exterior, or a tiled feature wall, Rai-Fix adds an essential layer of mechanical security.

Quick to install with the RAI-CUT or LTGT groove-cutting tool, Rai-Fix fits securely into the back of the tile, anchoring directly into the wall with 6mm or 8mm fasteners. Each stainless steel hook resists corrosion and weathering, offering long-term durability in both indoor and outdoor environments. In many building codes and commercial specs, mechanical safety anchors like Rai-Fix are required for slabs installed vertically—especially in seismic zones or high-wind areas.

What's Included

  • Sold in packs of 70 or 120
