What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

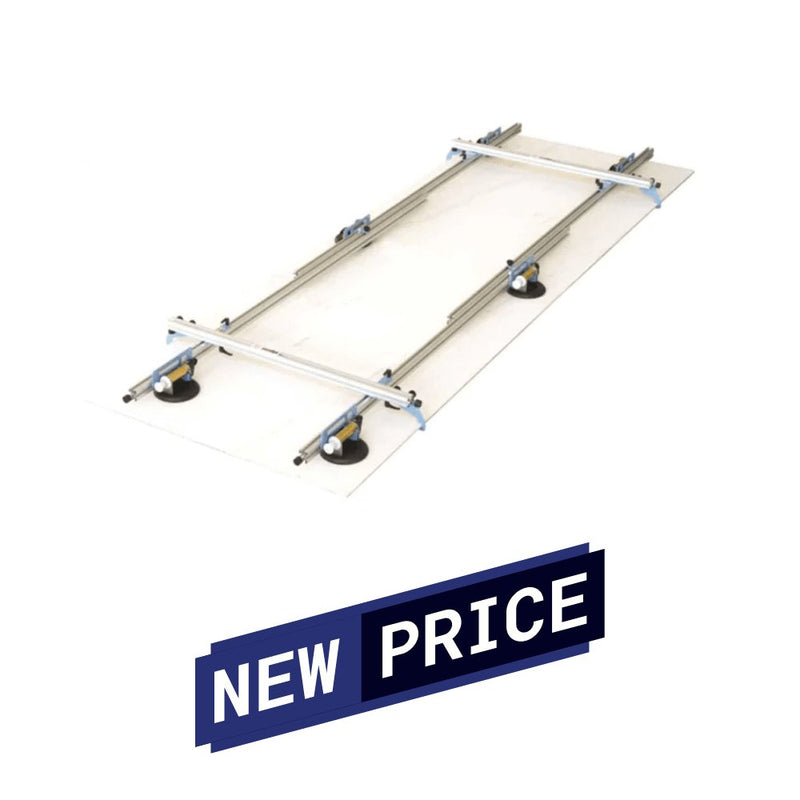

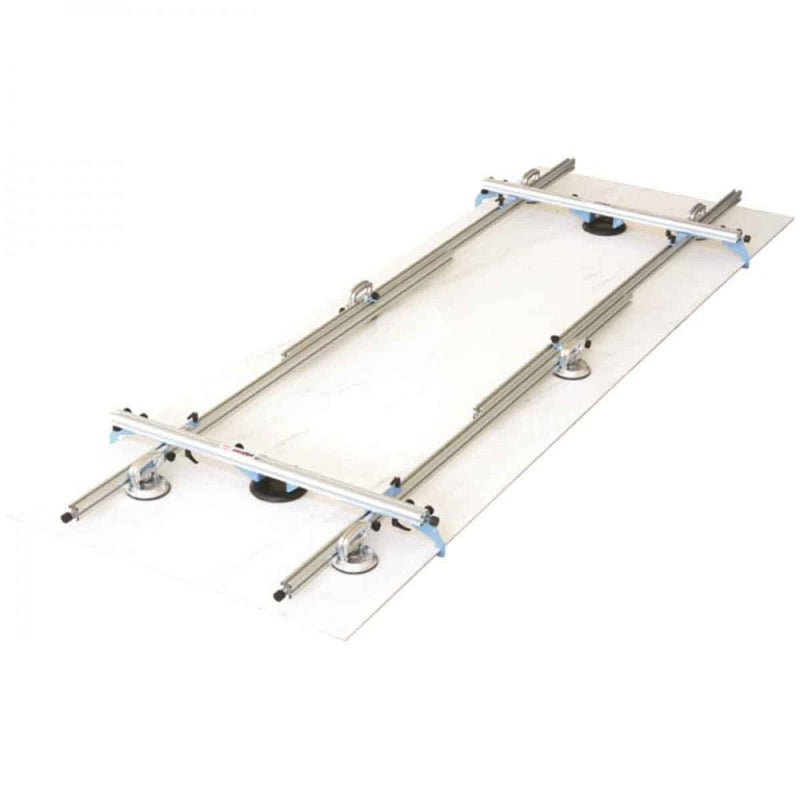

Sigma KERA-LIFT Tile Lifting System

Name: Sigma KERA-LIFT Tile Lifting System
Brand: Sigma
SKU: 1A4
Price: 1875.0 USD
Availability: InStock

SKU

by Sigma

$495.00 - $3,150.00

$495.00

$495.00 - $3,150.00

$495.00

Quantity

Sigma Kera-Lift: Revolutionizing the Handling of Large Format Tiles

Tackle the challenges of large format tiles with Sigma Kera-Lift Tile Lifting Systems. Expertly designed for handling sizable and thin format tiles, Sigma Kera-Lift sets a new standard in tile lifting and handling. With adjustable options to fit various tile shapes and sizes and built-in fall protection, it ensures safety and efficiency in every operation. Whether you're handling or cutting large slabs, Sigma Kera-Lift offers the perfect blend of strength and versatility to make your work easier and safer.

Features

Specifically designed to lift and move large and thin format tiles.

Adjustable options to accommodate different tile sizes and shapes.

Built-in safe fall protection to safeguard the edges of tiles.

Variety of models with unique features to cater to different needs.

Ensures safe and efficient handling of tiles, even on rough surfaces.

Kera-Lift Options

ST1A4 134" x 63"

6 x locking suction cups useable even on rough surfaces (51D)

2 x pump suction cups with safety limit indicator, useable even on rough surfaces (51P2)

4 x safe fall protection

Sigma ST1A4 Kera-Lift is specially designed for handling large-format thin tile

Equipped with 6 lock-tight suction cups that are usable even on rough surfaces and 2 pump action suction cups with limit indicator

Safe fall protection

Max carry weight 220lbs (100kg)

ST1A5 134" x 63"

6 x pump suction cups with safety limit indicator, useable even on rough surfaces (51P2)

4 x safe fall protection

Sigma ST1A5 Kera-Lift is specially designed for handling large-format thin tile

Equipped with 6 pump action suction cups that are usable even on rough surfaces

Safe fall protection

Max carry weight 330lbs (150kg)

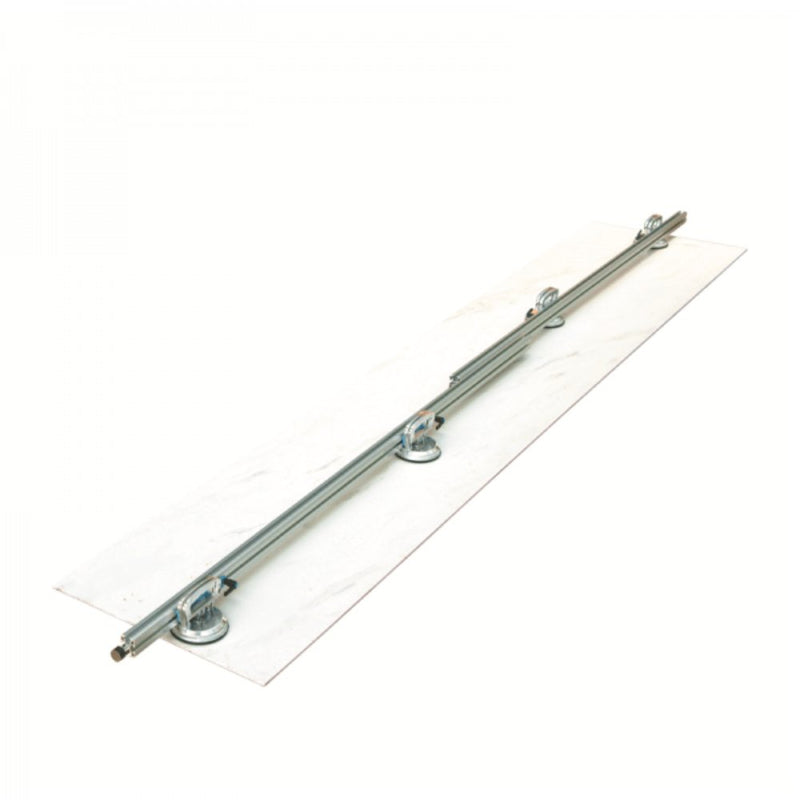

1D2 133" x 70"

4 x strong locking suction cups 51D (50 kgs) useable even on rough surfaces

2 x safe fall protection

The rail can be attached either by suckers on smooth surfaces or by using end brackets on rough and porous surfaces

Safe fall protection to protect the edges of tiles

Max carry weight 88lbs (40kg)

Sigma KERA-LIFT Tile Lifting System

Sigma Kera-Lift: Revolutionizing the Handling of Large Format Tiles

Features

Kera-Lift Options
