Ebbe Bond Flange Drain Bundle – Durable Surface Waterproofing for Foam Shower Pans
Engineered for strength and reliability, the Ebbe Bond Flange is your go-to drain base for surface waterproofed shower systems using Schluter, Laticrete, and more.
Features & Benefits
-
Purpose-Built for Foam Shower Pans – Ideal for new installations with Schluter, Laticrete, and similar systems
-
Factory-Bonded Waterproof Fabric – Yellow membrane securely pre-attached at the factory
-
Thick, Rigid Construction – 9/16" flange thickness offers superior strength and stability
-

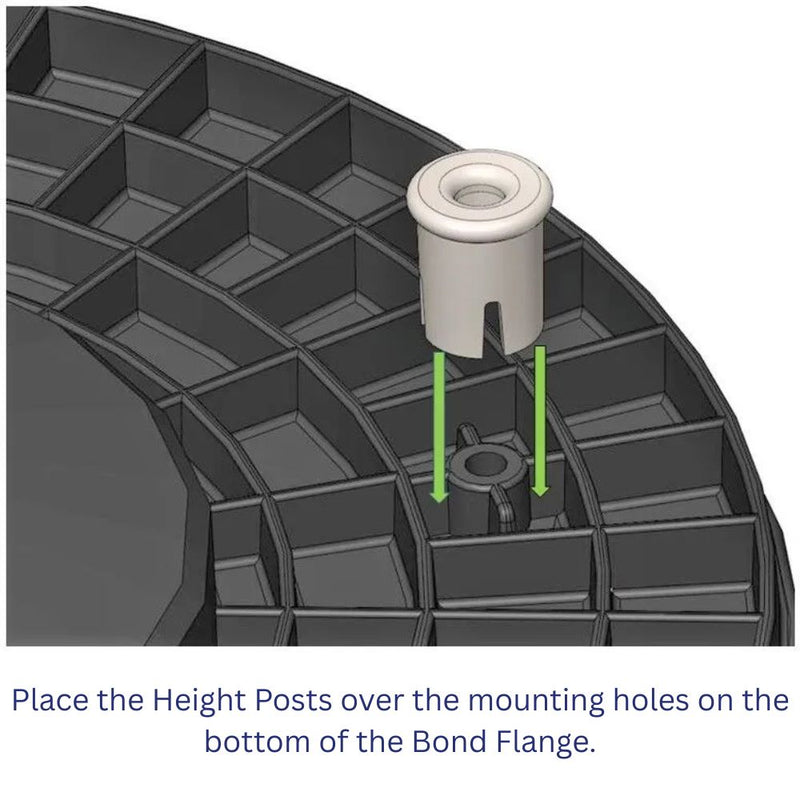

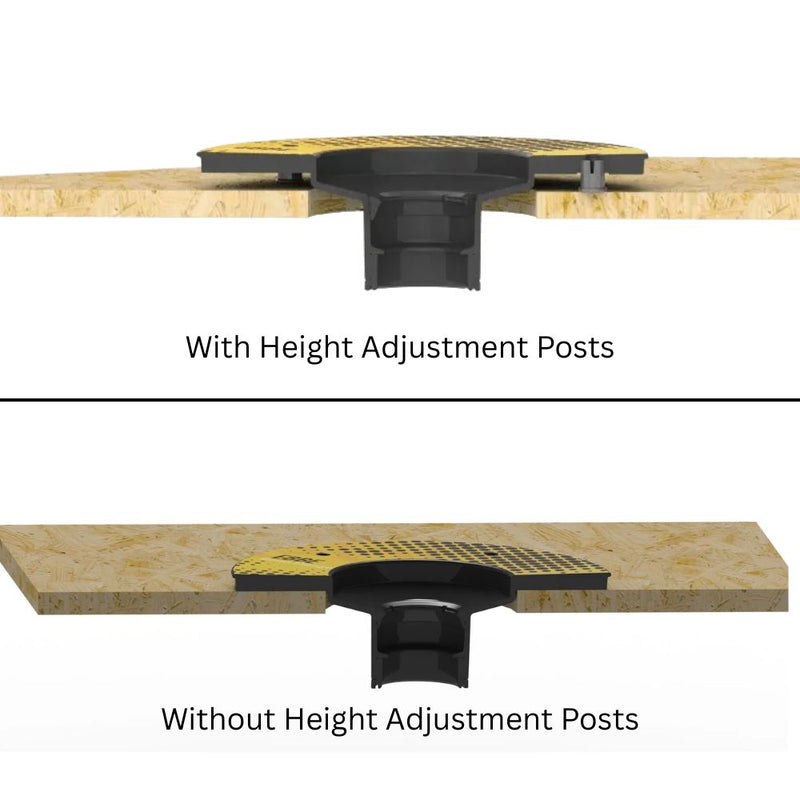

Includes 5 Height Adjustment Posts – Raise the flange 7/16" to match thick foam pans or mortar beds
-
Compatible with Ebbe Drains – Use with Ebbe LEGACY Tile-In (4"), HEX Tile-In, and Square Drain Risers
-
Direct Waste Pipe Connection – Solvent-welds directly to 2" ABS or PVC pipe (choose model)
-
Large Center Well for Weep Protection – Allows trapped water to safely exit beneath the tile
-
Not Compatible with Clamp Collar Drains – This flange is for new installs only
Specifications Table
| Product Name | Ebbe Bond Flange Drain Bundle |
|---|---|

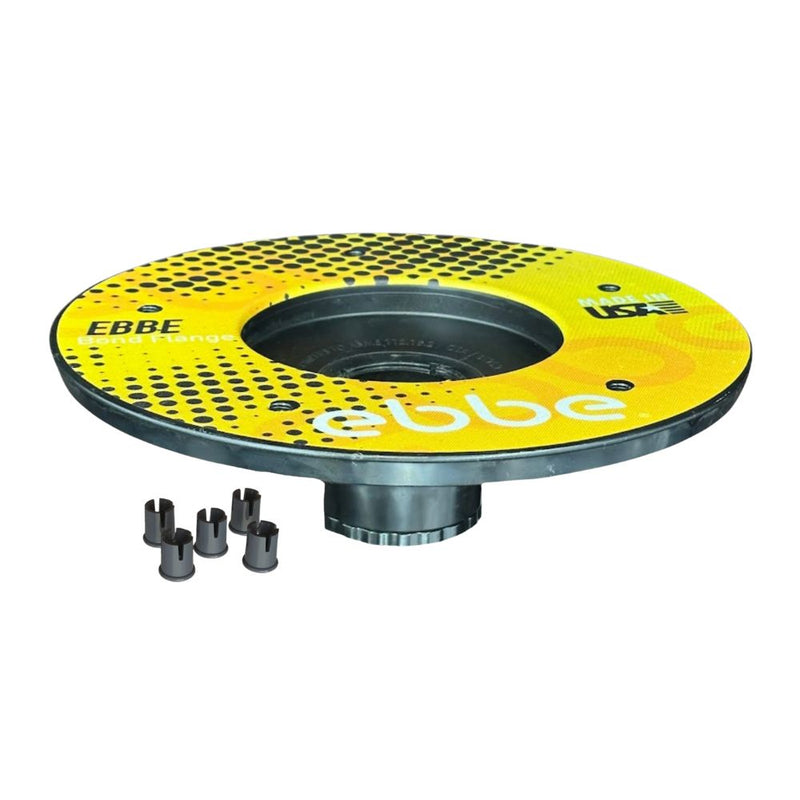

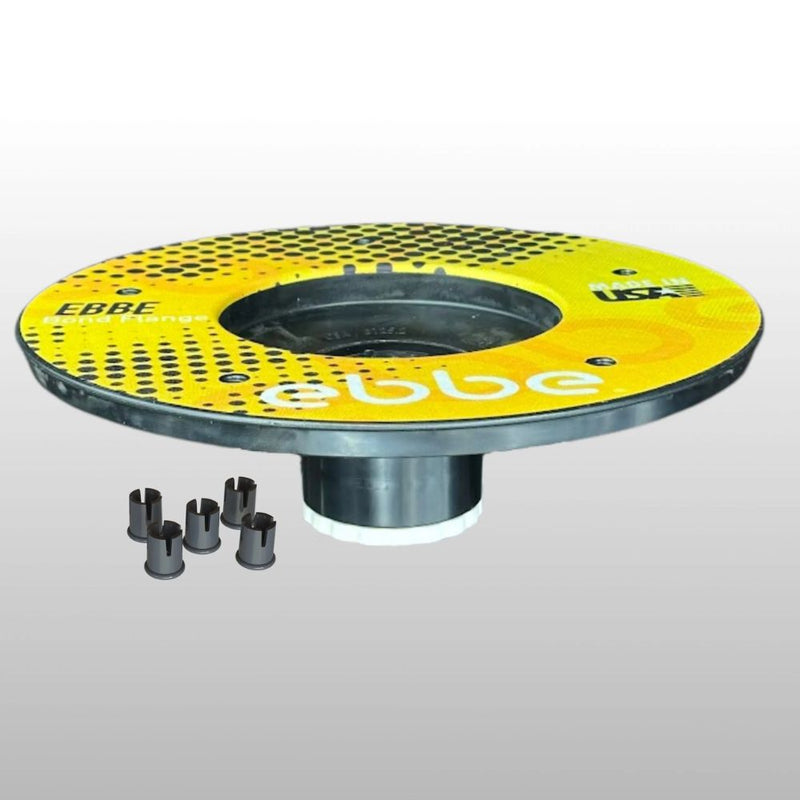

| Available Materials | ABS (SKU: EBF-ABS), PVC (SKU: EBF-PVC) |
| Flange Diameter | 11 7/8" |

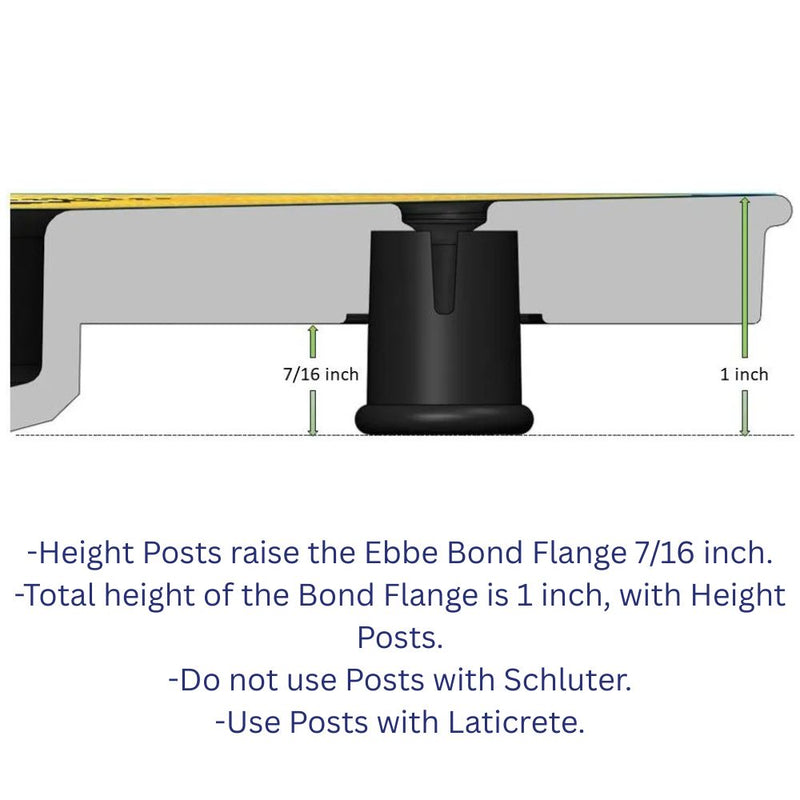

| Flange Thickness | 9/16" (1" total height with posts installed) |
| Waterproofing Fabric | Factory-bonded yellow membrane |
| Waste Pipe Connection | Direct to 2" ABS or PVC |
| Clamp Collar Compatible | No |

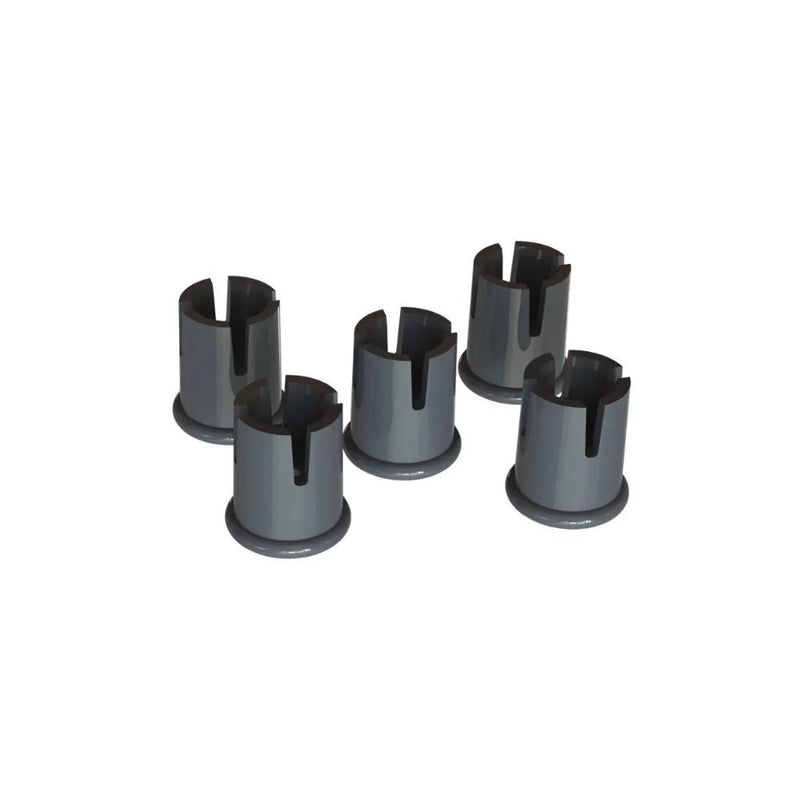

| Height Adjustment Posts | 5 included, raises flange by 7/16" |
| Recommended Use | Surface waterproofed foam shower pan installations |
