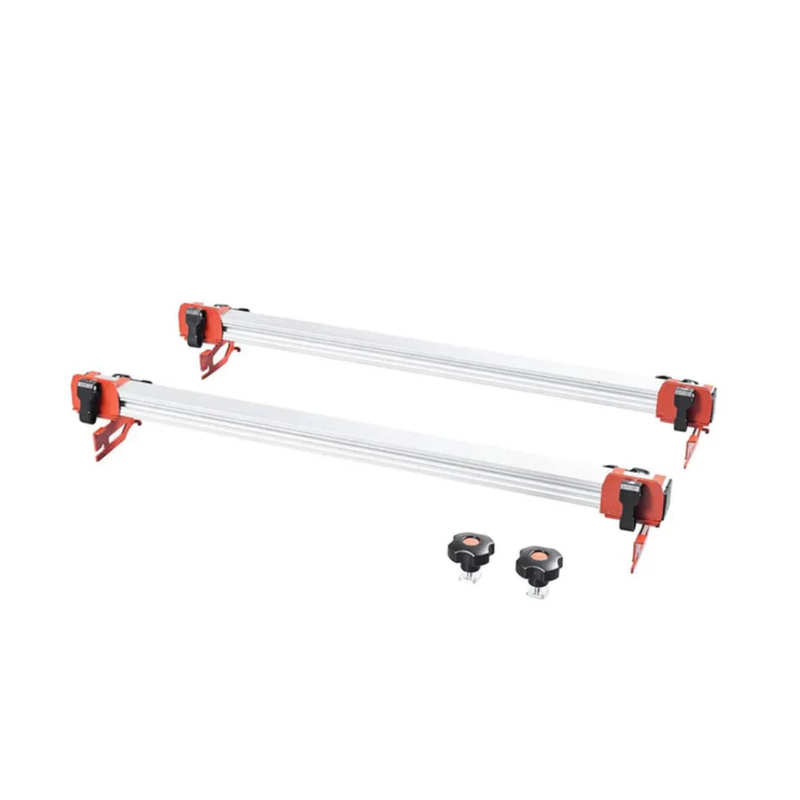

Raimondi Easy-Move crossbars with rails and orange/black end clamps

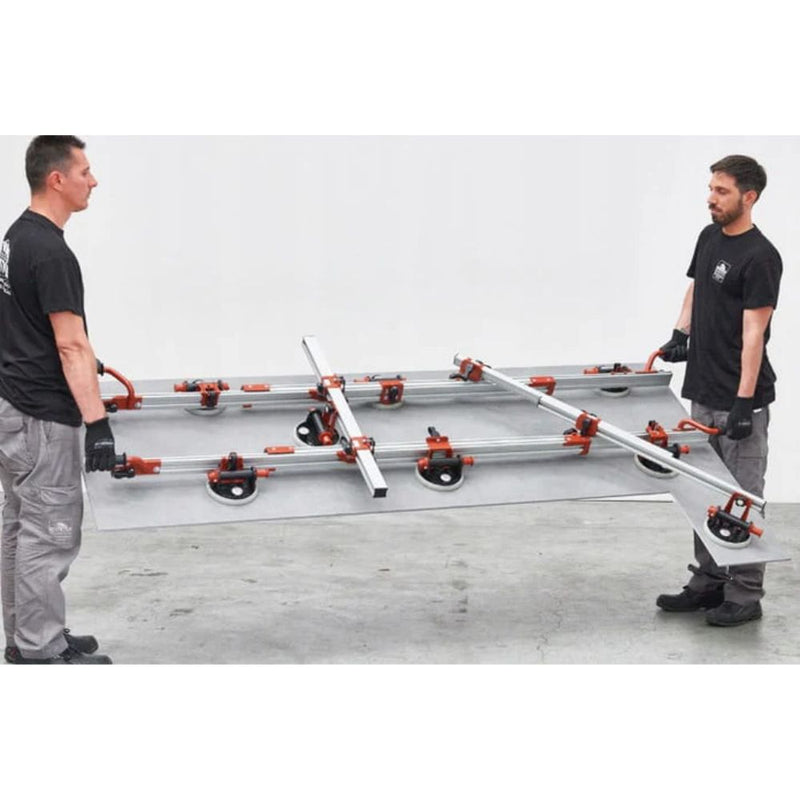

Fliesenhebesystem: Saugheber auf Schienen mit Justier- und Klemmechanismus

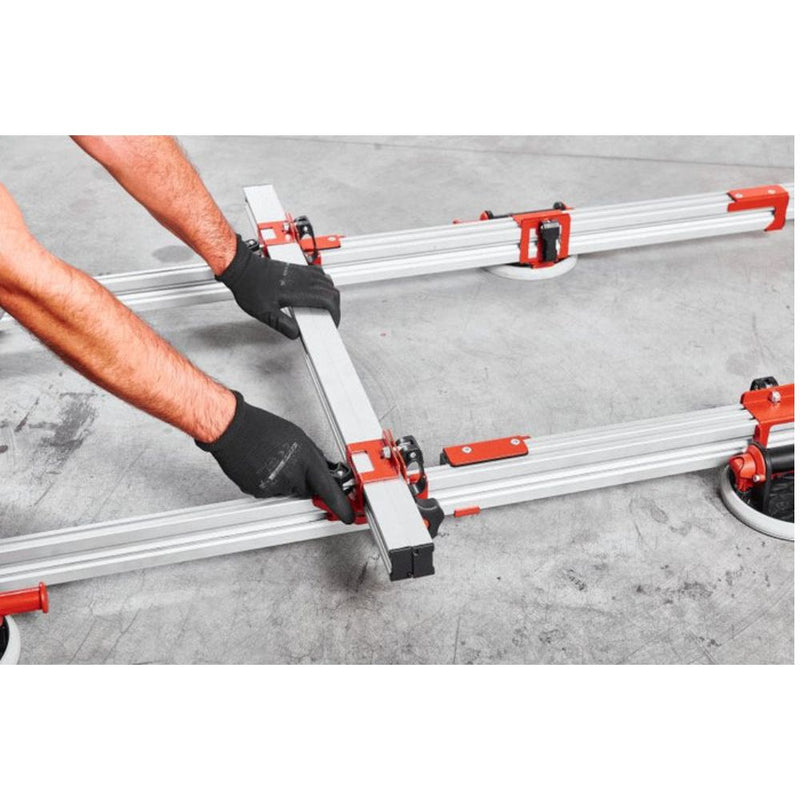

Nahaufnahme Fliesenhebesystem: rote Klemme am Aluschienenrahmen mit Saugplatte

Raimondi Easy-Move Crossbars

SKU TCLFPTCB

by Raimondi

$349.99 - $349.99

$349.99

$349.99 - $349.99

$349.99

Raimondi Easy-Move Crossbars Pair - TCLFPTCB

The Raimondi Easy-Move Crossbars Pair is a telescopic accessory designed to expand a compatible Easy-Move handling setup for large-format tile and thin panel work. Lightweight and adjustable, these connecting bars add crossbar support with quick lock-release setup and safety hooks for added security.

Features & Benefits

Accessory for Easy-Move Systems – Designed as a pair of telescopic connecting bars for a compatible Raimondi Easy-Move setup.
Adjustable Telescopic Design – Extends to help adapt the handling setup to different tile sizes and jobsite needs.
Quick Lock-Release System – Supports faster setup, adjustment, and repositioning during installation workflows.
Added Security Hooks – Equipped with safety hooks for additional support during handling.
Lightweight for Transport – Designed to be easier to carry and use on active jobsites.
Built for Large Format Tile Work – Intended for large format tile and thin panel handling applications.

Specifications

Attribute	Details
Product Name	Raimondi Easy-Move Crossbars Pair
SKU	TCLFPTCB
Product Type	Telescopic crossbar accessory
Compatibility	Referenced for Easy-Move TCLFPTB6VG
Construction	Lightweight aluminum profiles
Adjustment	Telescopic / adjustable extension
Security Features	Quick lock-release system and safety hooks
Application	Large format tile and thin panel handling accessory
What’s Included	(1) pair of telescopic crossbars

More Details

The Raimondi EASY-MOVE 150 is designed for installers who need a more compact handling solution for large format tile and thin panel work. With a maximum slab length of 5 ft. (150 cm), this transport kit fits shorter panel jobs while still offering the control and safety benefits of a professional vacuum cup handling system.

The kit uses adjustable aluminum profiles and 4 RV175 vacuum suction cups to help secure the tile during transport and placement. These suction cups are gauged, built with non-marking rubber, and described as suitable for textured tile surfaces. Each cup can slide along the aluminum profiles, making it easier to position the setup based on the tile size and layout.

For added handling confidence, the vacuum pump system allows the user to restore or increase vacuum grip while the suction cup remains attached to the tile. A red line on the pump cylinder indicates when vacuum pressure is dropping, helping crews monitor grip during use. The suction cups can also tilt or pivot slightly to support better contact in varying situations.

This product should be positioned as a compact pro-grade transport kit for large format tile installers who do not need a longer slab frame but still want vacuum-gauge safety and adjustable handling support.
