Battipav Lampo Cut V2
Battipav Lampo Cut Large Format Tile Cutting System
The Battipav Lampo Cut is a professional manual cutting system built for tile contractors working with thin panel porcelain, GPTP tile, and large format slabs. Designed for long, controlled scoring and cleaner panel handling, it combines a special profile rail, a robust carriage, and suction-cup-supported rails to help installers cut large format tile with more stability and precision on the jobsite.
Features
- Built for thin panel and GPTP tile: Designed for professional cutting of large format porcelain panels and slabs.
- Long cutting capacity: Supports cuts up to 3200 mm (126 in.).

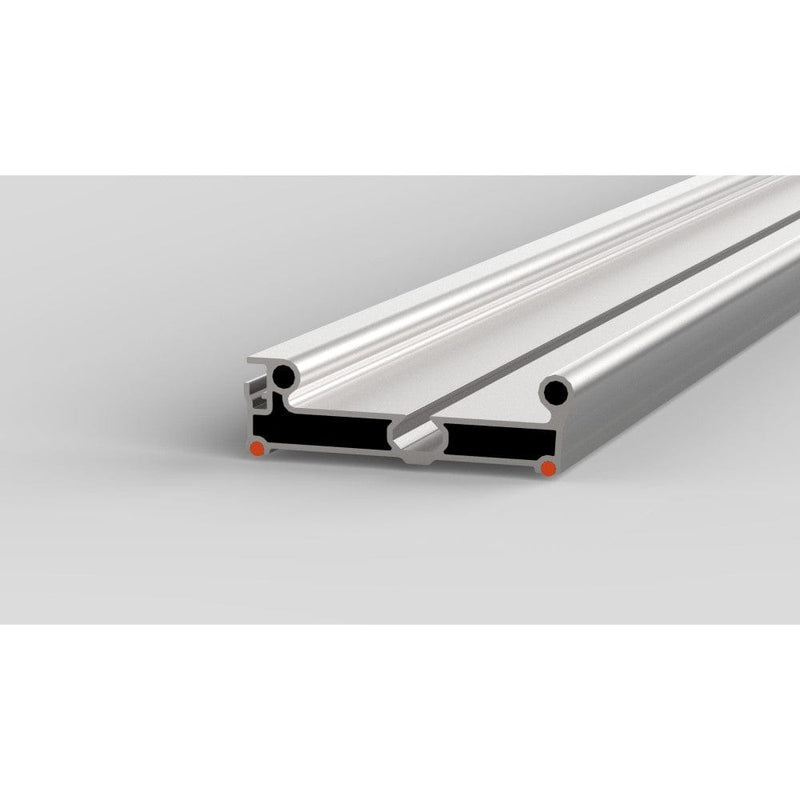

- Special profile rail: High-resistance rail structure with rubber inserts helps prevent scratches on the tile surface and improves stability during cutting.

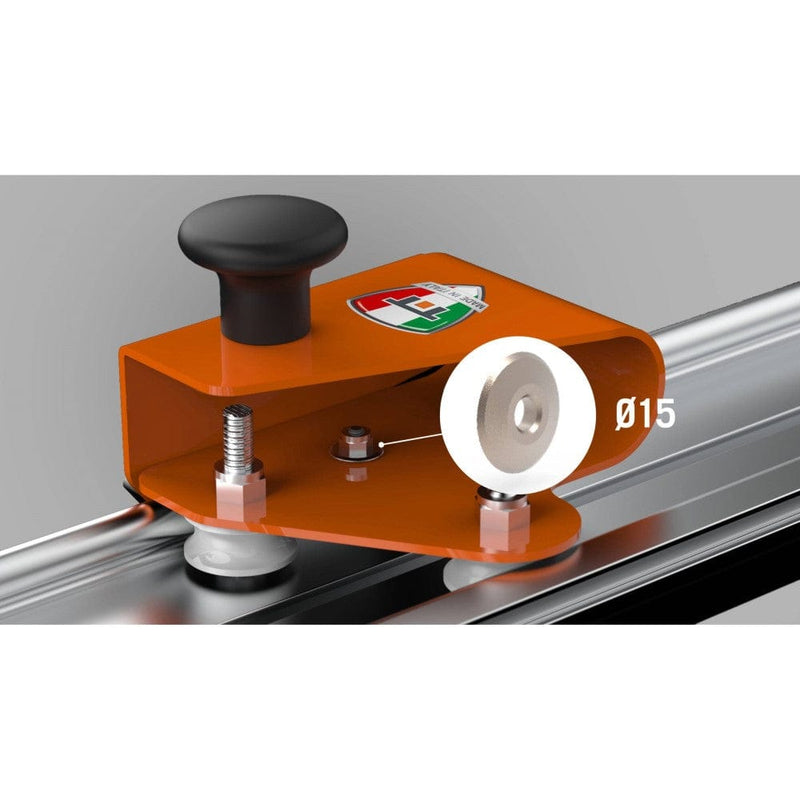

- Professional cutting wheels included: Supplied with 2 cutting wheels, Ø 15 mm (0.59 in.), with key set included.

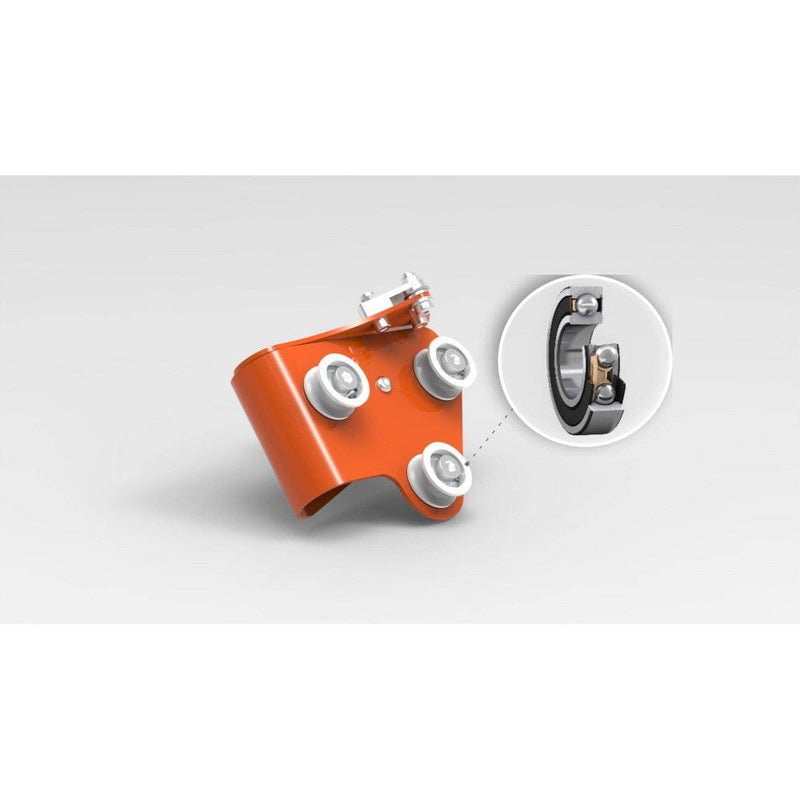

- Robust carriage design: Comfortable carriage uses 3 nylon sliding pulleys with 3 ball-bearings for smoother scoring action.
- Rail-supported setup: Includes 3 suction cups to help stabilize the rails during cutting.

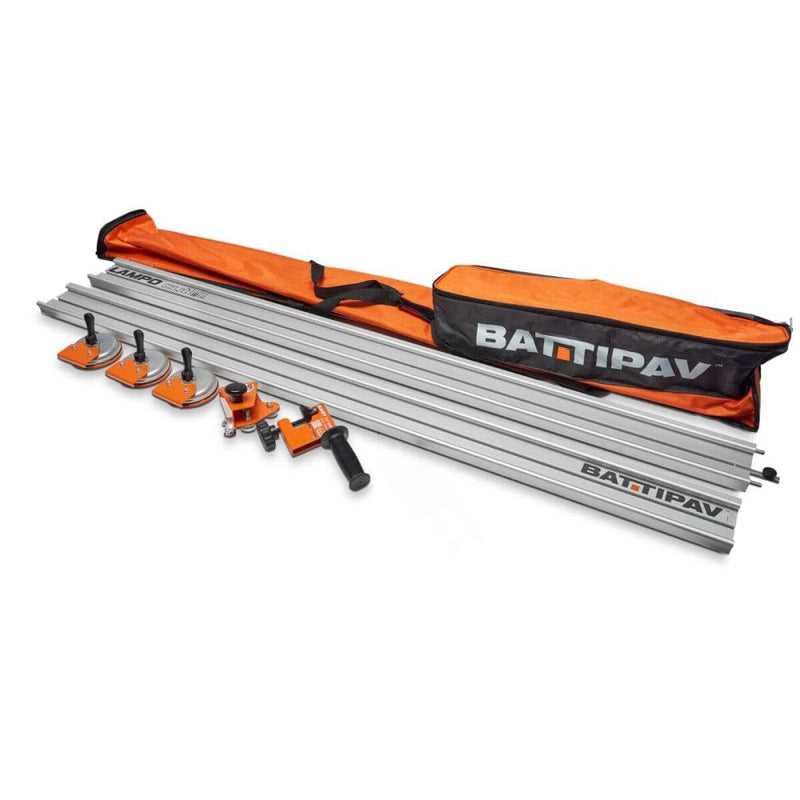

- Complete cutting system: Includes rails, carriage, cutting wheels, Easy Break, plier, and soft bag.
- Jobsite-ready transport: Supplied with a soft bag for easier storage and transport.
Compatibility / Best Use
- Best for: Thin porcelain panels, GPTP tile, and large format slabs
- Use case: Manual scoring and breaking of large format tile
- Ideal user: Professional tile contractors and crews handling oversized porcelain installations
- Important: Cutting thickness with Battipav pliers art. 11301 is listed at 10 mm (0.39 in.)
Specifications
| Battipav Lampo Cut Specifications | |
| Maximum Cutting Length | 3200 mm (126 in.) |
| Cutting Thickness with Pliers Battipav (Art. 11301) | 10 mm (0.39 in.) |
| Length of Single Track | 1690 mm (66.5 in.) |
| Packaging Dimensions | 1800 x 210 x 170 mm (70.9 x 8.3 x 6.7 in.) |
| Weight | 10.5 kg (23.1 lbs.) |
| Rails Included | 2 |
| Suction Cups Included | 3 |
| Carriage Included | 1 |
| Cutting Wheels Included | 2 |
| Cutting Wheel Diameter | 15 mm (0.59 in.) |
| Easy Break Included | Yes, for tiles up to 25 mm (0.98 in.) thickness |
| Plier Included | Yes, for 7 mm (0.28 in.) thickness |
| Soft Bag Included | Yes |
FAQ
What is the Battipav Lampo Cut designed for?
It is designed for cutting thin porcelain panels, GPTP tile, and large format slabs.
What is the maximum cutting length?
The maximum cutting length is 3200 mm (126 in.).
How long is each track?
The length of the single track is 1690 mm (66.5 in.).
Does it include suction cups?
Yes. The system includes 3 suction cups.
What cutting wheels are included?
It is supplied with 2 cutting wheels, Ø 15 mm (0.59 in.), with key set included.
Does it come with a carry bag?
Yes. The Battipav Lampo Cut includes a soft bag.
