What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Illuminiche LED Light Channels

SKU

by Illuminiche

$13.08 - $78.48

$13.08

$13.08 - $78.48

$13.08

Quantity

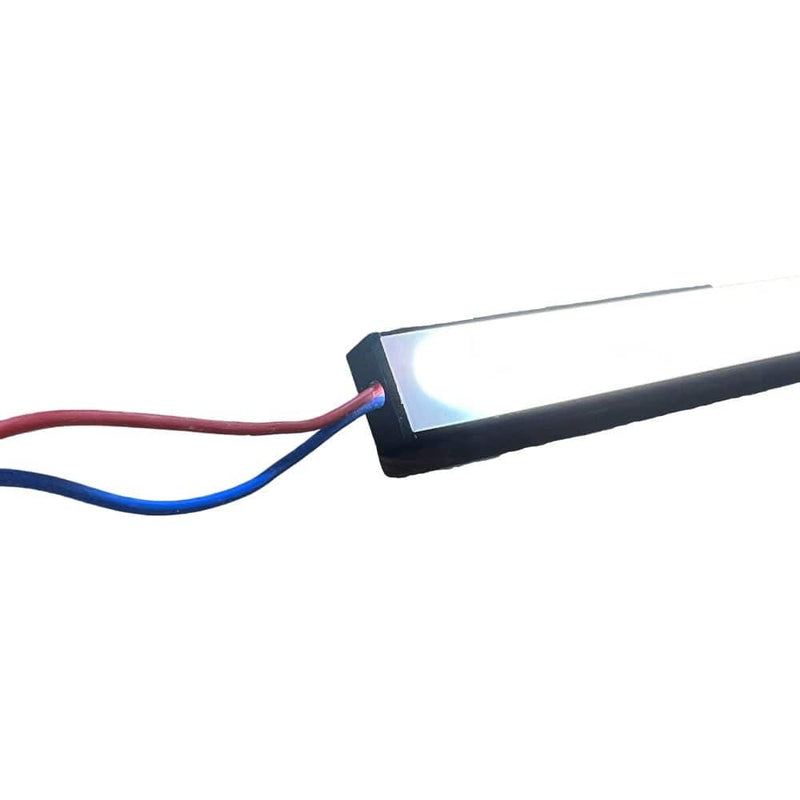

Illuminate Your Space with Waterproof Illuminiche LED Light Channels

Step into the future of tile work illumination with Illuminiche, the ultimate lighting system designed for the discerning tile contractor and innovative home remodeler. This UL-Listed system doesn't just highlight your work; it transforms your crafted spaces into visual stories that speak volumes. Equipped with a high LED density and a balanced 4000K light spectrum, Illuminiche offers more than brightness; it offers an experience where every detail of your craftsmanship shines through.

The meticulous design featuring a sleek black aluminum channel not only provides substantial protection but also adds a touch of elegance to your installations. With 72 LEDs per foot, enjoy consistent lighting that elevates the ambiance of any niche, bench, or cabinetry. Plus, with our effortless installation process and long-lasting performance, Illuminiche is not just an addition to your project; it's a long-term investment in quality.

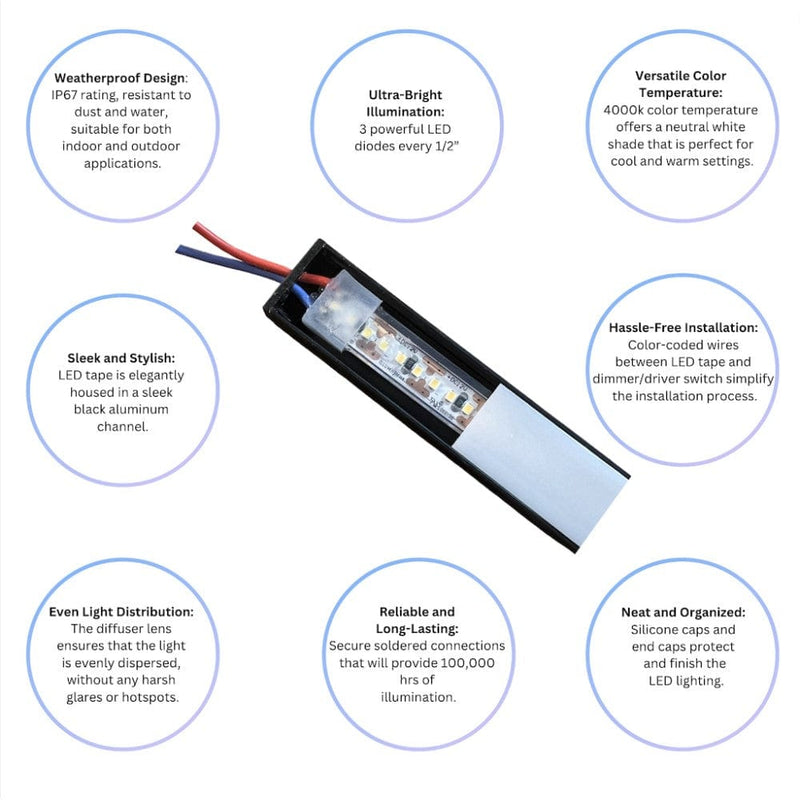

Features

High LED Density: 72 LEDs per foot for uniform lighting.
Secure Soldering: Connections designed to last up to 100,000 hours.
Glare-Free Lens: Even light distribution for a sublime glow.

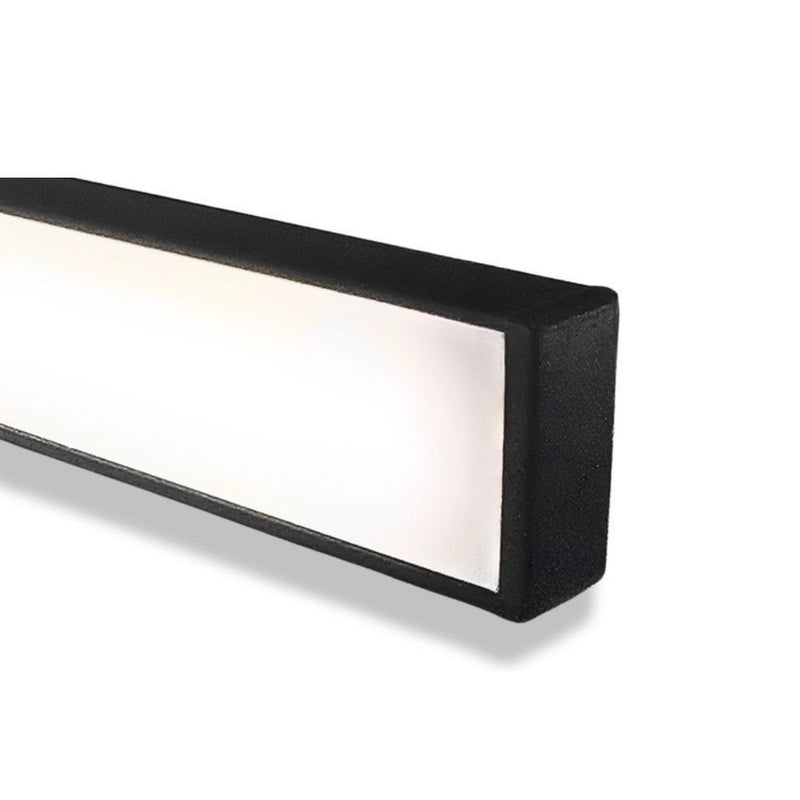

Sleek Housing: Black aluminum channel for a modern look.

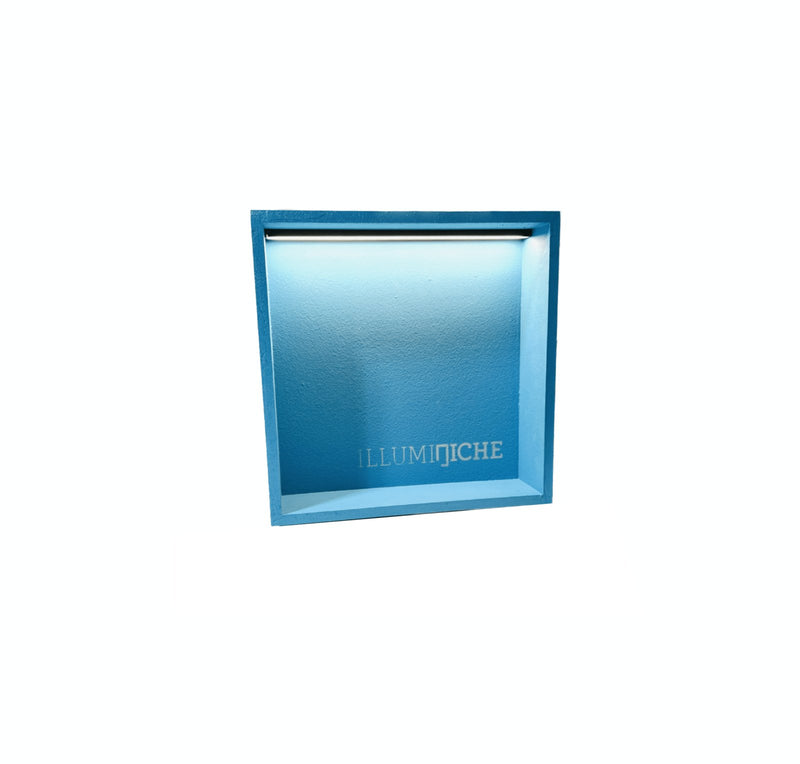

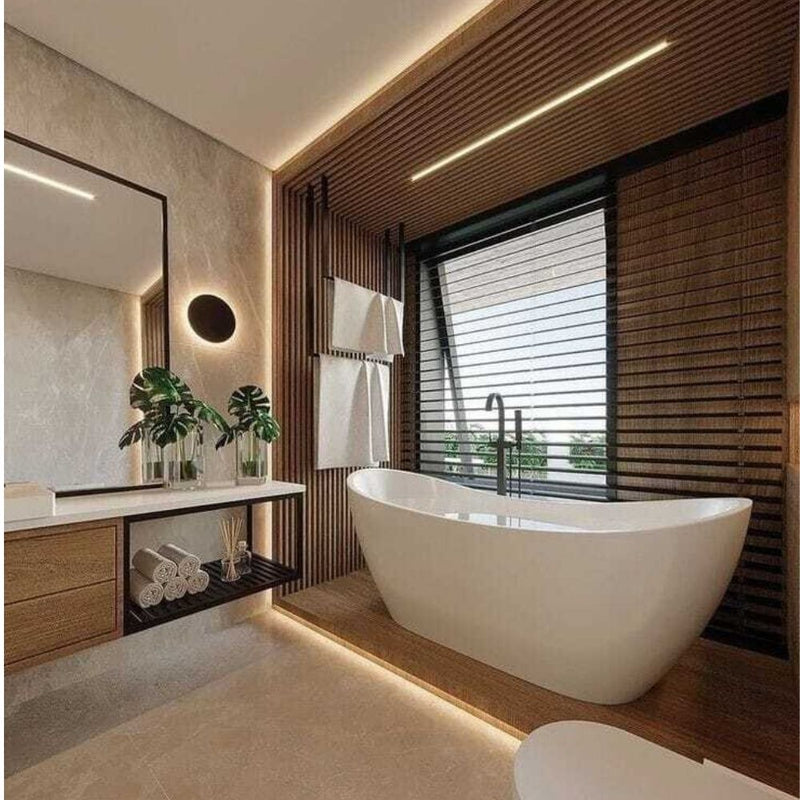

Versatility in Application: Ideal for niches to under-cabinet lighting.
Customizable Lengths: Pre-wired LED lengths for your unique project.

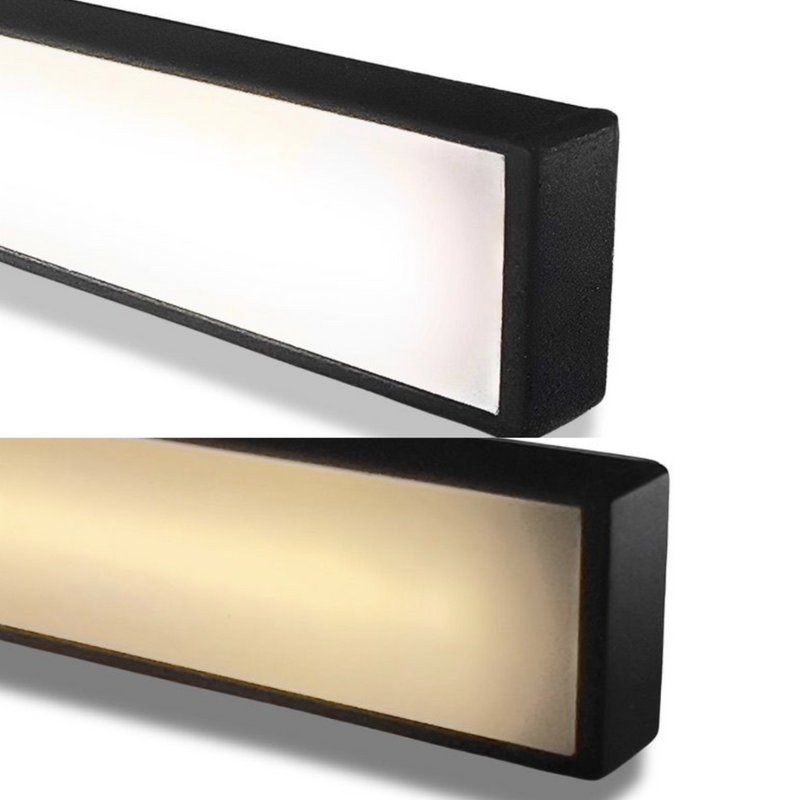

Optimal Light Temperature: 4000K for warmth and coolness balance.
5-Year Warranty: Ensures quality and customer satisfaction (Note: Warranty applies with Illuminiche switch connection).

Disclaimer:
It is important to note that LED lights must always be used with a proper power supply. Using an incorrect or incompatible power supply can result in malfunctioning lights, reduced lifespan, or safety hazards. When selecting a power supply for your LED lighting needs, make sure it is specifically designed for use with LED lights and meets the necessary voltage and current requirements.
