Raimondi UP! Multifunction Tile Support Pad
Raimondi UP! Multifunction Tile Support Pad – 23.25" x 23.25" Rubber Base

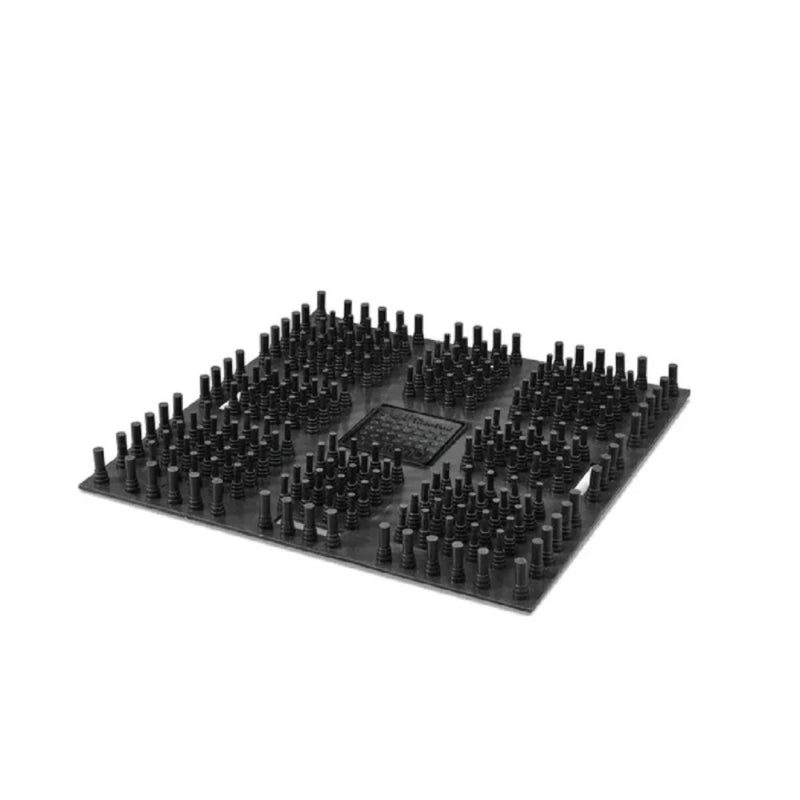

The Raimondi UP! Multifunction Tile Support Pad is a professional-grade rubber support base designed for tile installers and remodelers. It offers a stable, non-slip surface for cutting, drilling, spreading thinset, and more—keeping your tile work precise and protected. One pad supports tiles up to 24" x 24" and holds up to 165 lbs (75 kg). For larger format tiles, simply use multiple pads side by side.
Features & Benefits
-
Multifunctional Tile Support Pad
Designed for cutting, drilling, spreading adhesive, and performing precision tile work without surface damage. -
Durable Rubber Construction
High-grip, non-slip rubber resists abrasion, chemicals, and weathering, ensuring long-lasting performance on job sites. -
Supports Up to 165 lbs (75 kg)
Each pad holds up to 165 lbs of evenly distributed weight—suitable for most tile sizes used in professional settings. -
Compatible with Large Format Tiles

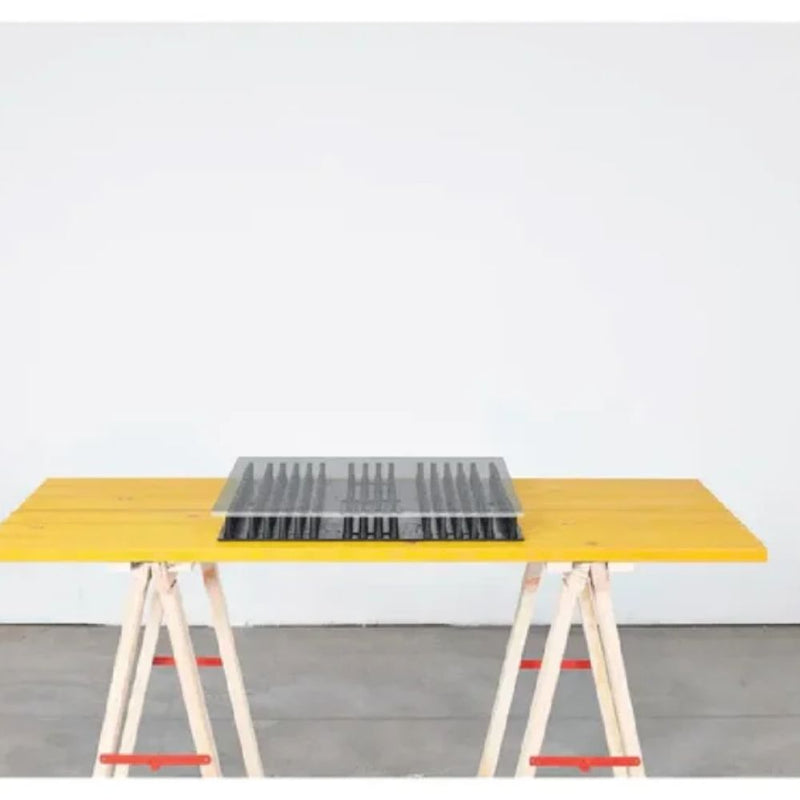

One pad supports tiles up to 24" x 24" (60 x 60 cm). Combine multiple units for oversized tiles like 24" x 48" or larger. -
Convenient Spike Design
244 rubber feet/spikes provide consistent tile support and include 8 spike-free channels (1.75" wide) for clean cuts. -
Center Cut-Out Area
An 8" x 8" (20 x 20 cm) flat, spike-free center lets you easily drill or cut tile without obstruction. -
Compact & Lightweight

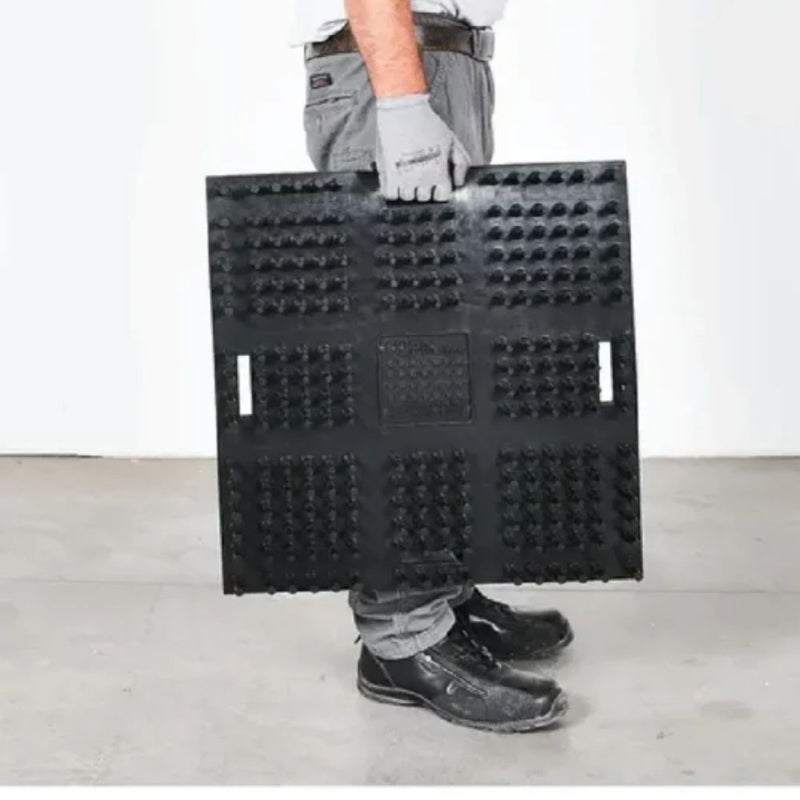

Weighing only 9.3 lbs (4.2 kg), it’s easy to transport to and from job sites with built-in handles. -
Easy to Clean
Simply rinse with water. Rubber construction resists adhesive build-up and can be cleaned even after setting begins. -
Stable 2-Inch Height Elevation
Raises tile off the floor or workbench, improving handling and visibility while protecting delicate surfaces.
Technical Specifications
| Attribute | Value |
|---|---|
| Pad Dimensions | 23.25" x 23.25" x 2" (590 x 590 x 50 mm) |
| Tile Capacity (Single Pad) | Up to 24" x 24" (60 x 60 cm) |
| Maximum Load | 165.3 lbs (75 kg) evenly distributed |
| Material | Abrasion-resistant rubber |
| Pad Weight | 9.3 lbs (4.2 kg) |
| Cutting Channels | 8 channels, each 1.75" (45 mm) wide |
| Center Spike-Free Area | 8" x 8" (20 x 20 cm) |
| Spike Height | 1.8" (45 mm) |
| Handles | Integrated for easy transport |
| Cleaning | Water jet or rinse |
