What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

Imer Combi 250VA Rail Saw

SKU 1188164

by Imer

$1,939.99 - $1,939.99

$1,939.99

$1,939.99 - $1,939.99

$1,939.99

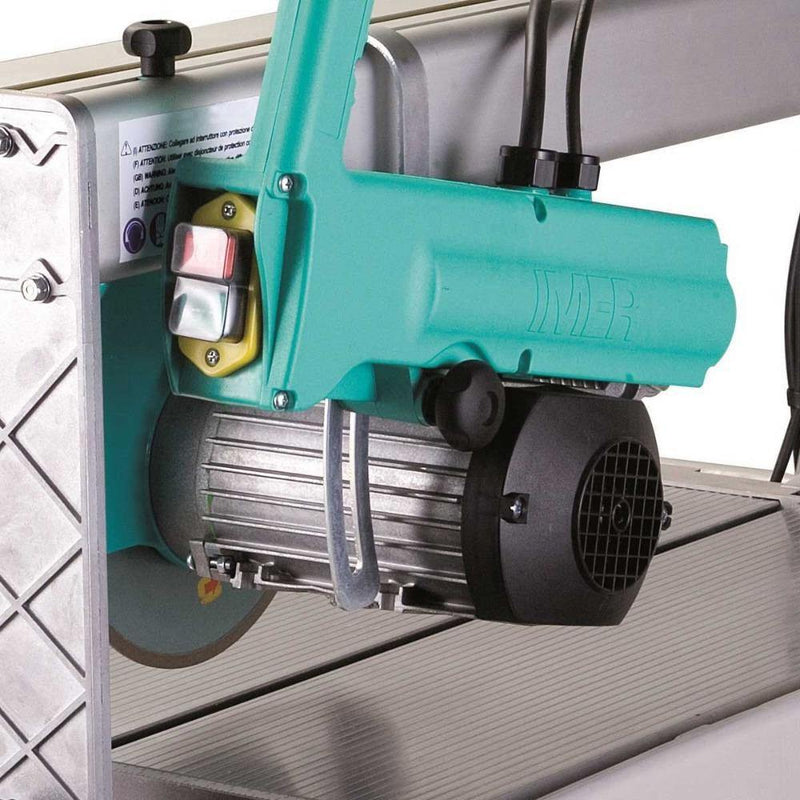

Experience Seamless Cutting with the COMBI 250VA Tile Saw

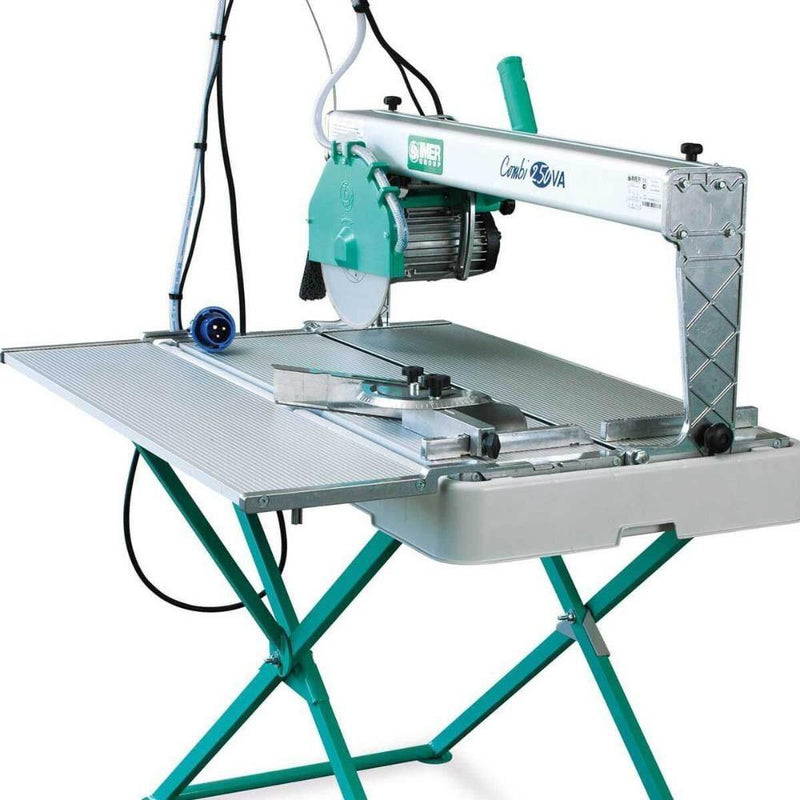

Discover the epitome of precision with the IMER COMBI 250VA Rail Saw. Engineered for professionals, this lightweight tool offers unparalleled plunge cutting with its unique adjustable cutting head. Its aluminum travel bar ensures every cut is accurate and smooth, while maintenance remains as simple as a spray and wipe. Paired with powerful torque and versatile cutting features, it’s an essential addition to every craftsman's toolkit.

Make the IMER difference part of your craft. Order today!

Features

Efficient Delivery: Free shipping directly from IMER USA.

Power-Driven Performance: 1.75 hp motor with a blade speed of 2800 Rpm offers high torque at low Rpm for fast, chip-free cuts.

Versatile Cutting Depth: Max depth of 2-1/2", and 1-1/4" for 90/45-degree cuts.

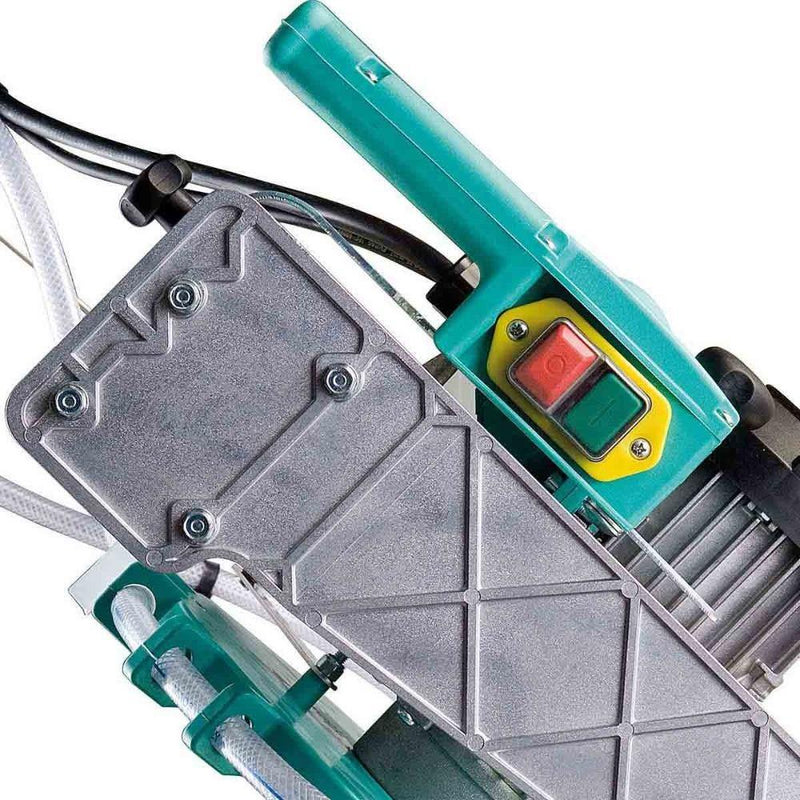

Effortless Angling: Easily achieve 45-degree miter cuts by tilting the cutting head.

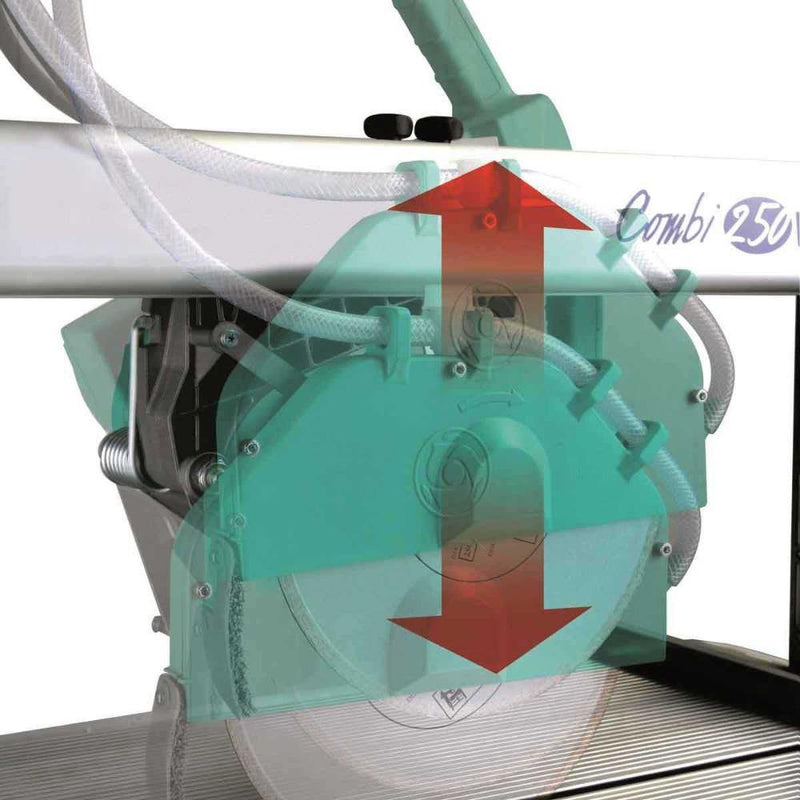

Enhanced Usability: Adjustable cutting head for swift plunge and L cuts.

Sturdy & Lightweight: Featherlight stand and side table, offering stability and strength.

Durable & Lightweight: Cast aluminum construction results in a sturdy 72 lb saw.

Precision Assured: The newly designed cast aluminum protractor guarantees accurate rip guiding.

What's In The Box

Imer Combi 250 VA Wet Tile Saw

Tile Saw Stand

Side Table Extension

10 in Diamond Blade

Water Pump

Rip Guide

Protractor Guide

Spare Parts

Wrenches

Operator's manual

Imer CombiCut 250VA Tile Saw Specifications
Power	Direct Drive - 1-3/4 hp (15 amps)
Voltage	110V
Length of Cut	28 in (31 in w/ plunge)
Diagonal Cut	22 in
Arbor	5/8 in
Blade Capacity	10 in
Depth of Cut	2-1/2 in
Weight	72 lbs
Dimensions	40 in x 22 in x 18 in
