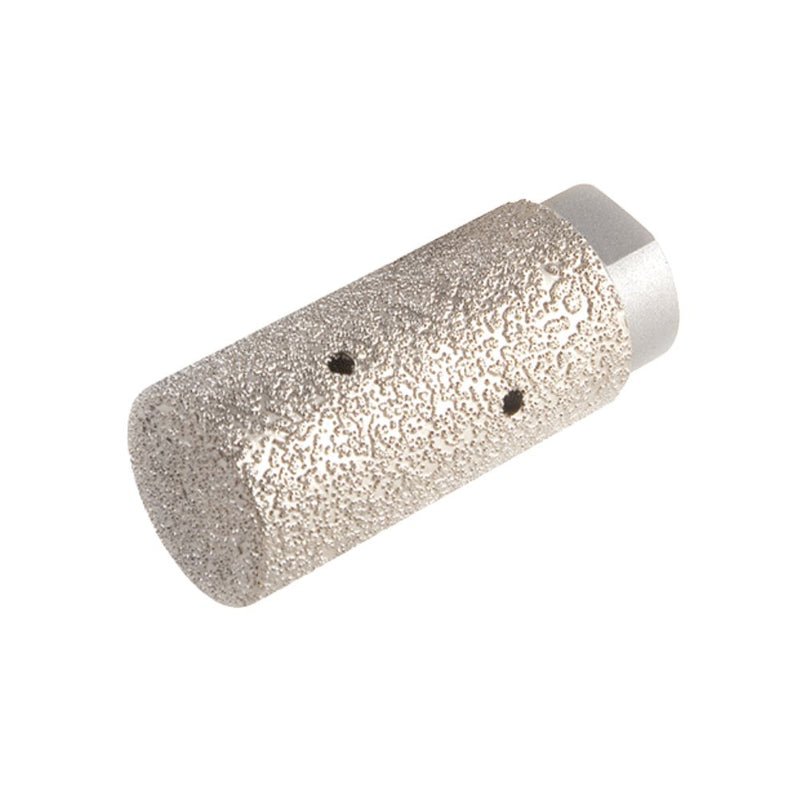

Helix vacuum brazed cylindrical drum 1-2 x 2 inch #140

Helix 140 Grit Vacuum Brazed Grinding Drum 1/2″ × 2″

SKU ZT12VB140
by Helix
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00

Helix Vacuum Brazed Cylindrical Grinding Drum — 1/2″ × 2″, #140 Grit (Wet/Dry)

Shape tight inside radii, sink cutouts, and edges fast. This vacuum brazed #140 cylindrical drum (1/2″ × 2″) delivers aggressive, controlled stock removal on granite, engineered stone, porcelain/UCS, marble, and glass—wet or dry—with a safe max speed of 6,500 RPM.

Features & Benefits

  • Vacuum Brazed Diamonds — Single-layer, high-exposure coating cuts immediately on contact.

  • Tight-Radius Control — 1/2″ diameter reaches small curves other tools can’t.

  • #140 Medium-Coarse Grit — Fast shaping with a clean, uniform scratch pattern.

  • 2″ Working Length — True cylindrical cut for deeper profiles and consistent contact.

  • Wet/Dry Versatility — Run wet for longest life; dry for quick touch-ups.

  • Balanced Core — Reduced chatter and edge blow-out on brittle porcelain.

Specification Detail
Model / SKU ZT12VB140
Form Factor Cylindrical grinding drum
Size 1/2″ diameter × 2″ length
Grit #140 (medium-coarse)
Max RPM 6,500
Use Wet or Dry
Recommended Materials Granite, engineered stone, porcelain/UCS, marble, glass
Mount / Interface Cylindrical drum (use with the appropriate mandrel/holder for your tool)
More Details

Helix’s vacuum brazed construction bonds a single diamond layer directly to the drum, exposing more diamond per square inch than plated alternatives. The result is rapid removal with cooler grinding, ideal for cleaning up saw marks, tuning sink openings, and sculpting inside corners on dense, high-silica materials.

At #140 grit, the drum strikes the right balance between speed and surface quality—aggressive enough to shape, refined enough to transition to finer abrasives quickly. Use with water to extend tool life and control dust, or make short, light dry passes where water isn’t practical. Always operate on a variable-speed tool at or below 6,500 RPM.
