wedi Linear Drain Frame
wedi Linear Drain Frame
wedi Linear Drain Frame

wedi Linear Drain Frame

SKU
by wedi
$179.84 - $295.71
$179.84
$179.84 - $295.71
$179.84
Choose a Length
Choose a Finish

Wedi Fundo Linear Drain Cover Frame

Add a sleek, professional finish to your Wedi Riolito or Fundo linear drain with the Wedi Fundo Linear Drain Cover Frame. These stainless steel channel frames cleanly separate tile edges from the drain cover, providing both structural protection and visual polish in curbless or walk-in showers. Pre-assembled and height-adjustable, each frame is made to pair perfectly with Wedi’s linear drain cover plates.

Features & Benefits

  • Clean Edge Transition
    Conceals open tile edges around linear drains for a polished, high-end finish—especially valuable in open-concept wet room installations.
  • Brushed Stainless Steel Build
    Crafted from premium brushed stainless steel for long-term resistance to corrosion, cleaning agents, and water exposure.
  • Adjusts to Fit Tile Thickness
    Accommodates tile thicknesses from 6 mm to 20 mm (1/4" to 3/4") for seamless height alignment with drain covers.
  • Perfectly Sized for Wedi Drain Covers
    Available in five lengths to match all Wedi Riolito and Fundo drain cover plates: 27", 31", 35", and 43".
  • Quick Installation
    Arrives pre-assembled and installs easily—ideal for both new builds and remodels using the Wedi Shower System.
  • Part of the 100% Wedi System
    Designed to integrate with Wedi linear bases, channel covers, and waterproofing components.

Available Sizes

Frame Length Actual Dimensions (in) Compatible Drain Cover
27" 28" x 2 9/16" x 1/4" 27 3/16" drain cover
31" 32" x 2 9/16" x 1/4" 31 7/64" drain cover
35" 35 29/32" x 2 9/16" x 1/4" 35 3/64" drain cover
43" 43 25/32" x 2 9/16" x 1/4" 42 29/32" drain cover

Note: Drain cover plates sold separately. Compatible with Riolito and Riolito neo systems.

More Details

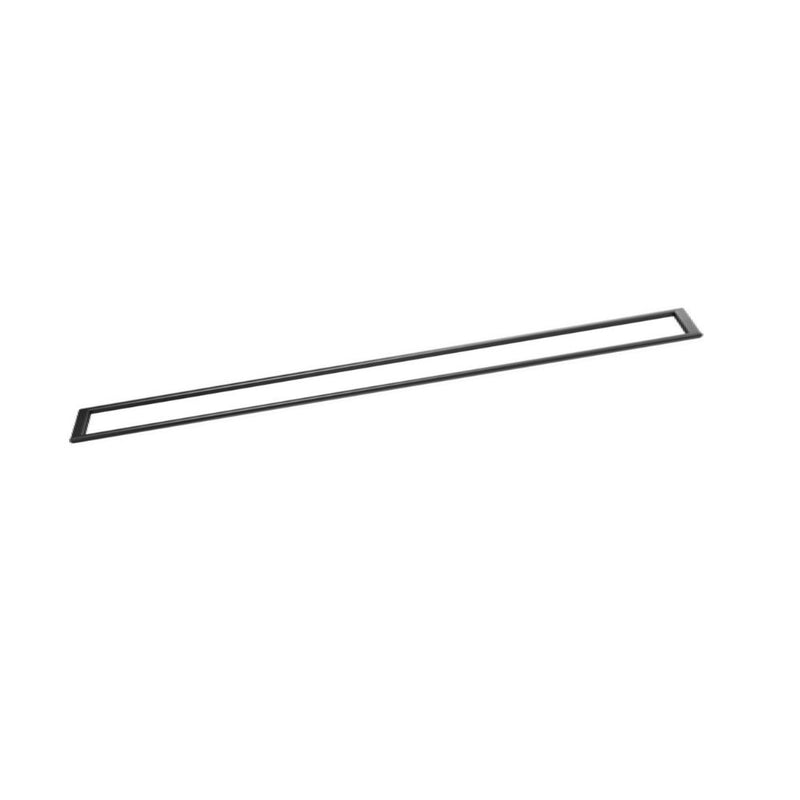

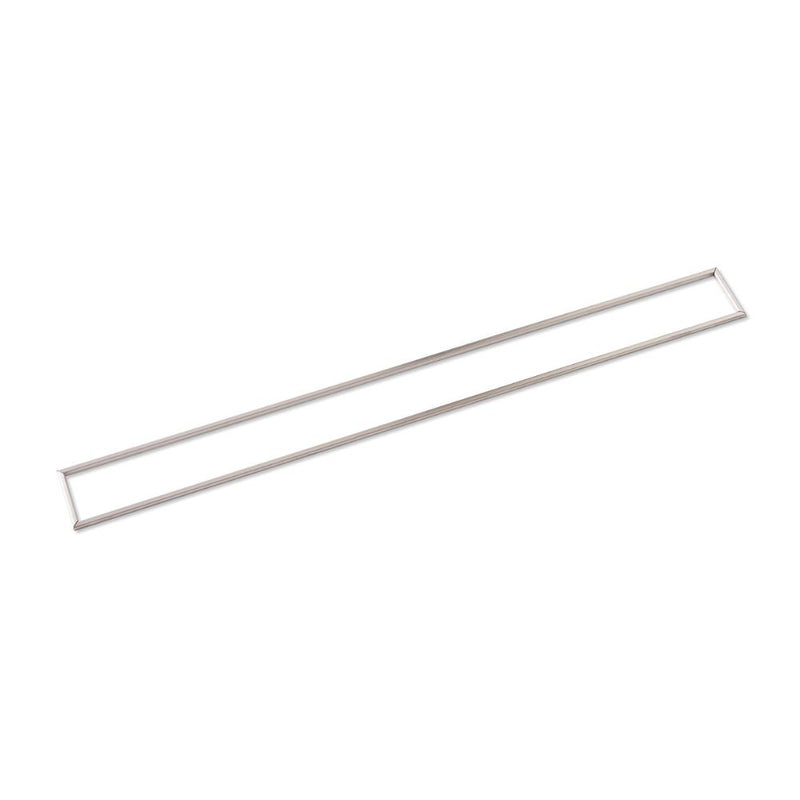

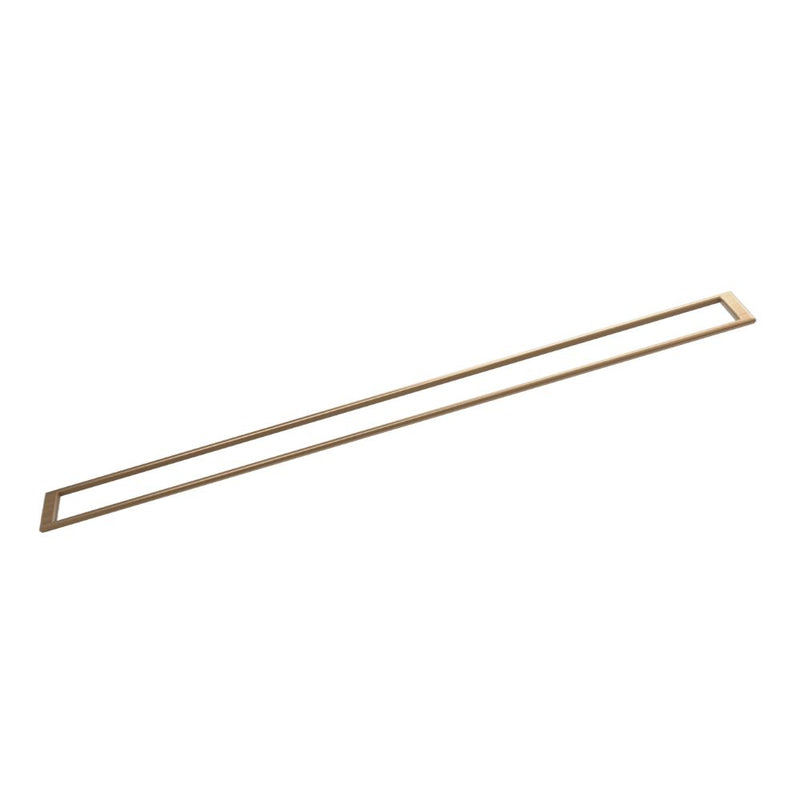

The wedi Fundo Linear Drain Cover Frame offers a clean, finished look for your shower’s linear drainage area, providing both style and function. Made from high-grade stainless steel and offered in brushed stainless, brushed brass, and matte black finishes, each frame is height-adjustable and designed for precision alignment with your tile surface. This frame protects tile edges and provides a seamless transition between your tiled shower floor and wedi’s linear drain covers.

Whether you're installing a Wedi Riolito neo, Riofino, or Fundo linear drain system, this pre-assembled frame installs quickly and securely. The open channel design accommodates tile thicknesses from 6 mm to 20 mm, making it compatible with mosaic, ceramic, porcelain, or natural stone tile floors. Combined with Wedi’s channel drain covers, these frames complete the look of any curbless or barrier-free shower, making them ideal for both high-end residential and commercial wet room applications.

The finish options allow you to match your overall bathroom aesthetic, whether you want the timeless elegance of brushed stainless, the bold luxury of matte black, or the warm accents of brushed brass. It's the perfect upgrade for any wedi shower system that uses a linear drain.
