What factors should I consider when choosing a trowel size for tile installation?

One of the most crucial aspects of tile installation is choosing the right trowel size. Various factors such as the shapes and sizes of the trowels, the types of notches, and the tile size and placement should be considered.

What is the importance of the tile placement in selecting the trowel size?

Tile placement significantly affects the trowel size selection. For instance, if you're laying tiles on the floor, the mortar bed needs to be thicker to withstand foot traffic. Likewise, if the surface you're laying tiles on slopes a bit, you would need to back-butter or spread out your mud-bed slightly thicker.

What is the general guide to the size of trowel based on the tile size and placement?

Here is a general guide to the size of trowel to use based on the tile size and placement: 3/16″ to 1/4″ V-notch: Mosaics tiles up to 4-1/2″ glazed wall tile. 1/4″ x 1/4″ U or Square notch: 4″ to 8″ tile. 1/4″ x 3/8″ U or Square notch: 8″ to 16″ tiles. 1/2″ x 1/2″ U or Square notch: 16″ and larger.

What are the different types of notches, and how do they affect tile installation?

There are three primary types of notches - V-shape, U-shape, and square-notch. V-shape spreads less thinset than the same-sized square-notch, while the U-notch spreads out more than the v-notch but less than the square-notch. The major difference is how the thinset lies, affecting tile adhesion. Choosing the right trowel size is crucial for successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

What should I keep in mind for a successful tile installation?

To really understand which trowel type to use, and how to properly use it, watch the video provided. Keep in mind that choosing the right trowel size is crucial for a successful tile installation. The trowel size should match the tile size, and the type of notch you use will affect the concentration level of thinset. Also, consider the placement of the tiles and the surface you'll be laying them on to determine the appropriate trowel size.

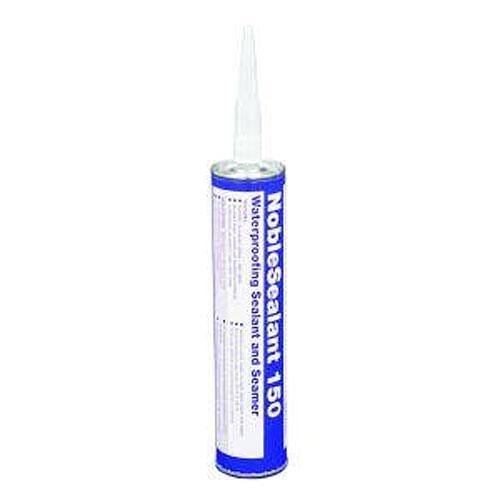

Noble Sealant 150 Waterproofing Sealant and Seamer

SKU SH320

by Noble

$29.50 - $29.50

$29.50

$29.50 - $29.50

$29.50

NobleSealant 150 Waterproofing And Seamer

Used as a sealant around drains for penetrations in membranes and seaming one sheet to another.

Features

Waterproofing Sealant for seaming and sealing sheets of Chloraloy and NobleSeal
10.3 oz. Tube provides 75 linear feet [two 1/8" beads]
Synthetic co-polymer rubber-high solids
Excellent ozone, sunlight and weathering resistance
Adheres to wood, metal, concrete, glass, plastic and rubber
Broad temperature use range (-65F to 122F)
Three-year shelf life at room temperature if unopened

NobleSealant 150 Applications

Surface must be clean, dry and free of dust, oil and grease

Use a heavy duty commercial caulking gun

To seam (join) sheets

To seal all penetration of the membrane

To seal between the waterproof membrane and clamping ring drain

As a terminal edge and flashing sealant

To adhere outside corners to the waterproofing membrane and bond the corner(s) to wall

NobeSealant 150 has excellent adhesive properties and may also be used to spot bond the sheet to vertical or horizontal surfaces

Noble Sealant 150 Waterproofing Sealant and Seamer

NobleSealant 150 Waterproofing And Seamer

Features

NobleSealant 150 Applications
