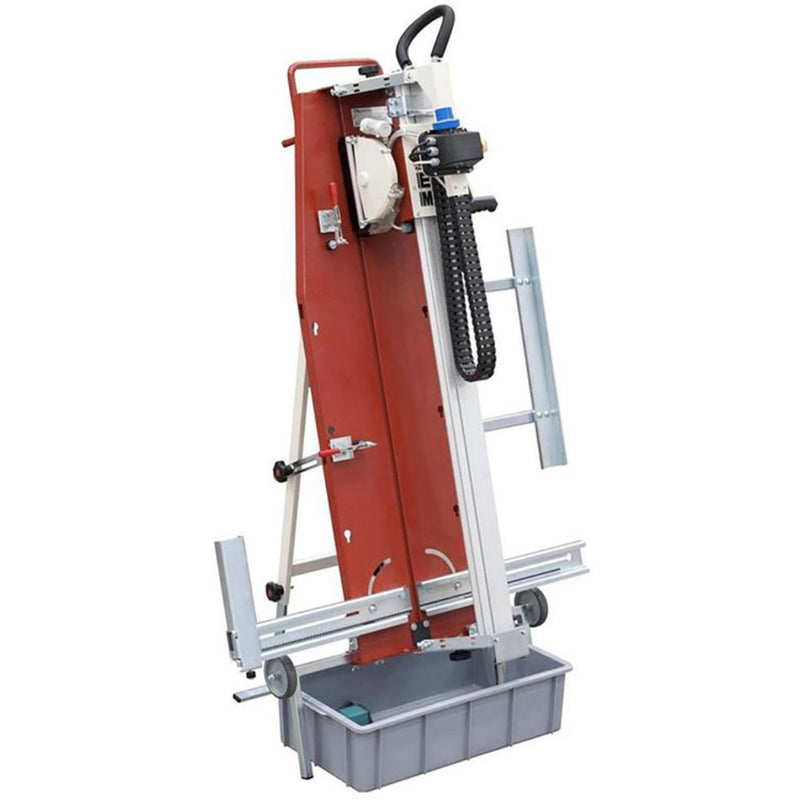

Front view of Raimondi LEM 105 Vertical Wet Saw on white background

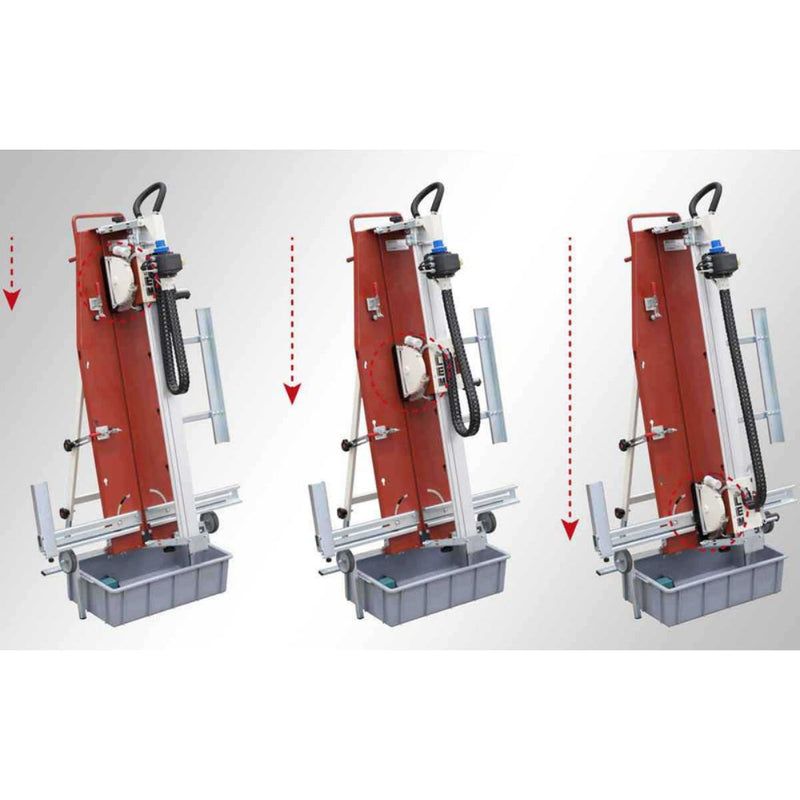

Image collage showing Raimondi LEM 105 cutting head in three positions:

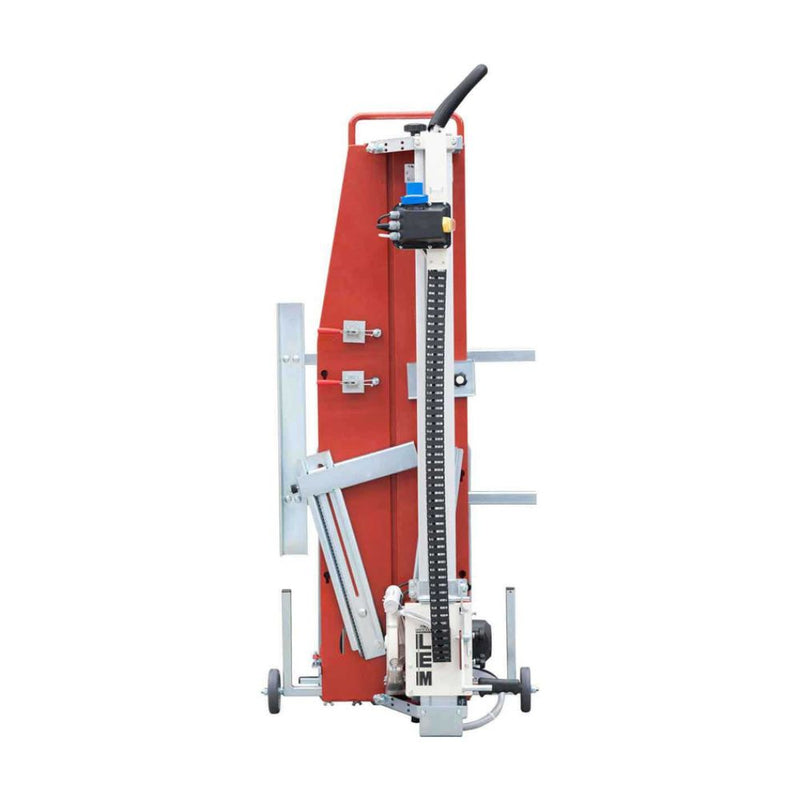

Top-down view of Raimondi LEM 105 saw showing tile support arms and blade track

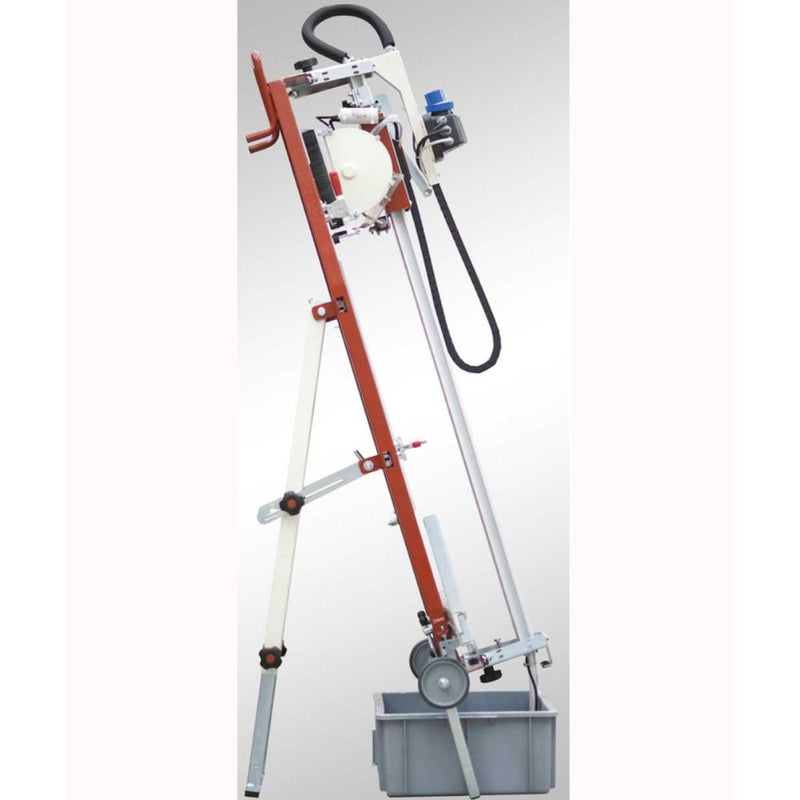

Side profile of Raimondi LEM 105 wet tile saw showing water tank and wheels
Front view of Raimondi LEM 105 Vertical Wet Saw on white background
Image collage showing Raimondi LEM 105 cutting head in three positions:
Top-down view of Raimondi LEM 105 saw showing tile support arms and blade track
Side profile of Raimondi LEM 105 wet tile saw showing water tank and wheels

Raimondi Vertical Cut Wet Saw LEM105 - 110 Volt

SKU WS105LEM
by Raimondi
$3,900.00 - $3,900.00
$3,900.00
$3,900.00 - $3,900.00
$3,900.00

Freight Delivery Info

This item qualifies for free freight shipping.

Delivery is available to commercial addresses with loading docks or forklifts.

Residential deliveries may incur additional charges.

Click here to view our freight policies

Factory Direct Shipping

Click Here to Learn More

Raimondi LEM 105 Vertical Wet Saw – 41-3/8" Rip Cut Capacity

The Raimondi LEM 105 Vertical Wet Saw is engineered in Italy to deliver superior performance and precise cuts on large-format tiles and dense materials. Perfect for cutting porcelain panels, natural stones (marble, granite), ceramic, single and double-fired tiles, and even ultra-thin porcelain (3–5mm), this 110V vertical saw offers power, control, and efficiency in a compact footprint.

Key Features & Benefits

  • Large Format Ready: Cuts tiles up to 41-3/8" in length with up to 1-3/16" depth and as shallow as 1/8".
  • Automatic Gravity Feed: Adjustable feed system for smooth, consistent vertical cuts.
  • Precision Beveling: Motor tilts from 0° to 45° for easy mitered cuts.
  • Tile Lock Devices: Magnetic attachments keep tiles secure during out-of-plumb cuts.
  • External 14 Gal Water Tank: Easy-to-clean polypropylene tank with heavy-duty pump for efficient blade cooling.
  • Compact Transport Mode: Saw folds for easier transport and storage.

What's Included

  • Raimondi WS105LEM 8" Vertical Tile Saw
  • 8" Turbo Rim Diamond Blade for Porcelain
  • Two Magnetic Tile Lock Devices
  • Dressing Stone
  • Wrench/Key Kit
  • Removable 14 Gal Water Basin with Jet Pump
  • Operator & Maintenance Manual

Technical Specifications

Feature Specification
Max Rip Cut 41-3/8" (105 cm)
Max Cut Depth 1-3/16" (40 mm)
Min Cut Depth 1/8" (3 mm)
Blade Size 8" (200 mm)
Arbor Size 5/8"
Motor 1.2 HP, 110V, 2800 RPM, Direct Drive
Water Tank 14 Gal (56 liters), External Polypropylene
Weight 135 lbs
Dimensions (Setup) Approx. 50" x 27" x 31"

Frequently Asked Questions

  • Q: What materials can the LEM 105 cut?
    A: It is designed to cut porcelain, ceramic, granite, marble, single and double-fired tiles, and thin porcelain panels.
  • Q: Does it support bevel cuts?
    A: Yes, the motor tilts for 0° to 45° bevel cuts.
  • Q: Is the water tank easy to clean?
    A: Yes, the external 14-gallon polypropylene tank is easy to remove and clean.
  • Q: Can I transport it easily?
    A: The LEM 105 folds down for compact transport with built-in wheels.
More Details

The Raimondi LEM 105 Vertical Wet Tile Saw is the ultimate cutting solution for tile professionals working with large-format tiles, porcelain slabs, and natural stone. Precision-engineered in Italy, this heavy-duty vertical saw delivers exceptional straight and bevel cuts with maximum control and accuracy. Powered by a 1.2 HP direct-drive motor running at 2,800 RPM, the LEM 105 handles marble, granite, ceramic, and low-thickness porcelain tiles with ease. With a generous 41-3/8" rip cut capacity, 1-3/16" maximum cutting depth, and adjustable gravity feed, it’s designed to deliver clean, chip-free cuts even on delicate or hard materials. Whether you're fabricating tile for showers, backsplashes, flooring, or wall cladding, the LEM 105 offers professional-grade reliability and cutting performance.

This vertical rail saw for porcelain and natural stone features a tilting motor head for precise 0° to 45° bevel cuts, magnetic tile locking guides for out-of-plumb adjustments, and a removable 14-gallon water tank for clean, continuous cooling. Its rust-proof galvanized steel body and compact transport footprint make it ideal for jobsite mobility without sacrificing durability. The LEM 105 includes a turbo rim diamond blade, tile locking devices, dressing stone, and pump system — everything you need for high-volume tile production. For contractors and installers needing accurate, high-speed vertical tile cutting, the Raimondi LEM 105 wet saw stands out as the preferred choice for demanding tile installation projects.

What's Included

  • Raimondi LEM Series Vertical Cutting Saw
  • 8 in Turbo Rim Diamond Blade
  • 2 Tile Lock Devices
  • Dressing Stone
  • Water Basin with Pump
  • Wrench Kit
  • Operator's manual
